Garland  |  SKU: HEEGM48CL

Garland HEEGM48CL Gas Charbroilers

$8,728.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts manual Owner's manual Brochure
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

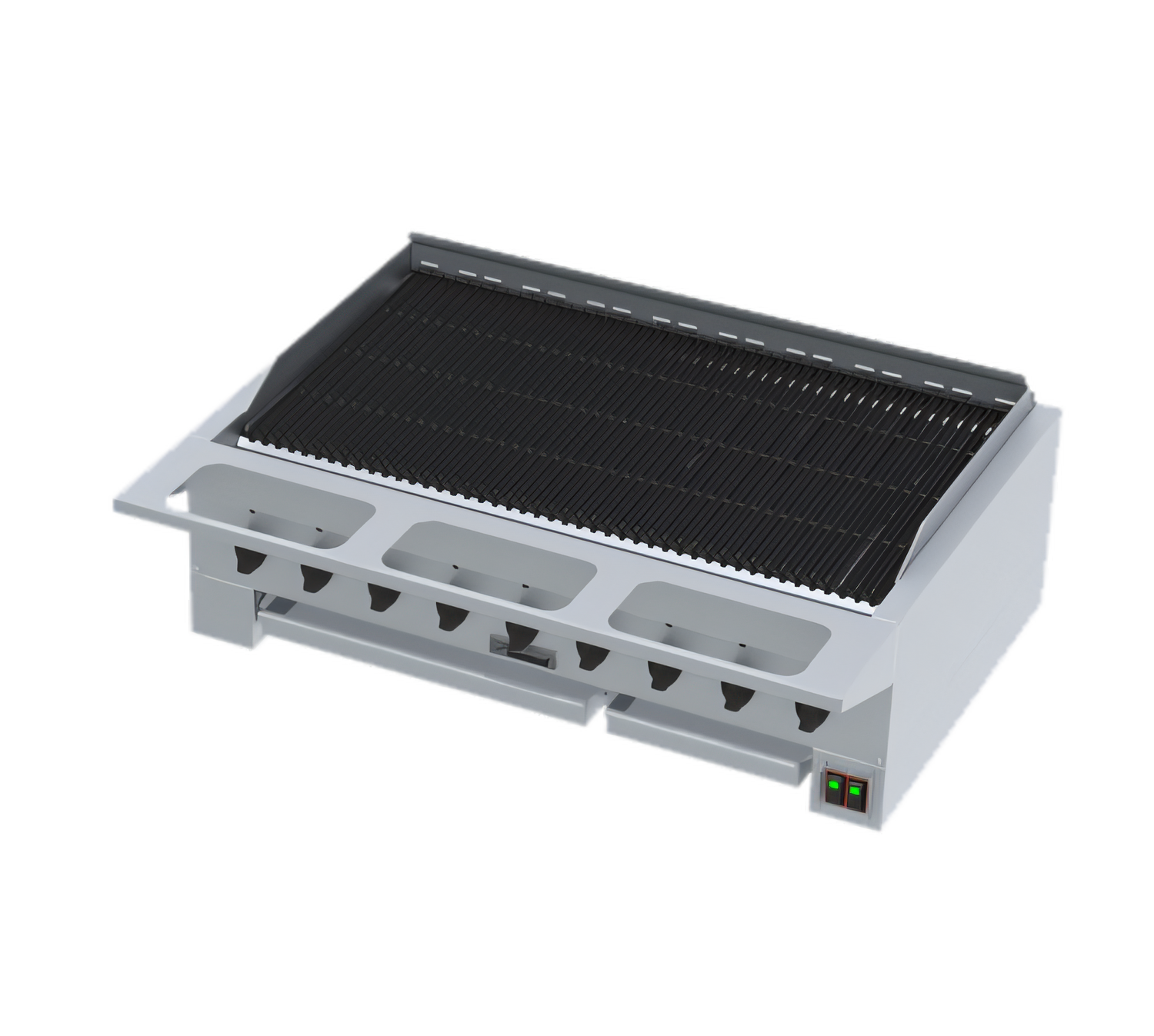

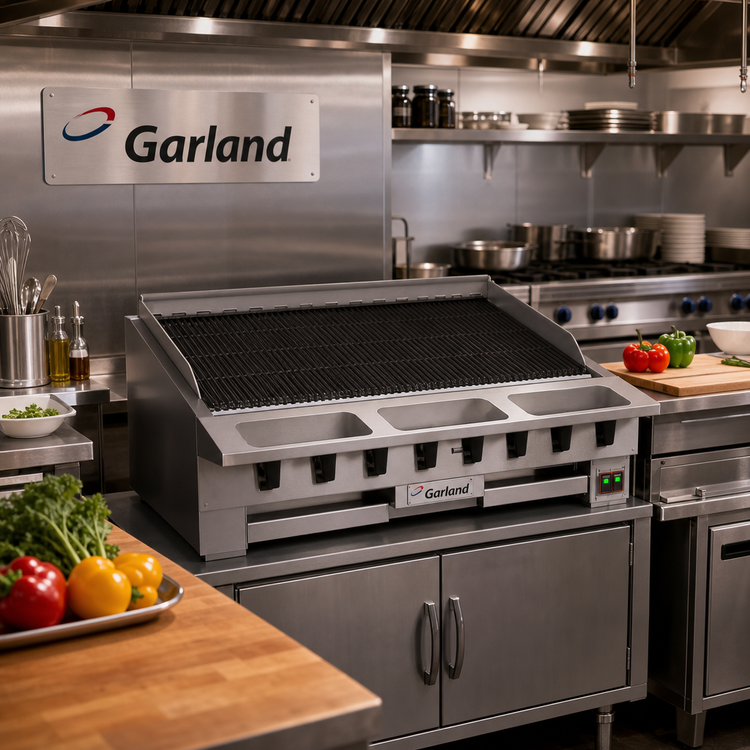

Garland HEEGM-48CL High-Efficiency 48" Radiant Gas Broiler

130,500 BTU • 9 Cast-Iron Burners • Electronic Spark Ignition

Engineered for performance-driven kitchens, the Garland HEEGM-48CL delivers even, controllable heat across a full 48-inch cooking surface while slashing energy waste with pilot-free electronic ignition. Heavy-duty construction, zone-friendly controls and lightning-fast clean-down make it the go-to broiler for steaks, seafood, fajitas and more.

Key Features

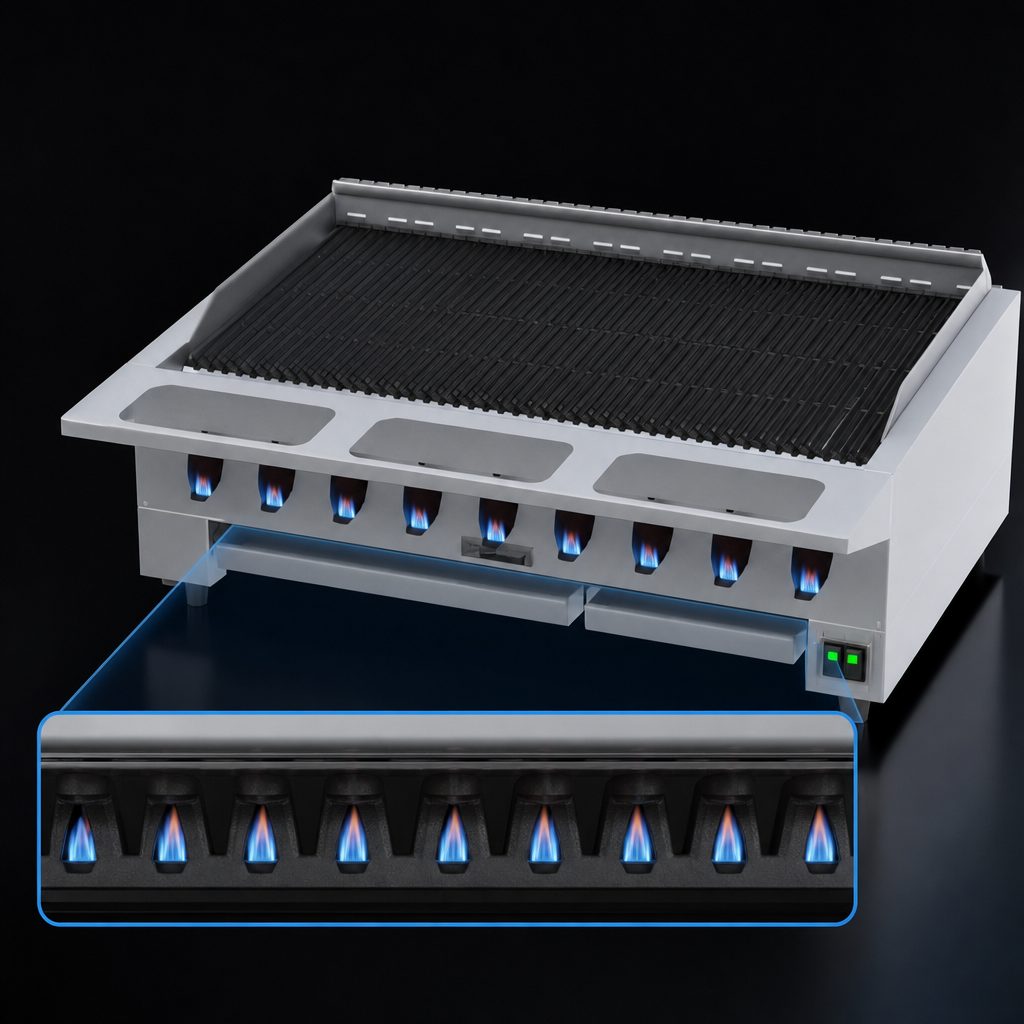

  • Nine 14,500 BTU cast-iron burners (130,500 BTU total) with individual cast-iron radiants.
  • Continuous electric spark ignition—no standing pilots for safer, greener operation.
  • Reversible cast-iron grates: wide branding edge for steaks, fine edge for delicate items.
  • Front rail with removable 1/3-size pan cut-outs keeps seasonings & sauces within reach (pans not included).
  • Large-capacity, slide-out drip/water pans reduce flare-ups and speed nightly cleanup.
  • Master power “Quick-Switch” instantly ignites or shuts down the entire broiler.
  • Fully protected burner controls and rugged stainless steel exterior built for the toughest line.
  • Supplied with 3/4" gas regulator, 9 ft power cord & NEMA 5-15P plug—ready to install.
  • NSF & CSA certified for commercial kitchens.

Benefits You’ll Notice

  • Even heat distribution across the grate—no more shuffling product to find hot spots.
  • Zoned high/low valves let you tailor temperatures for mixed-menu cooking.
  • Zero rear or side clearance required to non-combustibles, freeing valuable cook-line space.
  • Modular grates and dual drip pans come out in seconds—less downtime, lower labor.

Specifications

Model HEEGM-48CL
Overall Dimensions (W × D × H) 48" × 38 1/16" × 18 1/16" (1219 × 967 × 458 mm)
Broiling Grid (W × D) 43 7/8" × 47 1/2" (1115 × 1207 mm) nominal
Burners / Output 9 cast-iron burners @ 14,500 BTU each (Natural Gas)
Gas Connection 3/4" NPT (regulator included) • Manifold pressure 4.5" w.c. Natural Gas
Electrical 120 V / 50-60 Hz / 0.22 A • 9 ft cord • NEMA 5-15P
Controls Individual hi/lo valves • Dual master power switches
Construction Stainless steel body, cast-iron grates & radiants, dual removable grease trays
Certifications NSF • CSA

What’s in the Box

  • HEEGM-48CL broiler with pre-installed 3/4" gas regulator
  • Combination grate scraper/cleaning brush
  • Operator’s manual
Commercial use only: Garland broilers are designed and certified solely for professional food-service installations and are not approved for residential use.

Features & Specs

Manufacturer

Garland

Certifications

NSF, CSA

Height

18.06in

Width

48.0in

Depth

38.06in

Shipping Weight

560.0lbs

Width (side - side) OA

43 - 48"

Heating Source

radiant

Control Type

manual controls

Specifications

Broiler, 3/4" gas regulator, generic version, 48" W x 38-1/16" D x 18-1/16" H, (9) cast iron burners with individual cast iron radiants, cast iron grates, spark ignition, front rail with removable 1/3 size food pan cut-outs, large capacity removable drip pans/water pans, power switch, stainless steel exterior, 130,500 BTU, 9 ft cord & NEMA 5-15P, NSF, CSA
