Garland HEEGM36CL Gas Charbroilers
Description

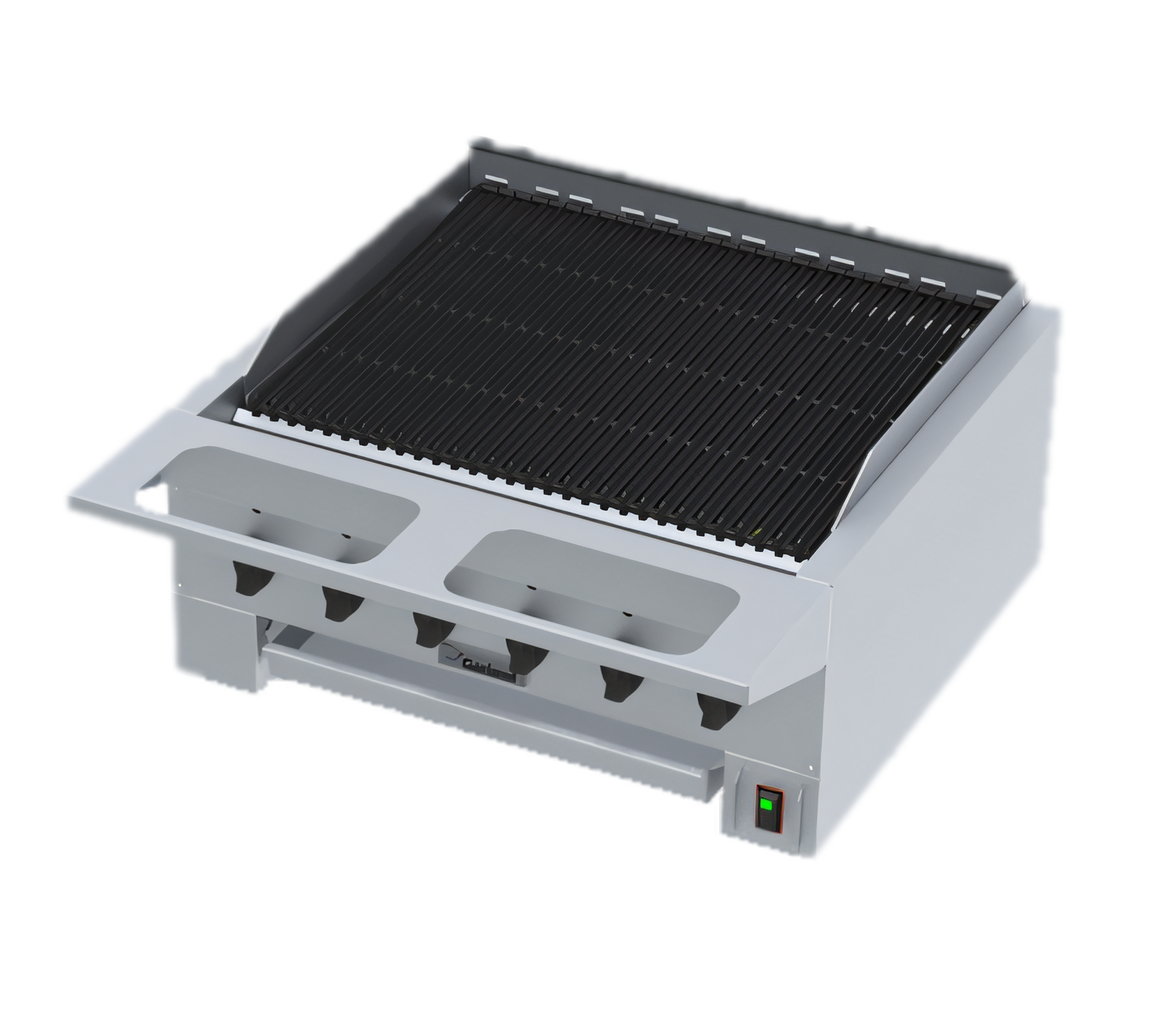

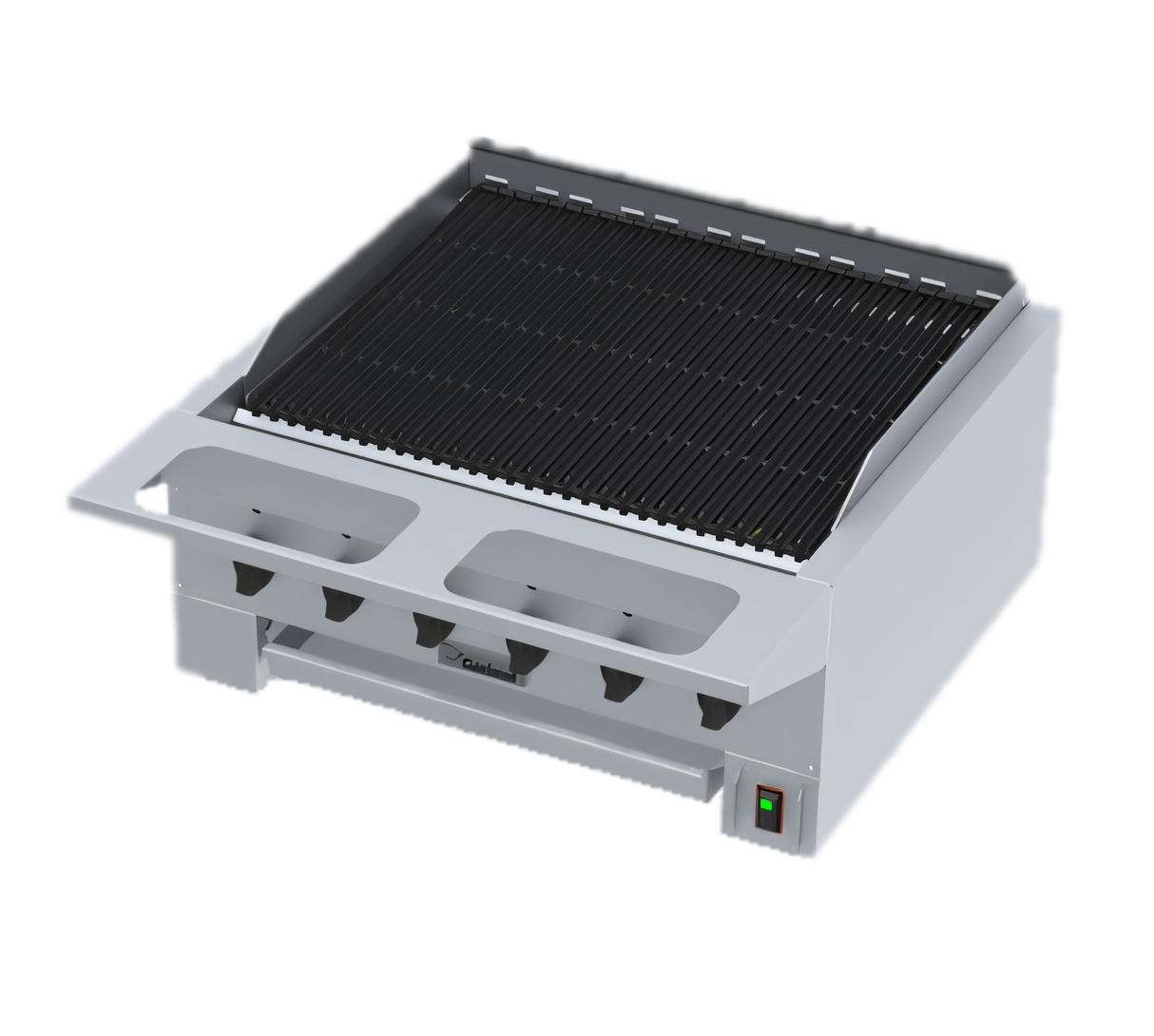

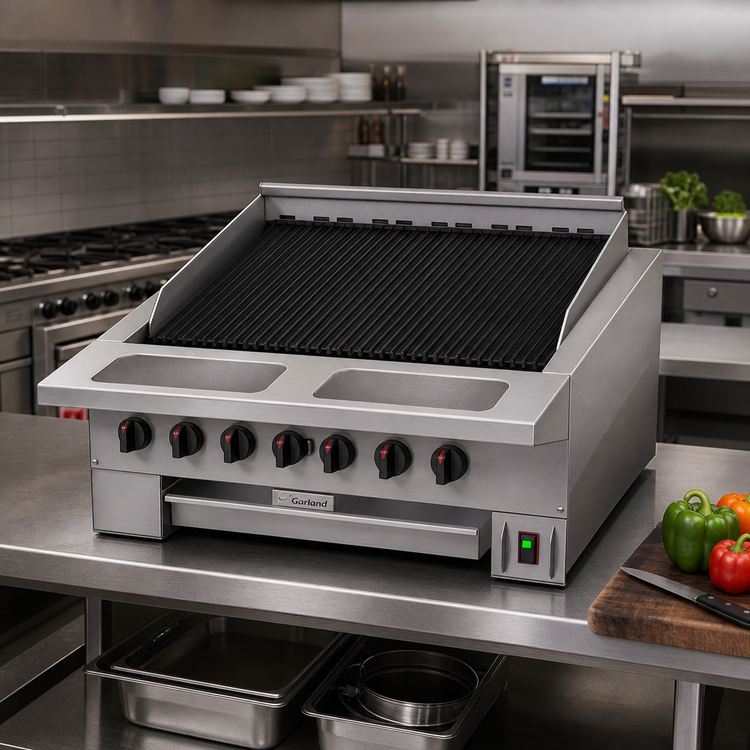

Garland HEEGM-36CL High-Efficiency Radiant Gas Broiler – 34"
6-Burner | 87,000 BTU | Countertop | NSF & CSA CertifiedBoost throughput and consistency on every shift with Garland’s 34 inch HEEGM-36CL. Purpose-built for busy commercial kitchens, this countertop broiler couples energy-saving spark ignition with rugged cast-iron components to deliver intense, even heat—no hot or cold spots, no constant babysitting.
Why You’ll Love It

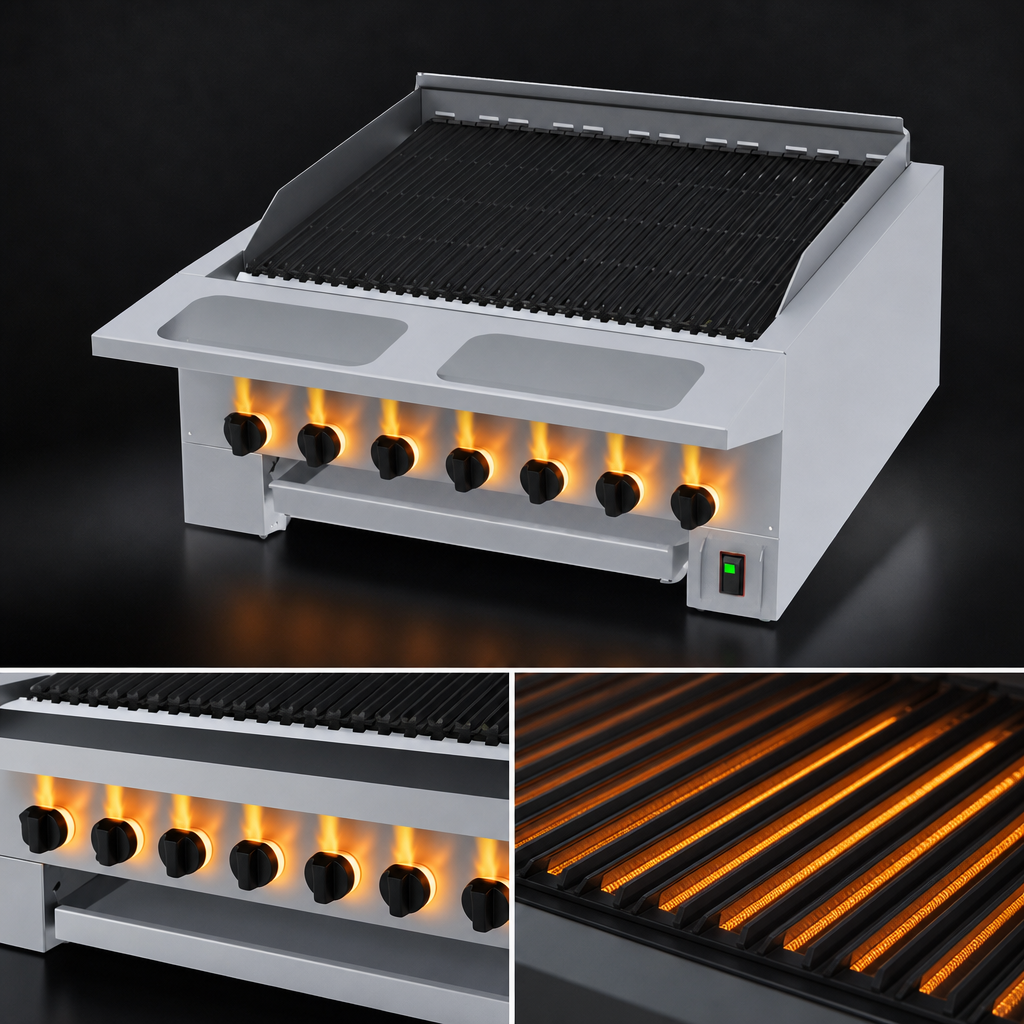

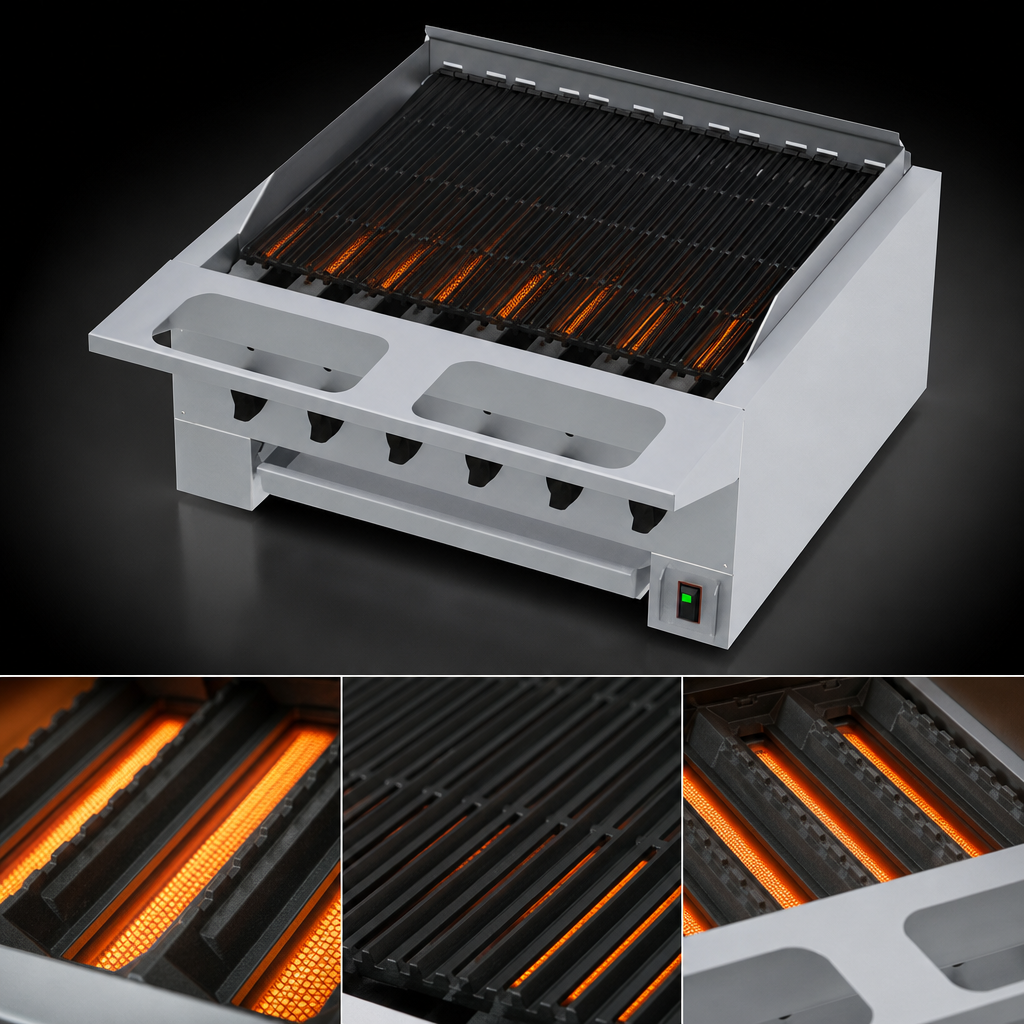

- 87,000 BTU total output from six 14,500 BTU cast-iron burners with individual cast-iron radiants
- Continuous electric spark ignition & master Quick-Switch power control—no standing pilots, less energy waste
- Heavy-duty reversible cast-iron grates (wide or fine branding side)
- Stainless steel front rail pre-cut for ⅓-size food pans (pans not included) for fast basting & seasoning
- Large-capacity, slide-out drip/water pans keep flare-ups down and clean-ups fast
- Hi/Lo valve for every burner lets you zone the cook surface to match your menu
- Durable stainless steel exterior stands up to heavy commercial use
- Factory-supplied ¾" gas regulator & NPT connection for easy installation
- 9 ft (2.7 m) cord with NEMA 5-15P plug – only 0.10 A @ 120 V
- Full NSF & CSA approvals for open-kitchen peace of mind
At-a-Glance Specs
| Model | HEEGM-36CL |
|---|---|
| Cooking surface (W × D) | 29 7⁄8" × 33 1⁄2" (706 × 851 mm) |
| Overall dimensions (W × D × H) | 34" × 38 1⁄16" × 18 1⁄16" (864 × 967 × 458 mm) |
| Total BTU | 87,000 BTU/hr (natural gas) |
| Gas connection | ¾" NPT (regulator included) • 4.5" W.C. manifold pressure |
| Electrical | 120 V, 50/60 Hz, 0.10 A, 9 ft cord, NEMA 5-15P |
| Burner controls | Individual Hi/Lo valves & single master power switch |
| Grease management | Removable drip/water pans & modular grate sections |
| Certifications | NSF, CSA – Commercial use only |
| Shipping weight | Approx. 420 lb (191 kg) |
Optional Accessories
- Fajita pan rack holder (replaces two grate sections)
- 2 1⁄8" stub front rail (solid, no pan cut-outs)
- Stainless steel equipment stand (with or without casters)
- Replacement scraper-brush combo tool
Ships natural-gas-ready. Conversion kits, pans and accessories sold separately. Specifications are subject to change without notice.
