Garland  |  Signature  |  SKU: GTBG72-NR72-SIGNATURE

Garland GTBG72-NR72-SIGNATURE Signature Gas Charbroilers

$9,846.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Parts manual Brochure Owner's manual Sell sheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

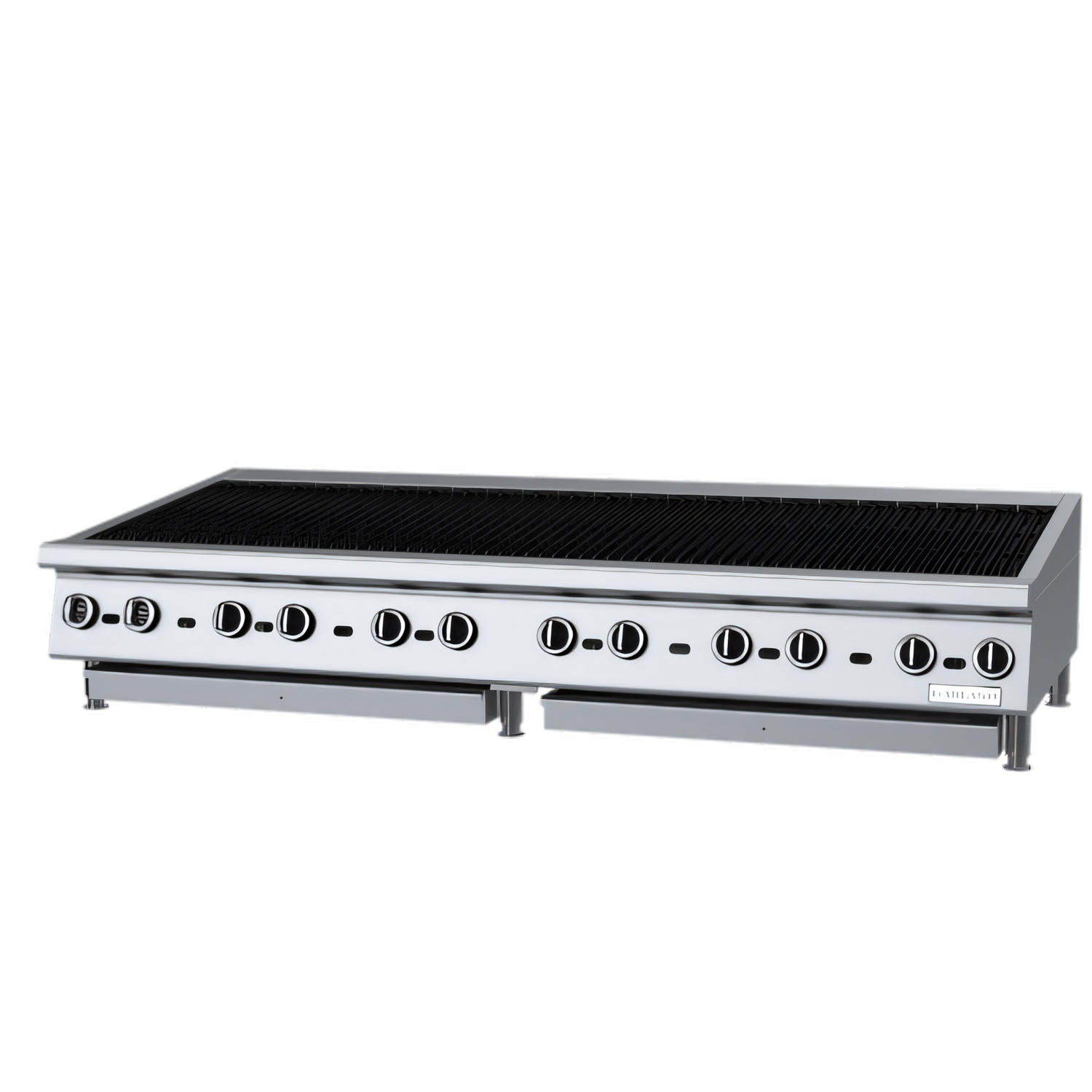

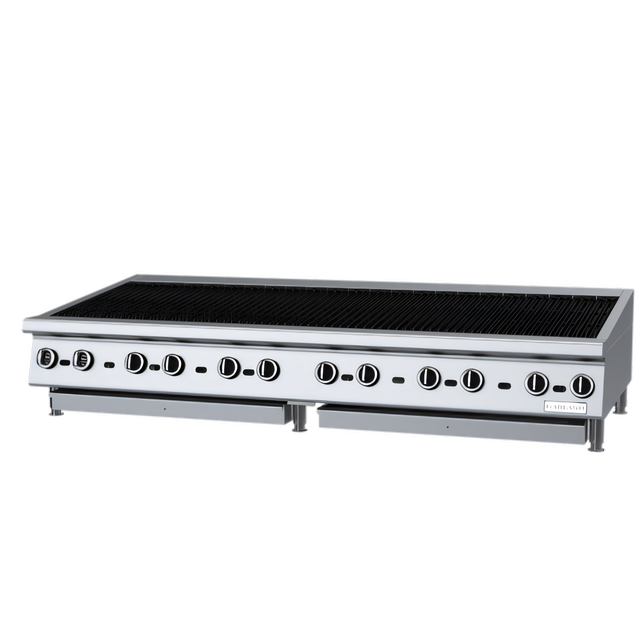

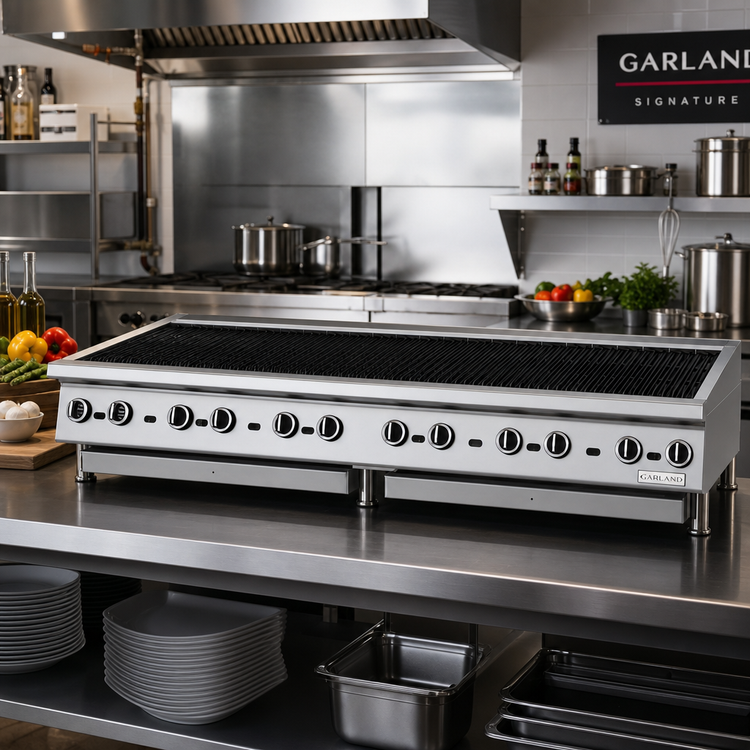

Signature 72" Gas Radiant Charbroiler

Model GTBG72-NR72 · 216,000 BTU · Countertop Heavy-Duty Series

Bring steak-house sear and smoky char to the line with Garland’s largest countertop broiler. The Signature 72" packs floor-model muscle into a space-saving, easy-to-clean design that keeps high-volume kitchens moving.

Power & Performance
  • 12 stainless-steel tube burners at 18,000 BTU each — a total of 216,000 BTU/h.
  • One variable hi/lo valve per burner for precise zone control.
  • Heavy-duty cast-iron radiants concentrate heat for lightning-fast recovery.
  • 21-3/16″ (538 mm) deep broiling grid tackles today’s biggest cuts & pans.

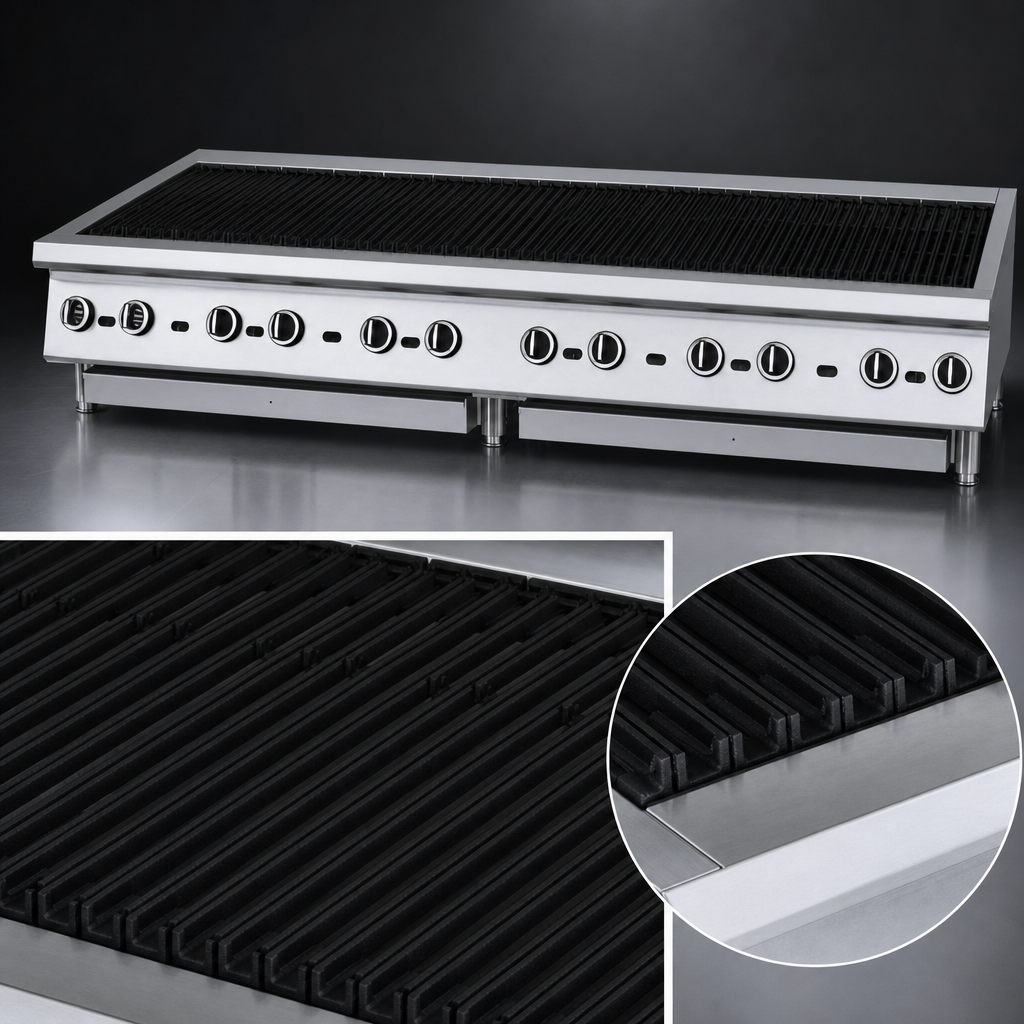

  • Reversible, non-adjustable cast-iron racks (3″ sections) with 1/8″ & 3/16″ brand marks.

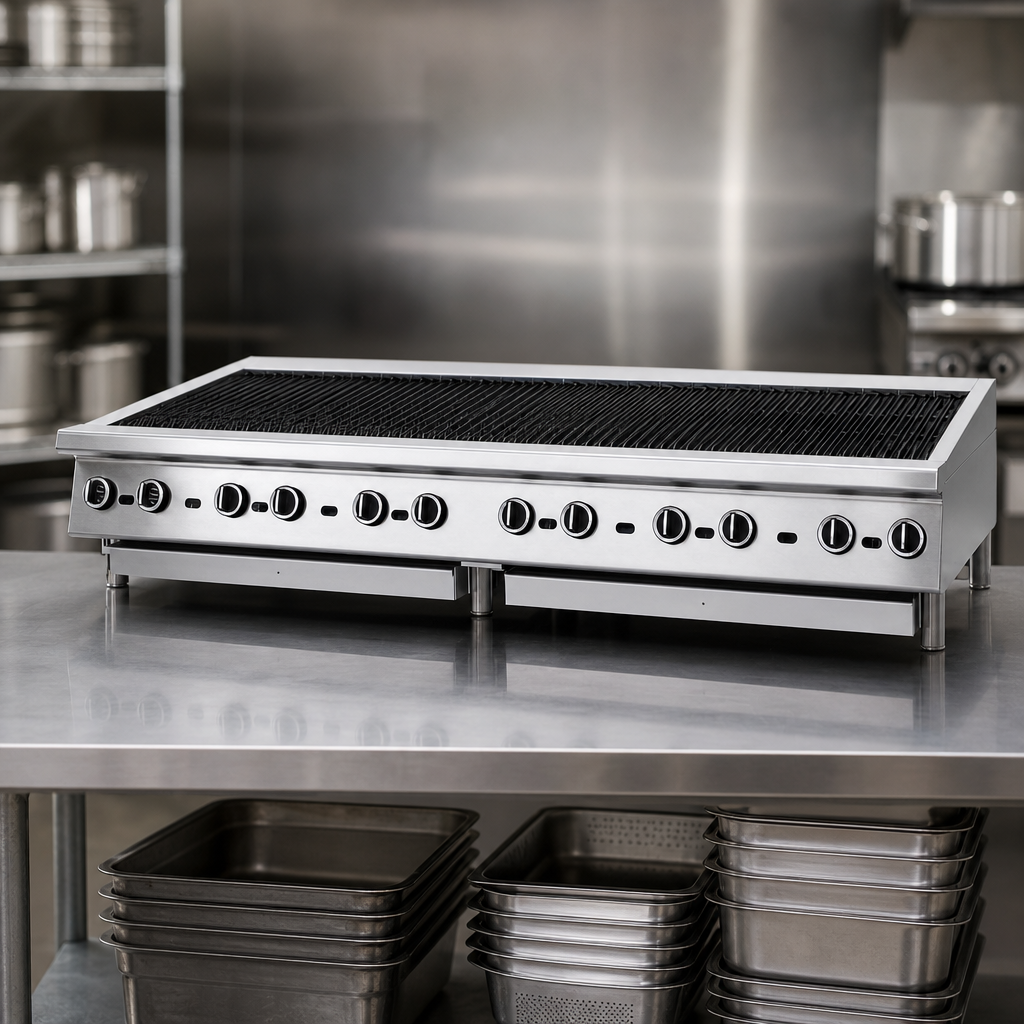

Built to Last
  • All stainless steel front, sides & back with a 3-1/2″ deep front rail.
  • Large, full-width crumb tray slides out for quick clean-up.
  • 4″ adjustable stainless legs stabilize the unit on any counter.
  • 1″ NPT rear gas inlet with “T” manifold simplifies straight-through or flush connections.
  • NSF & CSA certified for safety, sanitation and code compliance.
Technical Specifications
Width 70-7/8″ / 1,800 mm
Depth 32″ / 814 mm
Height (with legs) 13″ / 330 mm
Cooking Grid Area 21-3/16″ deep, full-width cast iron
Burner System 12 × 18,000 BTU stainless tube burners with cast-iron radiants
Total Input 216,000 BTU/h (Natural or Propane)
Controls 12 independent manual hi/lo valves
Gas Connection 1″ NPT rear, factory regulator supplied
Construction Stainless steel exterior; cast-iron grates & radiants
Legs 4″ stainless, adjustable
Certifications NSF, CSA
Shipping Weight ≈ 690 lb / 313 kg

Supply pressure: Natural 7″ WC (17.5 mbar)  |  Propane 11″ WC (27.5 mbar) – Manifold: Natural 4.5″ WC, Propane 10″ WC. 0″ clearance required when installed in non-combustible surroundings.

Important: Garland Signature equipment is engineered for commercial kitchens and is not approved for residential use.

Features & Specs

Manufacturer

Garland

Brand_name

Signature

Certifications

NSF, CSA

Height

13.0in

Width

70.88in

Depth

32.0in

Shipping Weight

690.0lbs

Control Type

manual controls

Width (side - side) OA

67 - 72"

Heating Source

radiant

Specifications

Signature Charbroiler, countertop, gas, 70-7/8" W, heavy-duty, non-adjustable cast iron grates, 21-3/16” D broiling grid, (1) variable hi/lo valve per burner, manual controls, crumb tray, reversible cast iron broiler racks in 3” W sections, stainless steel front, sides, back & 3-1/2" front rail, 4" adjustable legs, 216,000 BTU (Garland), NSF, CSA
