Garland GTBG72-NR72 Gas Charbroilers
Garland GTBG72-NR72 Gas Charbroilers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

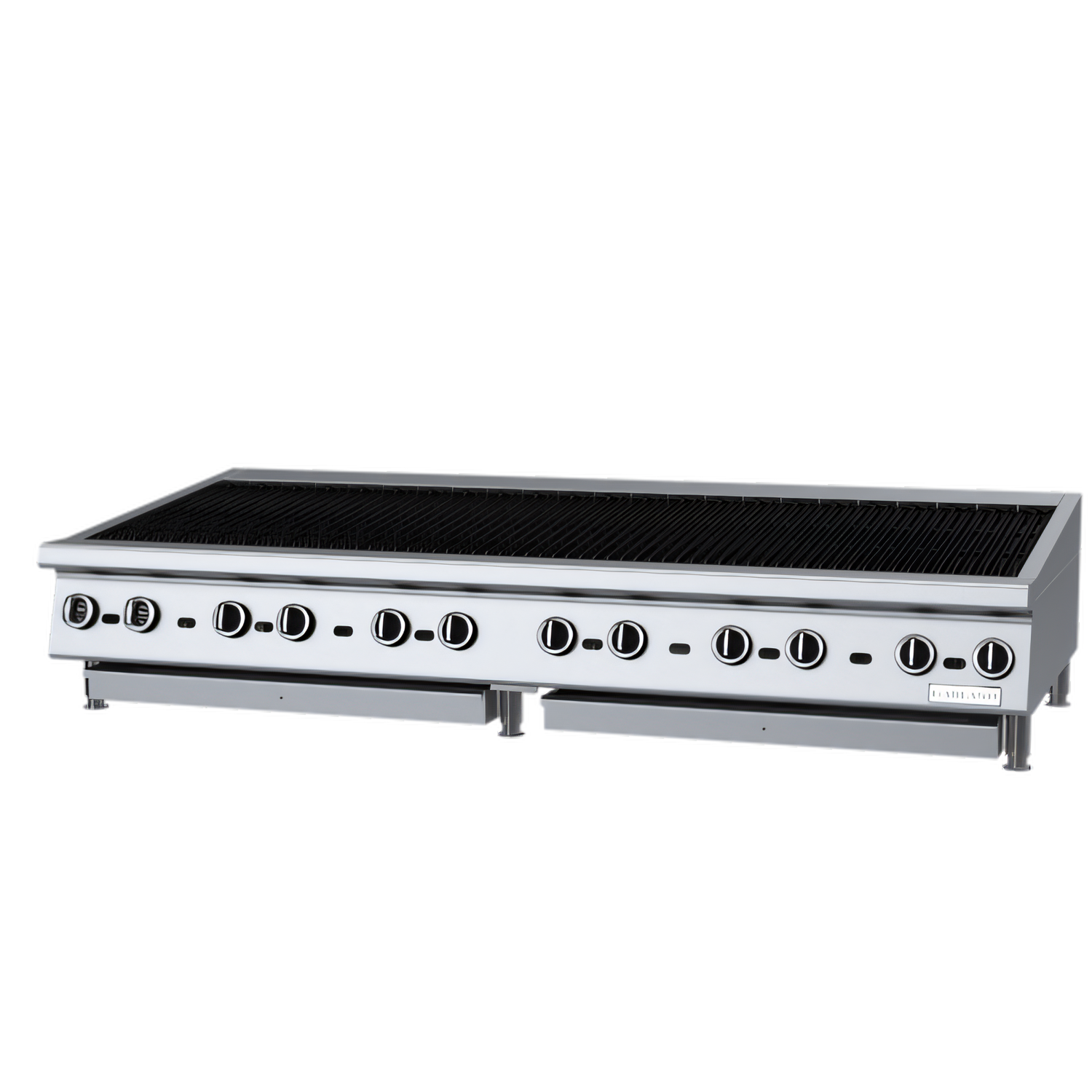

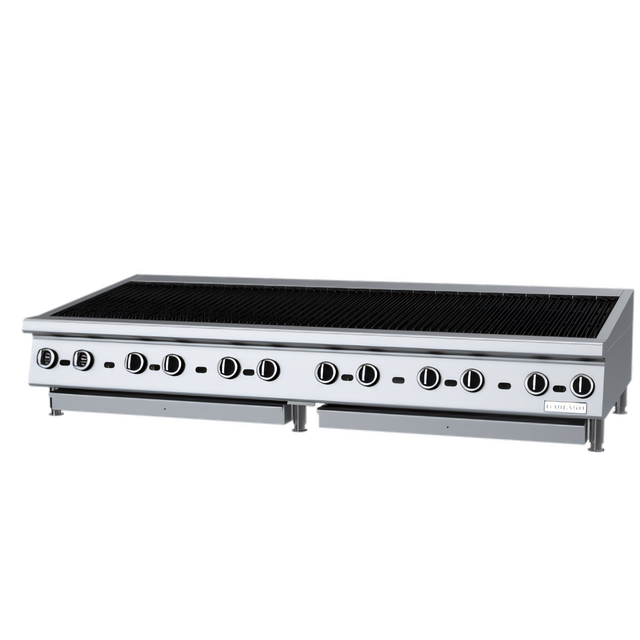

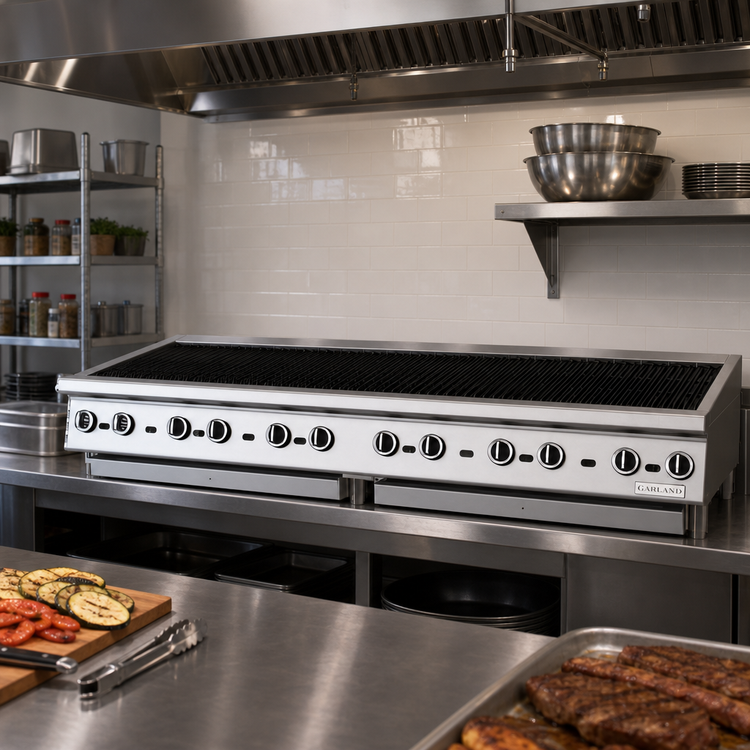

Garland GTBG72-NR72 Heavy-Duty 72" Countertop Gas Charbroiler
216,000 BTU • Fixed-Position Cast-Iron Grates • NSF & CSA ListedBuilt for the busiest grill lines, the 70-7/8" wide GTBG72-NR72 delivers the rugged performance, even heat and signature sear marks you expect from a Garland heavy-duty radiant broiler—while fitting neatly on a countertop or equipment stand.
Why You’ll Love It
- Massive production capacity—21-3/16" (538 mm) deep broiling grid across a full 72" (1800 mm) width.

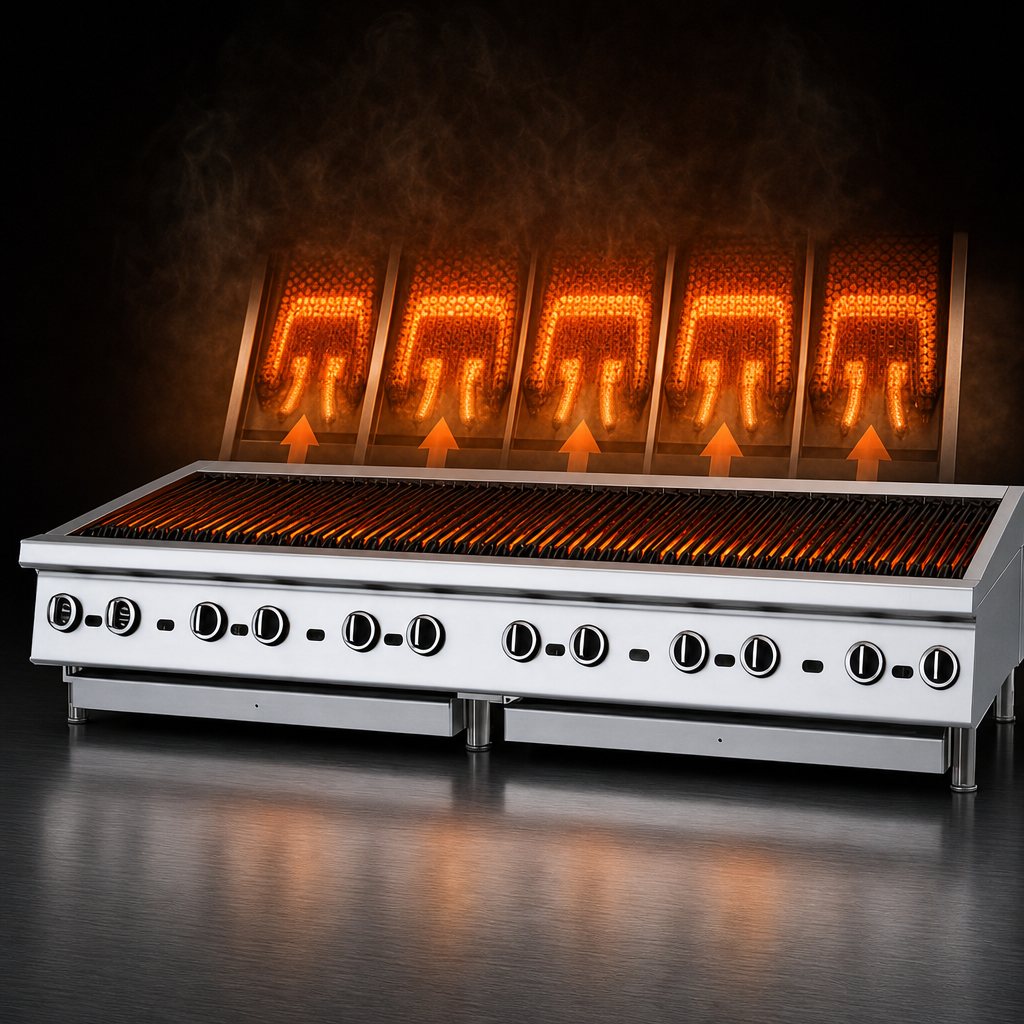

- 12 stainless-steel tube burners, each paired with a cast-iron radiant, put out 18,000 BTU per 6" section for a total of 216,000 BTU.
- Manual hi/lo valves give you independent zone control from edge to edge.

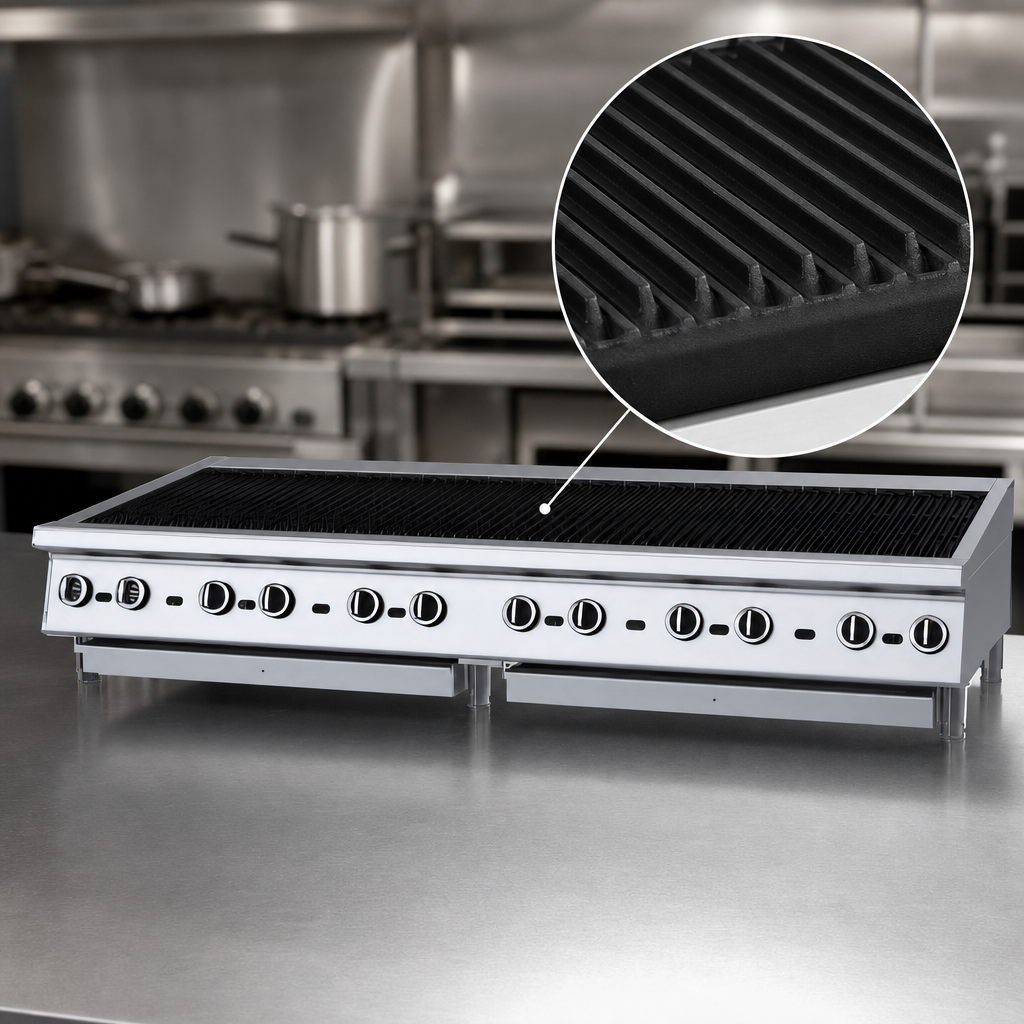

- Heavy-duty, non-adjustable reversible cast-iron grates (3" sections) offer 1/8" or 3/16" brand marks simply by flipping.
- All-stainless front, sides & back plus a 3-1/2" front rail stand up to years of abuse and wipe clean fast.
- Large capacity stainless crumb/grease tray slides out for quick cleanup.
- 4" stainless adjustable legs level the unit on any surface.
- Factory-supplied 1" NPT regulator with “T” manifold allows straight-through or flush rear gas connection.
- 0" clearance required to non-combustible surfaces—perfect for line-ups.
At-a-Glance Specs
Model | GTBG72-NR72 |
---|---|
Broiler width | 70-7/8" (1800 mm) |
Overall depth / height | 32" (814 mm) D | 13" (330 mm) H with 4" legs |
Broiling grid depth | 21-3/16" (538 mm) |
Grate style | Fixed-position, reversible cast-iron, 3" sections |
Number of burners | 12 (one every 6") |
BTU per burner / total | 18,000 BTU | 216,000 BTU total |
Controls | Manual hi/lo valve per burner |
Gas connection | 1" NPT rear, includes regulator |
Manifold pressure | 4.5" WC Natural | 10" WC LP |
Operating pressure | 7" WC Natural | 11" WC LP |
Clearances | 0" sides & rear (non-combustible) |
Certifications | NSF / CSA Flame & Sanitation |
Shipping weight | 690 lb (313 kg) |
Gas ratings are for installations up to 2,000 ft (610 m). Specify altitude if higher.
Popular Accessories (sold separately)
- Stainless steel splatter-guard
- Wire holding shelf (24" or 36" versions mount to guard)
- Fajita plate rack – 9" wide
- Stainless equipment stand with solid top, shelves and optional casters
- Broiler grate cleaning tool
