Garland Signature GTBG48-AR48 48" Countertop Gas Radiant Charbroiler with Adjustable Grates

SKU: GTBG48-AR48-SIGNATURE
$6,833.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Garland Gas Charbroilers New Arrivals Restaurant Equipment

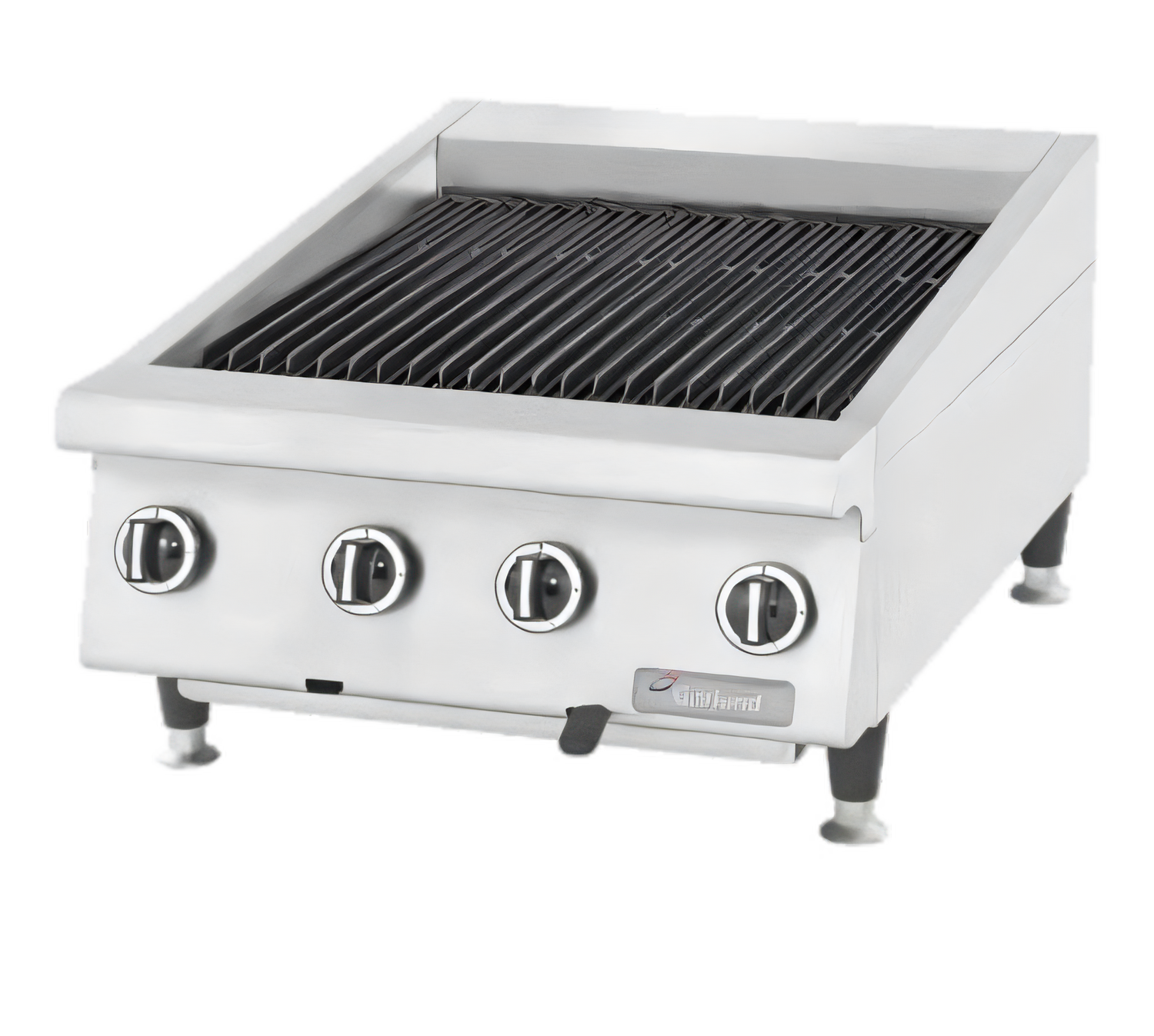

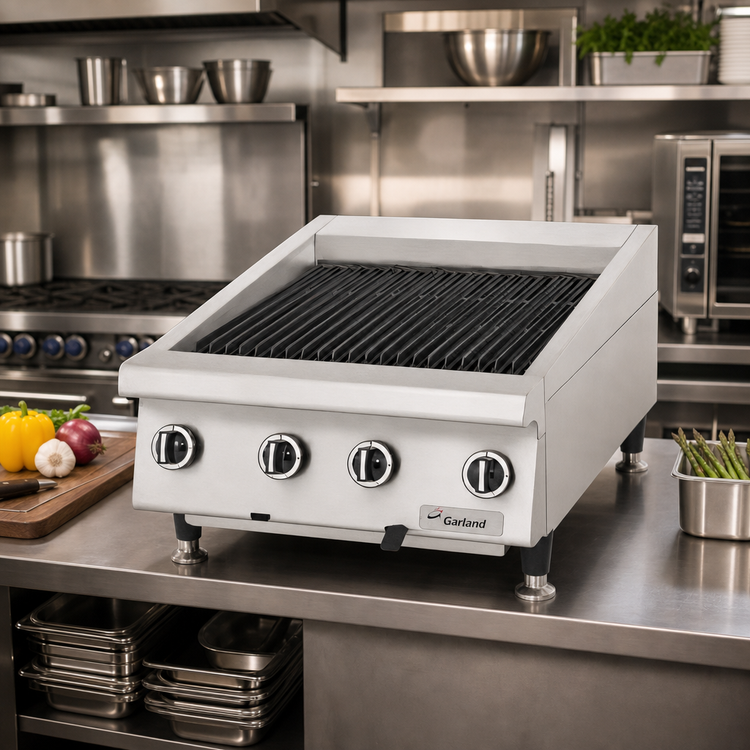

Garland Signature GTBG48-AR48 48" Countertop Gas Radiant Charbroiler with Adjustable Grates

Full-Size, Natural Gas or Propane, Heavy-Duty, Radiant

Deliver perfectly seared dishes with distinct grill marks and precise temperature control using this robust 48-inch countertop charbroiler, engineered for heavy-duty commercial kitchen performance.

  • Durable stainless steel construction for long-lasting commercial use and easy cleaning.
  • Features heavy-duty reversible cast iron grates with two-position adjustability for versatile cooking.
  • Powerful 144,000 BTU total input with individual Hi/Lo valve controls per burner for precise heat management.
  • Efficient radiant heating system ensures even heat distribution and consistent broiling results.
  • Equipped with a large capacity stainless steel crumb tray to simplify maintenance and cleanup.
  • Designed for countertop installation with 4-inch adjustable stainless steel legs.

Overall Dimensions:

47.25"W x 32.0"D x 13.0"H

Product Weight:

514.0 lb

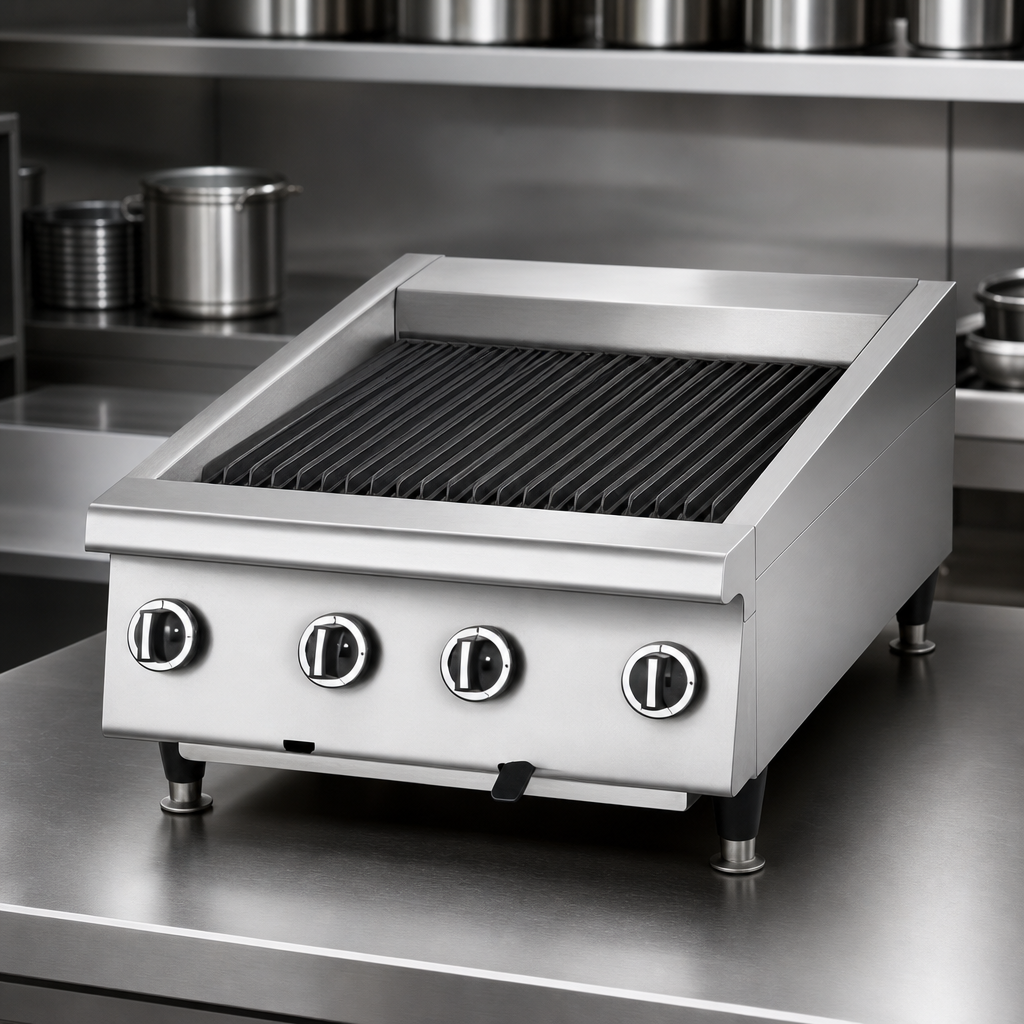

Stainless Steel Construction

Constructed with a stainless steel front, sides, and back for enhanced durability, corrosion resistance, and ease of cleaning in commercial environments.

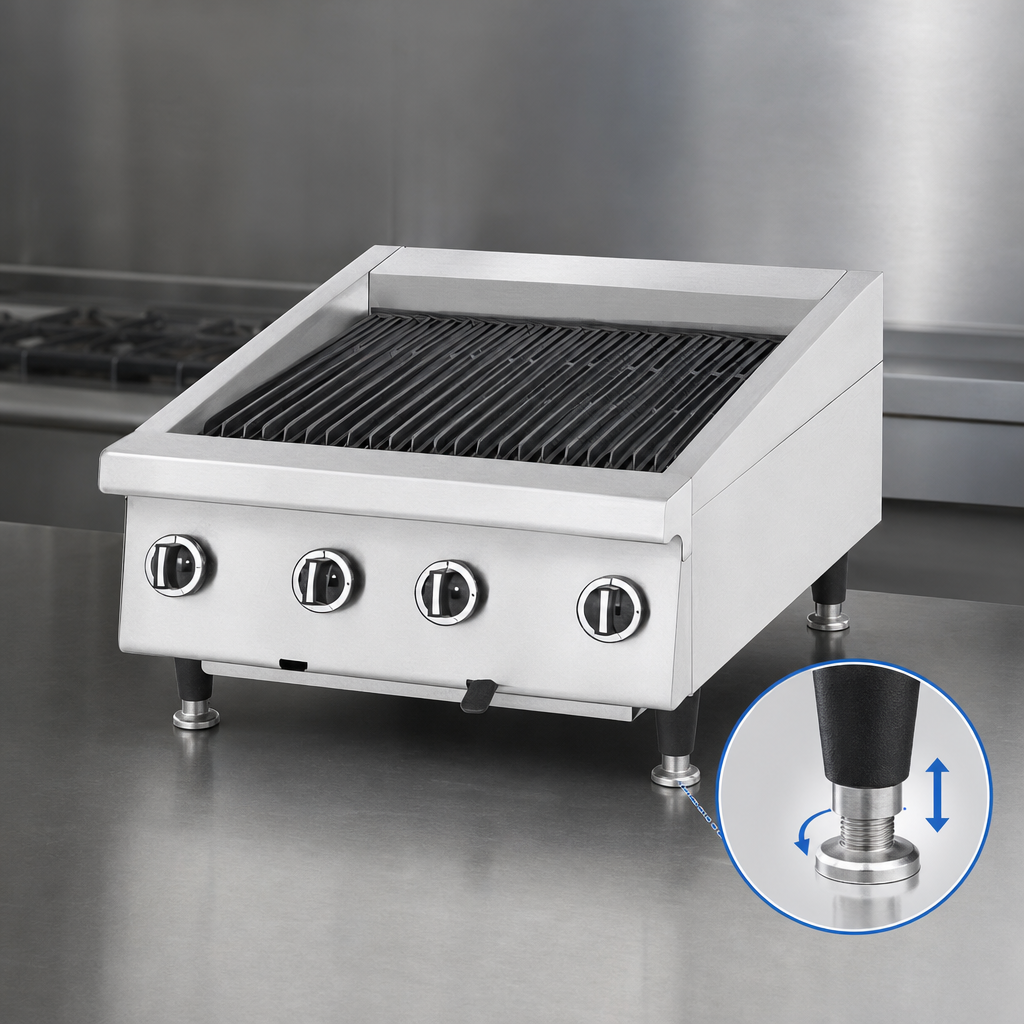

Adjustable Legs

Includes 4-inch stainless steel adjustable legs, allowing for precise leveling and optimal working height on various counter surfaces.

Flexible Gas Connection

Features a 3/4" NPT gas regulator and a 'T' gas manifold connection, enabling versatile straight-through rear or flush-mount gas connections.

Integrated Front Rail

A 4-inch deep stainless steel front rail provides a convenient 3 1/2" top work surface for plating or holding utensils.

Large Capacity Crumb Tray

Equipped with a stainless steel large capacity crumb tray, designed for efficient collection of drippings and food debris to simplify cleanup.

Reversible Cast Iron Broiler Racks

Heavy-duty cast iron broiler racks come in 3-inch wide sections, are reversible, and feature 1/8" and 3/16" brand marks for varied searing patterns.

Two-Position Adjustable Grates

Broiler grates offer two adjustable positions, allowing for either flat or sloped cooking, providing flexibility for different types of food and cooking preferences.

Individual Burner Controls

Each 6-inch section of broiler width is equipped with one 18,000 BTU stainless steel tube burner and a cast iron radiant, controlled by its own two-position (Hi/Lo) valve for zone cooking capability.

Generous Broiling Grid Depth

Offers a substantial 21-3/16 inch (538mm) broiling grid depth, maximizing the usable cooking surface.

Type Charbroiler
Style Radiant
Installation Type Countertop
Controls Manual Hi/Lo Valves (per burner)
Width 47-1/4 Inches
Depth 32 Inches
Height 13 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Grates Material Cast Iron
Burner Type Stainless Steel Tube with Cast Iron Radiant
Broiling Grid Depth 21-3/16 Inches
BTU 144,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4" NPT
Gas Inlet Pressure (Natural Gas - Supply) 7 Inches W.C.
Gas Inlet Pressure (Natural Gas - Manifold) 4.5 Inches W.C.
Gas Inlet Pressure (Propane - Supply) 11 Inches W.C.
Gas Inlet Pressure (Propane - Manifold) 10 Inches W.C.
Shipping Width 48 Inches
Shipping Depth 32 Inches
Shipping Height 13 Inches
Shipping Weight 514 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Manufacturer's standard commercial warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Sell sheet PDF Download PDF Parts manual PDF Download PDF Brochure PDF Download

Frequently Asked Questions

The GTBG48-AR48 model features heavy-duty reversible cast iron broiler racks in 3-inch wide sections with 1/8" and 3/16" brand marks. These grates are also two-position adjustable for flat or sloped cooking.
Yes, the Garland GTBG48-AR48 is designed for use with either natural gas or propane. You must specify the gas type when ordering, especially for installations above 2000 ft. (610m) above sea level.
The GTBG48-AR48 has a total input of 144,000 BTU. It features one 18,000 BTU stainless steel tube burner with a cast iron radiant for every 6 inches of broiler width.
For Natural Gas, the supply operating pressure is 7" W.C. and the manifold operating pressure is 4.5" W.C. For Propane, the supply operating pressure is 11" W.C. and the manifold operating pressure is 10" W.C.
This charbroiler requires 0" clearance for installation in non-combustible surroundings only.
No, Garland/U.S. Range products, including this charbroiler, are intended for commercial applications only and are not approved or authorized for home or residential use. The manufacturer will not provide service or warranty support for non-commercial applications.
