Garland GTBG48-AB48 Gas Charbroilers
Description
Garland GTBG48-AB48 48" Heavy-Duty Gas Charbroiler
Countertop • Ceramic Briquettes • Adjustable Cast-Iron GratesBring steak-house flavor to your cookline with Garland’s 48-inch GTBG48-AB48 ceramic briquette charbroiler. Four powerful 30,000 BTU cast-iron burners heat a bed of long-lasting ceramic briquettes, delivering even, high-intensity heat while adjustable cast-iron grates create perfect brand marks every time.
Key Features
- 120,000 BTU total output — 30,000 BTU burner for every 12" of broiler width

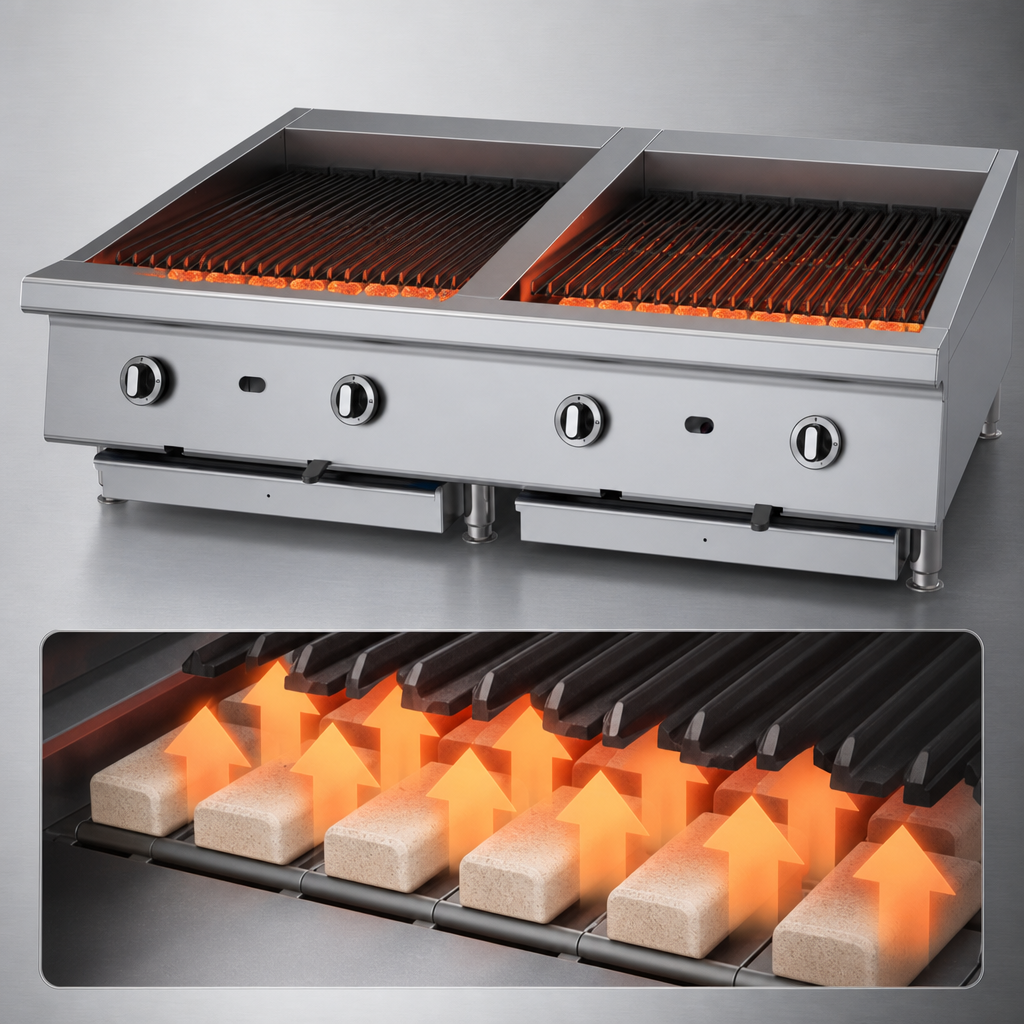

- Ceramic, pre-formed briquettes for fast recovery and consistent surface temperatures

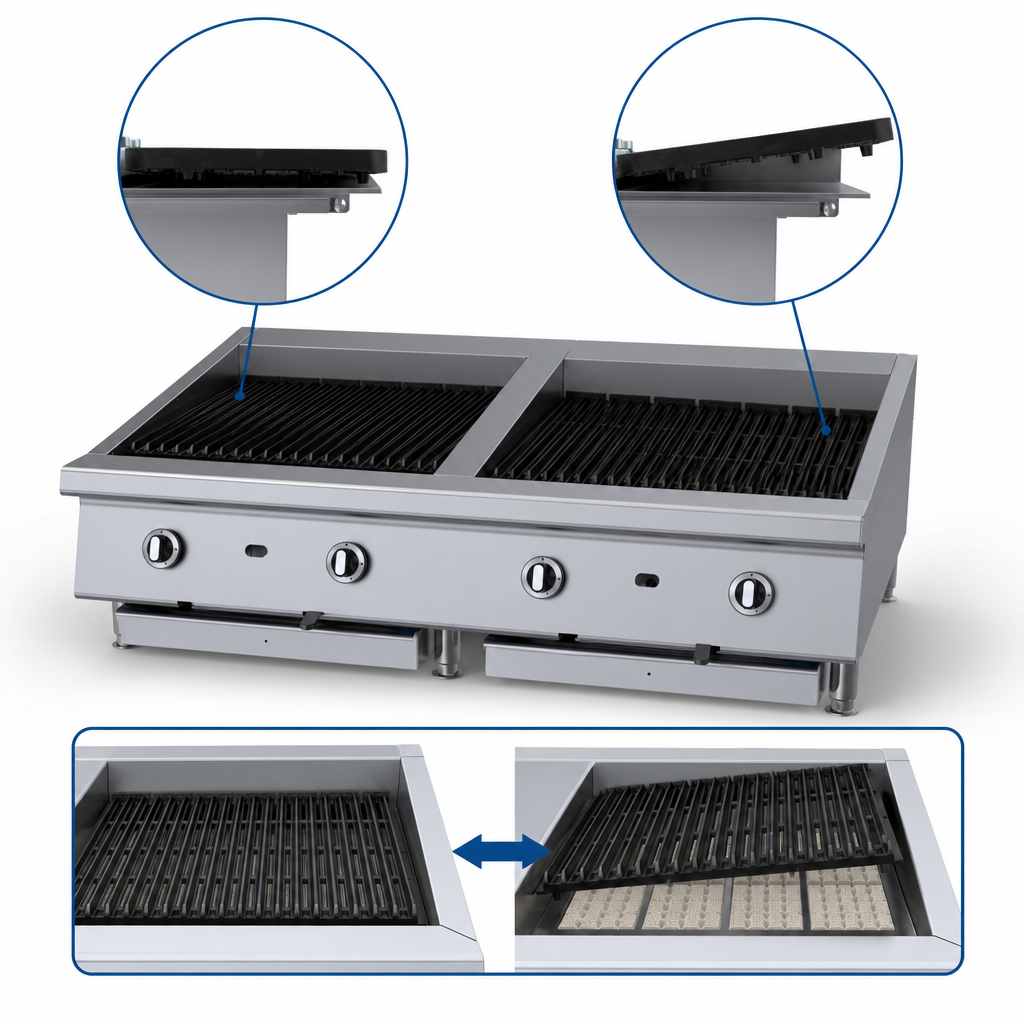

- Two-position, adjustable cast-iron broiler grates (flat or sloped)
- Reversible 3" wide grate sections with 1/8" & 3/16" brand marks
- Variable hi/lo manual valve for each burner
- 21-3/16" (538 mm) deep broiling grid accommodates large cuts & hotel pans
- Full-width stainless steel crumb tray for quick clean-up
- Rugged stainless steel front, sides, back & 3-1/2" front rail
- 4" stainless steel adjustable legs for leveling on any countertop
- 3/4" NPT gas regulator with “T” manifold — straight-through or flush rear connection
- Certified by CSA & NSF for commercial kitchens
At-a-Glance Specs
| Model | GTBG48-AB48 |
|---|---|
| Overall width | 47-1/4" (1200 mm) |
| Depth | 32" (814 mm) |
| Height (w/ legs) | 13" (330 mm) |
| Cooking grid area | 48" W × 21-3/16" D |
| Burners / BTU | 4 × 30,000 BTU (120,000 BTU total) |
| Gas type | Natural or Propane |
| Gas connection | 3/4" NPT (rear) |
| Manifold pressure | Natural 4.5" WC | Propane 10" WC |
| Operating pressure | Natural 7" WC | Propane 11" WC |
| Shipping weight | 514 lb (233 kg) |
| Certifications | CSA, NSF |
Optional Accessories
- Three-sided stainless steel splatter-guard
- Nickel-plated wire holding shelf (fits splatter-guard)
- Fajita plate rack (replaces 3 grate sections)
- Fish grate or dual-sided diamond-edge grate
- Broiler grate cleaning tool
- Stainless steel equipment stand with shelves & casters or feet
Need a different width? Garland HD Series broilers are also available in 24", 36" and 60" models with the same heavy-duty construction.
