Garland GTBG24-NR24 Gas Charbroilers
Description

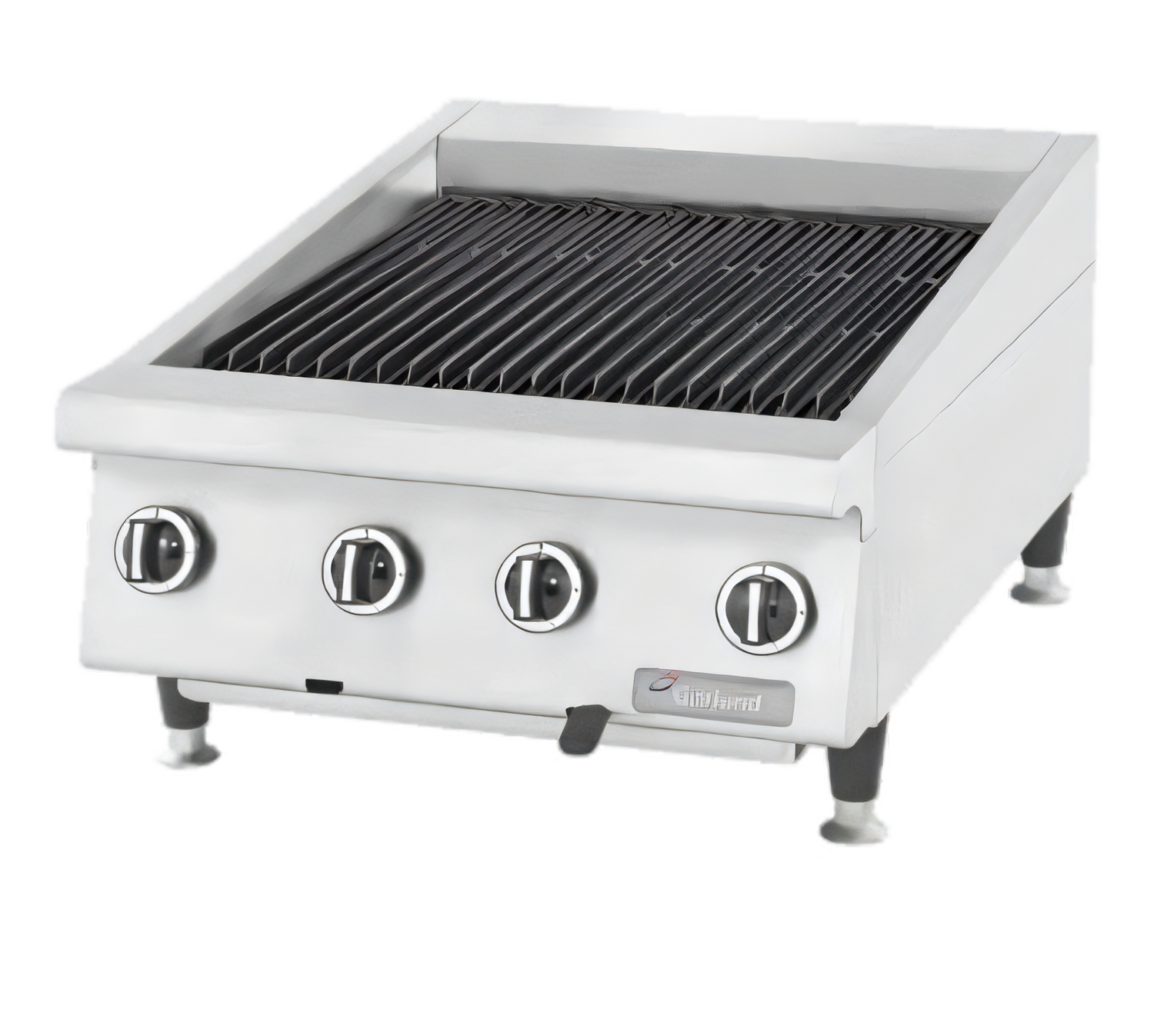

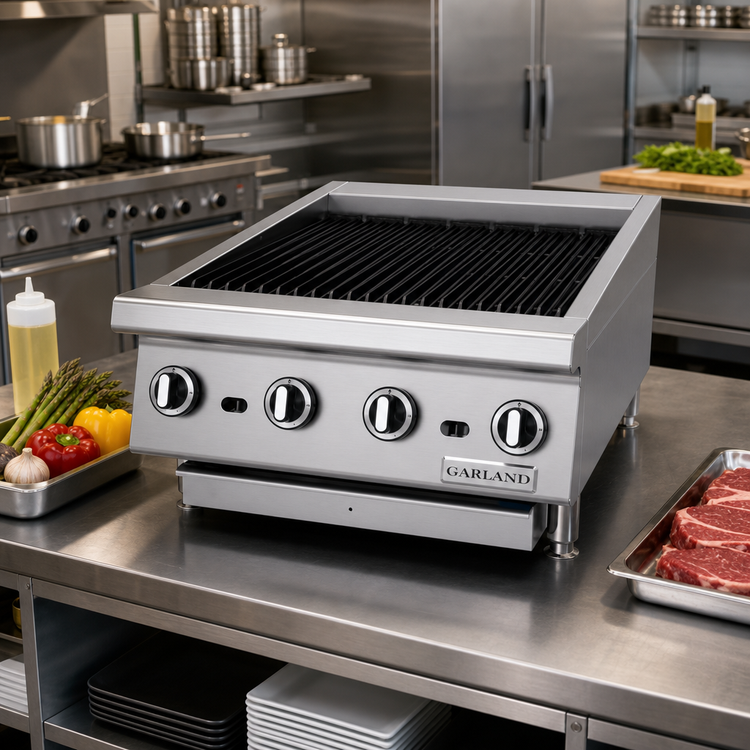

Garland GTBG24-NR24 Heavy-Duty 24" Gas Radiant Charbroiler
Countertop power with 72,000 BTU of even, high-heat broilingBring steak-house quality sear marks to any commercial kitchen without giving up valuable floor space. The Garland GTBG24-NR24 packs full-size broiler performance into a 24" wide counter model, featuring rugged non-adjustable cast-iron grates, individual hi/lo burner control and a generous 21-3/16" deep cooking grid that handles the rush with ease.
Why you’ll love it

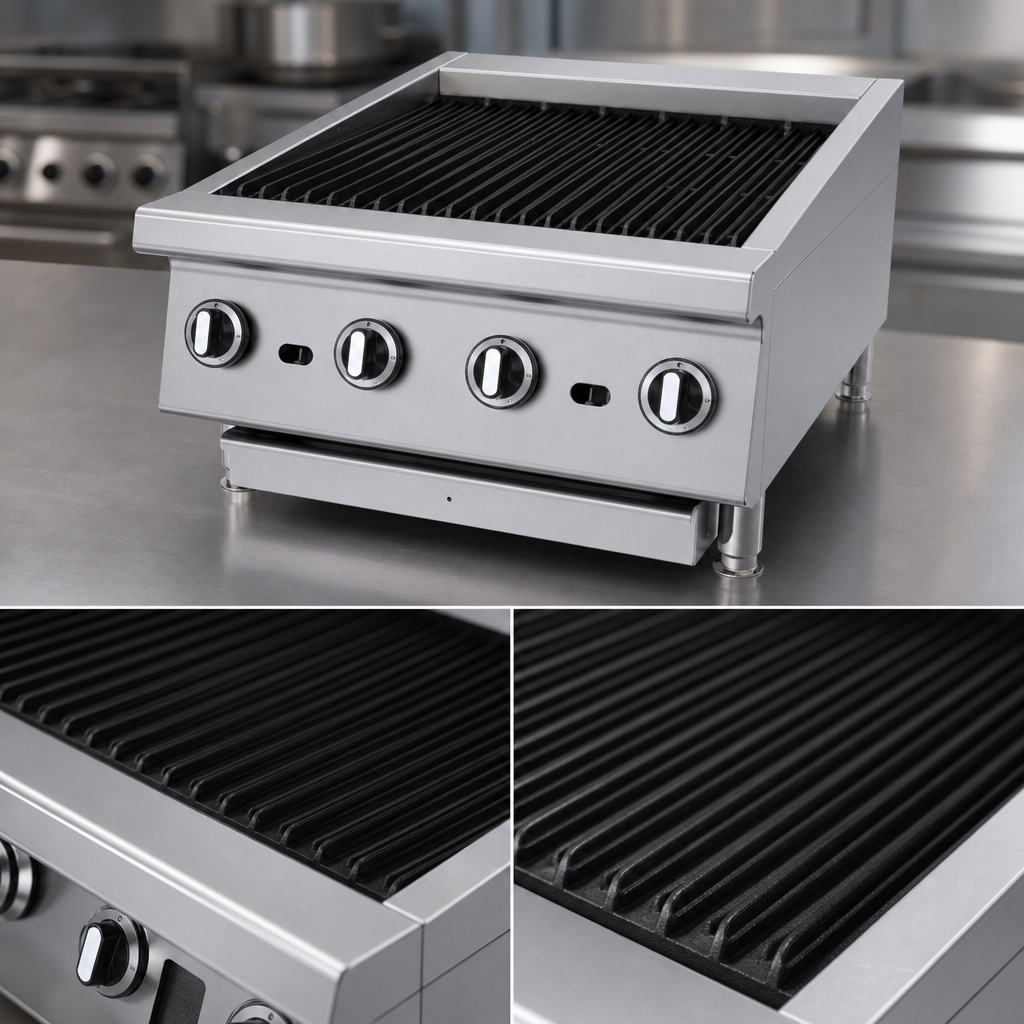

- Heavy-duty cast-iron grates (non-adjustable) retain and distribute heat for bold brand marks and fast recovery.
- 72,000 BTU/h total output from four 18,000 BTU stainless tube burners—one for every 6" section.

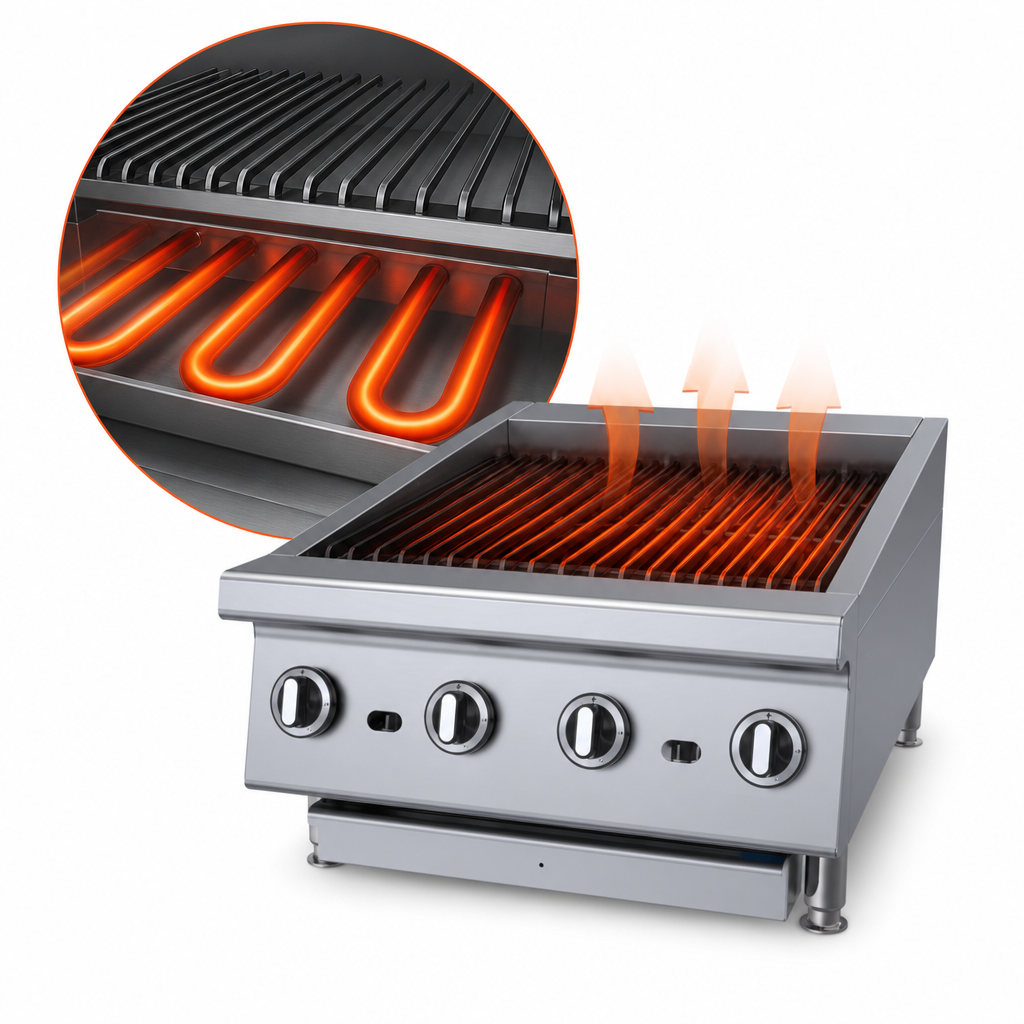

- Each burner is paired with a cast-iron radiant and a variable hi/lo valve for precise zone control.
- Reversible 3" broiler racks deliver 1/8" or 3/16" brand widths to suit your menu.
- Wide 21-3/16" broiling grid depth maximises capacity without increasing your footprint.
- Stainless steel front, sides, back and 3-1/2" rail survive daily punishment and wipe clean quickly.
- Full-width, large-capacity stainless crumb tray keeps worktops tidy and speeds clean-up.
- 4" stainless steel adjustable legs level the unit on any counter or equipment stand.
- Factory-installed 3/4" NPT regulator with “T” manifold simplifies straight-through or flush rear gas hook-ups.
- NSF & CSA certified for peace of mind and code compliance.
Ideal applications
- Steak & chop houses
- Fast-casual grill concepts
- Hotel banquet kitchens
- Food trucks & pop-ups needing countertop flexibility
Technical specifications
| Model | GTBG24-NR24 |
|---|---|
| Cooking surface (W × D) | 24" × 21-3/16" (610 mm × 538 mm) |
| Overall dimensions (W × D × H) | 23-5/8" × 32" × 13" (600 mm × 814 mm × 330 mm) |
| Total BTU | 72,000 BTU/h (natural or propane) |
| Burners | 4 × 18,000 BTU stainless tube burners with cast-iron radiants |
| Gas connection | 3/4" NPT rear manifold & regulator |
| Controls | Manual hi/lo valve per burner |
| Grate style | Non-adjustable, reversible cast-iron (3" sections, 1/8" & 3/16" marks) |
| Certifications | NSF, CSA (gas) |
| Shipping weight | ≈ 283 lb (129 kg) |
| Clearances | 0" sides & rear in non-combustible surroundings |
Popular accessories (sold separately)
- Stainless steel equipment stand with shelves (fixed feet or locking casters)
- Counter skirt kit for flush mounting (reduces height by 1-3/4")
- Stainless steel spatter guard (rear & side protection)
- Broiler grate cleaning tool
- Fajita grate (9" wide) – replace three standard sections for skillets & platters
Need a different size or adjustable grates? Explore the full Garland HD Counter Series.
