Garland GTBG24-AR24-SIGNATURE Signature Gas Charbroilers
Description

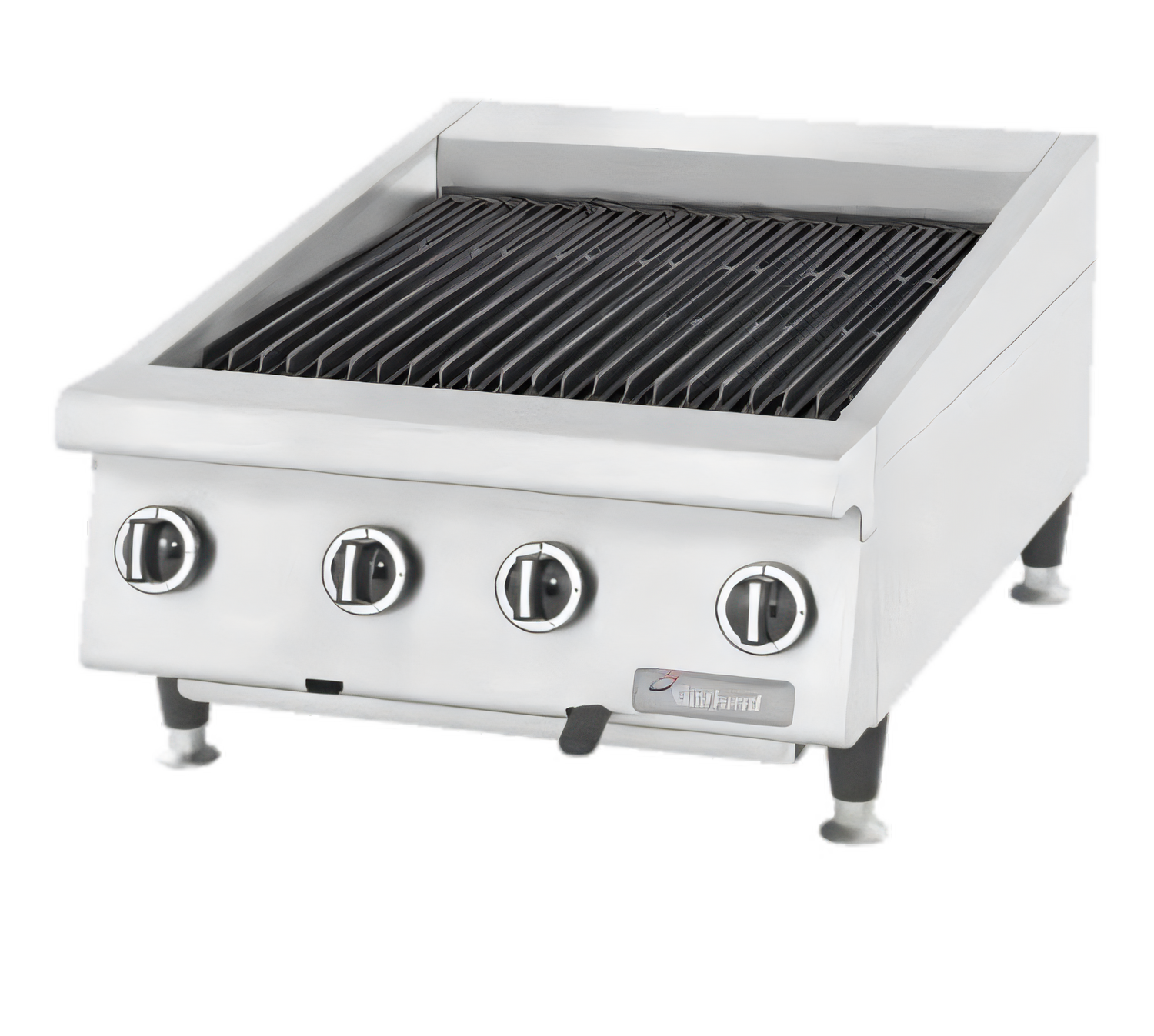

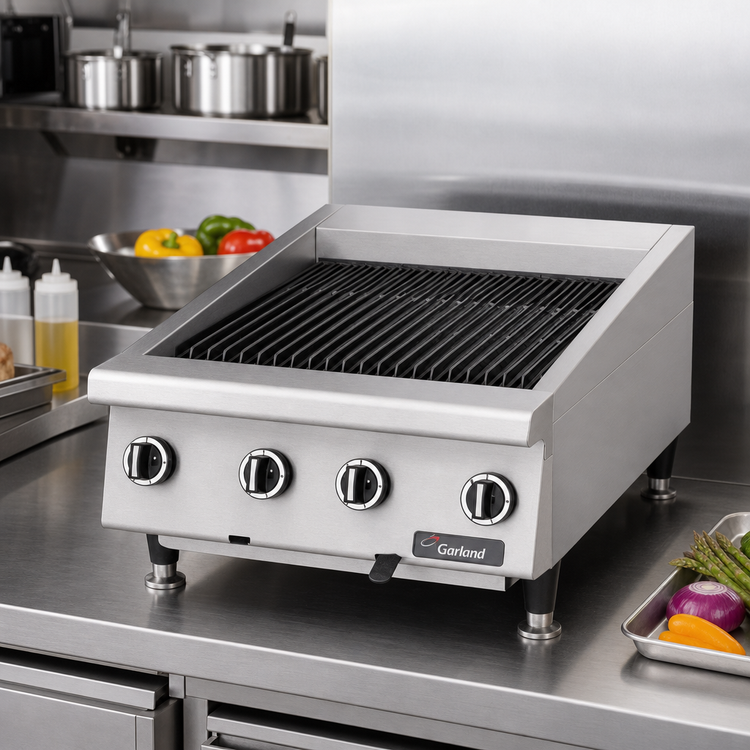

Garland Signature 24" Heavy-Duty Countertop Gas Charbroiler
Model GTBG24-AR24 | 72,000 BTU | Adjustable Cast-Iron GratesPut steak-house sear marks, fajita sizzle and burger-night volume on your menu with the Garland Signature Series 24" gas charbroiler. Built for relentless commercial duty, this 72,000 BTU powerhouse delivers even, high-intensity heat across a generous 21-3/16" deep broiling surface—yet fits neatly on any 24" counter run.
Key performance features

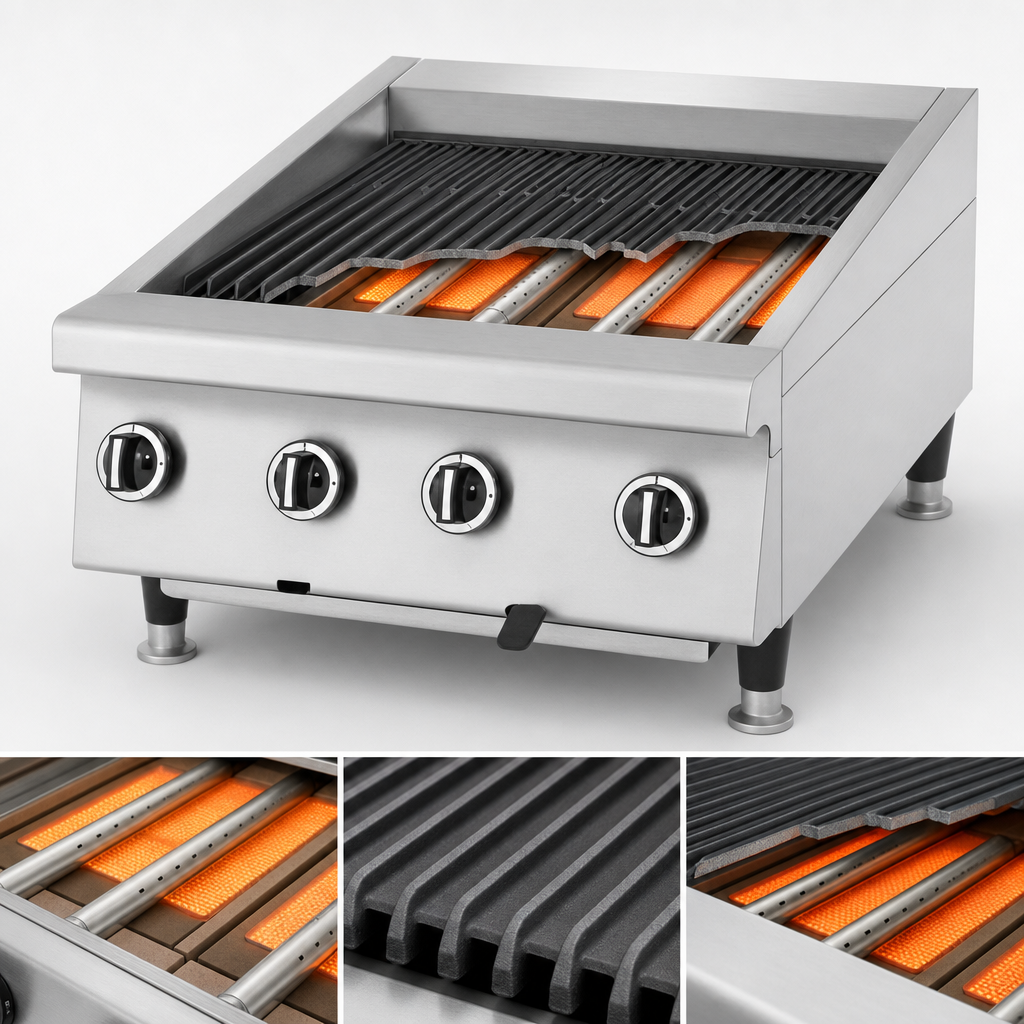

- Heavy-duty cast-iron radiant system: one 18,000 BTU stainless tube burner under every 6" section (4 burners total).

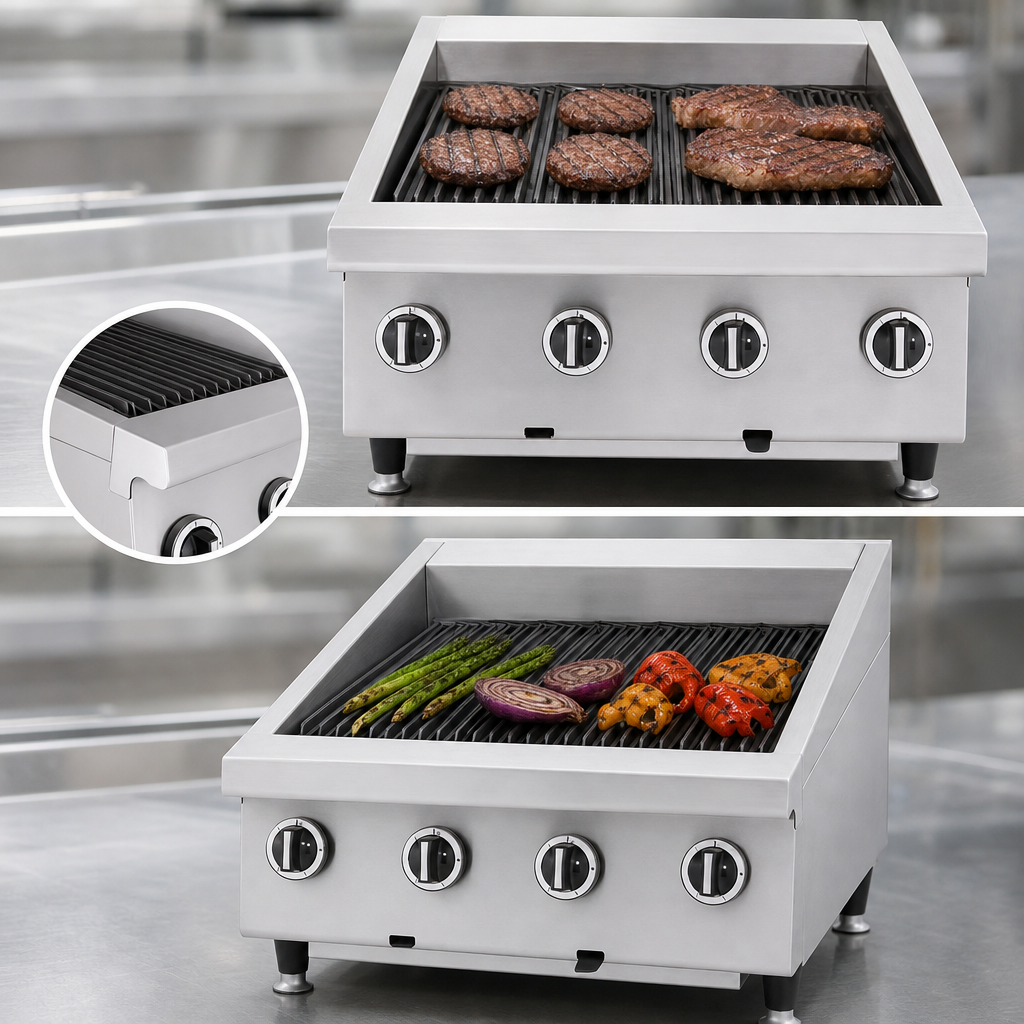

- Two-position adjustable, reversible cast-iron grates (3" wide sections) with 1/8" & 3/16" brand marks for perfect presentation.
- Individual Hi/Lo valves for each burner—dial in gentle holding heat or full-tilt sear zones.
- 21-3/16" (538 mm) broiling grid depth handles full steaks, chops & sheet-pan preps.
- Oversized stainless crumb/grease tray slides out for fast end-of-shift cleanup.
- Durable stainless steel front, sides, back and 3-1/2" front rail stand up to daily abuse.
- 4" (102 mm) stainless adjustable legs level the unit on any worktop.
- Factory-supplied 3/4" NPT gas regulator with “T” manifold allows straight-through or flush-mount rear gas connection.
- NSF & CSA certified for commercial kitchens.
Specifications
| Cooking width | 24" (nominal) / 23-5/8" (600 mm) |
|---|---|
| Cooking depth | 21-3/16" (538 mm) |
| Overall dimensions (W × D × H) | 24" × 32" × 13" (plus 4" legs) / 600 × 814 × 330 mm |
| Total input | 72,000 BTU/hr (natural or propane) |
| Burners | 4 × 18,000 BTU stainless tube burners with cast-iron radiants |
| Gas connection | 3/4" NPT (rear), 7" W.C. Natural / 11" W.C. LP |
| Shipping weight | ≈ 283 lb (129 kg) |
| Certifications | NSF, CSA |
Optional accessories
- Stainless spatter-guard kit
- Low-profile counter skirt (drops overall height by 1-3/4")
- Stainless equipment stand with shelf (adjustable feet or locking casters)
- Broiler grate cleaning tool
- 9" Fajita broiling grate (replaces 3 standard grate sections)
Need a custom lineup? Garland HD Counter Series modules share matching depths and rail heights, letting you build the exact cookline your kitchen demands.
