Garland GTBG24-AR24 Gas Charbroilers
Description
Garland 24" Heavy-Duty Countertop Gas Charbroiler – Adjustable Grates
Model GTBG24-AR24 | 72,000 BTU | NSF & CSA CertifiedBring steak-house quality sear marks and smoky flavor to any line-up with Garland’s 24 inch Heavy-Duty Radiant Charbroiler. Built for relentless commercial service, it marries a rugged stainless-steel chassis with cast-iron components and independent hi/lo controls that give chefs the precision they need and the longevity they demand.
Why You’ll Love It
- Four 18,000 BTU burners (one every 6") for an impressive 72,000 BTU total output.

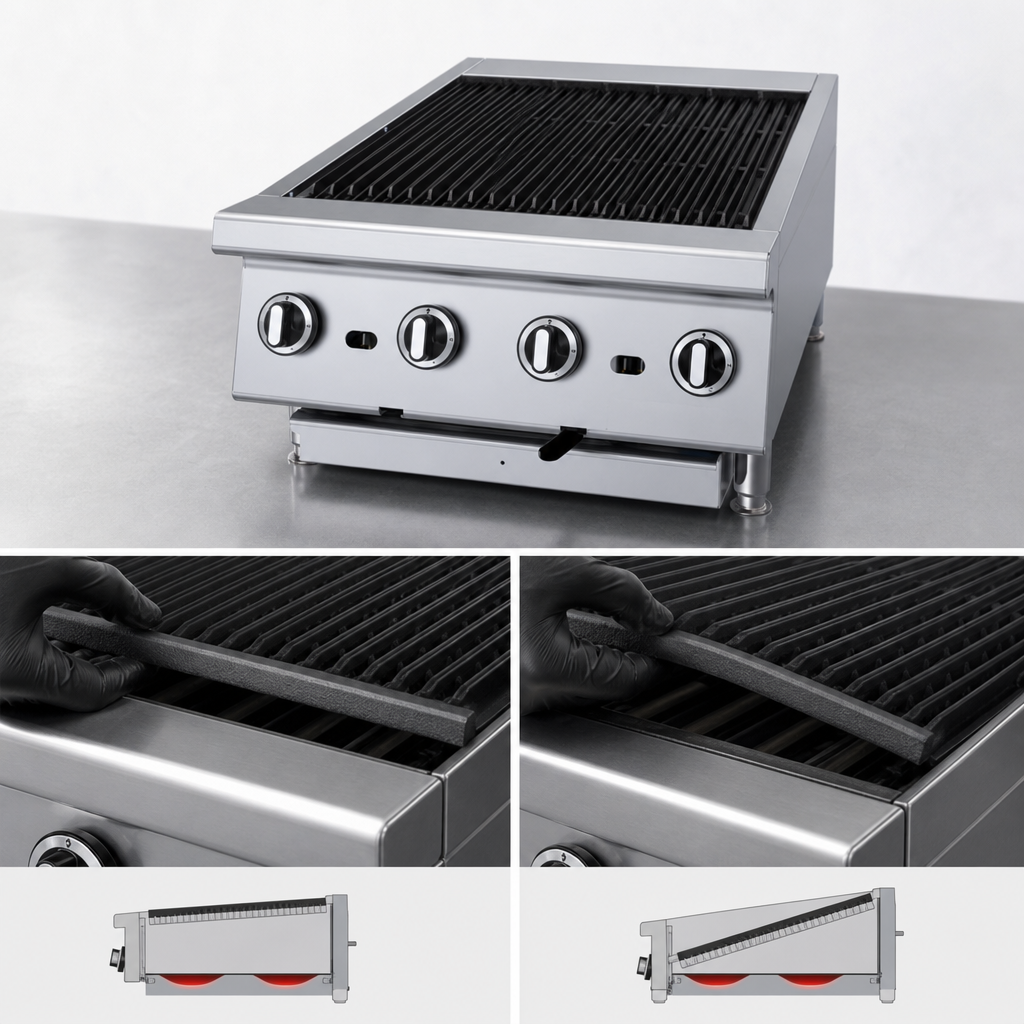

- 2-position adjustable cast-iron grates let you choose flat or sloped cooking for perfect branding or grease run-off control.
- Reversible 3" grate sections (1/8" & 3/16" brand marks) deliver the exact grill pattern your menu calls for.
- 21-3/16" deep broiling surface maximizes cooking area in a compact 24" footprint—over 500 in² of usable grill space.
- Each burner has an independent variable hi/lo valve for true zone cooking.

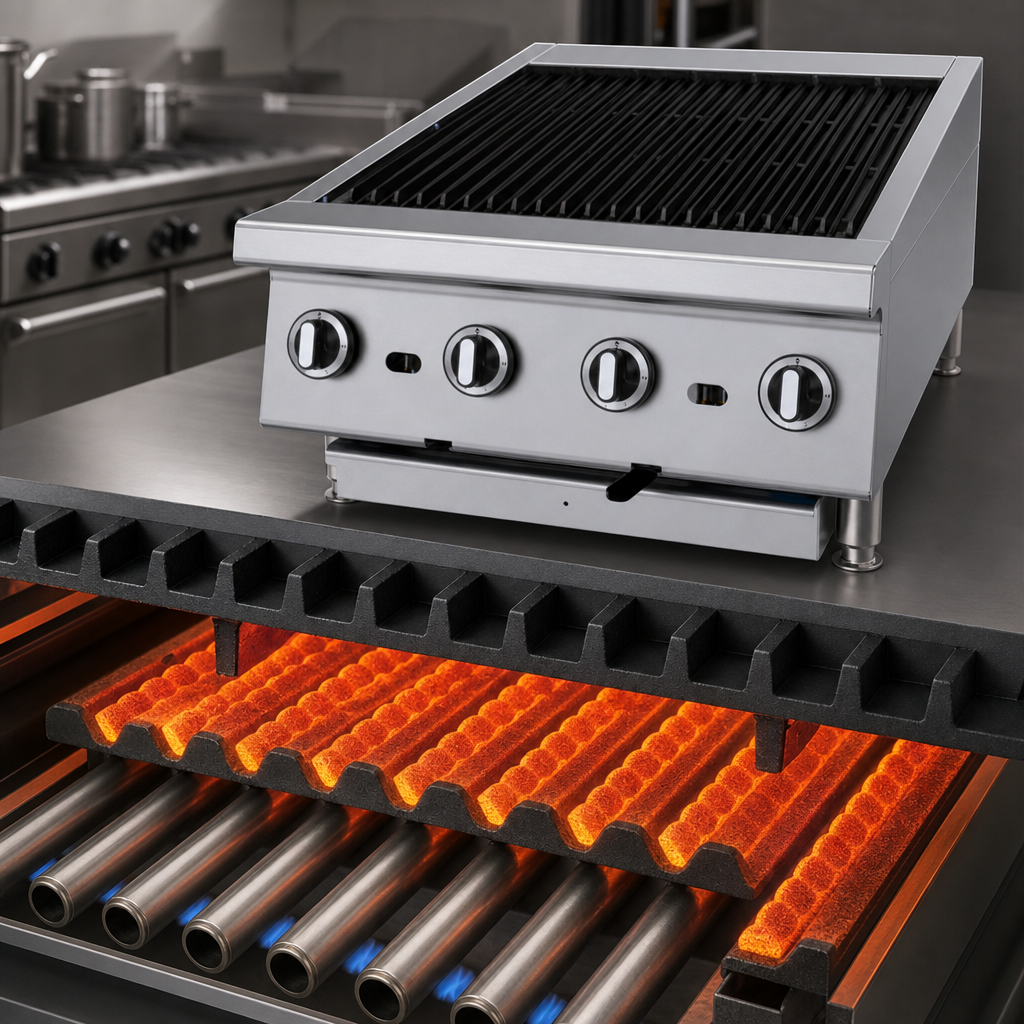

- Cast-iron radiants over stainless tube burners promote even heat and reduce flare-ups.
- Front, sides, back & 3-½" front rail are all 304 stainless steel for easy wipe-down and corrosion resistance.
- Full-width stainless crumb/grease tray pulls out from the front for fast clean-up.
- 4" adjustable stainless legs level the unit and allow under-broiler cleaning.
- Factory-supplied ¾" NPT regulator & “T” manifold simplify rear or flush-mount gas hookup.
Technical Specs
| Exterior width | 23 5⁄8" (600 mm) |
|---|---|
| Exterior depth | 32" (814 mm) |
| Height (with legs) | 13" (330 mm) |
| Broiling grid depth | 21 3⁄16" (538 mm) |
| Total BTU output | 72,000 BTU/hr (natural or propane) |
| Burner configuration | 4 × 18,000 BTU stainless tube burners with cast-iron radiants |
| Gas connection | ¾" NPT rear – factory regulator included |
| Operating pressure | Natural 7" WC | Propane 11" WC (manifold: 4.5" / 10") |
| Shipping weight | 283 lb (129 kg) |
| Certifications | NSF, CSA (commercial use only) |
What’s Included
- Garland GTBG24-AR24 countertop charbroiler
- 4" adjustable stainless steel legs (pre-installed)
- Removable reversible cast-iron grate sections (8 total)
- Full-width stainless steel crumb/grease tray
- ¾" NPT gas regulator & “T” manifold
- Owner’s manual
Intended for commercial installations in non-combustible surroundings. This appliance is not approved for residential use.
