Garland  |  SKU: GTBG24-AB24

Garland GTBG24-AB24 Gas Charbroilers

$4,342.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Brochure Parts manual Sell sheet Owner's manual
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

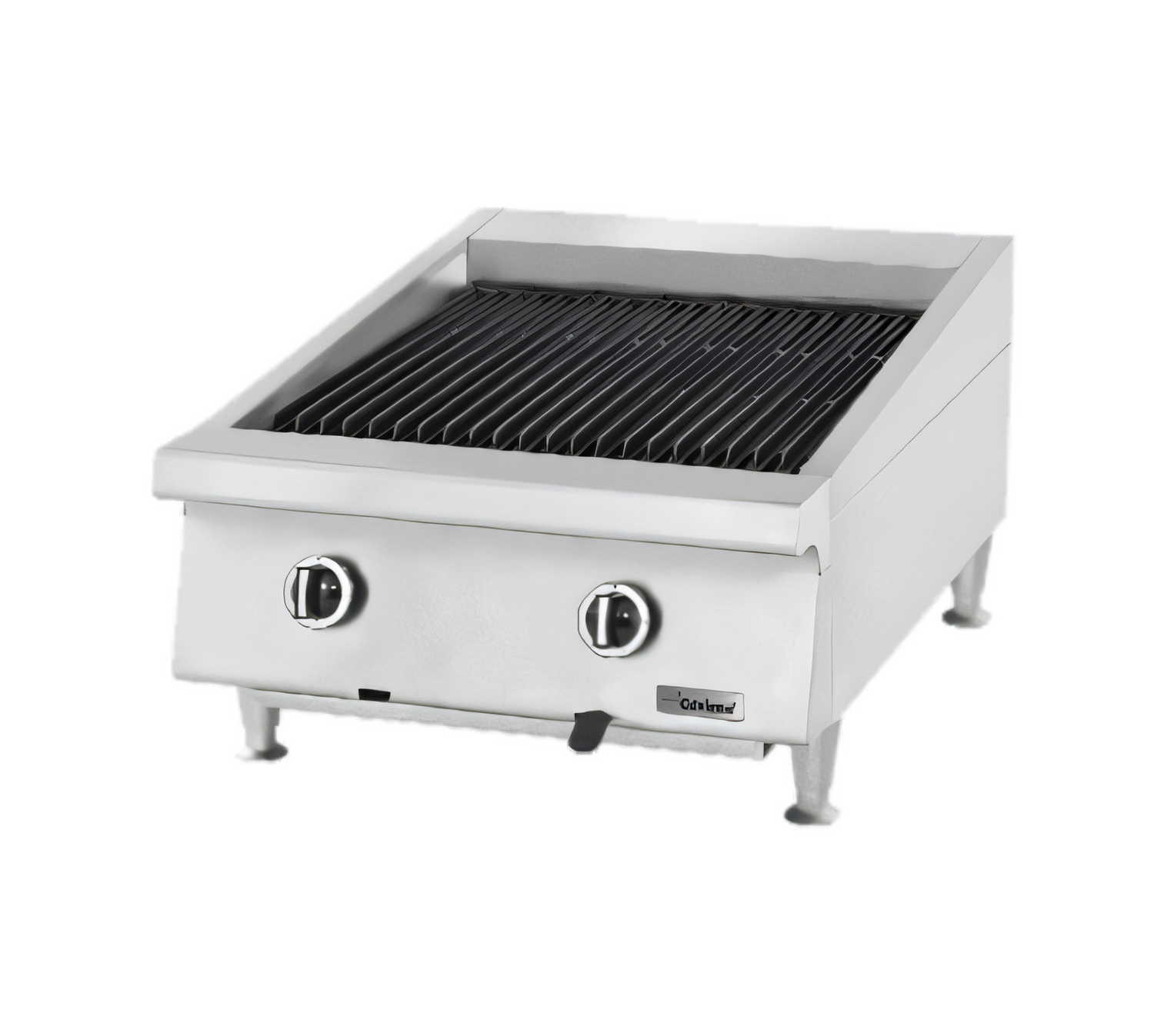

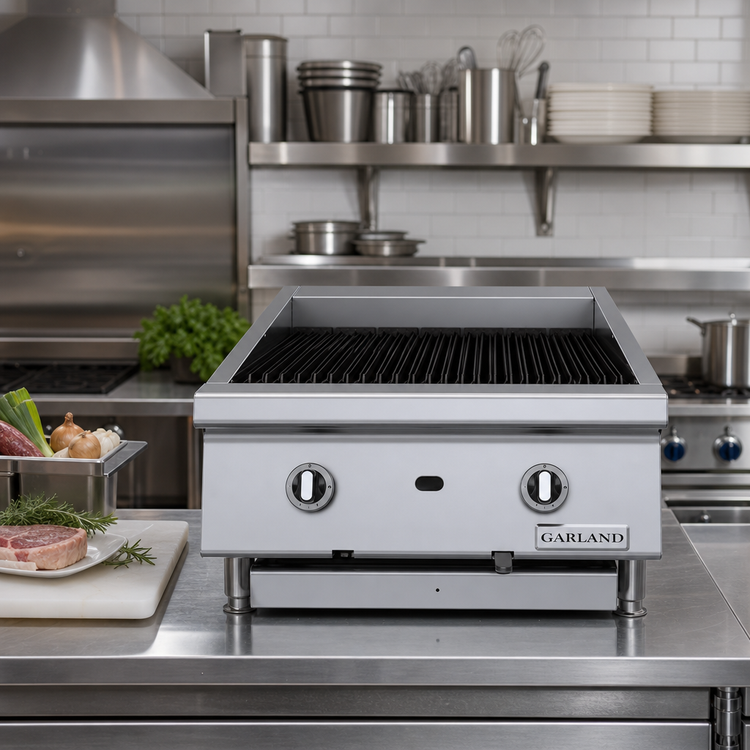

Garland GTBG24-AB24 Heavy-Duty 24" Gas Countertop Charbroiler

Ceramic Briquettes | Adjustable Cast-Iron Grates | 60,000 BTU

Unleash full-size broiling power from a compact footprint. Garland’s 24-inch Heavy-Duty Counter Series charbroiler couples ceramic briquette heat distribution with precision, burner-per-foot controls to deliver steak-house searing, rapid recovery and years of worry-free service.

Key Features
  • 60,000 BTU total – two 30,000 BTU cast-iron burners, each with its own variable Hi/Lo valve.

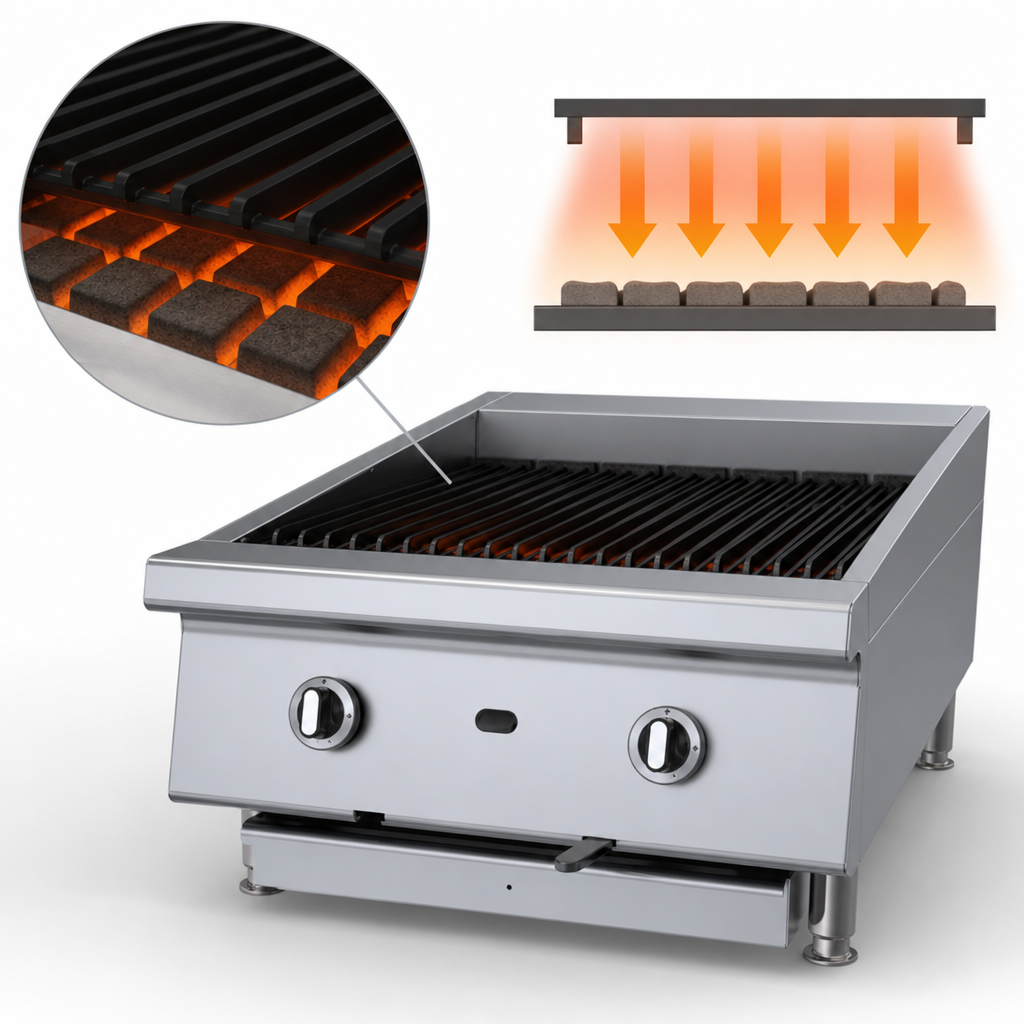

  • Pre-formed ceramic briquettes ensure even heat, fast recovery and reduced flare-ups.
  • 21-3/16" deep cooking grid delivers generous capacity for steaks, burgers or vegetables.
  • Reversible 3" wide cast-iron racks with 1/8" & 3/16" brand marks for picture-perfect grill lines.

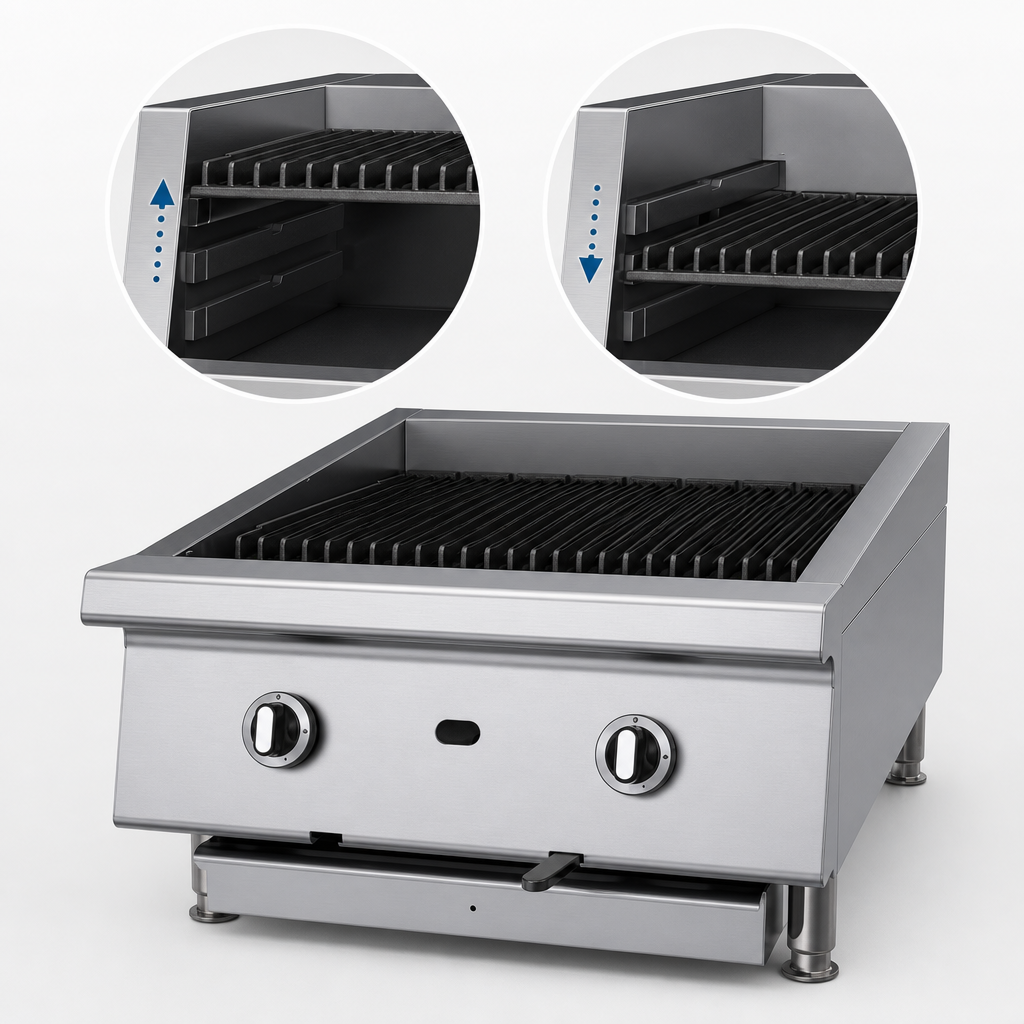

  • Two-position grate height: drop low for finishing, raise high for intense sear.
  • Stainless steel crumb/grease tray slides out full-width for quick clean-ups.
  • All-stainless steel front, sides, back and 3-1/2" front rail stand up to heavy commercial use.
  • 4" stainless steel adjustable legs let you level or line-up with adjacent equipment.
  • 3/4" NPT rear gas connection with regulator and “T” manifold for straight-through or flush-mount piping.
  • CSA & NSF certified for safety and sanitation.
Specifications
Model GTBG24-AB24
Cooking Surface (W × D) 24" × 21-3/16" (600 mm × 538 mm)
Overall Dimensions (W × D × H) 23-5/8" × 32" × 13" (600 mm × 814 mm × 330 mm)
Height shown with standard 4" legs.
Total BTU Input 60,000 BTU/hr (Natural or Propane)
Burners 2 × 30,000 BTU cast-iron “H” burners
Grate Adjustment 2-position (high / low)
Gas Connection 3/4" NPT (rear) with factory regulator
Manifold Pressure Natural 4.5" WC | Propane 10" WC
Shipping Weight 283 lb (129 kg)
Certifications CSA, NSF
Optional Accessories
  • Stainless steel skirt for flush counter mounting (lowers height by 1-3/4").
  • Stainless steel spatter-guard with optional wire holding shelf.
  • 9" Fajita broiling grate (replaces 3 standard grate sections).
  • Broiler grate cleaning tool.
  • Stainless steel stand with solid top shelf, feet or casters.
  • Replacement reversible rack set (4 brand marks per 3" section).
  • Removable condiment rail with universal 1/9 or 1/3 pan cut-outs.
Installation note: Garland equipment is intended for commercial use only and must be installed by a qualified technician in non-combustible surroundings. Gas ratings are for altitudes up to 2,000 ft (610 m); please specify higher altitudes and gas type when ordering.

Features & Specs

Manufacturer

Garland

Certifications

NSF, CSA

Height

13.0in

Width

23.63in

Depth

32.0in

Shipping Weight

283.0lbs

Heating Source

ceramic

Width (side - side) OA

19 - 24"

Control Type

manual controls

Specifications

Charbroiler, countertop, gas, 24" W, heavy-duty, ceramic briquette, adjustable cast iron grates, 21-3/16” D broiling grid, (1) variable hi/lo valve per burner, manual controls, crumb tray, reversible cast iron broiler racks in 3” W sections, stainless steel front, sides, back & 3-1/2" front rail, 4" adjustable legs, 60,000 BTU (Garland), CSA, NSF
