Garland GN17R97 Arctic Fire Undercounter & Worktop Refrigeration
Description

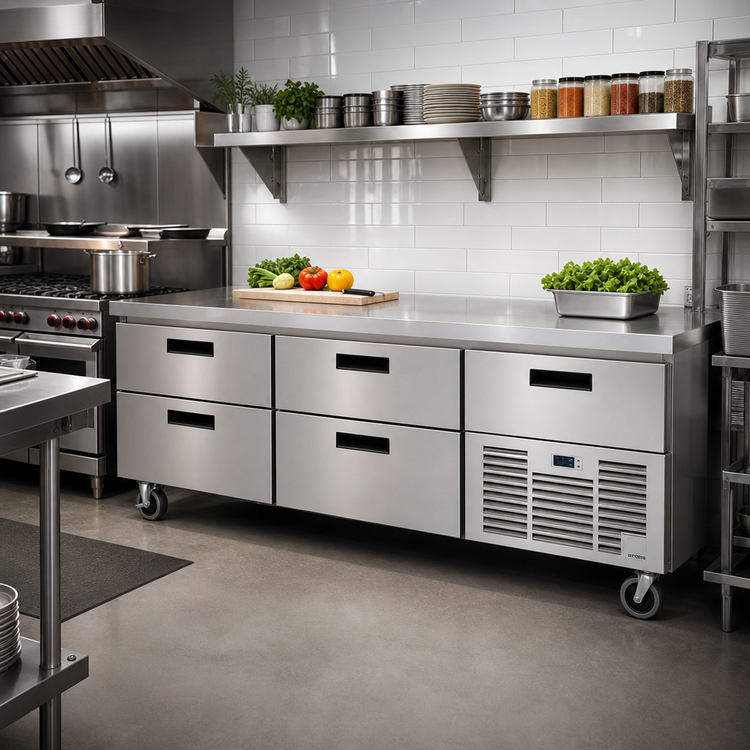

Arctic Fire GN17R97 Remote Refrigerated Base – 97 in.
Three-section • six self-closing drawers • built for Garland Master Series modular topsKeep ingredients icy-cold exactly where you need them—right beneath your cooking line. The Garland Arctic Fire GN17R97 delivers the storage volume of a reach-in, the strength of a heavy-duty equipment stand, and the convenience of remote refrigeration that sends heat and compressor noise outside the kitchen.
Key advantages

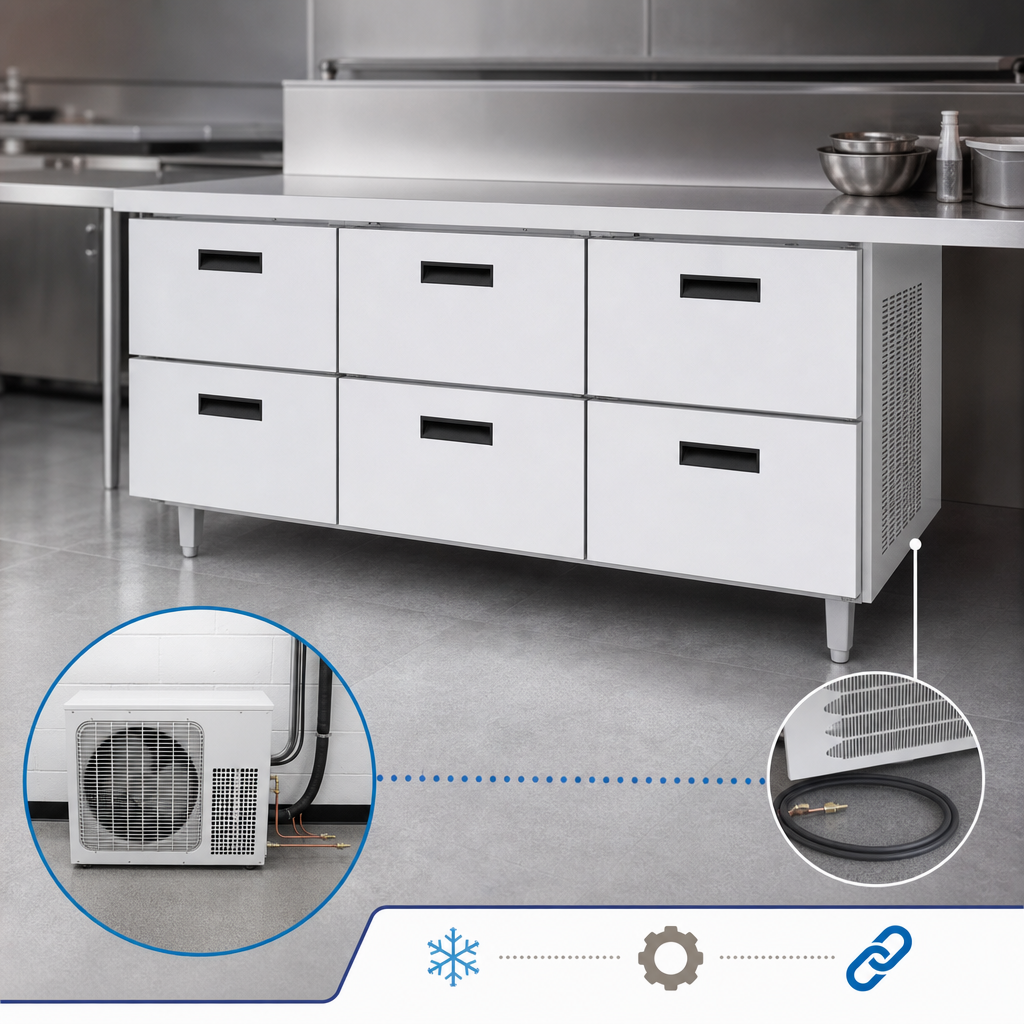

- Remote refrigeration (HFC-404A) keeps the cookline cooler and quieter; 1/4 HP condenser & line set supplied by others.
- Six self-closing drawers on removable all-stainless roller assemblies with self-lubricating bearings—backed by a 10-year parts warranty.
- Each drawer accommodates up to (2) 12" × 20" × 4" hotel pans (GN 1/1, 100 mm), providing storage for 12 full-size pans overall.
- Flush, center-mounted handles stay clear of traffic and support quick two-handed pulls.
- Energy-saving Santoprene magnetic gaskets—tool-free to replace when required.
- Low 27 in. (686 mm) working height perfectly matches Garland Master Series modular cook tops, creating a seamless refrigerated equipment stand.
- Rugged, easy-clean construction: stainless steel exterior front/sides, stainless interior top/rear/bottom, ABS interior liners, galvanized bottom & back.
- 6 in. (152 mm) adjustable stainless steel legs simplify floor cleaning and leveling.
- Front-mounted analog thermometer offers at-a-glance cabinet temperature checks.
- Dedicated 6 in. service chase keeps electrical and refrigerant connections accessible from the front.
Technical specifications
| Model | GN17R97 |
|---|---|
| Unit type | Remote refrigerated equipment base (refrigerator, not freezer) |
| Overall width | 97 in. / 2 464 mm |
| Depth | 34 in. / 864 mm |
| Height (to work surface) | 27 in. / 686 mm |
| Sections / Drawers | 3 sections / 6 self-closing drawers |
| Pan capacity | Up to 12 × GN 1/1 (12" × 20" × 4") hotel pans |
| Refrigerant | HFC-404A (remote system) |
| Recommended compressor | 1/4 HP, 852 BTU (field supplied) |
| Electrical | 115 V / 60 Hz / 1-phase, 1.5 A – hard-wire connection (no cord/plug) |
| Legs | 4 × 6 in. adjustable stainless steel |
| Certifications | UL, cUL, NSF |
- This base must be ordered in conjunction with a Garland Master Series modular cook top; it is not available as a stand-alone item.
- Remote compressor, plumbing, and electrical hook-up are by others; unit ships without cord or plug and must be hard-wired on site.
- Garland equipment is intended for commercial applications only and is not approved for residential use.
Looking for a different size, drawer configuration, or a freezer base? Explore the full Garland Arctic Fire line or chat with our team for a custom quote.
