Garland GN17R85 Arctic Fire Undercounter & Worktop Refrigeration
Description
Arctic Fire Remote Refrigerated Base – 85" Three-Section (GN17R85)
Specifically engineered for Garland Master Series modular cook topsKeep ingredients ice-cold and within arm’s reach of the cooking line without adding heat or noise to the kitchen. The 85-inch Arctic Fire remote base delivers heavy-duty refrigeration directly beneath your Garland Master Series range suite, giving chefs six self-closing drawers of high-capacity, pan-ready storage.
Key Features
- Remote refrigeration design removes the compressor from the cook line for a cooler, quieter workspace.

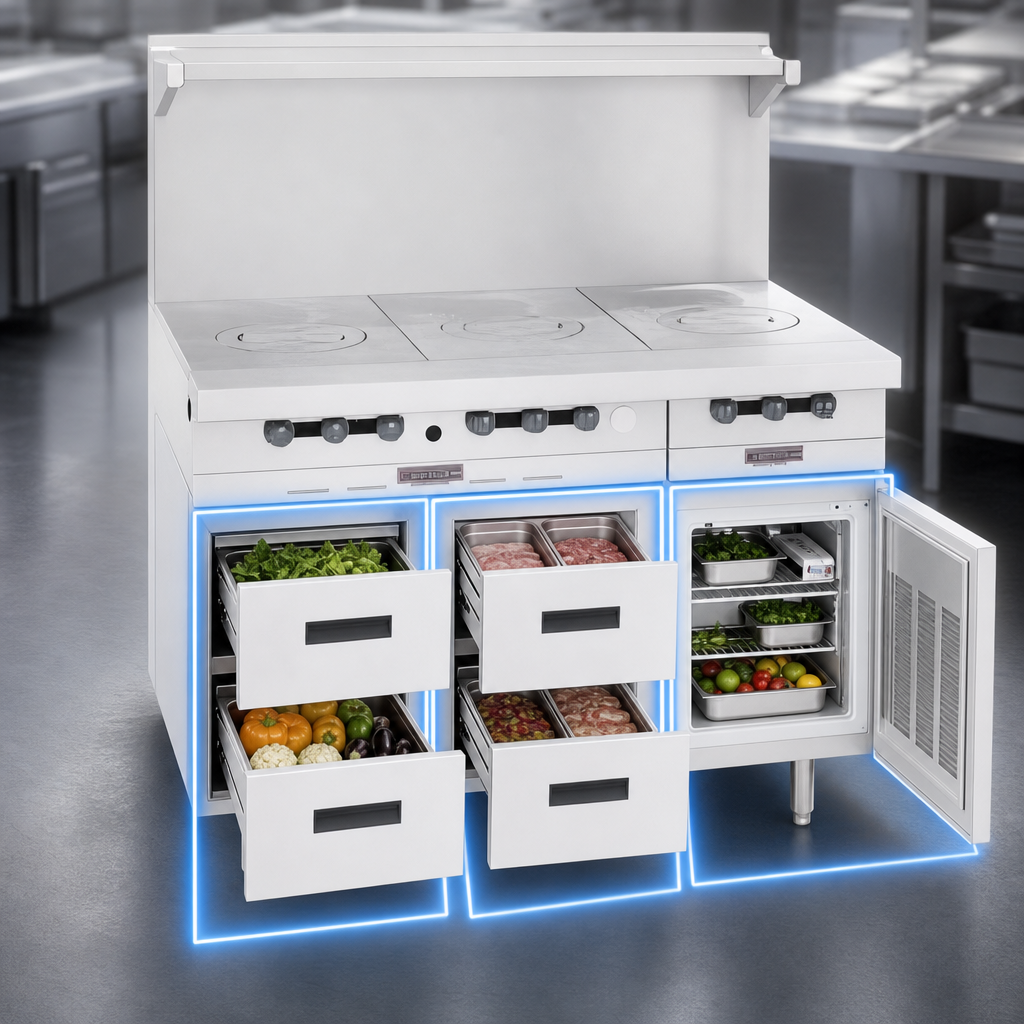

- Three independent sections with a total of 6 self-closing drawers (19", 27" & 32" wide) for flexible staging.
- Holds up to 10 full-size 12" × 20" × 4" hotel pans (GN 1/1, 100 mm deep).
- All-stainless-steel exterior front, sides, top, rear and bottom for unmatched durability and easy sanitation.
- ABS polymer interior sides with stainless steel interior top, rear & base resist corrosion and harsh cleaners.
- Heavy-duty stainless drawer slides with stainless bearings; removable track assemblies carry a 10-year parts warranty.
- Center-mounted flush pull handles stay cool and out of the way.
- Front-face scroll-type thermometer for fast visual temperature checks.
- Field-adjustable 6" (152 mm) stainless steel legs for perfect leveling beneath any line-up.
- CFC-free, foamed-in-place insulation maximises efficiency and temperature stability.
Specifications
| Model | GN17R85 (Arctic Fire remote refrigerator base) |
|---|---|
| Overall width | 85" / 2195 mm |
| Depth | 34" / 864 mm |
| Height (to work surface) | 27" / 686 mm |
| Sections / drawers | 3 sections / 6 drawers (2 per section) |
| Drawer widths | 1 × 19" | 1 × 27" | 1 × 32" |
| Pan capacity | 10 full-size 12" × 20" × 4" hotel pans (GN 1/1, 100 mm) |
| Refrigerant (evaporator) | R-404A (remote condensing unit by others) |
| Electrical | 115 V / 60 Hz / 1-phase - 1.5 A (hard-wired) |
| Recommended remote compressor | 1/4 HP (supplied & installed by others) |
| Shipping weight | 570 lb / 268 kg |
| Leg height | 6" / 152 mm adjustable stainless legs |
Why Choose Arctic Fire?
- Integrates seamlessly beneath Garland Master Series ranges, griddles and hot-tops—freeing valuable floor space.
- Remote set-up eliminates hot air discharge at the cook line, improving hood efficiency and chef comfort.
- Self-closing, gasketed drawers lock in temperatures between batches and during busy service.
- 10-year drawer track parts warranty underscores Garland’s commitment to long-term reliability.
Garland equipment is intended for commercial use only; residential installation is not supported.
