Garland GN17R68 Arctic Fire Undercounter & Worktop Refrigeration
Description

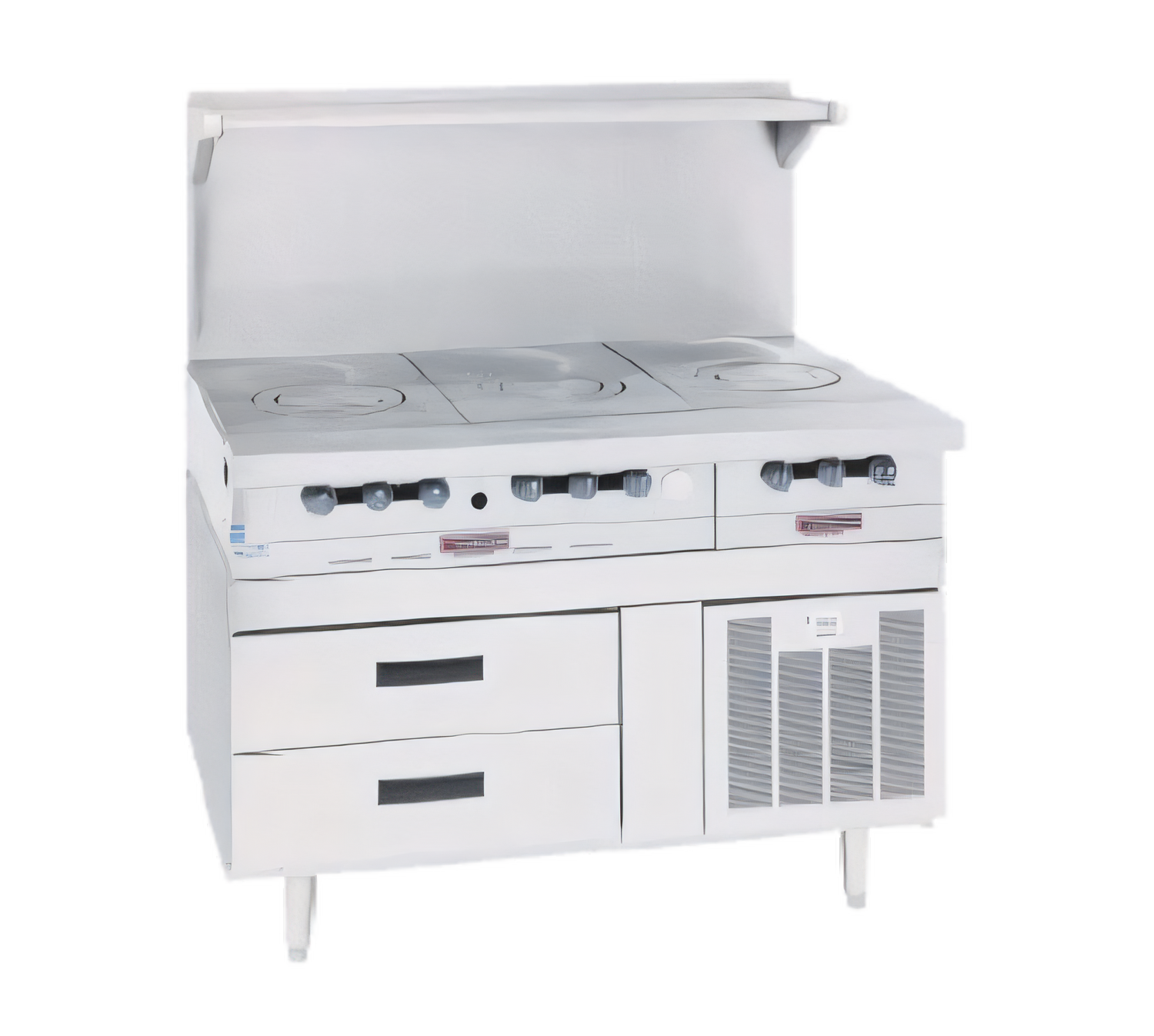

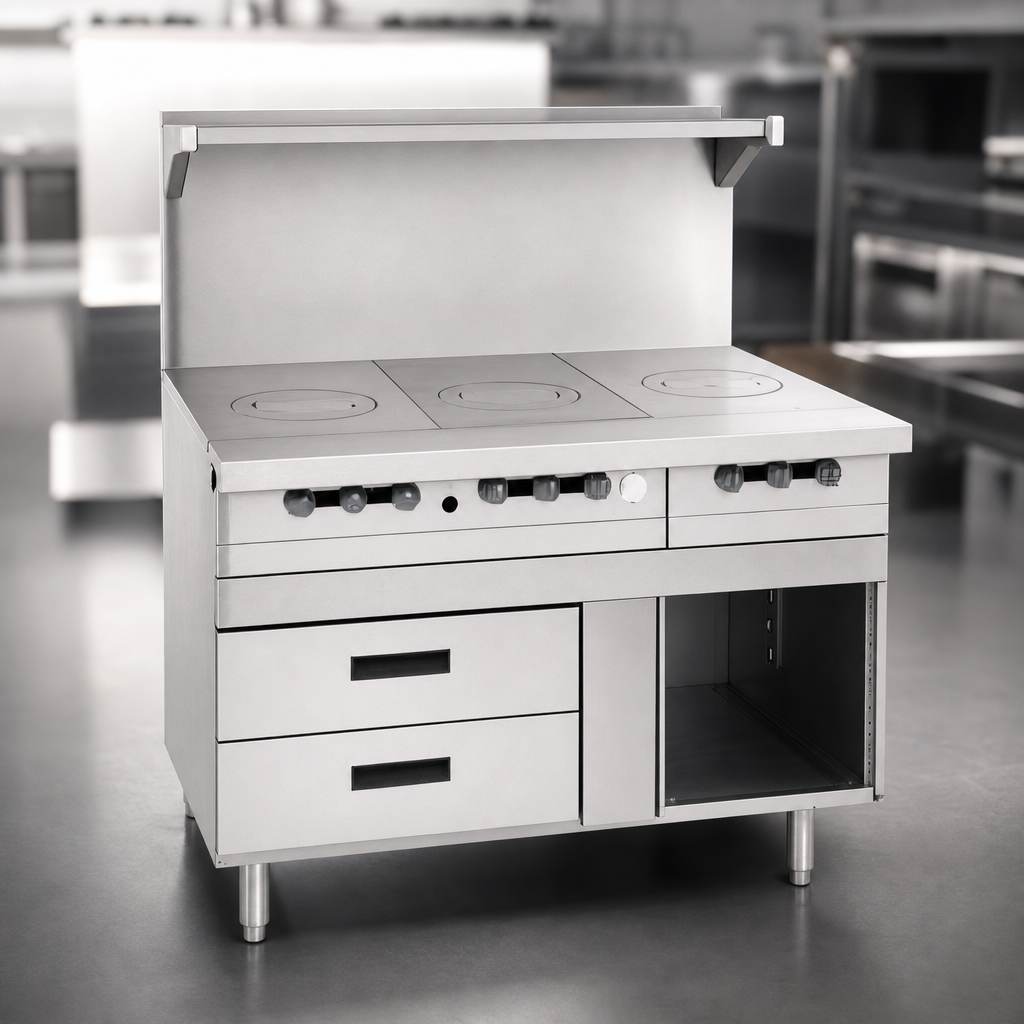

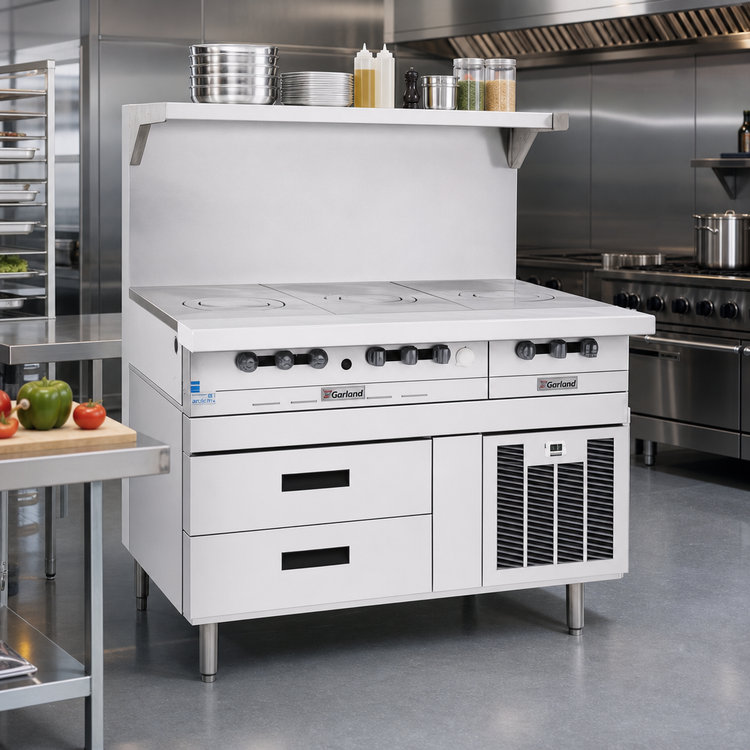

Garland Arctic Fire™ Remote Refrigerated Base – 68" W, 4-Drawer
Model GN17R68 | Designed for Master Series Modular Cook-topsKeep ingredients perfectly chilled and within arm’s reach of the line. The 68 in. Garland Arctic Fire™ remote refrigerated base tucks under any 68 in. Master Series modular top, delivering heavy-duty cold storage without sacrificing valuable cook-line space.
Why You’ll Love It
- Four self-closing drawers with center pull handles store up to 8 full-size (12" × 20" × 4") hotel pans.
- Remote refrigeration keeps heat and noise out of the kitchen; connection section is pre-configured for quick hook-up.
- All-stainless exterior plus stainless interior top, rear and floor for long-lasting durability and fast clean-ups.
- Heavy-duty drawer slides with stainless bearings – backed by a 10-year parts warranty.
- Vertically mounted evaporator/blower coil circulates cold air evenly through both sections.
- Santoprene magnetic gaskets provide a tight seal and pop out for tool-free replacement.
- 6" (152 mm) adjustable stainless legs for rock-solid support and easy floor sanitation.
- Front-mounted thermometer lets staff verify cabinet temperature at a glance.
At-a-Glance Specs
| Exterior width | 68 in / 1727 mm |
|---|---|
| Exterior depth | 34 in / 864 mm |
| Exterior height | 27 in / 686 mm (to drawer top) + 6 in legs |
| Sections / Drawers | 2 sections / 4 drawers |
| Pan capacity | 8 × full-size 12" × 20" × 4" hotel pans (GN 1/1, 100 mm) |
| Refrigerant | R-404A (remote compressor by others) |
| Electrical | 115 V / 60 Hz / 1-ph, 1.5 A – hard-wired (no cord or plug) |
| Certifications | cULus, NSF |
| Warranty | 1 yr parts & labor + 10 yr drawer track parts |
Popular Options & Accessories
- Extra-deep drawers for 6" (150 mm) pans (mullion removed)
- Sheet-pan tray racks in lieu of drawers (not compatible with 32" drawers)
- Locking swivel casters (requires approved restraint)
- Step-down broiler section for 24"–48" Master Series charbroilers
• Unit must be ordered and installed beneath a Garland Master Series modular cook-top.
• Remote condensing unit, refrigerant lines and electrical disconnect are supplied/installed by others.
• For commercial kitchens only – residential use is not covered by warranty or service.
Need a different size or drawer configuration? Explore additional Arctic Fire models or chat with our equipment specialists for a custom quote.
