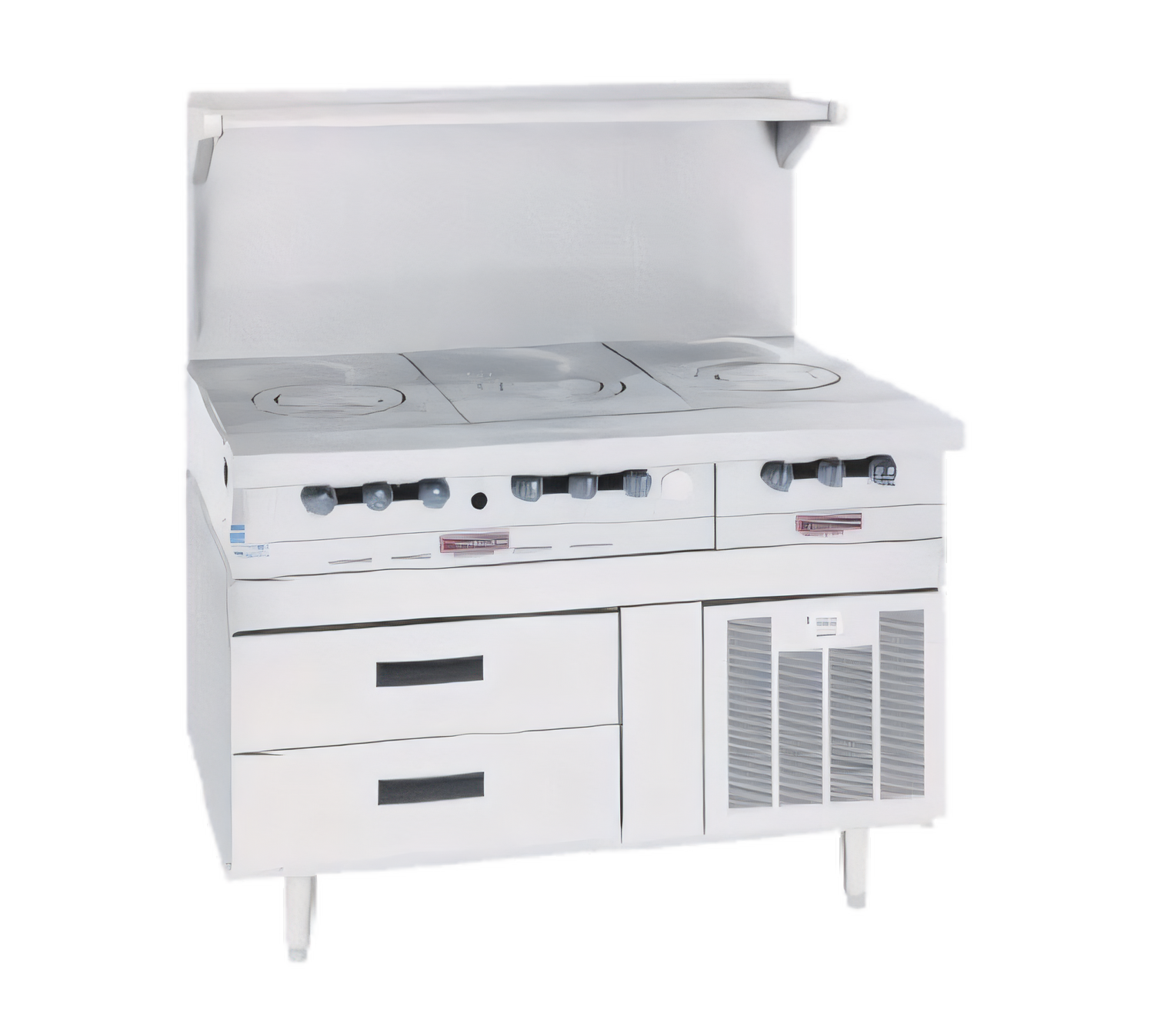

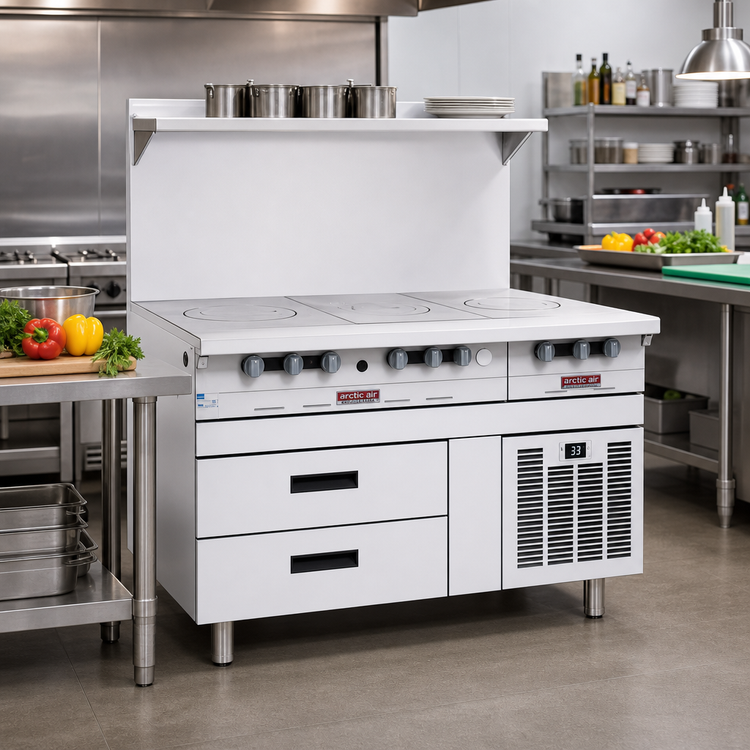

Garland Arctic Fire 63" Remote Refrigerated Base – 4-Drawer (GN17R63)
Purpose-built for Garland Master Series modular cook topsTransform unused under-counter space into high-capacity cold storage. The Arctic Fire GN17R63 supports your heavy-duty cook top while keeping pans of ingredients chilled, organized, and right where you need them.
Key features

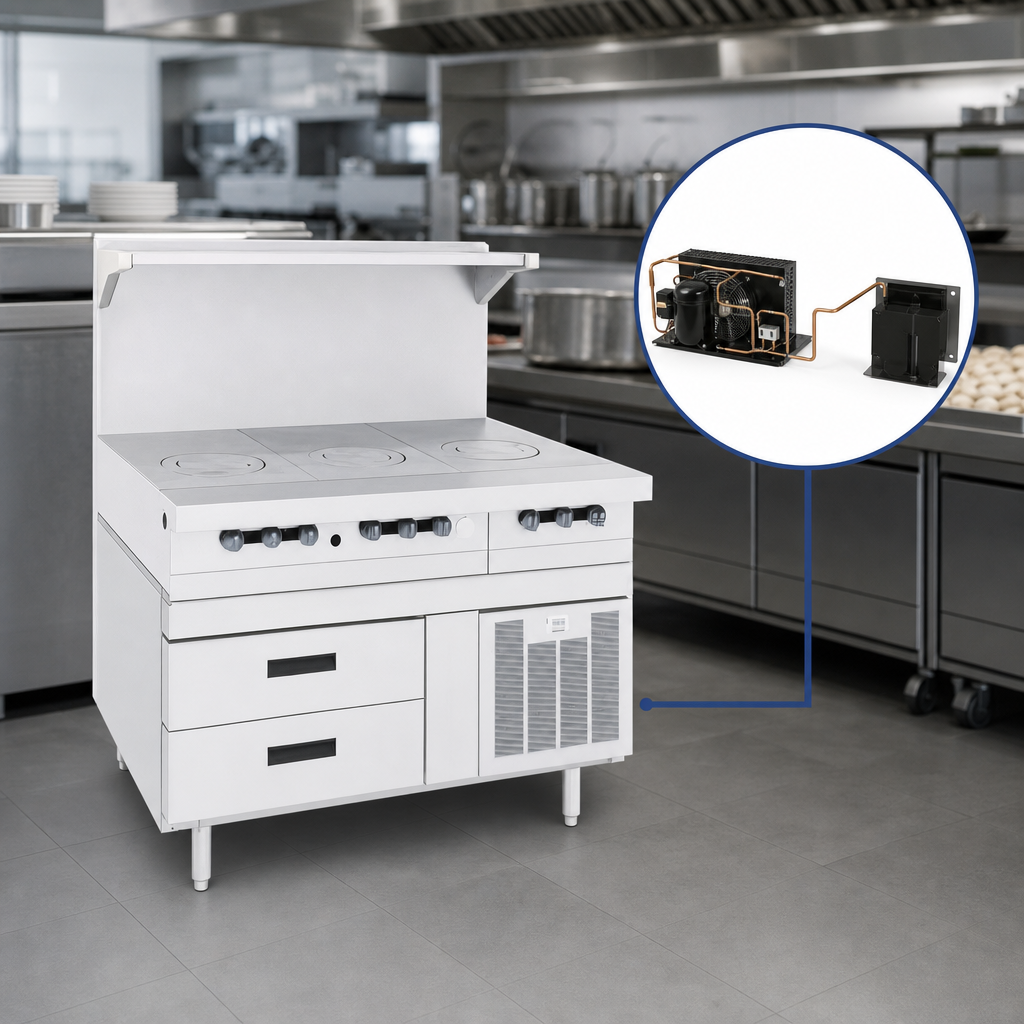

- Remote refrigeration – pair with a 1/5 HP remote condenser (supplied & installed by others) to remove heat and noise from the kitchen.
- Four self-closing drawers with centered stainless pull handles.
- Each drawer holds two full-size 12 × 20 × 4″ hotel pans (GN 1/1, 100 mm deep).
- All-stainless exterior front & sides; stainless interior top/rear/bottom for long-term durability.
- Heavy-duty stainless roller assemblies with self-lubricating bearings – 10-year parts warranty.
- Santoprene magnetic gaskets provide a tight, tool-free removable seal.
- Front-mounted dial thermometer for quick temperature checks.
- 6″ adjustable stainless steel legs simplify leveling and floor cleaning.
- CFC-free foamed-in-place insulation and HFC-404A blower coil.
Specifications
| Model | GN17R63 |
|---|---|
| Cabinet type | Remote refrigerated base, two-section |
| Drawer count | 4 (self-closing) |
| Overall width | 63″ (1600 mm) |
| Depth | 34″ (864 mm) |
| Height (incl. legs) | 27″ (686 mm) |
| Pan capacity | 8 full-size hotel pans (4″ deep) |
| Refrigerant | HFC-404A (remote coil supplied) |
| BTU heat load | ≈ 536 BTU/hr |
| Electrical | 115 V / 60 Hz / 1-ph, 1.5 A, hard-wired |
| Shipping weight | ≈ 431 lb (196 kg) |
Perfect for
- Mounting beneath Garland Master Series griddles, open burners, hot tops, or fryers.
- Line-side storage of proteins, sauces, and garnishes for instant access.
- Operations that need to maximize floor space by combining cold storage and cooking equipment.
For commercial use only – not approved for residential applications.
