Garland GN17R51 Arctic Fire Undercounter & Worktop Refrigeration
Description

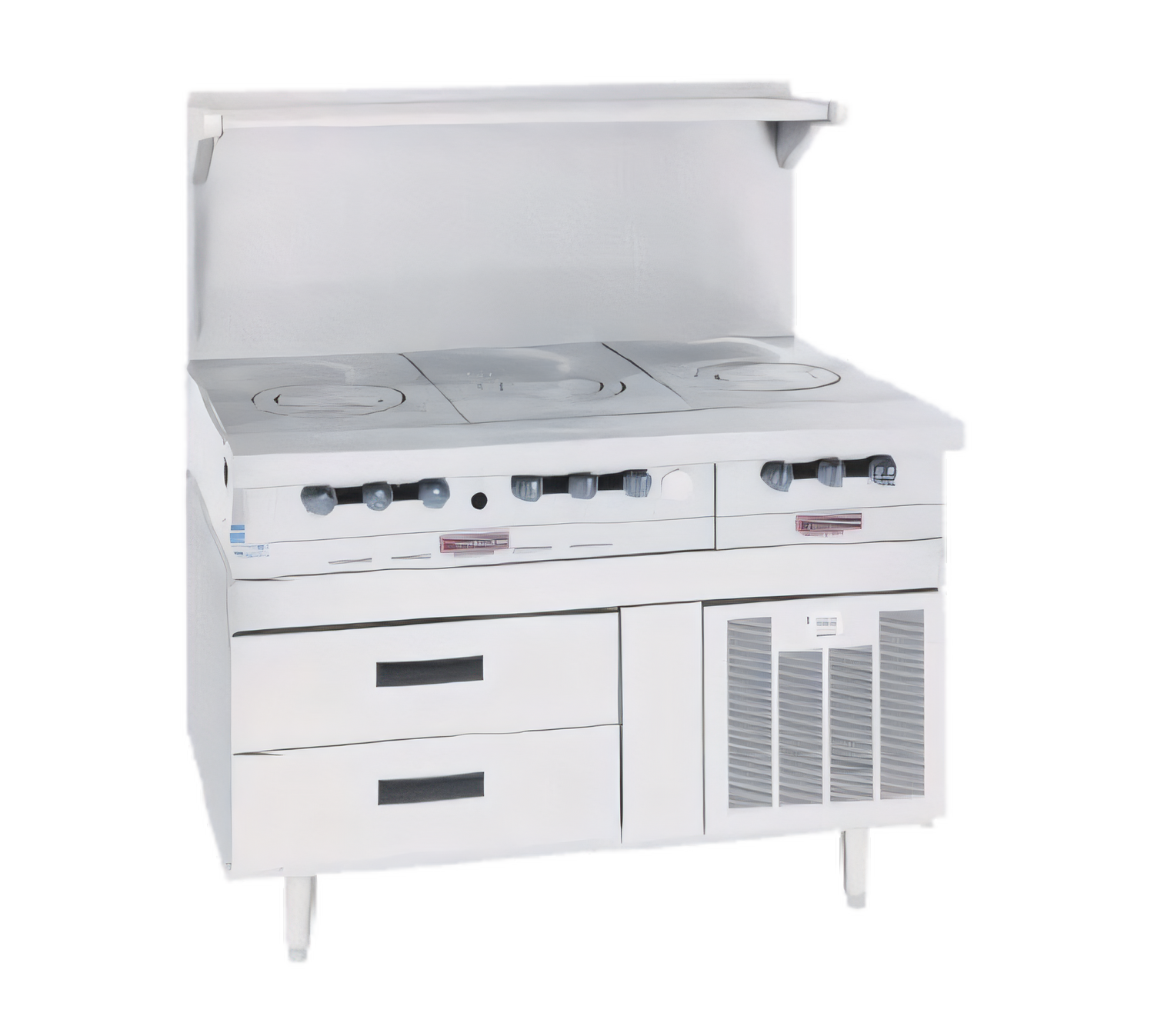

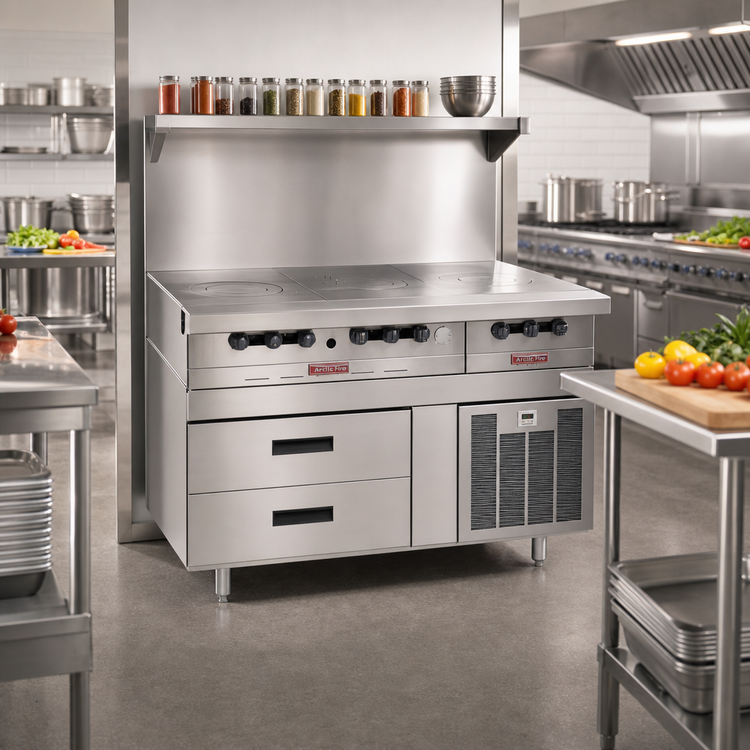

Arctic Fire 51" Remote Refrigerator Base
by Garland

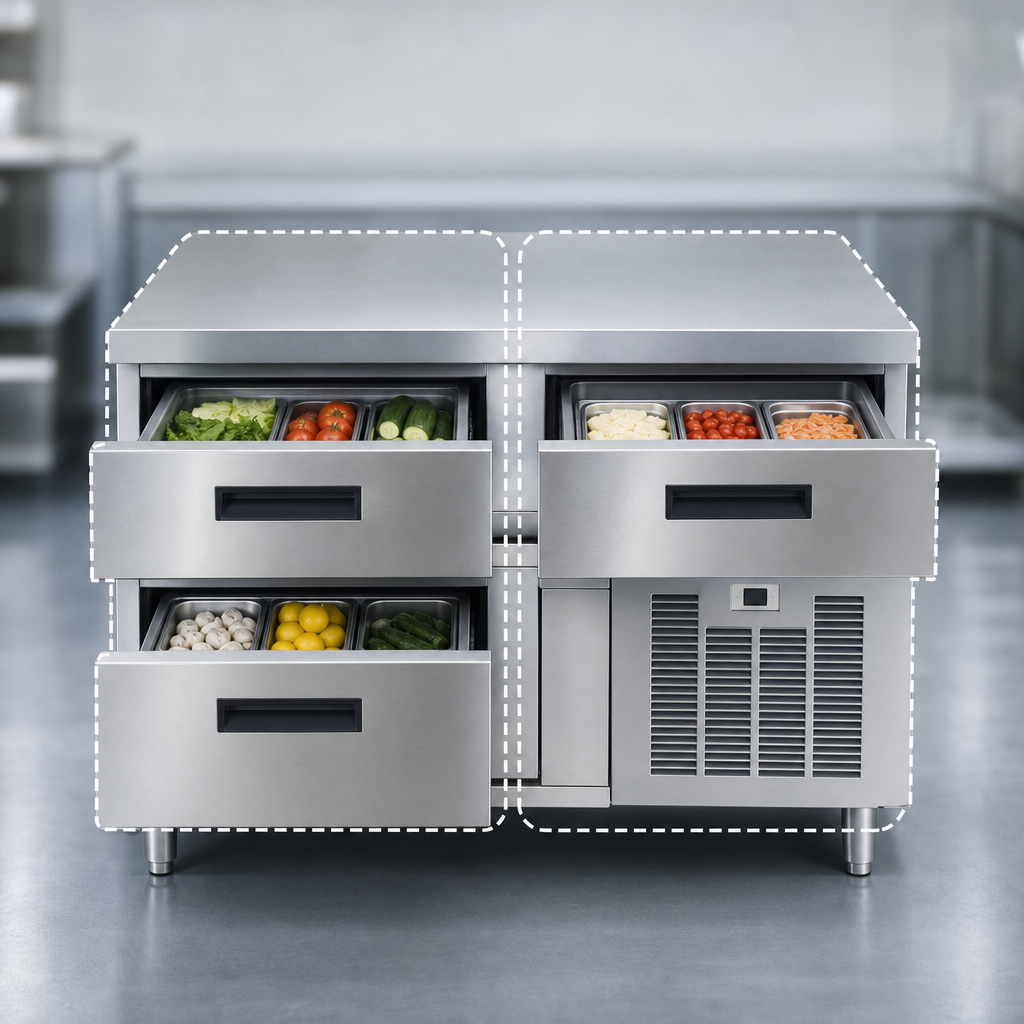

Model GN17R51 • 4-Drawer, 2-Section • For Master Series Modular Cook Tops
Keep chilled ingredients right where the action is. The 51-inch Garland Arctic Fire remote refrigerator base tucks neatly beneath any Master Series modular cook top, giving chefs quiet, low-profile cold storage without sacrificing valuable line space or ergonomics.
Why you’ll love it
- 4 self-closing drawers with center pull handles – each accepts one full-size 12 × 20 × 4" (GN 1/1 100 mm) hotel pan
- All-stainless exterior front, sides & 6" adjustable legs for a cohesive Master Series lineup
- Heavy-duty stainless steel drawer slides with self-lubricating bearings & 10-year parts warranty
- Santoprene magnetic gaskets for a tight, tool-free seal and easy replacement
- Vertically mounted coil with high-velocity fan—fast, even drawer recovery
- Front-mounted analog thermometer for at-a-glance cabinet temperature
- CFC-free foamed-in-place insulation maximises efficiency & cabinet rigidity
Technical specifications
| Overall width | 51 in / 1295 mm |
|---|---|
| Depth × Height | 34 in × 27 in (864 mm × 686 mm) |
| Sections / Drawers | 2 sections | 4 drawers |
| Pan capacity | 4 × full-size (12 × 20 × 4") hotel pans |
| Refrigeration | Remote—HFC-404A, 410 BTU/h, 1/5 HP recommended (compressor supplied by others) |
| Electrical | 115 V / 60 Hz / 1-Ph, 1.5 A, hard-wired (no cord or plug) |
| Legs | 6" (152 mm) stainless steel, adjustable |
| Construction (interior) | ABS drawer fronts & cabinet sides; stainless top, rear & bottom |
| Agency listings | UL, cUL, NSF |
Factory-fitted options
- Extra-deep drawers (no mullion) for 6" deep pans
- Tray racks & doors to hold sheet pans in lieu of drawers (except 32" drawer positions)
- Heavy-duty casters (restraining device required)
- Step-down section for modular charbroilers (24", 34" or 48" widths, left or right)
Garland reserves the right to modify specifications without notice. For dimensional drawings and CAD blocks, please contact your Garland representative.
