Garland GN17R114 Arctic Fire Undercounter & Worktop Refrigeration
Description
Garland Arctic Fire Remote Refrigerated Base – 114" (GN17R114)
4-section | 8 self-closing drawers | fits Garland Master Series cooktopsKeep high-volume mise en place ice-cold right where the action happens. The 114 inch Arctic Fire remote refrigerator base tucks neatly beneath your Garland Master Series modular cooktop, delivering whisper-quiet, even cooling and a massive 16 full-size hotel-pan capacity without sacrificing a single inch of precious line space.
Key features
- Low-profile, 114" W × 34" D × 27" H base supports any Master Series modular top (ordered together).
- Eight self-closing drawers with centered pull handles for one-hand operation.
- Each drawer holds (2) 12" × 20" × 4" GN 1/1 pans (100 mm) — 16 pans total.
- Stainless steel exterior, interior top/rear/bottom & drawer fronts; easy-clean ABS interior sides.
- Heavy-duty stainless steel drawer slides with self-lubricating bearings — 10-year parts warranty on slide assemblies.
- Santoprene magnetic drawer gaskets maintain a tight, energy-saving seal.

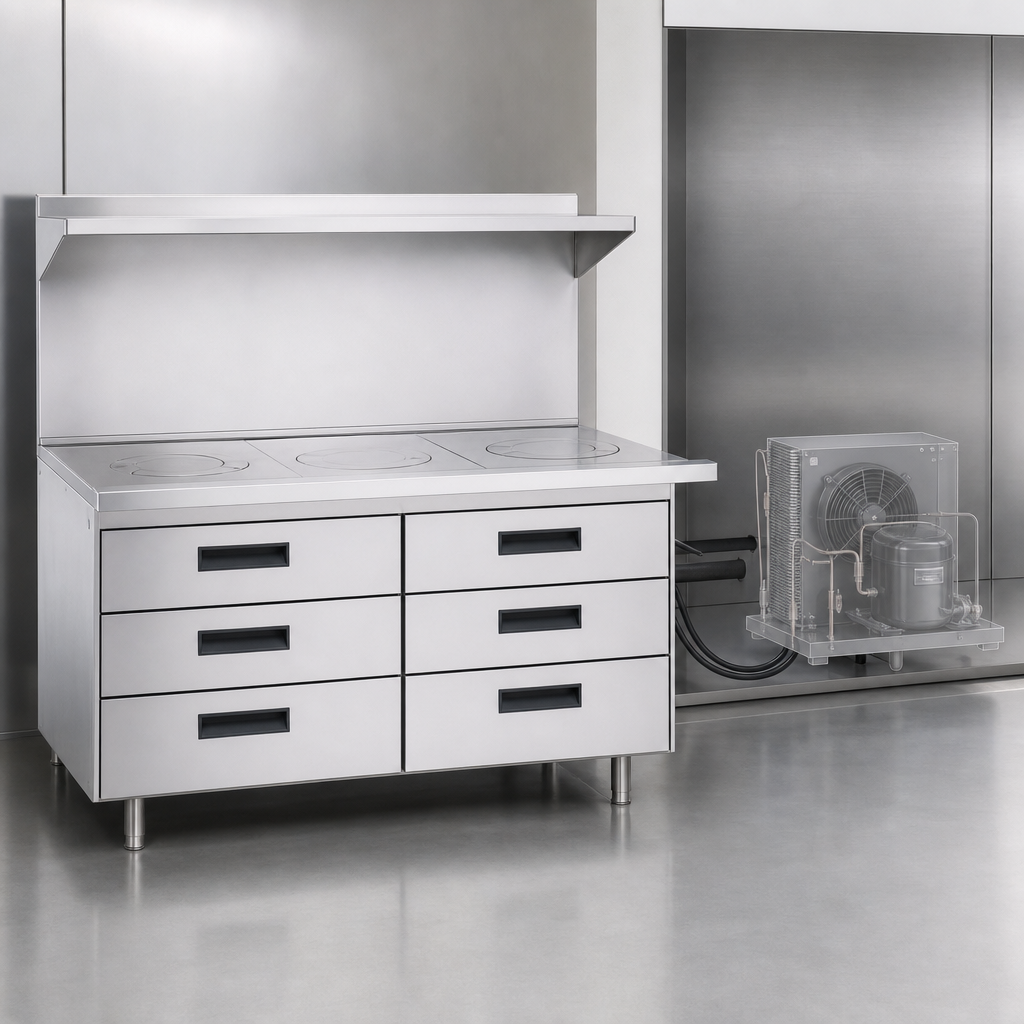

- Vertically mounted blower coil with HFC-404A refrigerant; remote condenser/compressor by others keeps heat and noise out of the kitchen.
- Front-mounted analog thermometer allows quick temperature checks at a glance.
- 6" adjustable stainless steel legs for easy sanitation underneath; optional casters available.
- Dedicated 6" mechanical chase keeps all refrigerant and electrical connections accessible from the front.
Technical specifications
| Model | GN17R114 (North America) |
|---|---|
| Exterior dimensions | 114" W × 34" D × 27" H (2896 × 864 × 686 mm) |
| Sections / drawers | 4 sections / 8 self-closing drawers |
| Pan capacity | 16 full-size (12" × 20" × 4") hotel pans |
| Refrigeration | Remote, HFC-404A coil (condensing unit & lineset supplied/installed by others) |
| Electrical | 115 V / 60 Hz / 1-Ph, 1.5 A – hard-wire connection, no cord/plug |
| Construction | Stainless steel exterior & drawer fronts; ABS/stainless interior; 6" stainless legs |
| Shipping weight | Approx. 750 lb (340 kg) |
| Listings | cULus, NSF |
Popular factory options
- Extra-deep drawers (accommodate 6" deep pans)
- Doors & tray racks for sheet pans (in lieu of drawers, not for 32" sections)
- Heavy-duty casters with front locks (requires approved restraining device)
- Step-down sections for mounting modular charbroilers (24", 34" or 48" widths)
Questions about compatibility or build-to-order configurations? Contact our product specialists at 800-424-2411 or use the online contact form.
