Garland GN17R109 Arctic Fire Undercounter & Worktop Refrigeration
Description

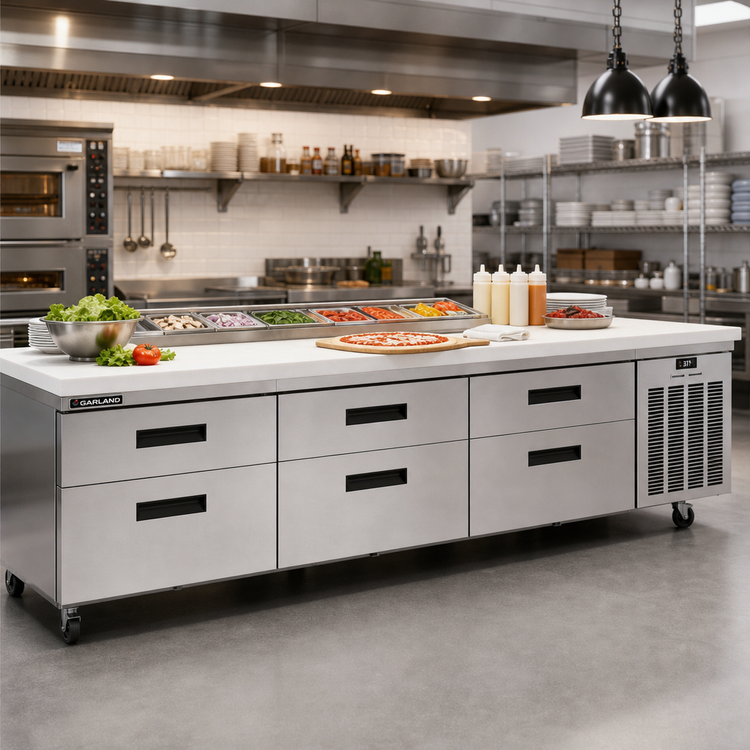

Garland Arctic Fire GN17R109 Remote Refrigerated Chef Base – 109"
4-section • 8 self-closing drawers • stainless steel • for Master Series modular topsPut pan-ready, refrigerated ingredients exactly where the chef needs them. The 109 inch Arctic Fire GN17R109 sits directly beneath Garland Master Series cook tops, delivering high-capacity, low-profile cold storage without adding heat or noise to the line.
Key features
- Remote refrigeration design keeps the compressor outside the kitchen for a cooler, quieter workspace.

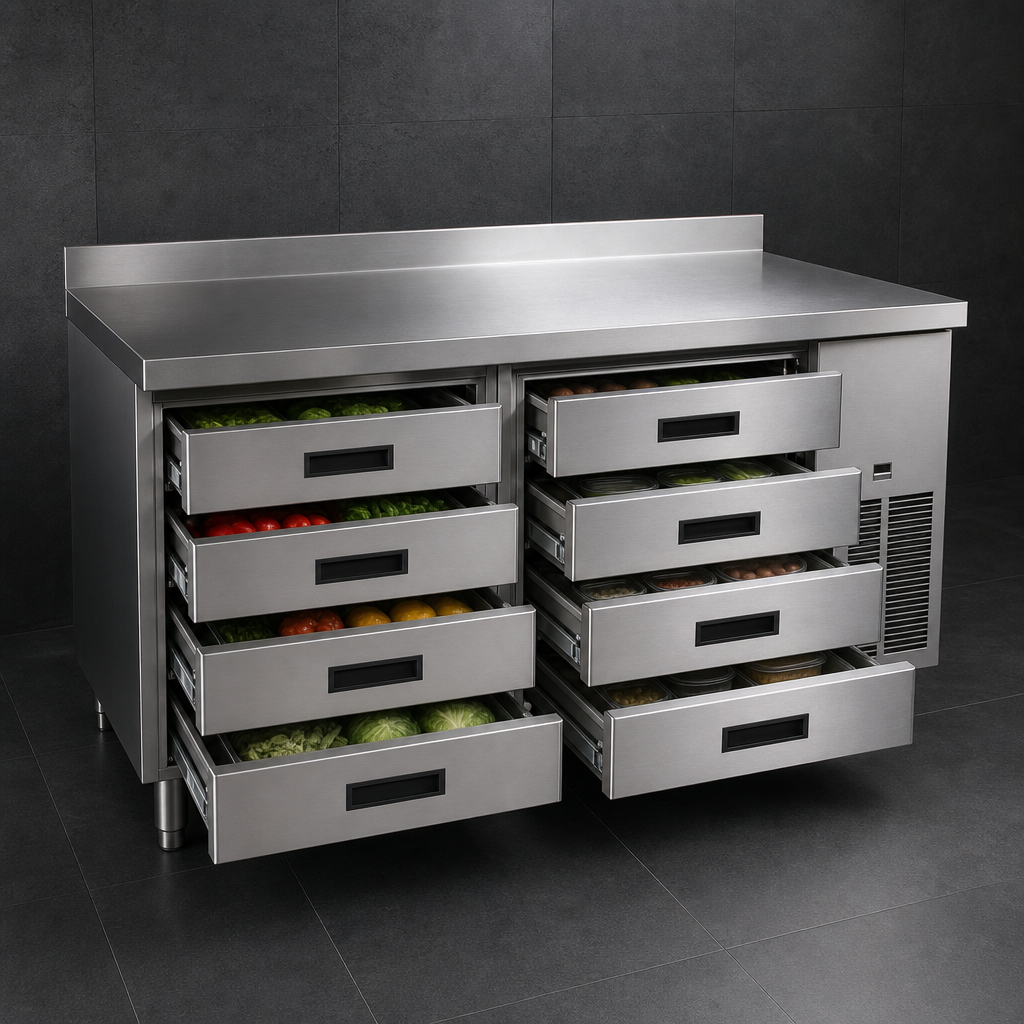

- Four independent sections with a total of 8 self-closing drawers (center pull handles).
- Drawer configuration: 1 × 19" & 3 × 27" double drawers – stores up to 14 full-size 12" × 20" × 4" hotel pans.
- Heavy-duty stainless steel roller slides with stainless bearings – 10-year parts warranty.
- Stainless steel exterior front & sides; stainless interior top/rear/bottom with ABS interior sides.
- CFC-free foamed-in-place insulation plus removable Santoprene magnetic gaskets for an airtight seal.
- Vertically mounted blower coil charged with HFC-404A for even, rapid cooling.
- Front-mounted analog scroll thermometer for at-a-glance temperature checks.
- 6" (152 mm) adjustable stainless steel legs standard; casters optional.
- Service friendly 6" mechanical compartment for all electrical & refrigerant connections.
Technical specifications
| Model | GN17R109 (Arctic Fire series) |
|---|---|
| Overall dimensions (W × D × H) | 109" × 34" × 27" (2769 × 864 × 686 mm) |
| Sections / Drawers | 4 sections / 8 drawers (self-closing) |
| Pan capacity | 14 × 12" × 20" × 4" hotel pans (GN 1/1, 100 mm deep) |
| Refrigeration | Remote, evaporator & controls factory-installed; condensing unit by others; HFC-404A |
| Electrical | 115 V / 60 Hz / 1-ph, 1.5 A – hard-wired (no cord/plug supplied) |
| Construction | Stainless steel exterior, interior top/rear/bottom; galvanized back & base |
| Legs | 6" adjustable stainless steel (casters optional – requires restraining device) |
| Warranty | 10 yr parts on drawer roller assemblies; 1 yr parts & labor on cabinet |
Optional accessories
- Casters in place of legs
- Extra-deep drawers for 6" (150 mm) hotel pans
- Tray racks & doors for full-size sheet pans (not available on 32" drawers)
- Step-down sections for modular top charbroilers (refrigerator base only)
Garland equipment is intended for commercial use only and is not approved for residential installations.
