Garland GN17R102 Arctic Fire Undercounter & Worktop Refrigeration
Description

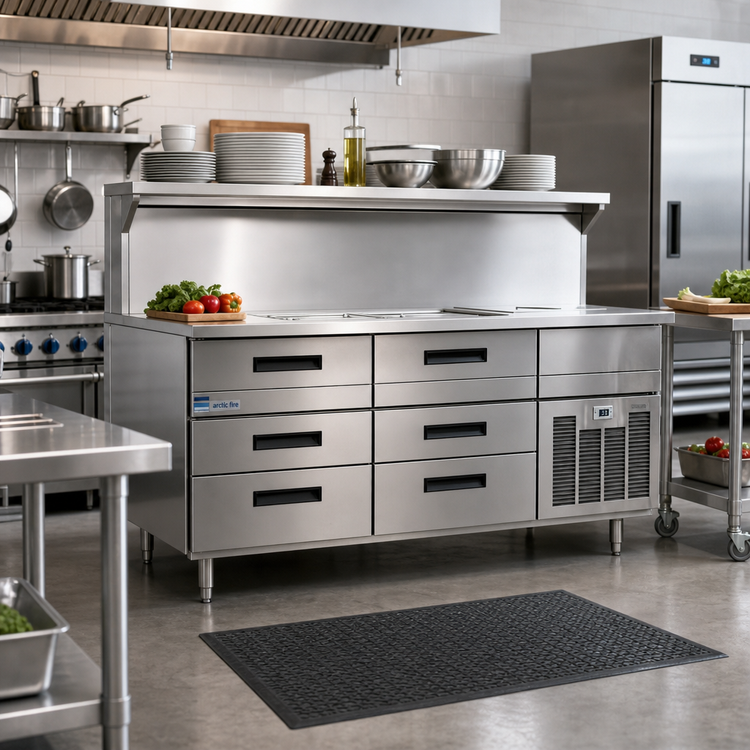

Garland Arctic Fire 102" Remote Refrigerated Base
Model GN17R102 • 3-Section / 6 Self-Closing DrawersPurpose-built to fit beneath Garland Master Series modular cook-tops, the Arctic Fire GN17R102 delivers high-capacity refrigerated storage right on the cook line—without the heat, noise or maintenance of a built-in condensing unit. A remote 1/4 HP compressor (by others) keeps ingredients at safe holding temperatures while the heavy-duty, all-stainless construction stands up to the daily rigors of a busy commercial kitchen.
Why You’ll Love It
- 102 in. wide, three-section base holds up to 12 full-size (GN 1/1) hotel pans
- (6) self-closing drawers with center pull flush handles & mullions for maximum pan support
- All-stainless steel exterior; stainless interior top/rear/bottom with ABS side liners for easy wipe-down
- Removable stainless drawer track assemblies with 10-year parts warranty
- Santoprene magnetic gaskets and heavy-duty stainless roller slides ensure a positive seal every time
- Vertically mounted blower coil (HFC-404A) delivers even cooling to every drawer
- Front-mounted analog thermometer for at-a-glance temperature checks
- 6 in. (152 mm) adjustable stainless steel legs standard; optional caster kit available
- Ships refrigeration-ready—simply connect to your remote condensing unit and hard-wire on site
At-a-Glance Specs
| Model | GN17R102 (Arctic Fire Remote Refrigerated Base) |
|---|---|
| Overall Width | 102 in. / 2,991 mm |
| Depth × Height | 34 in. × 27 in. / 864 mm × 686 mm |
| Sections / Drawers | 3 sections / 6 self-closing drawers |
| Pan Capacity | 12 × 12" × 20" × 4" hotel pans (GN 1/1, 100 mm deep) |
| Refrigeration | Remote system, HFC-404A coil, 1/4 HP condensing unit by others |
| Electrical | 115 V / 60 Hz / 1-ph • 1.5 A • Hard-wired (no cord or plug supplied) |
| Construction | Stainless steel exterior front & sides; galvanized back & bottom |
| Legs | 6 in. stainless steel, height-adjustable |
| Listings | cULus, NSF |
| Warranty | 1-year parts & labor • 10-year parts on drawer track assemblies |
Popular Options
- Extra-deep drawers for 6" (150 mm) pans
- Sheet-pan racks in lieu of drawers (not available on 32" drawers)
- 4-" or 6-" heavy-duty swivel casters with front brakes (requires restraint device)
- Step-down section for mounting Master Series charbroilers (24–48" widths)
Garland products are intended for commercial use only and are not approved for residential applications.
