Garland GN17FR80 Arctic Fire Undercounter & Worktop Refrigeration
Description

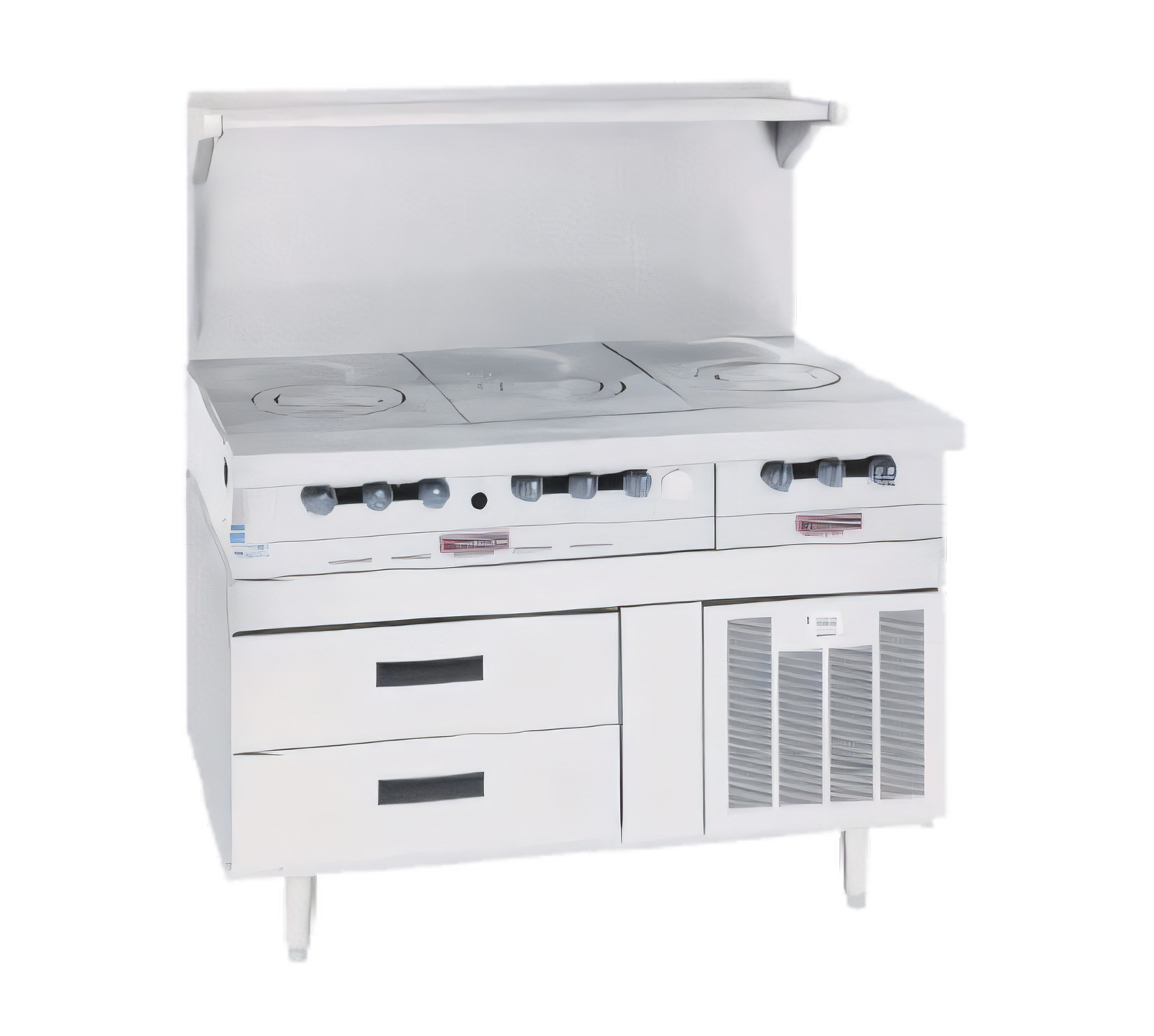

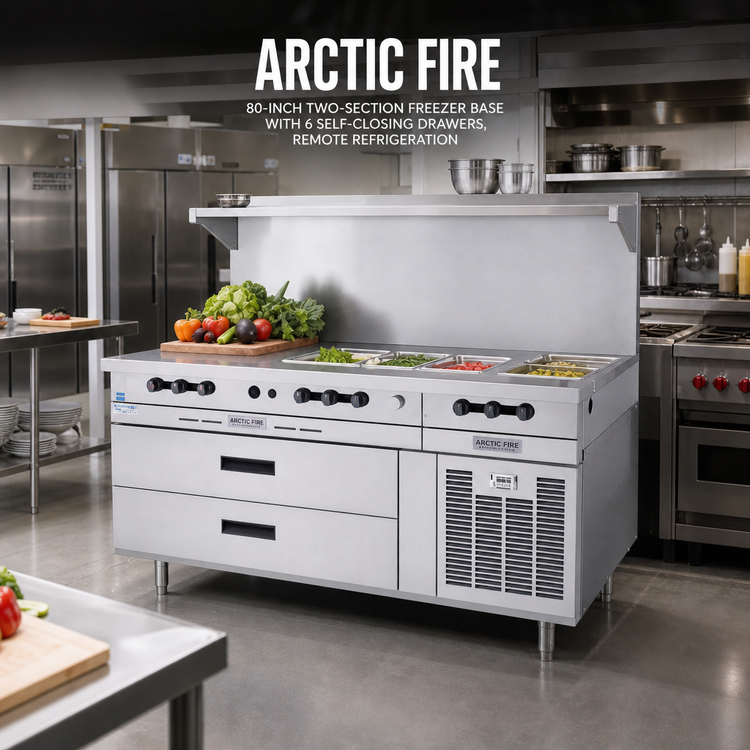

Garland Arctic Fire Remote Freezer Base – 80" W, 6-Drawer
Model GN17FR80 • Fits Garland Master Series Modular CooktopsKeep your mise-en-place frozen and right where you cook. Designed to live beneath a Garland Master Series modular top, the Arctic Fire GN17FR80 delivers the rugged durability, high pan capacity, and space-saving efficiency busy professional kitchens demand.
Why You’ll Love It
- Six self-closing drawers with flush center-pull handles for fast one-handed access.
- Heavy-duty stainless steel roller slides with self-lubricating bearings — backed by a 10-year parts warranty.
- Holds up to 8 full-size 12 × 20 × 4" hotel pans (GN 1/1 100 mm) with a mullion between drawers for optimum cold air flow.
- Low-profile 27" (686 mm) height tucks neatly under your 34"-deep Master Series range tops without sacrificing storage.
- All-stainless exterior front and sides plus stainless interior top/rear/bottom for unmatched durability and easy sanitation.
- CFC-free foamed-in-place insulation and a vertically-mounted blower coil for even, energy-efficient temperature control.
- Front-mounted scroll thermometer (analog) lets you verify cabinet temperature at a glance.
- 6" (152 mm) adjustable stainless steel legs standard; casters optional.
At-a-Glance Specs
| Model | GN17FR80 (Remote Freezer Base) |
|---|---|
| External Dimensions | 80" W × 34" D × 27" H (2032 × 864 × 686 mm) |
| Sections / Drawers | 2 sections | 6 self-closing drawers |
| Pan Capacity | 8 × full-size (12" × 20" × 4") hotel pans (GN 1/1 100 mm deep) |
| Refrigeration | Remote system, HFC-404A refrigerant | Compressor supplied/installed by others |
| Electrical | 115 V / 60 Hz / 1-ph, 1.5 A (fan & controls) | Hard-wired connection, no cord/plug |
| Construction | Stainless steel exterior front & sides • ABS interior sides/fronts • Stainless interior top/rear/bottom |
| Legs / Base | 6" adjustable stainless steel legs (casters optional) |
| Certifications | cULus, NSF |
| Warranty | 10-yr drawer track parts • 1-yr parts & labor on cabinet |
Ideal For
- High-volume line kitchens needing frozen product directly at the cook station
- Hotels, resorts, and banquet facilities running multiple Garland Master Series modules
- Any operation where every square inch under the cooking battery must earn its keep
• The GN17FR80 can only be ordered in conjunction with a Garland Master Series modular cooktop.

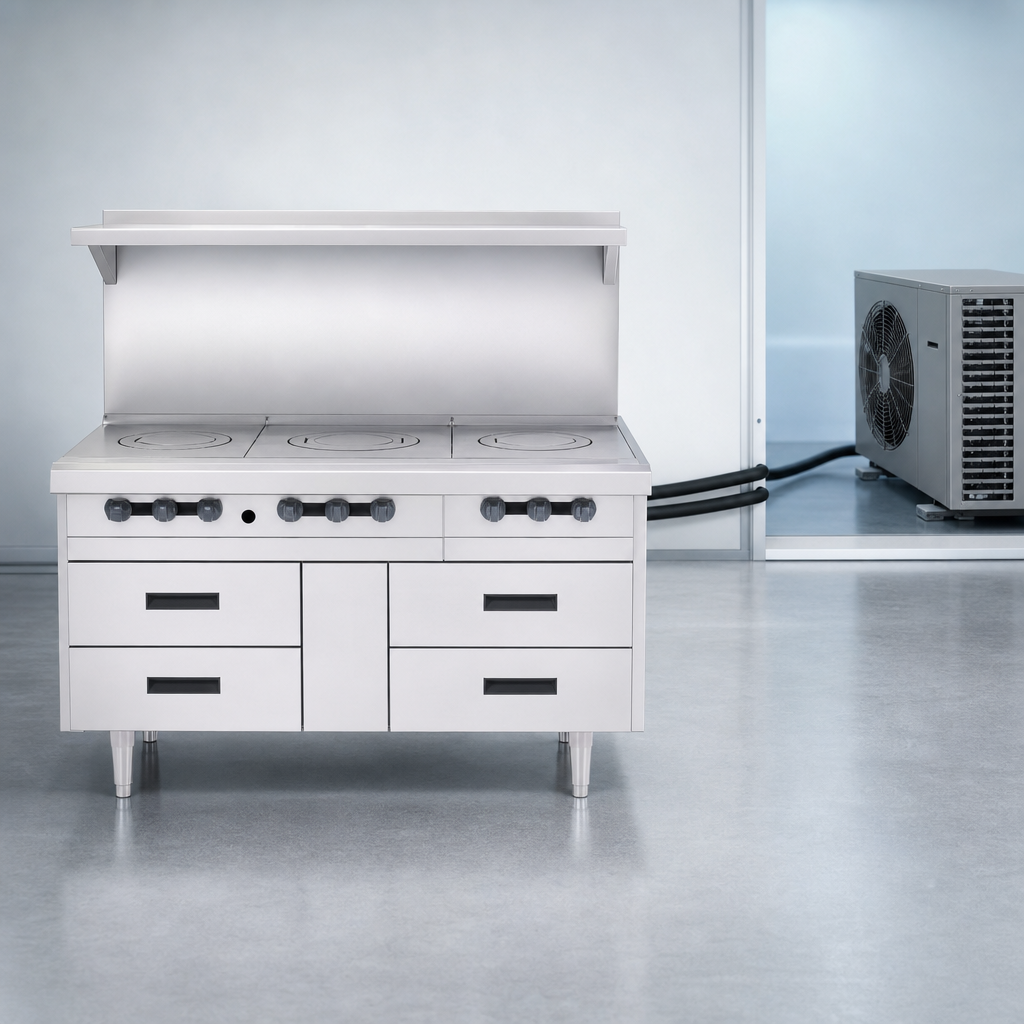

• Remote condensing unit, refrigerant piping, and compressor are supplied/installed by others.
• Unit must be hard-wired on site; a cord and plug are not provided.
Looking for deeper drawers, tray racks, or step-down configurations for charbroilers? Ask your Garland representative about factory options built to order.
