Garland GN17FR68 Arctic Fire Undercounter & Worktop Refrigeration
Description
Arctic Fire 68" Remote Freezer Base
Model GN17FR68 | (4) Self-Closing Drawers | 115 VPurpose-built to live directly beneath Garland Master Series modular cook tops, the Arctic Fire GN17FR68 keeps frozen product exactly where chefs need it—at the line. Four smooth-gliding drawers hold a total of eight full-size hotel pans, while the low 27" (686 mm) profile positions your cooking surface at an ergonomic working height.
Why You’ll Love It
- Remote refrigeration design removes heat & noise from the kitchen (HFC-404A, compressor supplied by others).

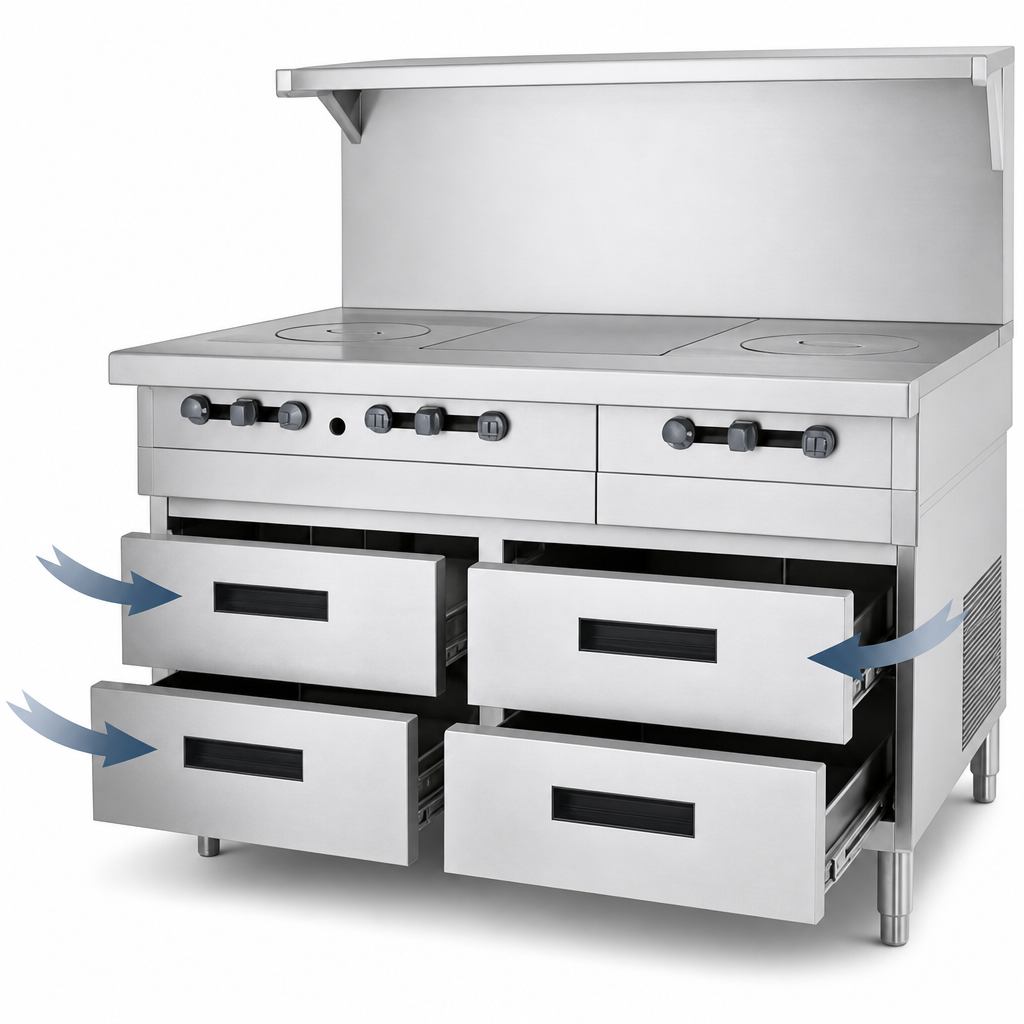

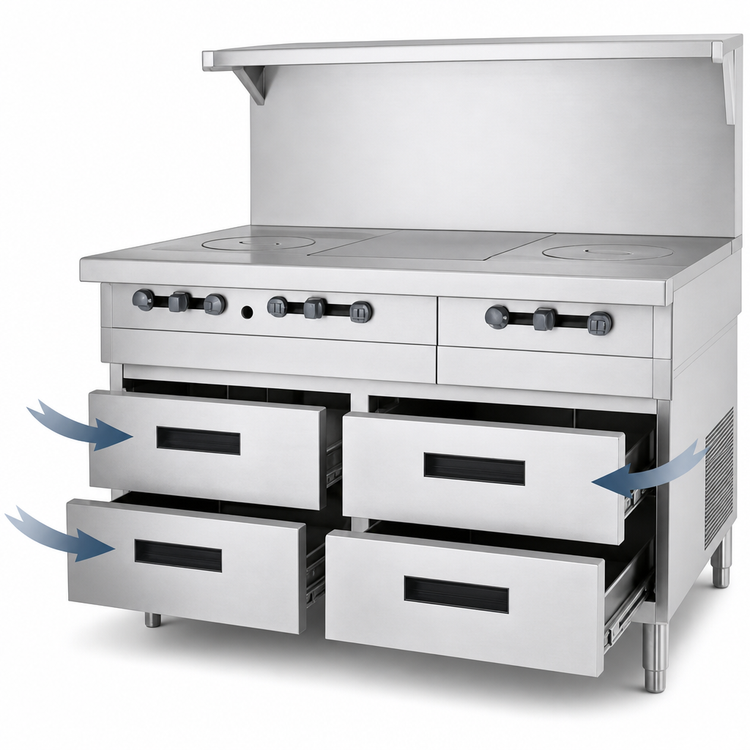

- (4) self-closing, center-pull drawers on heavy-duty stainless steel roller assemblies with a 10-year parts warranty.
- Each drawer accepts 2 x 12" × 20" × 4" hotel pans (GN 1/1), for a total capacity of 8 full-size pans.
- Durable stainless steel exterior front, sides, top, and legs; galvanized bottom & back for corrosion resistance.
- Foamed-in-place, CFC-free insulation plus Santoprene magnetic gaskets for outstanding thermal retention.
- Front-mounted scroll thermometer for at-a-glance temperature checks.
- 6" (152 mm) adjustable stainless steel legs standard; field-install casters available.
- 115 V fan/defrost circuit draws just 1.5 A—hard-wire connection simplifies under-counter integration.
Technical Specifications
| Configuration | Two-section freezer base, remote refrigeration |
|---|---|
| Overall Width | 68" (1,727 mm) |
| Depth × Height | 34" × 27" (864 mm × 686 mm) |
| Drawers | 4 total | 2 per section | 27" drawer modules |
| Pan Capacity | 8 × 12" × 20" × 4" hotel pans (GN 1/1) |
| Refrigerant | HFC-404A (remote condensing unit by others) |
| Electrical | 115 V / 60 Hz / 1-phase, 1.5 A, hard-wired |
| Legs | 6" adjustable stainless steel |
| Certifications | UL, cUL, NSF (for commercial use only) |
Factory Options & Accessories
- Extra-deep drawers for 6" hotel pans
- Swivel or rigid caster kit (requires approved restraining device)
- Drawer-to-door conversion with sheet-pan racks
- Step-down section for 24"–48" Master Series modular charbroilers
• Unit is supplied without a compressor/condensing package and must be connected to a remote system sized at ¾ HP (recommended) by a qualified refrigeration contractor.
• Cord and plug are not supplied; freezer base must be hard-wired on site.
• Available only when purchased with a Garland Master Series modular cook top.
Garland equipment is engineered exclusively for commercial kitchens and is not approved for residential use.
