Garland GN17FR63 Arctic Fire Undercounter & Worktop Refrigeration
Description

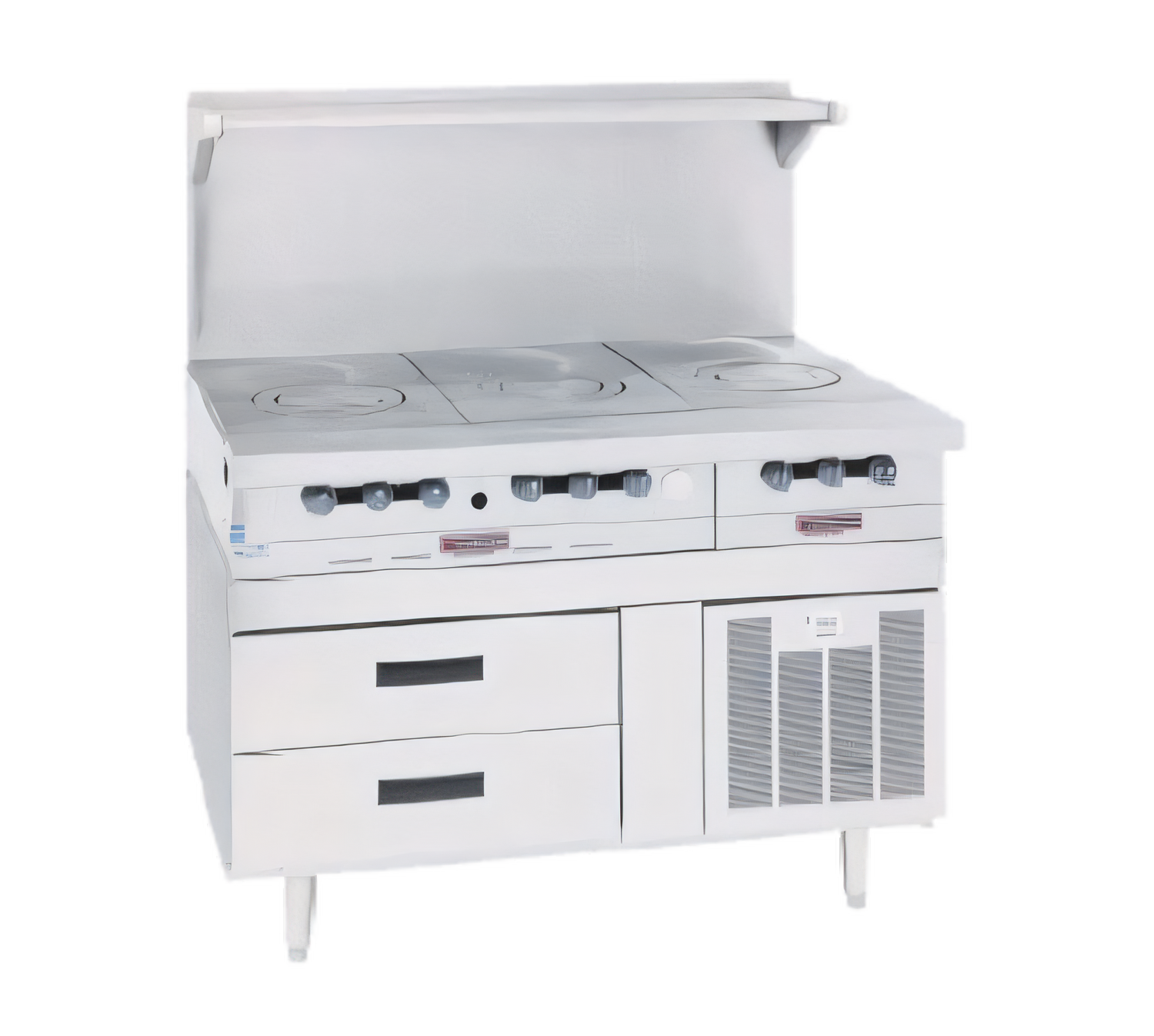

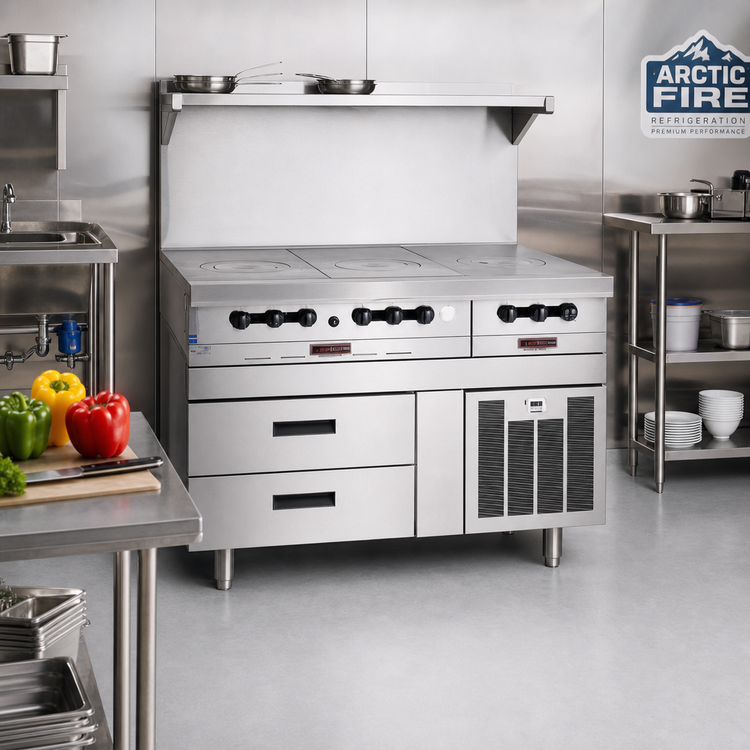

Garland Arctic Fire Remote Freezer Base – 63" W
Model GN17FR63 | 2-Section • 4 Self-Closing DrawersPurpose-built for Garland Master Series modular cook tops, the Arctic Fire GN17FR63 remote freezer base gives you frosty, full-service storage exactly where the action happens. Two heavy-duty drawer banks keep up to six full-size 12" × 20" × 4" pans at food-safe freezer temperatures while its low-profile 27" height slides neatly beneath your range line.
Why You’ll Love It

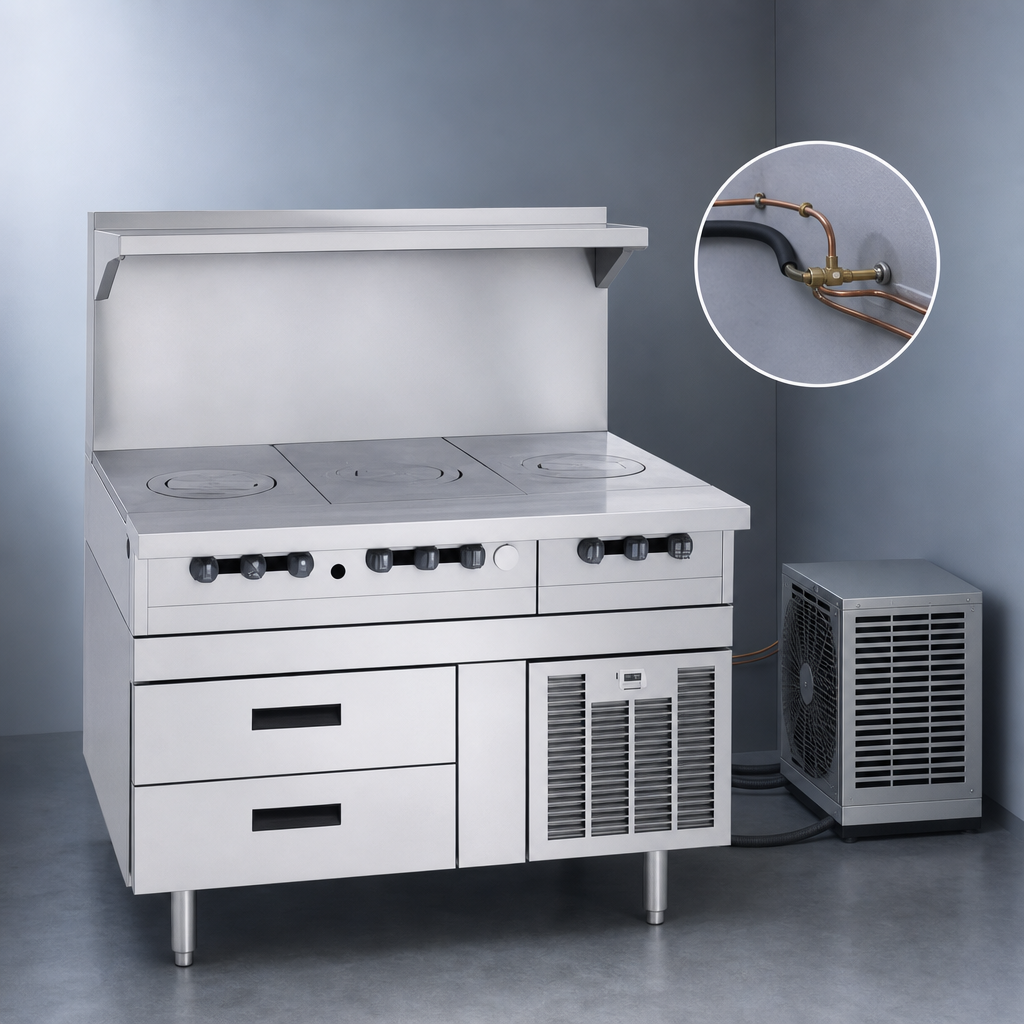

- Remote refrigeration – hook up to your own 3⁄4 HP condenser (HFC-404A) for quieter, cooler kitchens.
- 4 self-closing drawers with center-mounted, flush pull handles for fast, one-hand operation.
- Rugged stainless-steel exterior (front & sides) with galvanized back/bottom for maximum longevity.
- ABS interior sides plus stainless interior top, rear & bottom resist corrosion and clean up fast.
- 10-year parts warranty on the removable stainless roller assemblies.
- Magnetic Santoprene gaskets seal tight and pop out for tool-free replacement.
- Vertical blower coil delivers even temperature distribution to every drawer.
- 6" stainless adjustable legs standard; casters optional.
Pan Capacity
| Total Drawers | 4 (2 per section) |
|---|---|
| Pan Size | Full GN 1/1 or 12" × 20" hotel pans, 4" deep (6" deep with optional extra-deep drawers) |
| Total Pans Held | 6 full-size pans |
Technical Specs
| Model | GN17FR63 |
|---|---|
| Exterior Width | 63 in / 1600 mm |
| Exterior Depth | 34 in / 864 mm |
| Exterior Height | 27 in / 686 mm (without cook top) |
| Sections | 2 |
| Electrical | 115 V / 60 Hz / 1 Ph, 1.5 A – must be hard-wired |
| Recommended Remote Compressor* | 3⁄4 HP, 1,399 BTU, HFC-404A |
| Legs | 6" (152 mm) stainless, height-adjustable |
| Ship Weight (crated) | ≈ 431 lb / 196 kg |
*Compressor and refrigeration line set supplied by others.
