Garland GN17FR51 Arctic Fire Undercounter & Worktop Refrigeration
Description

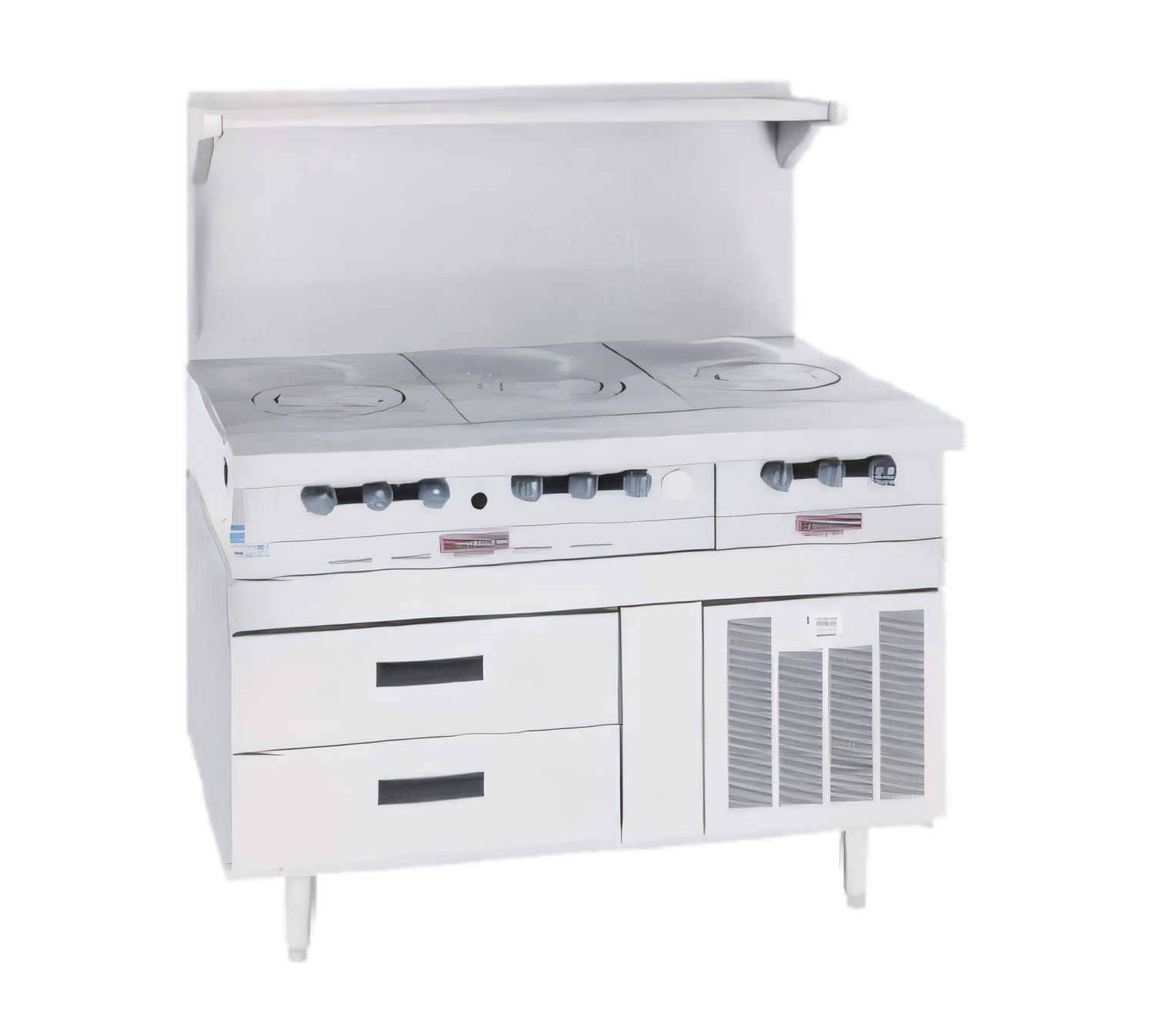

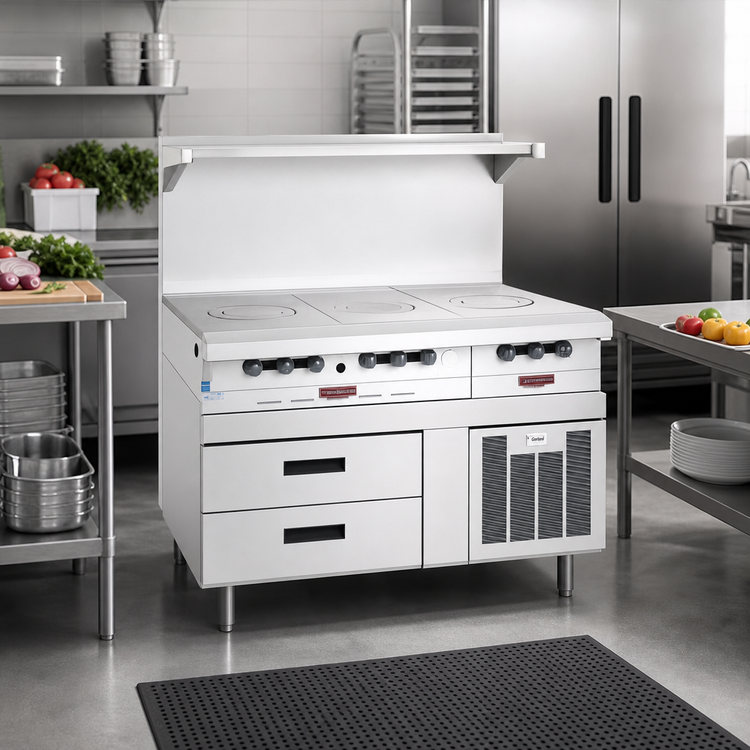

Garland Arctic Fire Remote Freezer Base – 51"-Wide (Model GN17FR51)
Low-profile two-section / four-drawer base for Garland Master Series modular cooktopsGive your Garland Master Series line a high-performance cold foundation. The Arctic Fire GN17FR51 keeps frozen ingredients right where you need them while pushing heat and noise out of the kitchen with a remote compressor design.
Built for busy commercial kitchens
- Remote refrigeration: compressor/condensing unit supplied & located by others, reducing kitchen heat and noise.

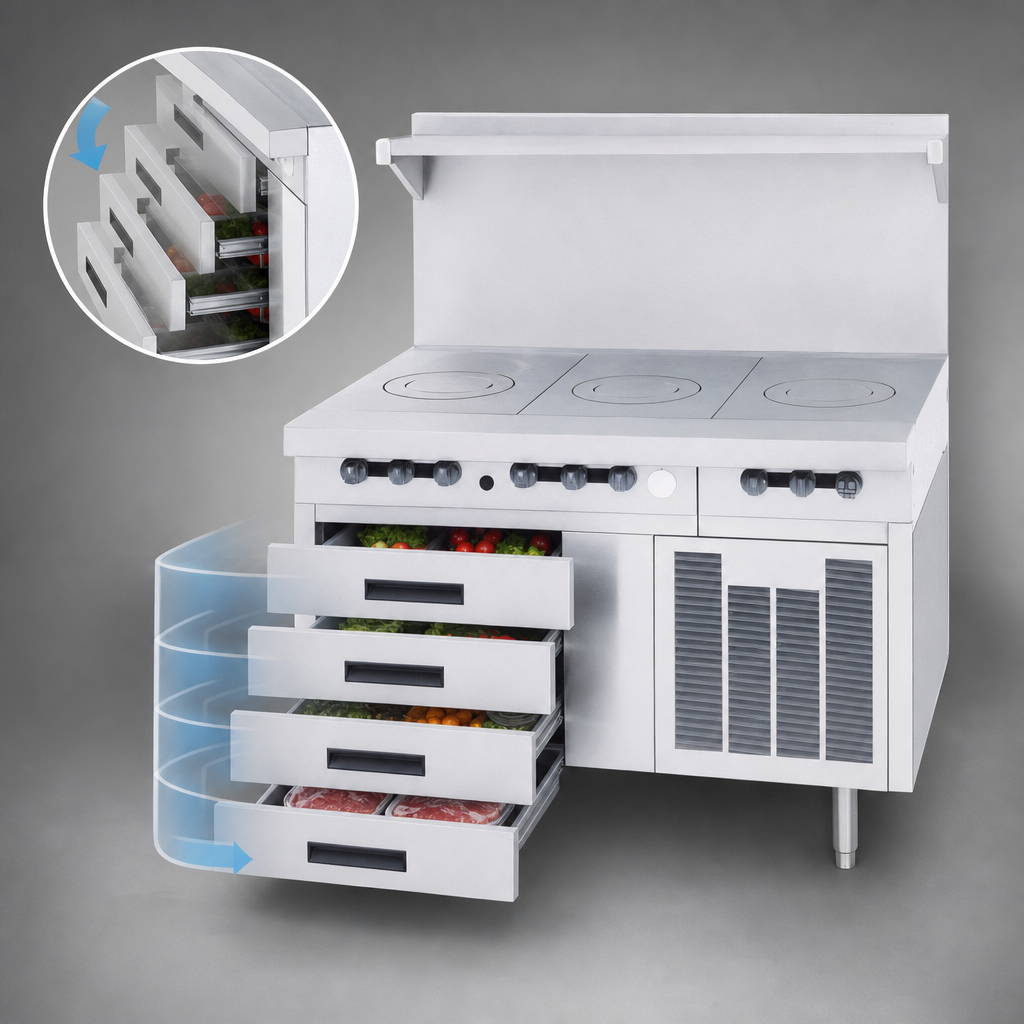

- Four self-closing drawers with center, flush-mounted pull handles.
- Each drawer accepts (1) 12" × 20" × 4" hotel pan (GN 1/1, 100 mm deep) – 4 pans total.
- Heavy-duty stainless-steel drawer slides with self-lubricating bearings; 10-year parts warranty on track assemblies.
- One-piece Santoprene magnetic gaskets for a tight seal and easy replacement.
- Front-mounted thermometer for quick temperature checks.
- Stainless-steel exterior front & sides with stainless interior top, rear & bottom; ABS interior sides for easy cleaning.
- 6" (152 mm) adjustable stainless-steel legs provide a rock-solid base beneath your cooktop.
- CFC-free foamed-in-place insulation maintains -10 °F to 0 °F holding temperatures.*
Technical Specifications
| Model | GN17FR51 (Arctic Fire Series) |
|---|---|
| Unit type | Remote freezer base, drawer style |
| Overall width | 51" / 1295 mm |
| Depth | 34" / 864 mm |
| Cabinet height | 27" / 686 mm (plus 6" adjustable legs) |
| Sections / drawers | 2 sections / 4 self-closing drawers |
| Pan capacity | 4 × 12" × 20" × 4" (GN 1/1) hotel pans |
| Electrical | 115 V / 60 Hz / 1-ph, 1.5 A – hard-wired (no cord or plug supplied) |
| Refrigerant | HFC-404A – remote compressor, 1/3 HP (1116 BTU) recommended |
| Shipping weight | ≈ 355 lb / 161 kg |
| Certifications | UL, cUL, NSF |
Perfect partner for Garland Master Series
- 27" low-profile height fits directly under Master Series modular tops.
- Base is only supplied when ordered with a Master Series cooktop or combination top to ensure proper factory match-up.
- Optional step-down bases available for end-mounted charbroilers; contact us for details.
*Holding temperature range assumes properly sized remote condensing unit and typical 75 °F / 24 °C ambient kitchen conditions.
