Garland  |  Arctic Fire  |  SKU: GN17FR34

Garland GN17FR34 Arctic Fire Undercounter & Worktop Refrigeration

$13,510.75
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

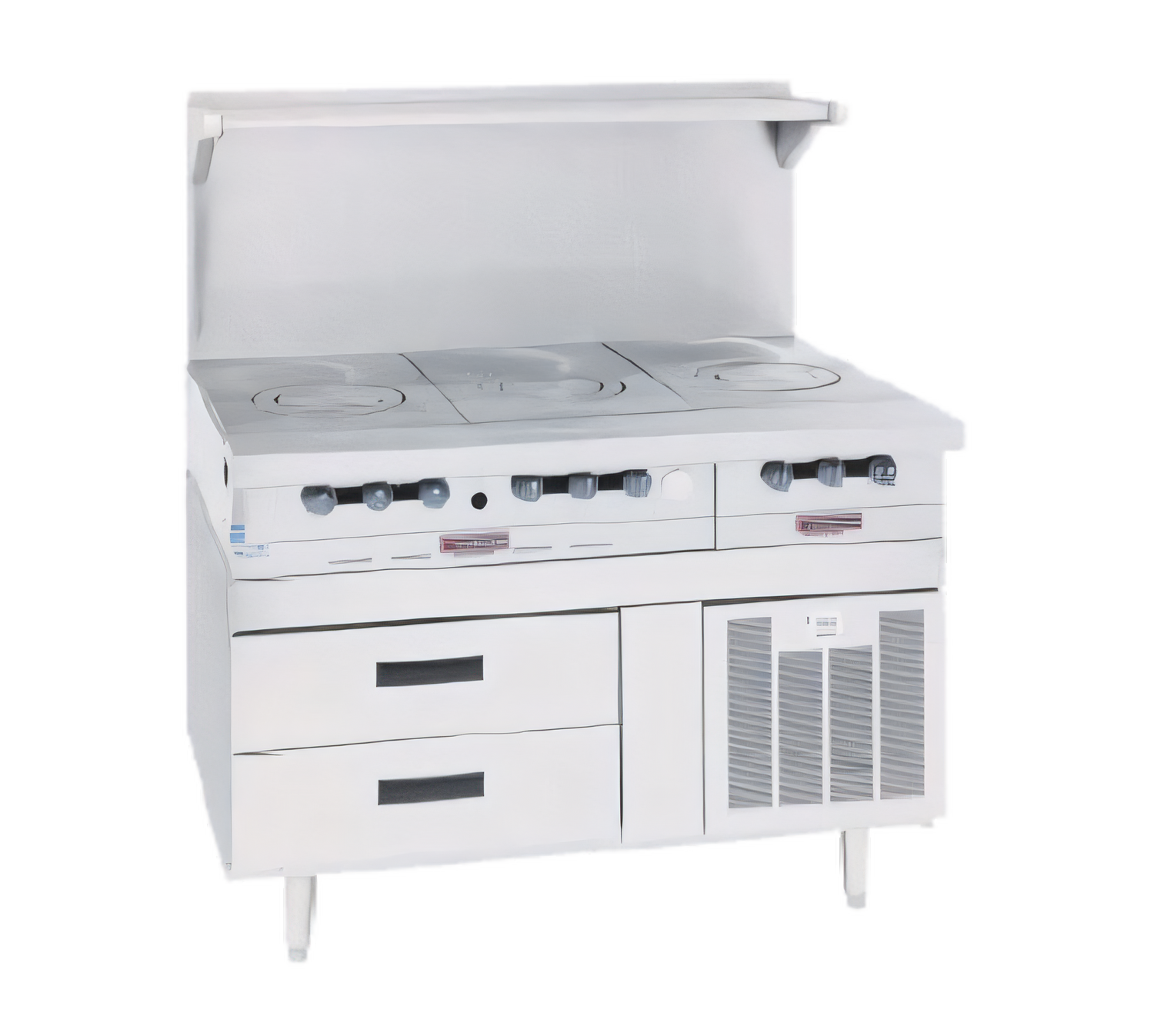

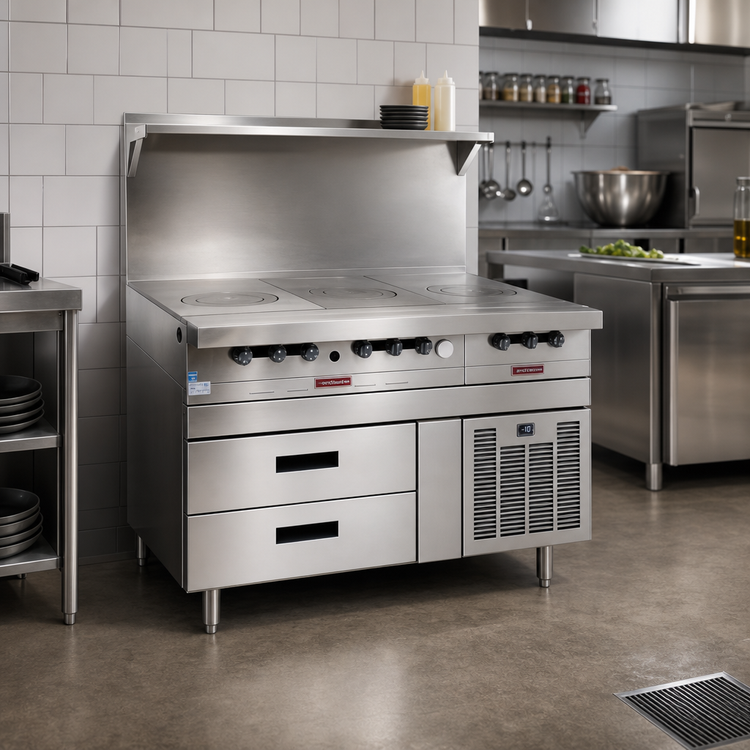

Arctic Fire 34" Remote Freezer Base

Model GN17FR34  |  Garland Master Series Compatible

Put deep-freeze storage exactly where you cook. Designed to sit directly beneath any Garland Heavy-Duty Master Series modular top, the Arctic Fire GN17FR34 keeps your frozen mise en place at arm’s reach without giving up a single inch of valuable line space.

Why you’ll love it

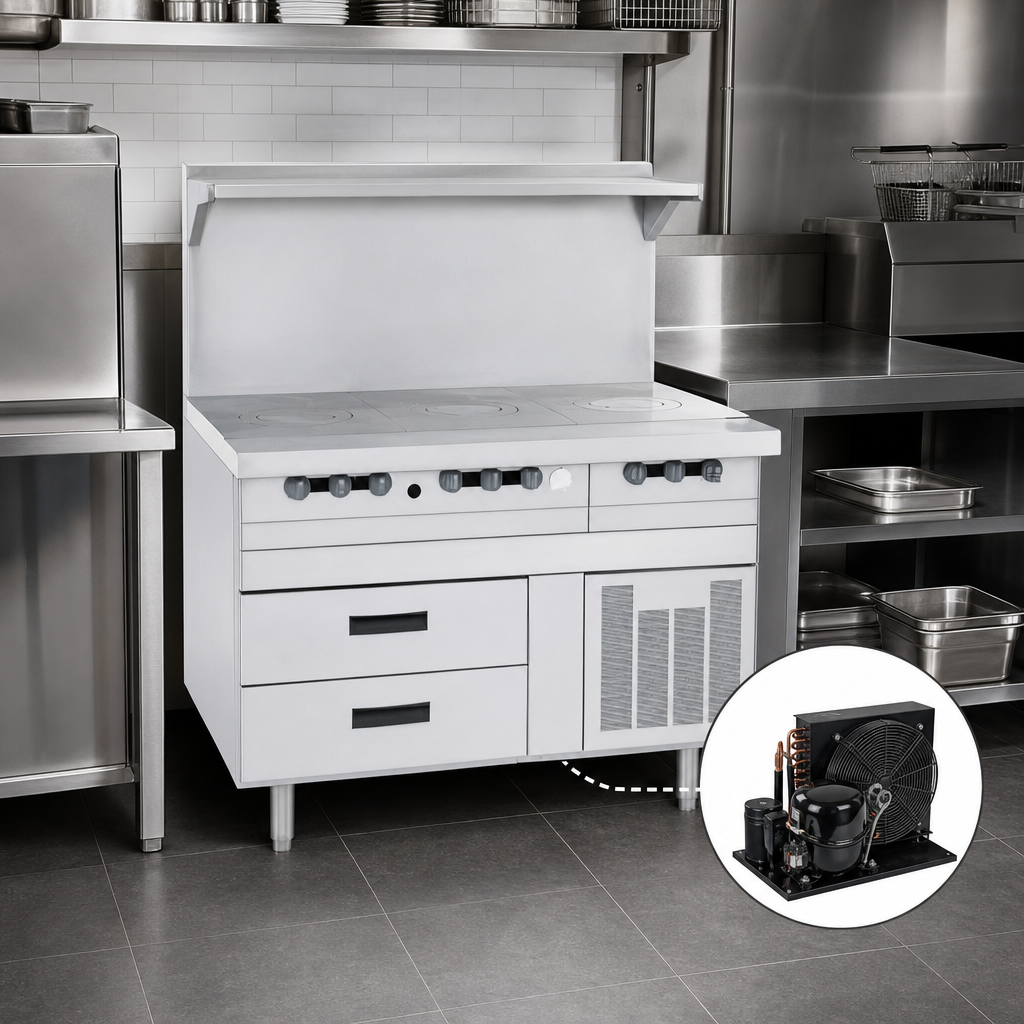

  • Remote refrigeration: hook up to a field-supplied condensing unit for whisper-quiet, heat-free operation on the cookline.
  • 2 self-closing drawers with flush, center-mounted pulls keep product protected and easy to access.
  • Heavy-duty stainless roller slides with ball bearings are fully removable  — backed by a 10-year parts warranty.
  • Pan flexibility: each drawer holds (1) full-size 12 × 20 × 4" hotel pan (GN 1/1), for a total of two pans per base.
  • Rugged all-stainless exterior and ABS interior sides resist daily abuse.
  • 6" adjustable stainless legs level the unit and match the Master Series toe-kick height.
  • Field-replaceable Santoprene® magnetic gaskets for a tight, frost-free seal.
  • Factory-installed HFC-404A evaporator coil with electric condensate removal – no drain line required.
  • cULus, NSF  listed; CE versions available.
At-a-glance specifications
Exterior dimensions (W × D × H) 34" × 34" × 27" (864 × 864 × 686 mm)
Sections / drawers 1 section / 2 drawers
Pan capacity 2 × 12" × 20" × 4" hotel pans (GN 1/1)
Refrigeration system Remote (evaporator & controls factory-installed; condenser by others)
Refrigerant R-404A
Electrical 115 V / 60 Hz / 1-phase, 0.73 A, hard-wired
Material Stainless steel exterior front & sides; stainless interior top/rear/bottom; ABS interior sides
Legs 6" (152 mm) stainless, adjustable
Agency approvals cULus, NSF (CE model available)
Perfect for
  • Holding frozen proteins directly under a griddle, range or charbroiler.
  • Speeding up line service in high-volume restaurants, hotels and institutions.
  • Any kitchen already running remote refrigeration that needs extra freeze capacity without enlarging the footprint.
Important: The GN17FR34 is supplied without a compressor, power cord or plug. • A remote condensing unit of at least 1⁄3 HP is required (by others). • Unit must be hard-wired and installed beneath a Garland Master Series modular cook top. • Not intended for residential use.
Included with your freezer base
  • (1) Arctic Fire GN17FR34 remote freezer cabinet
  • (2) self-closing stainless drawers on removable roller assemblies
  • (4) 6" stainless adjustable legs
  • Factory-installed evaporator coil, solenoid & thermostat
  • Installation & operation manual

Need extra-deep drawers, tray slides for sheet pans, or step-down compatibility for a charbroiler? Contact us for factory options before ordering.

Features & Specs

Manufacturer

Garland

Brand_name

Arctic Fire

Height

27.0in

Width

35.0in

Depth

32.75in

Shipping Weight

247.0lbs

Exterior Finish

all stainless steel exterior

Drawer Qty

2 drawers

Refrigeration

remote (refrigeration not included)

Width

31" - 36" wide

Specifications

Arctic Fire Freezer Base, remote refrigeration, 34" W, one-section, (2) self-closing drawers with center pull handles, stainless steel exterior, 6" stainless steel legs (available only if order with Master Series modular cook tops) 115v/60/1-ph, .73 amps (Garland)
