Garland GN17FC92 Arctic Fire Undercounter & Worktop Refrigeration
Description

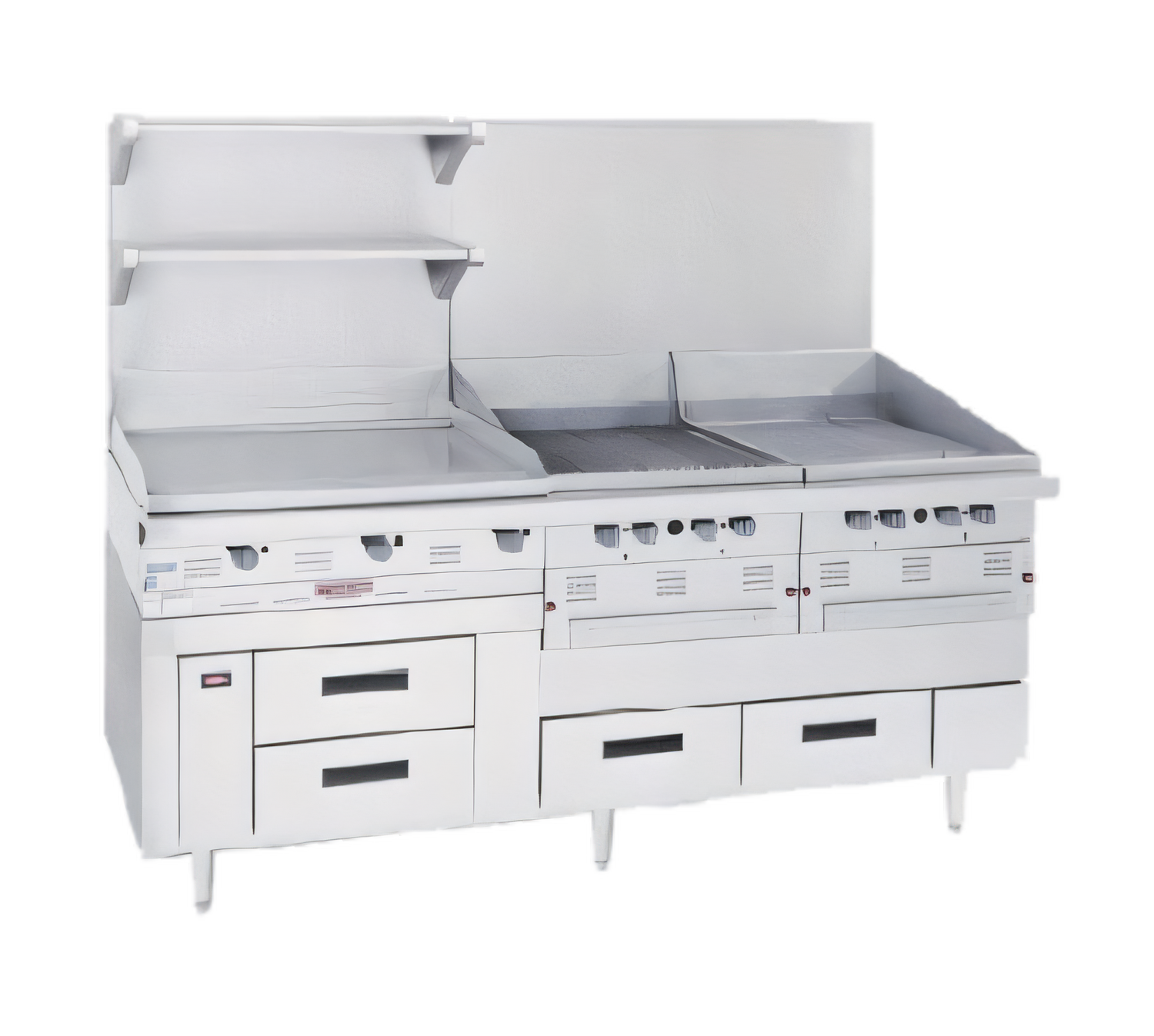

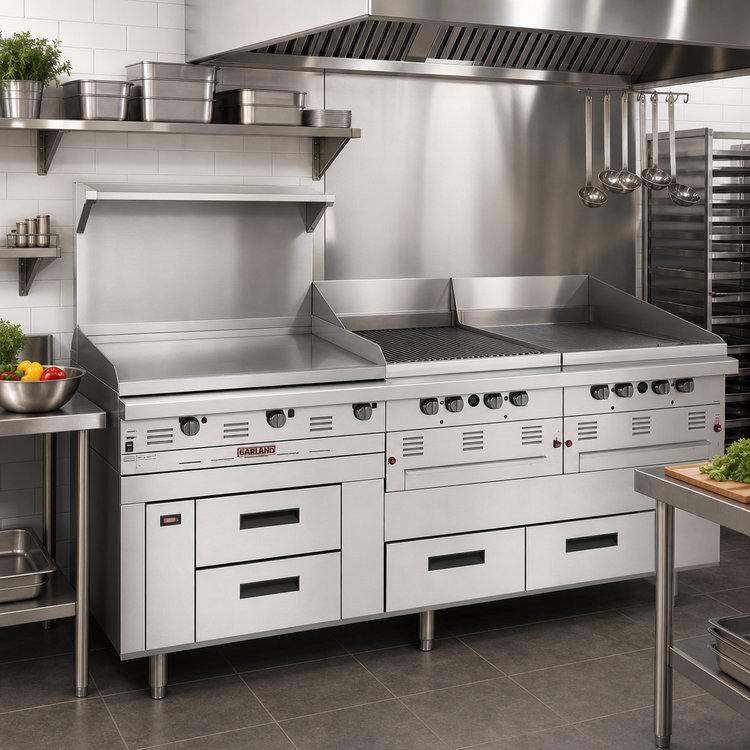

Arctic Fire 92" Self-Contained Freezer Base
Garland • Model GN17FC92 • 4-Drawer / 2-SectionKeep frozen ingredients exactly where you need them—right under your Garland Master Series modular cook top. The Arctic Fire GN17FC92 delivers rock-solid freezer performance in a low-profile base that holds up to eight full-size hotel pans while standing up to the punishment of the busiest commercial kitchens.
Key Performance & Construction Features

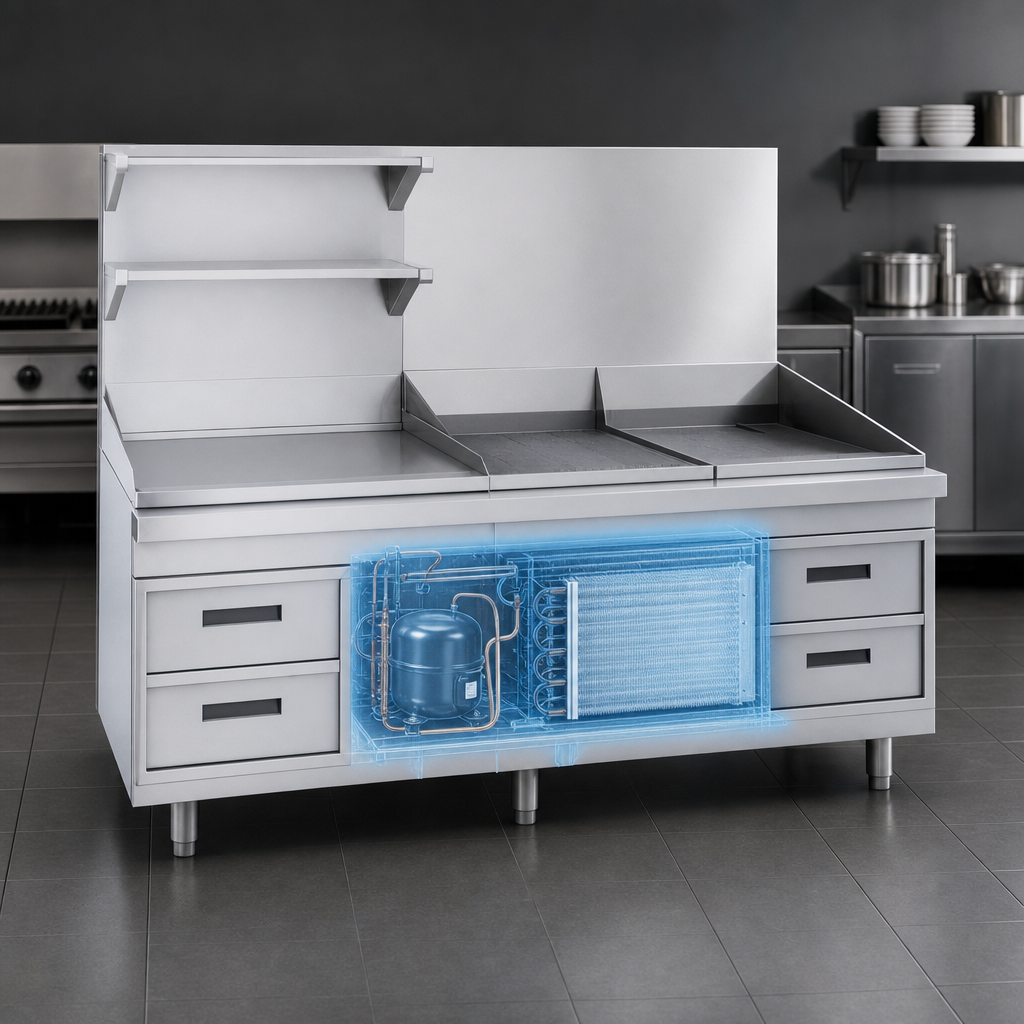

- Self-contained refrigeration system using HFC-404A refrigerant—no remote lines to run.
- Tropicalized compressor rated for ambient temperatures up to 100 °F (38 °C).
- Vertically mounted blower coil for even, rapid cooling throughout the cabinet.
- Electric condensate evaporator (no floor drains required).
- Four self-closing drawers on heavy-duty stainless steel slides with stainless bearings.
- Removable roller track assemblies carry a 10-year parts warranty.
- Center-mounted, flush pull handles stay out of the way of busy prep crews.
- Stainless steel exterior front & sides; stainless interior top/rear/bottom; galvanized underside & back.
- Santoprene magnetic gaskets provide a tight, tool-free seal for maximum efficiency.
- 6" (152 mm) adjustable stainless steel legs included; optional locking casters available.
Drawer Capacity
- Standard configuration holds 8 × 12" × 20" × 4" hotel pans (GN 1/1).
- Optional extra-deep drawers accommodate 6" (150 mm) deep pans.
Technical Specifications
| Overall width | 92" / 2337 mm |
|---|---|
| Depth | 34" / 864 mm |
| Height (base only) | 27" / 686 mm + 6" adjustable legs |
| Sections / drawers | 2 sections • 4 self-closing drawers |
| Hotel pan capacity | 8 full-size (12" × 20" × 4") pans |
| Refrigerant | HFC-404A |
| Electrical | 115 V / 60 Hz / 1-ph, 9.3 A, NEMA 5-15P cord & plug (6' / 1.8 m) |
| Compressor warranty | 5 years replacement parts (1 year parts & labour on entire unit) |
| Certifications | cULus, NSF |
Performance data and capacities are subject to change without notice. Always verify electrical and clearance requirements prior to installation.
Popular Options & Accessories
- Extra-deep drawers for 6" (150 mm) hotel pans
- Drawer/door conversions with tray racks for sheet pans (not available on 32" drawers)
- Heavy-duty swivel casters with brakes (unit must be installed with an approved restraining device)
- Step-down sections for mounting Garland modular charbroilers
Perfect For
- High-volume restaurants & hotel kitchens
- Banks of Garland Master Series range tops needing frozen mise-en-place at arm’s reach
- Catering, banqueting and institutional food service operations
