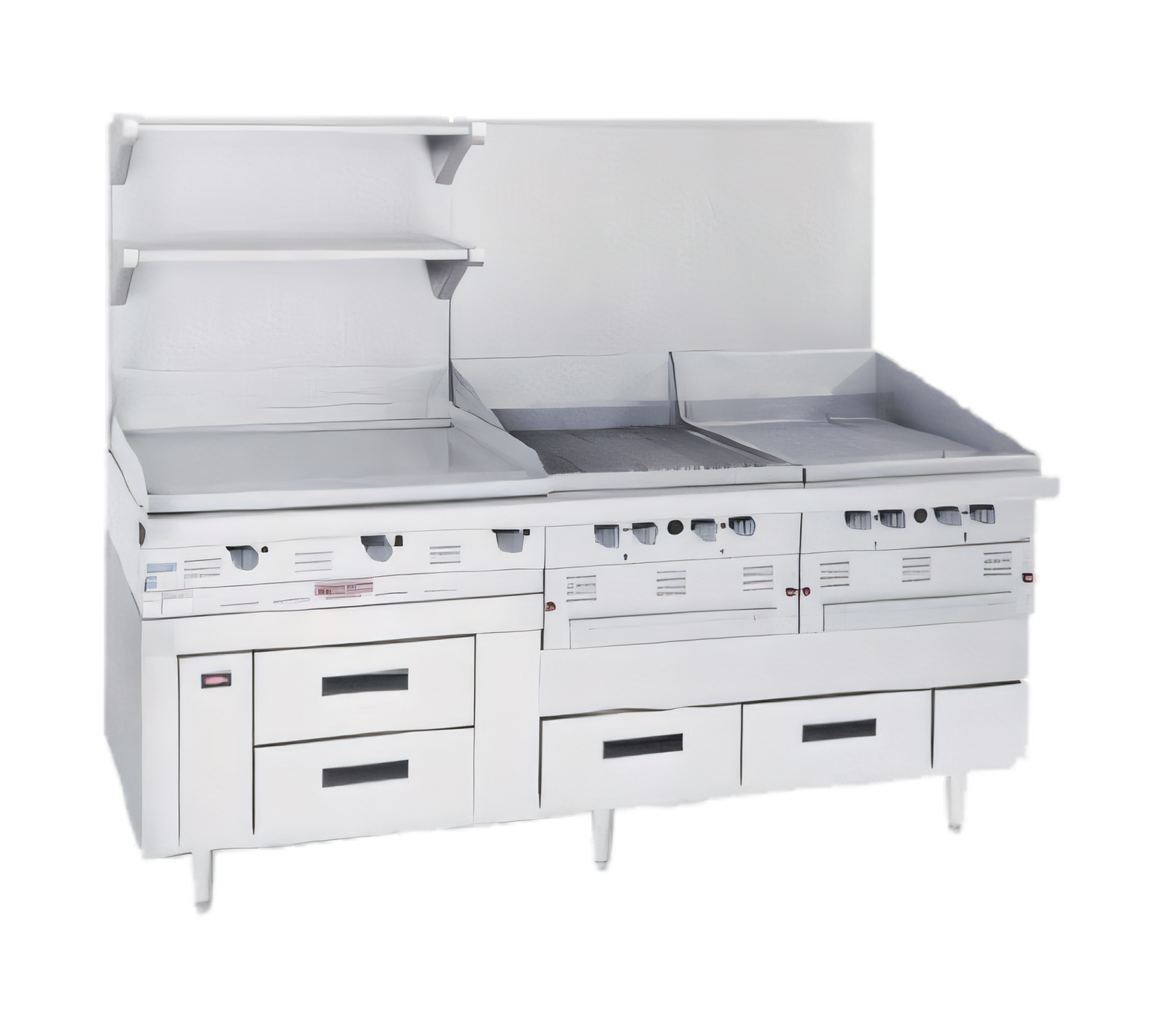

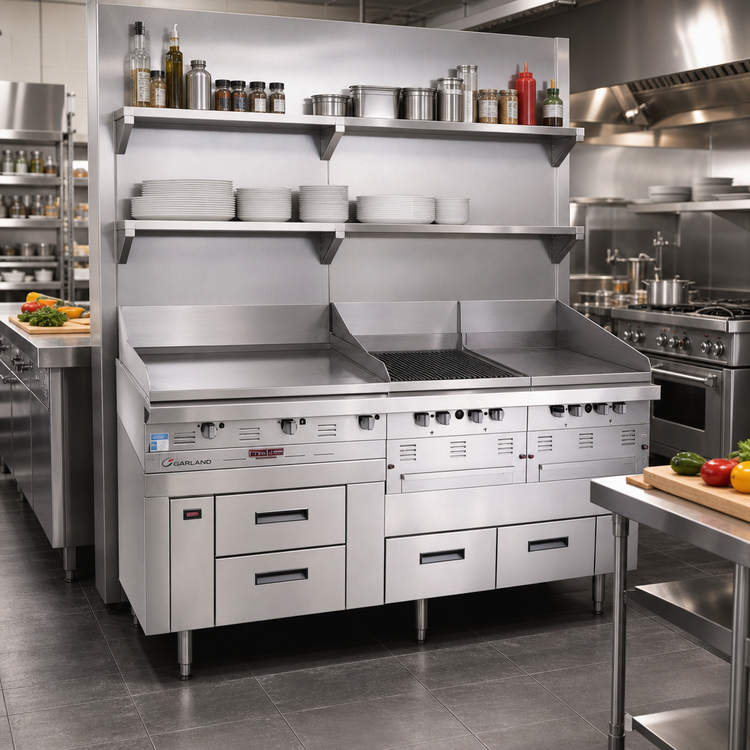

Garland Arctic Fire GN17FC63 Two-Section Self-Contained Freezer Base with 4 Self-Closing Drawers, 63 Inch Wide, Stainless Steel, 115V

Designed for Garland Master Series modular cook tops

A compact 63-inch freezer base with self-contained refrigeration and four self-closing drawers for organized cold storage under modular cook tops.

  • Self-contained freezer base designed for Garland Master Series modular cook tops
  • Four self-closing drawers with center pull handles for fast ingredient access
  • Stainless steel exterior with durable ABS and stainless steel interior construction
  • Standard drawers accommodate 12 x 20 x 4 inch hotel pans
  • Vertically mounted blower coil uses HFC-404A refrigerant and an electric condensate evaporator
  • 115 Volts, 60 Hz, 1-phase operation with a 6-foot cord and NEMA 5-15P plug

Overall Dimensions:

63.0"W x 32.75"D x 27.0"H

Product Weight:

434.0 lb

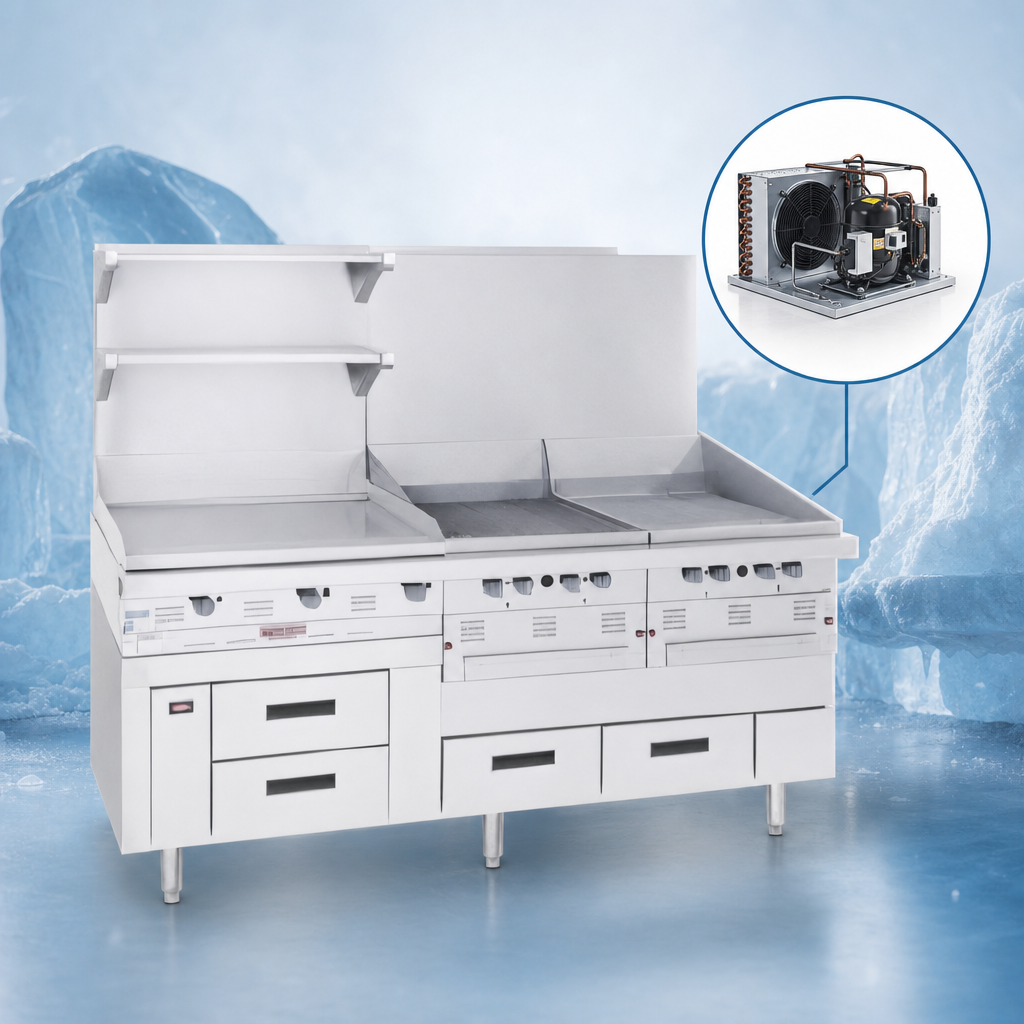

Self-Contained Refrigeration

Built-in freezer refrigeration eliminates the need for a remote system.

Four Drawer Storage

Four self-closing drawers with center pull handles keep product organized and accessible.

Stainless Steel Exterior

Stainless steel front and sides stand up to demanding kitchen environments.

Mixed Interior Construction

ABS interior door fronts and cabinet sides with stainless steel interior top, rear, and bottom.

Heavy-Duty Drawer Slides

Stainless steel roller drawer assembly with self-lubricating rollers and stainless steel bearings.

Hotel Pan Compatibility

Standard drawers accommodate 12 x 20 x 4 inch hotel pans; GN 1/1 pan compatibility is noted for CE units.

Freezer Refrigeration Components

Vertically mounted blower coil, HFC-404A refrigerant, electric condensate evaporator, and a compressor rated for hot kitchen environments.

Utility Ready

Comes with 6-inch adjustable legs, right-end compressor housing, a 6-foot cord, and a NEMA 5-15P plug.

Type Freezer Base
Style Two-Section
Installation Type Floor Model
Refrigeration Type Self-Contained
Material Stainless Steel
Finish Stainless Steel
Interior Finish ABS / Stainless Steel
Pan Capacity 4 Full-Size Hotel Pans
Pan Size 12 x 20 x 4 Inches
Drawer Qty 4
Voltage 115 Volts
Amps 12 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Shipping Width 63 Inches
Shipping Depth 33 Inches
Shipping Height 27 Inches
Shipping Weight 434 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

5-year replacement parts compressor warranty; first-year parts and labor; 10-year parts warranty on removable drawer track assemblies.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has four self-closing drawers with center pull handles.
Standard drawers accommodate 12 x 20 x 4 inch hotel pans.
115 Volts, 60 Hz, 1-phase, 12 amps, with a NEMA 5-15P plug.
Yes. It uses a self-contained freezer refrigeration system with a vertically mounted blower coil and HFC-404A refrigerant.
The standard features list a 5-year replacement parts compressor warranty, first-year parts and labor, and a 10-year parts warranty on the removable drawer track assembly.
Bases must be ordered with Garland Master Series or combination of Master Series modular tops only.
