Garland GN17C92 Arctic Fire Undercounter & Worktop Refrigeration
Description

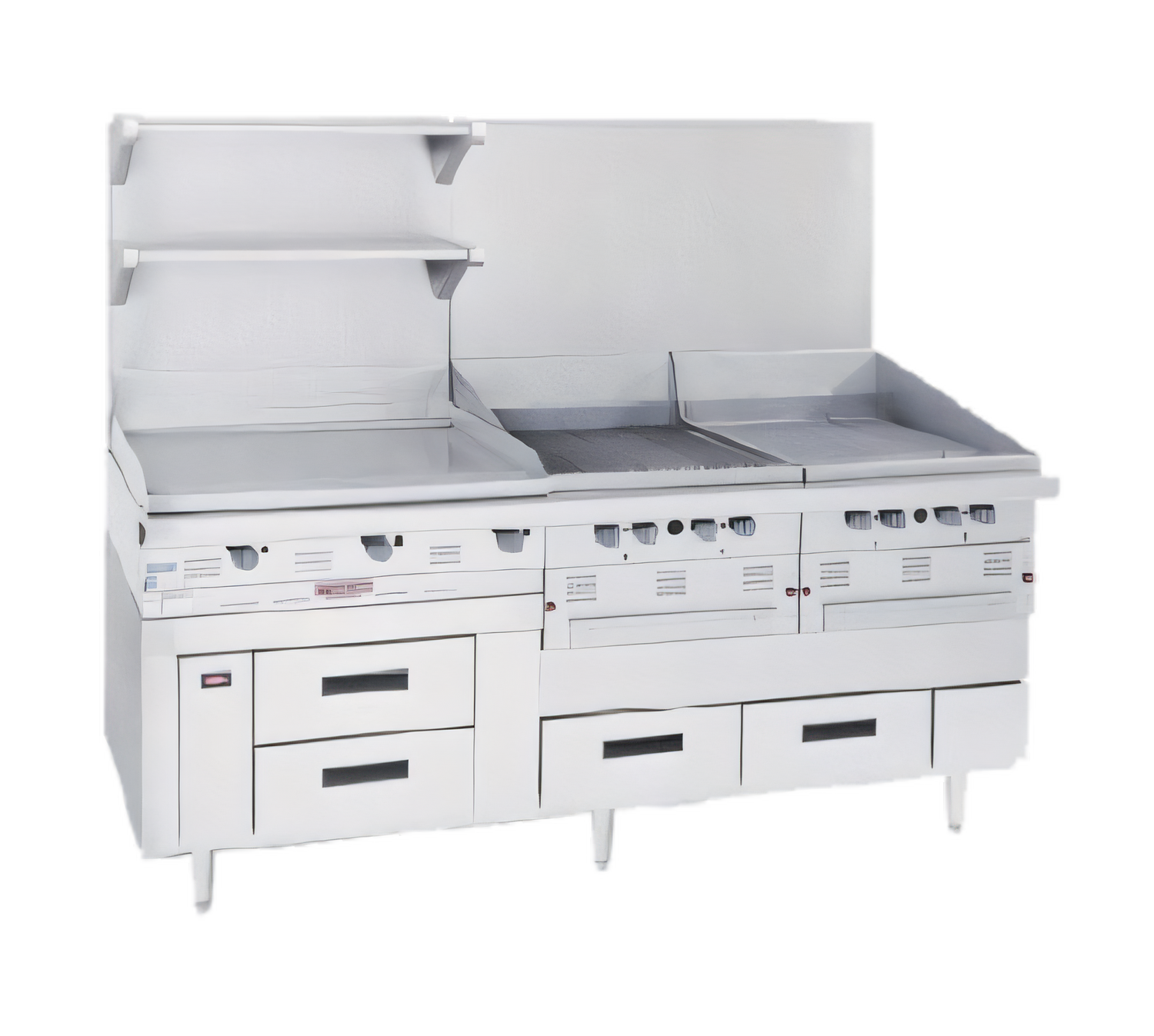

Arctic Fire GN17C92 Self-Contained Refrigerator Base – 92"
4-Drawer low-height base for Garland Master Series modular cooktopsKeep food safely chilled and right where the action is. The Garland Arctic Fire GN17C92 places a powerful, self-contained refrigeration system directly under your Master Series griddles, ranges, charbroilers and more, giving chefs instant, ergonomic access to up to eight full-size 12 × 20 × 4" hotel pans.
Key advantages
- Two refrigerated sections, each with two full-extension, self-closing drawers (4 total).

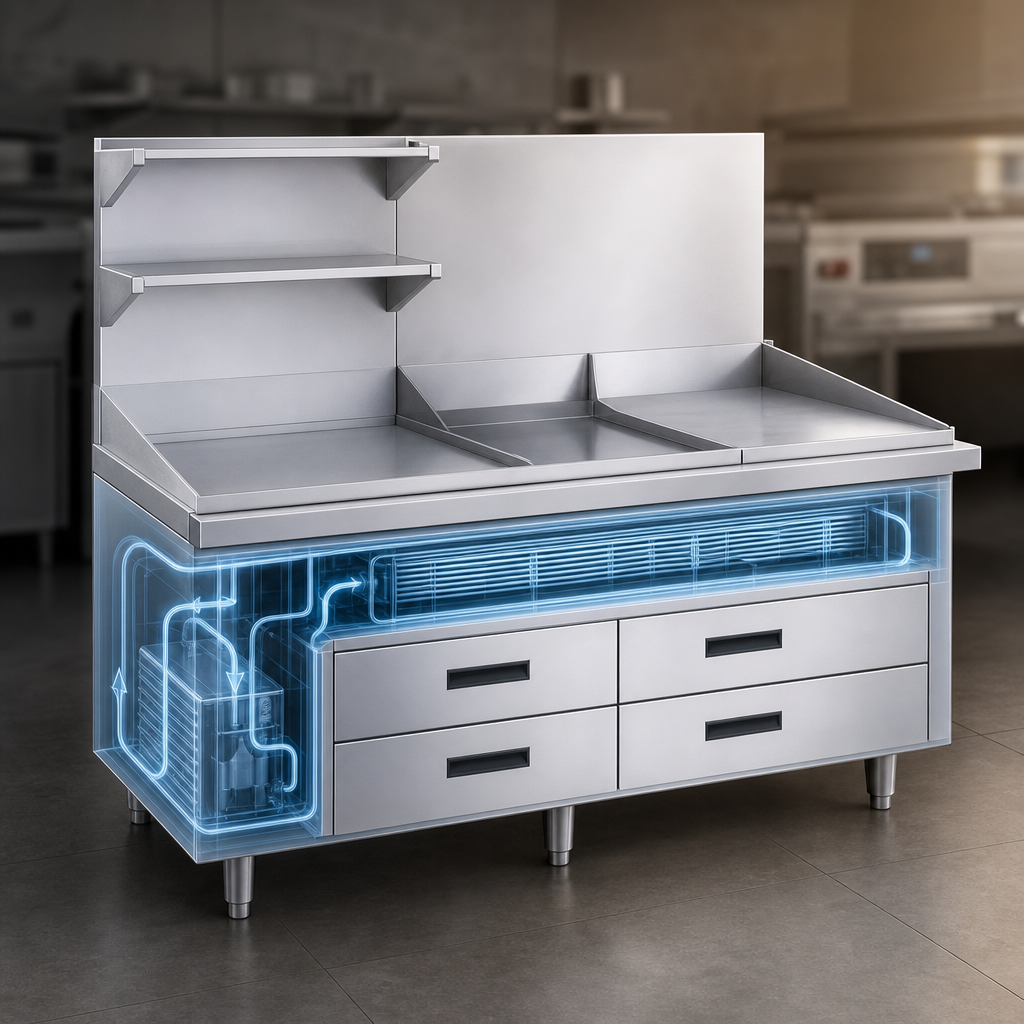

- Vertically mounted blower coil and HFC-404A refrigeration for fast, even cooling.
- Tropicalized compressor rated to 100 °F (38 °C) ambient temperatures.
- Front-face mounted scroll thermometer lets staff confirm cabinet temperature at a glance.
- 10-year parts warranty on the removable stainless steel roller drawer tracks.
- Magnetic Santoprene gaskets for a positive, energy-saving seal.
- Hot-gas condensate evaporator—no external drain line required.
Built for the line
- All-stainless exterior (front, sides & 6" adjustable legs) wipes clean fast.
- Stainless interior top, rear & bottom; durable ABS liner on drawer fronts and cabinet sides.
- Compressor housing is located on the right end—perfect for suite layouts.
- Center-mounted, flush drawer handles resist snagging and stay cool.
- Galvanized steel back and base for extra corrosion resistance.
Drawer capacity
Standard mullion drawers accept 8 full-size (GN 1/1) hotel pans, 4" deep. Need taller product? Select the extra-deep drawer option to fit 6" hotel pans.
Technical specifications
| Model | GN17C92 (Arctic Fire) |
|---|---|
| Exterior width | 92" / 2337 mm |
| Depth | 34" / 864 mm |
| Height (with 6" legs) | 27" / 686 mm |
| Sections / Drawers | 2 sections / 4 self-closing drawers |
| Pan capacity | 8 × 12" × 20" × 4" hotel pans (GN 1/1) |
| Refrigerant | HFC-404A |
| Compressor HP / BTU | 1/4 HP · ≈ 756 BTU |
| Electrical | 115 V / 60 Hz / 1 ph, 8.9 A, NEMA 5-15P cord & plug |
| Controls | Analog scroll thermometer (front mounted) |
| Warranty | 1-yr parts & labor • 5-yr compressor parts • 10-yr drawer track parts |
| Certifications | cULus • UL Sanitation • NSF • CE (EU model) |
Designed to fit
Low-height profile aligns perfectly beneath Garland Heavy-Duty Master Series modular tops for a seamless, fully integrated cookline. Simply specify this base at time of cooktop order; it is not offered as a stand-alone item.
Need help configuring a stepped-down section for a Master Series charbroiler, or extra-deep drawers? Contact our specialists and we’ll quote the exact Arctic Fire base for your lineup.
