Garland GN17C80 Arctic Fire Undercounter & Worktop Refrigeration
Description

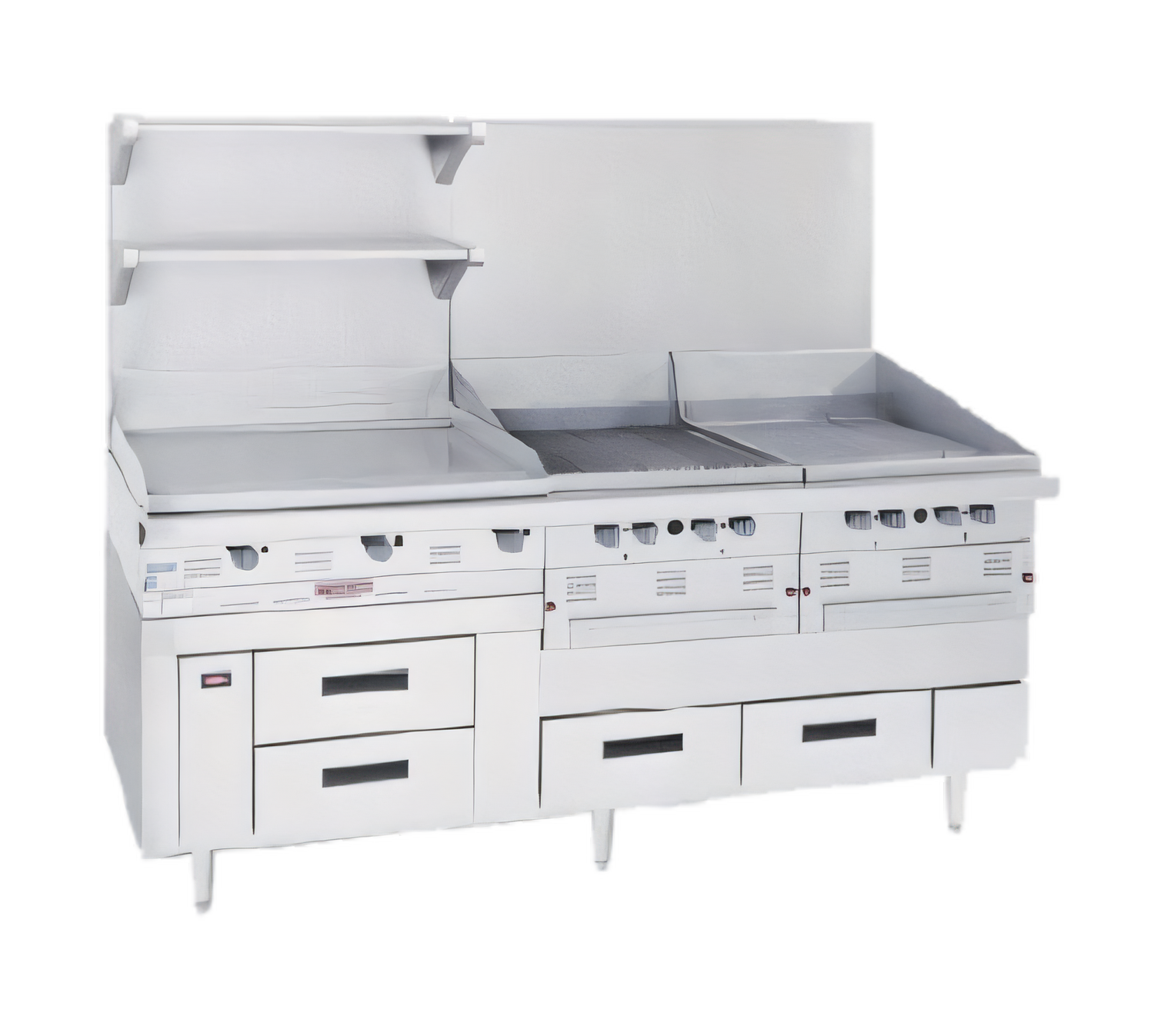

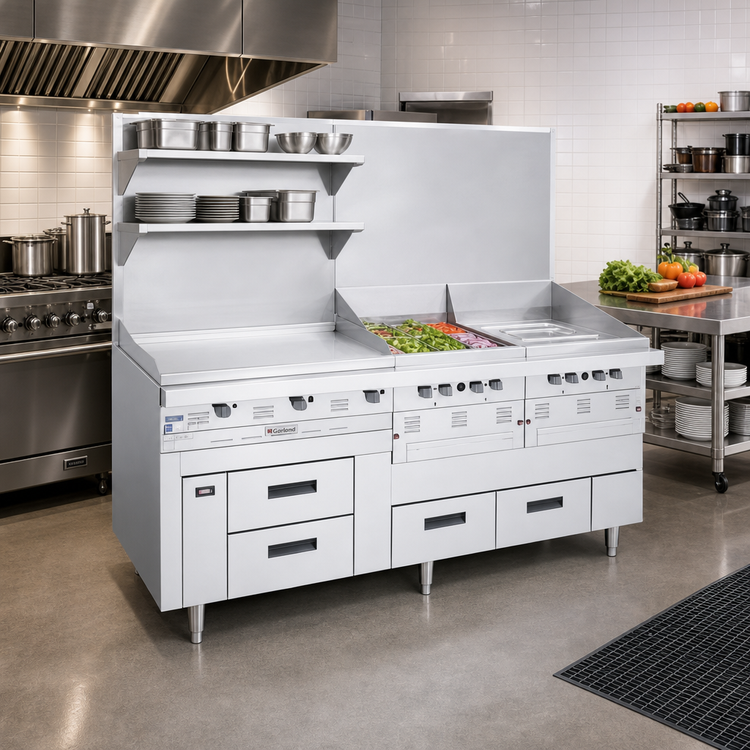

Garland Arctic Fire GN17C80 Refrigerated Base – 80" W, 4-Drawer
Low-profile, self-contained refrigeration for Master Series modular cooktopsKeep proteins, garnishes and mise en place ice-cold and within arm’s reach. The Arctic Fire GN17C80 slips directly under your Garland Master Series top, combining heavy-duty construction with tropicalized, self-contained refrigeration that performs even in 100 °F (38 °C) kitchens.
Highlights
- 80" (2032 mm) wide, two-section base with four self-closing drawers.
- Accepts 8 full-size 12" × 20" × 4" hotel pans (GN 1/1, 100 mm deep).
- Stainless steel exterior front & sides; stainless interior top, rear & bottom for long-term durability.

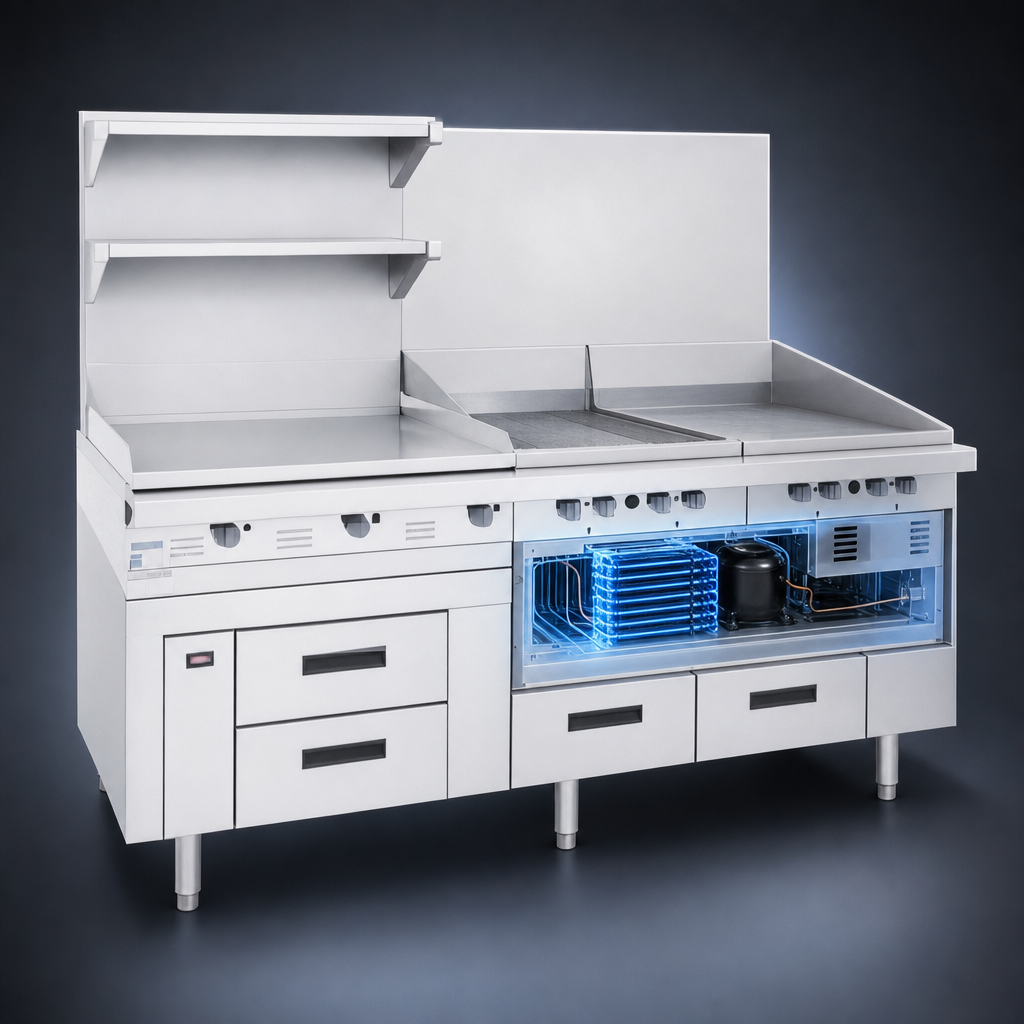

- Vertically mounted blower coil and HFC-404A refrigerant for fast, even cooling.
- Hot-gas condensate evaporator—no floor drain required.
- Compressor tropicalized to 100 °F (38 °C); 10-year parts warranty on removable drawer track assemblies.
- Heavy-duty stainless drawer slides with self-lubricating bearings.
- Center-mounted flush pull handles and Santoprene magnetic gaskets ensure a tight seal.
- 6" (152 mm) stainless steel adjustable legs standard; optional casters available.
- Front-mounted scroll thermometer for quick temperature checks.
- Factory-installed 6 ft cord with NEMA 5-15P plug.
Technical Specs
| Model # | GN17C80 |
|---|---|
| Exterior Dimensions | 80" W × 34" D × 27" H (2032 × 864 × 686 mm) |
| Sections / Drawers | 2 sections / 4 drawers (2 drawers per section) |
| Pan Capacity | 8 × 12" × 20" × 4" pans (GN 1/1) |
| Refrigerant | HFC-404A |
| Compressor | 1/5 HP – 565 BTU/hr |
| Electrical | 115 V / 60 Hz / 1-Ph, 8.9 A, NEMA 5-15P |
| Legs | 6" stainless, adjustable |
| Shipping Weight | Approx. 570 lb (259 kg) |
| Warranty | 5 yr compressor (parts) | 1 yr parts & labor |
Popular Options
- Extra-deep drawers (6" pan depth, no mullion).
- Sheet-pan doors & tray racks (not available on 32" drawers).
- 4" or 6" locking swivel casters (unit must be secured with an approved restraining device).
- Step-down sections for modular top charbroilers (refrigerator base only).
This base is available only when ordered with a Garland Master Series modular cooktop.
