Garland GN17C119 Arctic Fire Undercounter & Worktop Refrigeration
Description

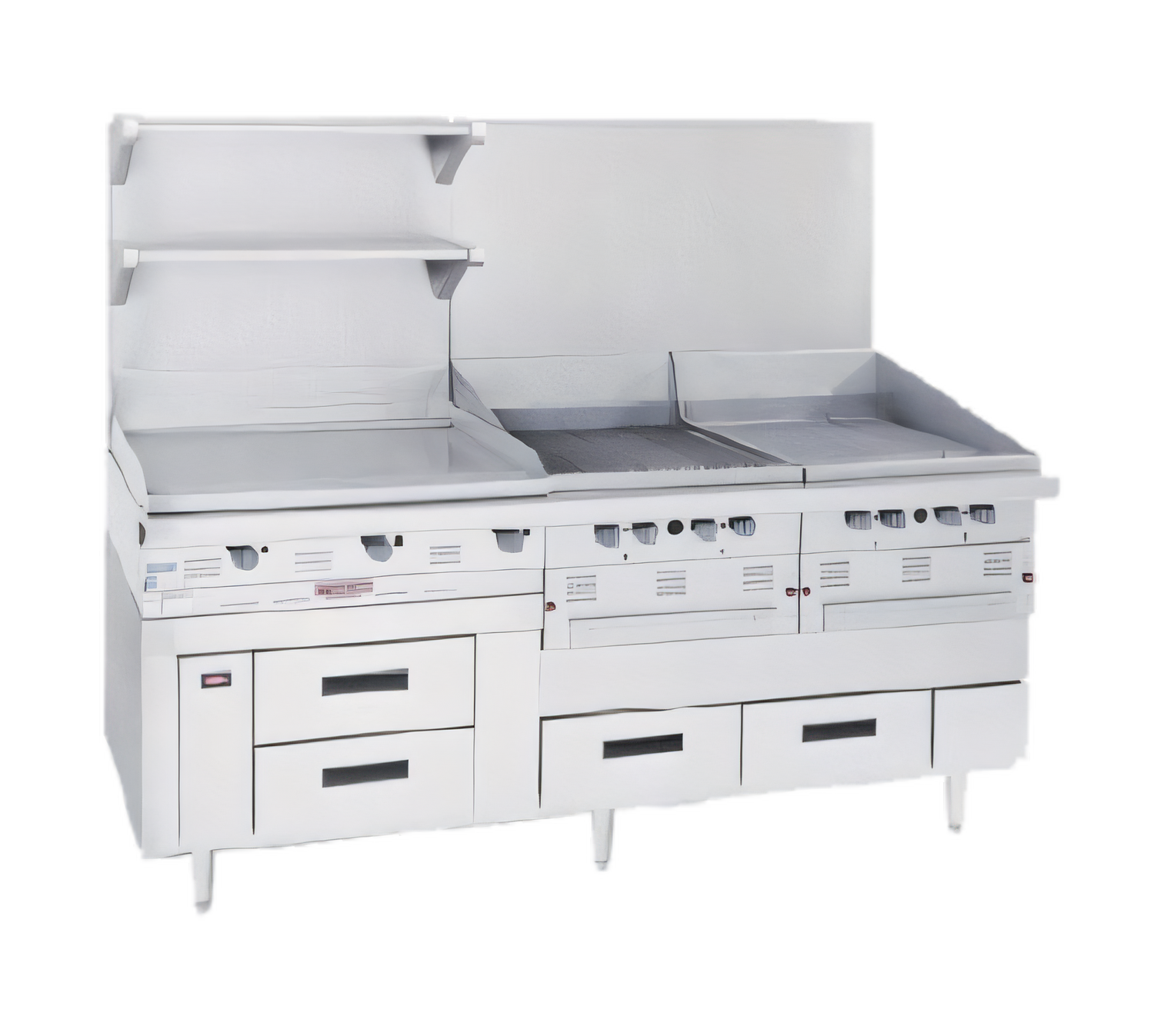

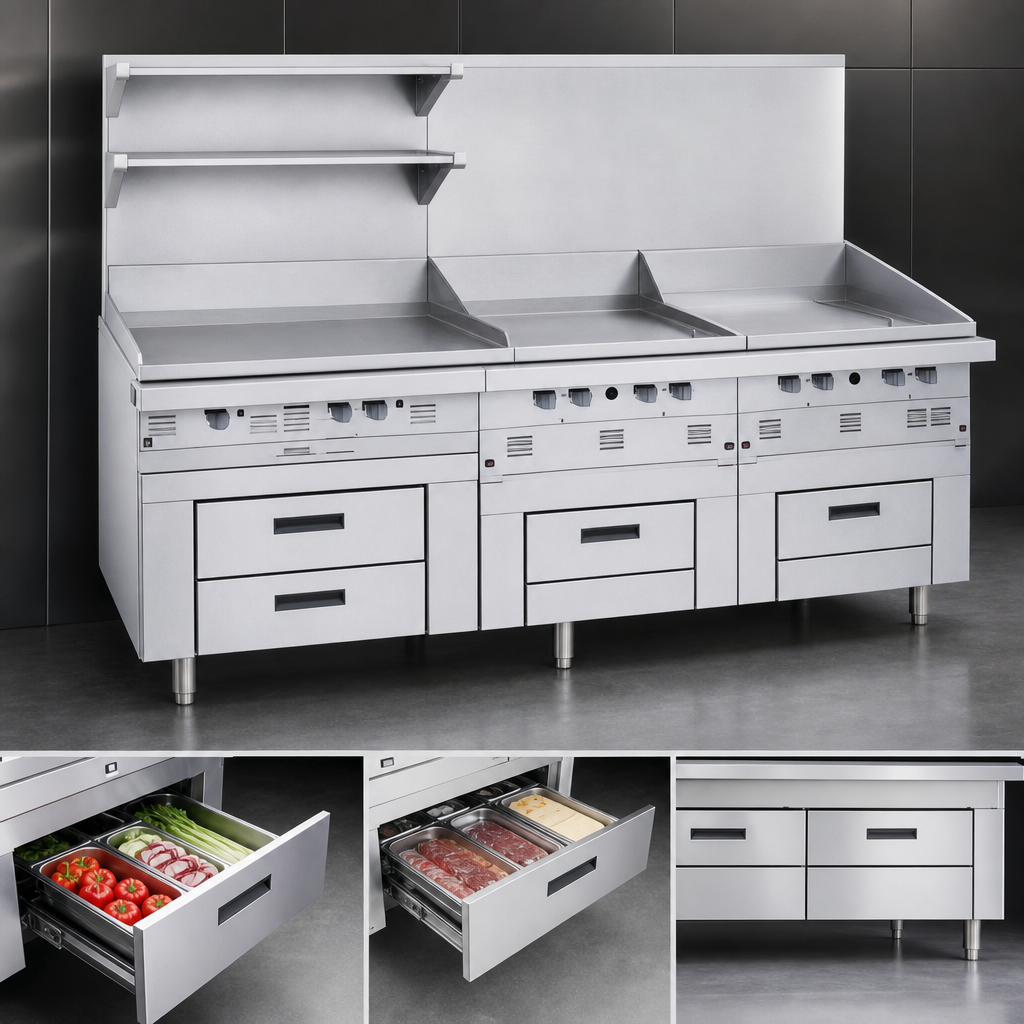

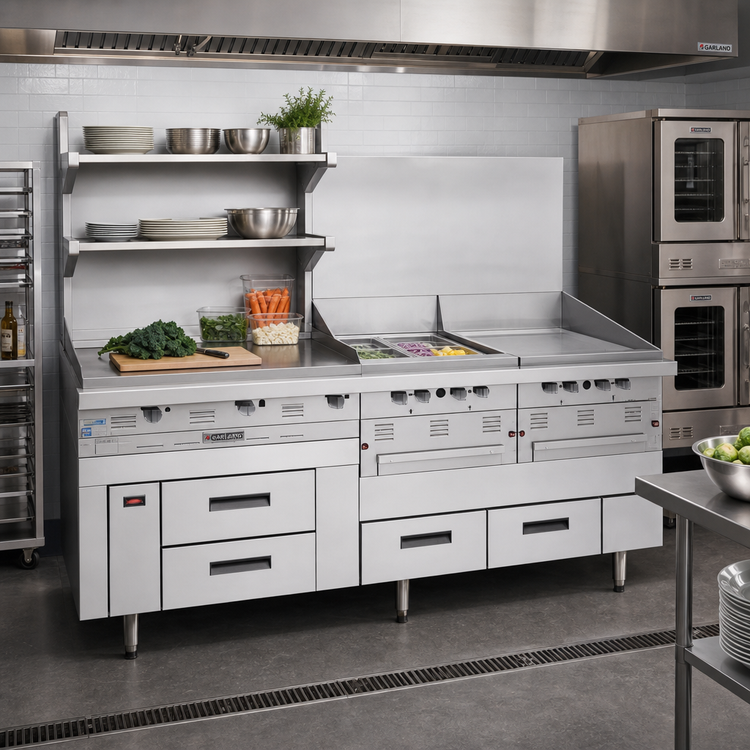

Arctic Fire GN17C119 Self-Contained Refrigerated Base – 119"
3-Section • 6 Self-Closing Drawers • 115 V / 1-PhPurpose-built to sit beneath Garland Master Series modular cook tops, the 119 inch Arctic Fire GN17C119 keeps bulk ingredients ice-cold and right where you need them. Its low-profile, heavy-duty construction and self-contained 404A refrigeration make it the smart, space-saving solution for high-volume kitchens that refuse to compromise on speed or food safety.
Why you’ll love it
- Six self-closing drawers (three sections, two drawers each) with flush center-mount handles
- Holds up to 12 full-size (12" × 20" × 4") hotel pans – refrigerated right at the point of use
- All-stainless exterior front, sides & drawer faces; 6" adjustable stainless legs for easy cleaning under the unit
- Vertically mounted blower coil delivers even, quick recovery temperatures throughout every drawer
- Removable stainless roller assemblies with self-lubricating bearings – backed by a 10-year parts warranty
- Compressor tropicalized to 100 °F (38 °C) for dependable performance in hot kitchens
- Hot-gas condensate evaporator – no floor drain required
- Factory-mounted scroll thermometer provides at-a-glance verification (digital on CE units)
- 5-year compressor parts / 1-year parts & labor warranty
- UL, cUL, NSF & CE certified for commercial kitchens
Technical specifications
| Model | GN17C119 |
|---|---|
| Exterior dimensions (W × D × H)* | 119" × 34" × 27" (3023 × 864 × 686 mm) |
| Sections / drawers | 3 sections / 6 drawers (2 per section) |
| Pan capacity | 12 full-size 12" × 20" × 4" pans (GN 1/1, 100 mm deep) |
| Refrigerant | HFC-404A (self-contained) |
| Compressor | ¼ HP | 995 BTU |
| Electrical | 115 V / 60 Hz / 1-Ph | 9.3 A | 6 ft cord with NEMA 5-15P plug |
| Legs | 6" (152 mm) adjustable stainless steel |
| Construction (interior) | Stainless top, rear & bottom; ABS drawer fronts & cabinet sides; foamed-in-place CFC-free insulation |
| Shipping weight | Approx. 850 lb / 386 kg (crated) |
| Warranty | 1 yr parts & labor • 5 yr compressor (parts) • 10 yr drawer track assemblies (parts) |
*Height shown excludes 6" legs.
Factory-installed options (sold separately)
- Extra-deep drawers for 6" (150 mm) deep pans
- Door & tray-rack kit for 18" × 26" sheet pans (not available on 32" drawers)
- Heavy-duty casters (requires approved restraining device)
- Step-down section to pair with modular top charbroilers
