Garland GN17C109 Arctic Fire Undercounter & Worktop Refrigeration
Description

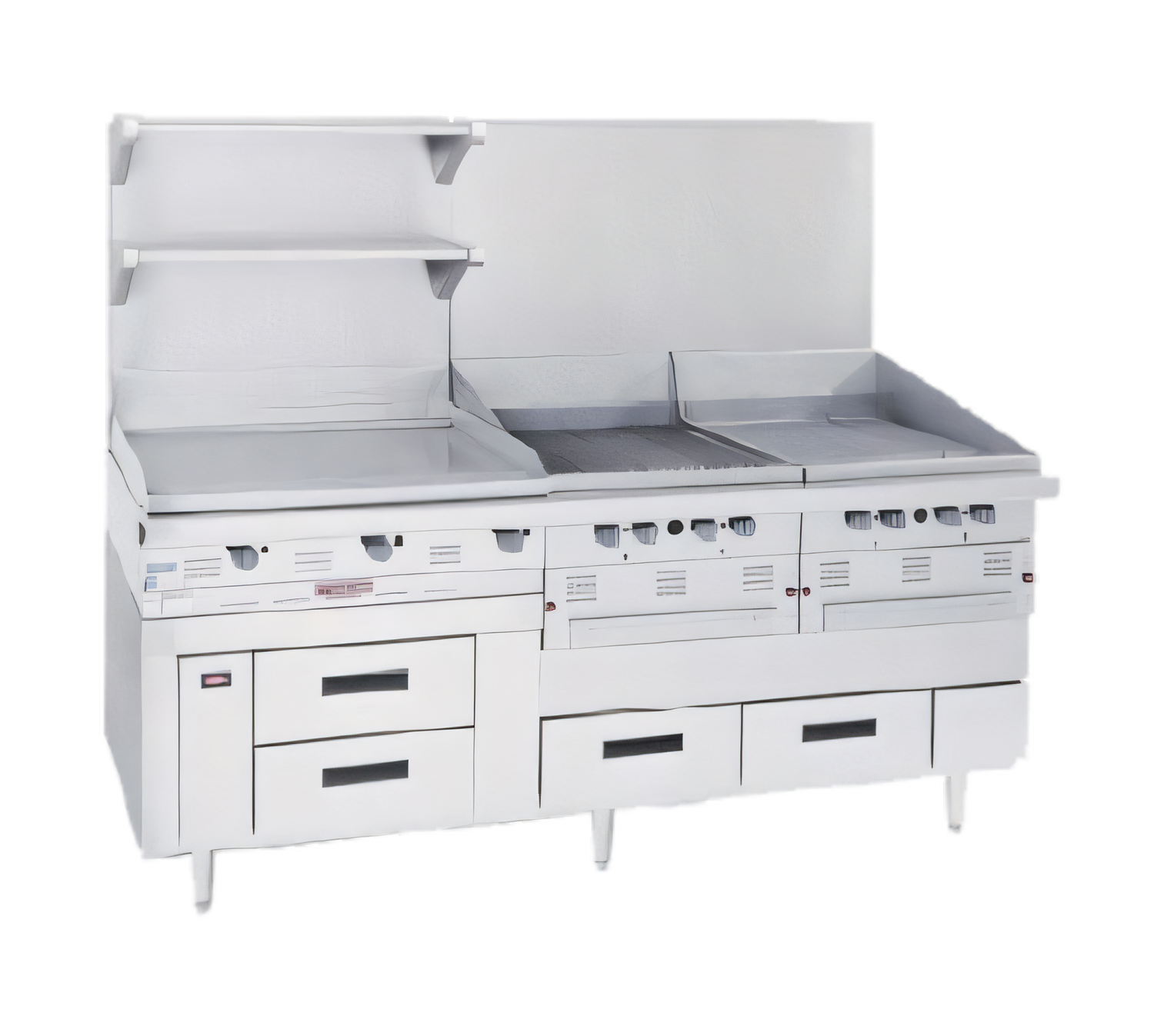

Garland Arctic Fire GN17C109 Refrigerated Base – 109", 3-Section, 6 Drawers
Low-profile, self-contained refrigeration for Master Series modular cooktopsKeep ingredients safe and within arm’s reach while maximizing the work line. The 109" Arctic Fire refrigerated base tucks perfectly beneath Garland Master Series cooktops, providing six self-closing drawers, powerful 1/4 HP refrigeration, and the rugged stainless-steel construction chefs expect from Garland.
Why You’ll Love It
- High capacity – holds up to 12 full-size (12" × 20" × 4") hotel pans across six drawers.

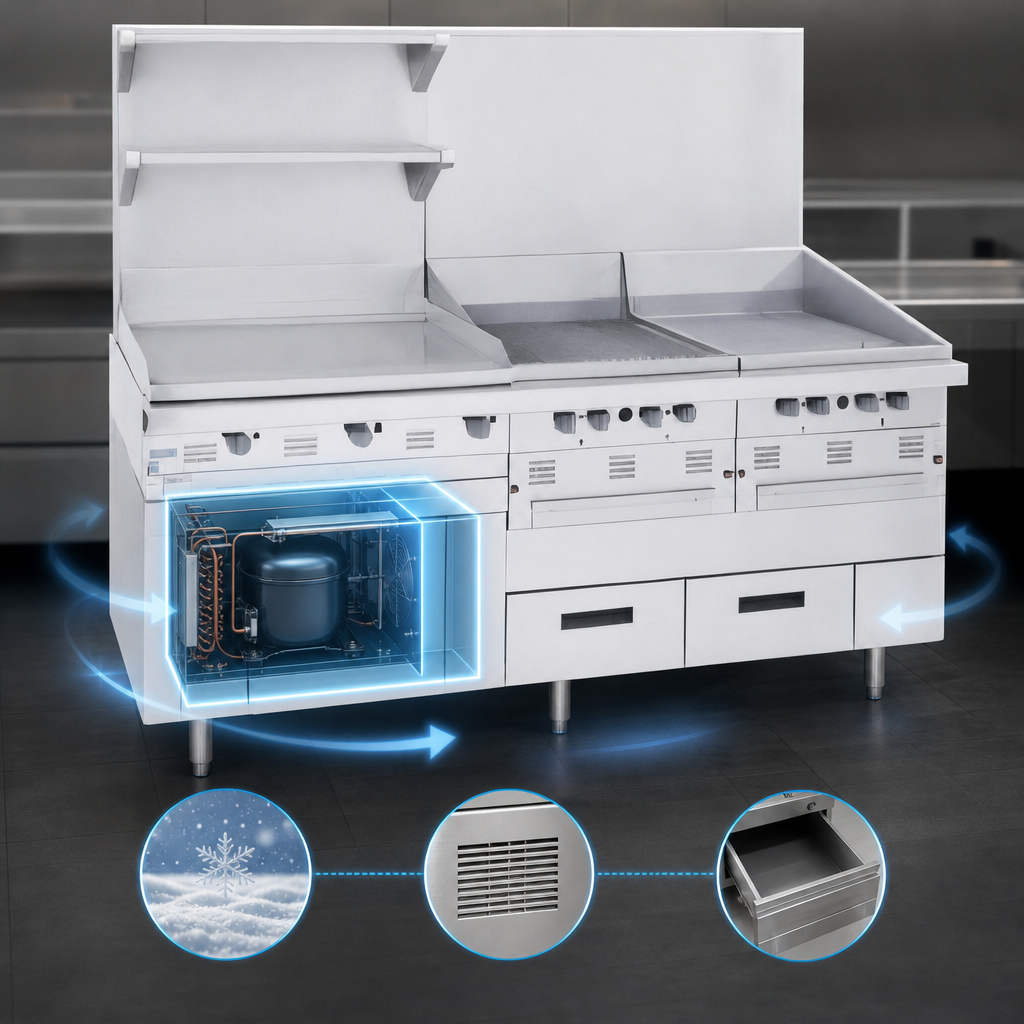

- Self-contained & factory-charged with environmentally safer HFC-404A refrigerant—no remote lines to run.
- Even, reliable cooling provided by a vertically mounted blower coil and tropicalized (100 °F/38 °C) compressor.
- Built to last – stainless steel exterior, stainless interior top/rear/bottom, and galvanized bottom/back.
- Easy-glide drawers ride on heavy-duty stainless slides with roller bearings; removable track assembly carries a 10-year parts warranty.
- Energy-conscious design includes foamed-in-place CFC-free insulation and a hot-gas condensate evaporator (no plumbing required).
- Operator-friendly details like center-mounted flush handles, Santoprene magnetic gaskets, and a front-mounted scroll thermometer.
Technical Specs
| Model | GN17C109 |
|---|---|
| Configuration | 3 sections | 6 self-closing drawers |
| Pan Capacity | 12 × Full-size hotel pans (12" × 20" × 4") |
| Exterior Dimensions | 109" W × 34" D × 27" H (2769 mm × 864 mm × 686 mm) Add 6" (152 mm) for adjustable legs |
| Compressor / Refrigerant | 1/4 HP, HFC-404A, hot-gas condensate evaporator |
| BTU Capacity | ≈ 852 BTU/hr |
| Electrical | 115 V / 60 Hz / 1-ph, 9.3 A, 6' cord with NEMA 5-15P plug |
| Legs | 6" stainless steel, height-adjustable |
| Construction | Stainless steel front & sides; ABS interior drawer fronts & cabinet sides; stainless interior top/rear/bottom; galvanized bottom/back |
| Controls | Front-mounted scroll thermometer (dial type) |
| Certifications | cULus, NSF |
| Warranty | 1 yr parts & labor; 5 yr compressor parts; 10 yr drawer track parts |
Popular Factory Options
- Extra-deep drawers for 6" deep hotel pans
- Casters with restraining devices
- Door & tray-rack kit for sheet pans (replaces drawers)
- Step-down section for modular charbroilers
Garland commercial equipment is intended for professional kitchens only and is not approved for residential use.
