Garland  |  SKU: GIRCM60

Garland GIRCM60 Cheese Melters

$4,907.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual
Related Searches
Broilers Charbroilers & Grills Cheese Melters Cheesemelters Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Garland G-Series Range-Mount Infra-Red Cheesemelter – Model GIRCM60

35-7/16" melter on 24" flue riser & shelf • 30,000 BTU • CSA & NSF

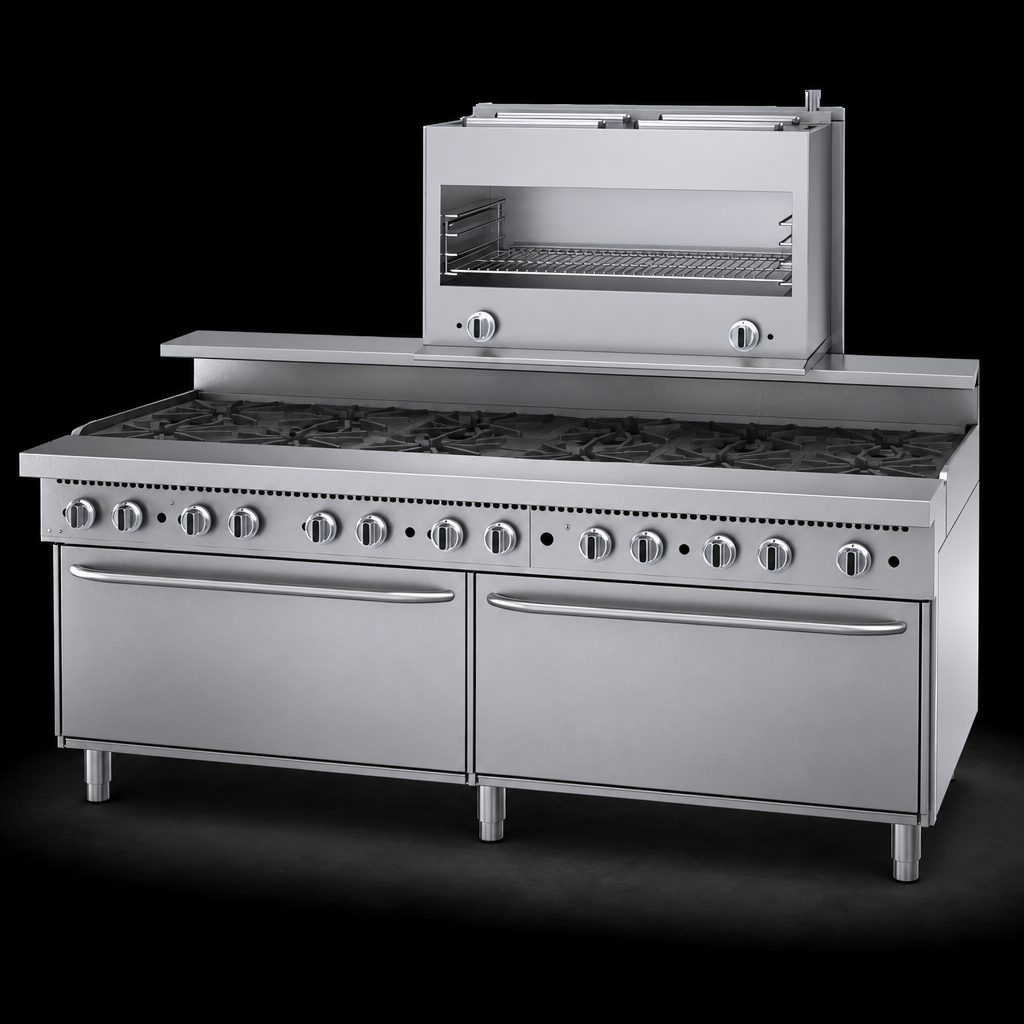

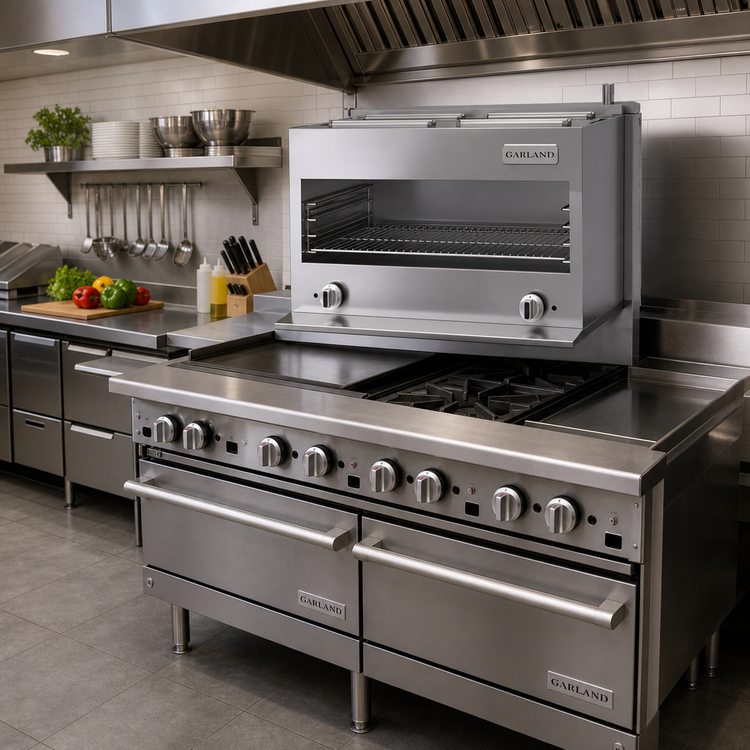

Finish, melt and brown menu favorites right on your Garland G60 range. The GIRCM60 delivers intense, even infra-red heat without taking up valuable countertop space, giving busy kitchens a fast, reliable way to achieve picture-perfect results service after service.

Key Features

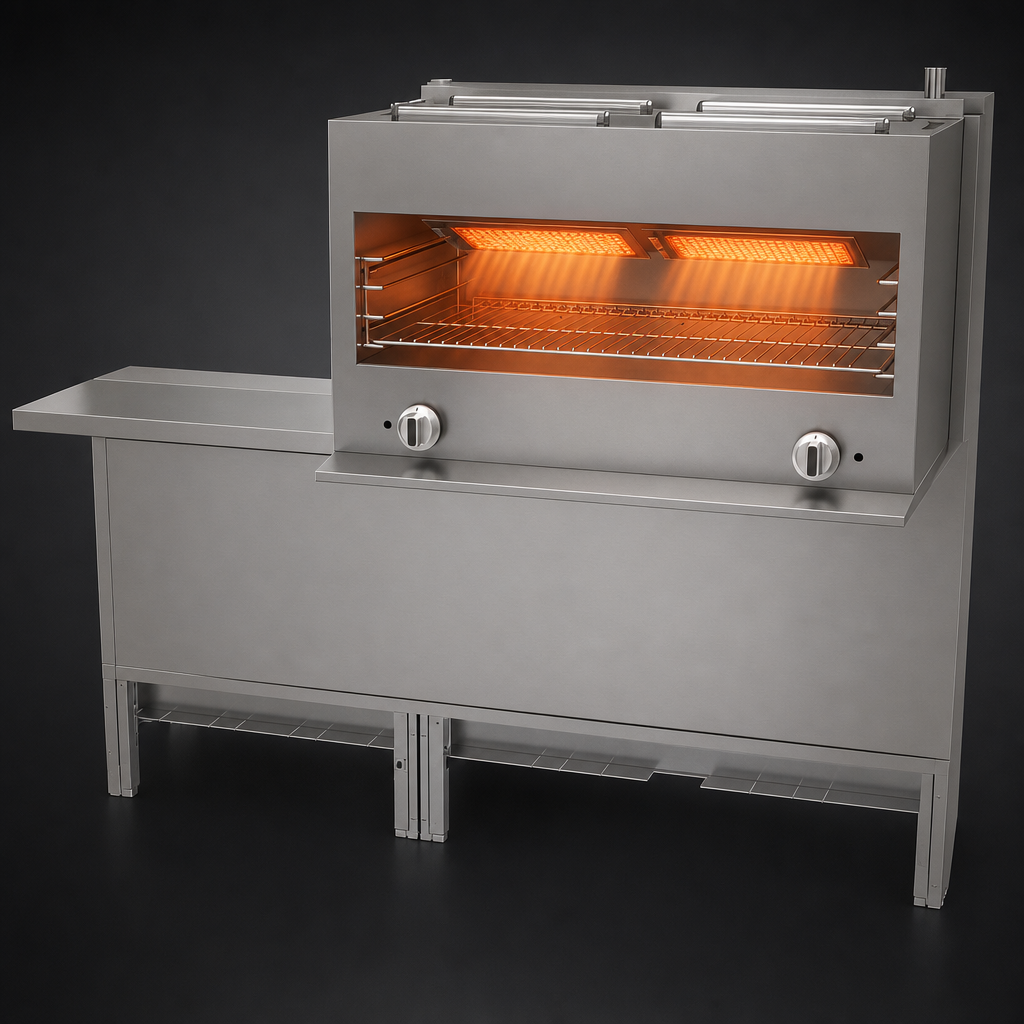

  • Two individually controlled 15,000 BTU atmospheric infra-red burners (high/low settings).
  • Stainless steel front, top, sides, backsplash and bottom heat shield for long-lasting durability.
  • Supplied with 35-7/16" (900 mm) backguard/flue riser plus 24" (610 mm) flue riser & storage shelf – total installation width 59-1/16" (1500 mm).
  • Heavy chrome-plated rack with four position glides for precise caramelization control.
  • Rack, rack guides and full-width grease pan remove in seconds for easy cleaning.
  • Large, die-cast control knobs are easy to grip, even with oven mitts.
  • Rapid pre-heat and downward-directed heat reduce ticket times.
  • Factory-supplied gas regulator and 1/2" NPT connection (specify Natural or Propane).
Specifications
Model GIRCM60
Compatible Range Garland G60 series (left or right mount)
Total Input 30,000 BTU/h (8.79 kW)
Burners 2 × 15,000 BTU infra-red, independent high/low valves
Cooking Width 35-7/16" (900 mm)
Overall Width (installed) 59-1/16" (1500 mm)
Depth 19" (482 mm)
Overall Height 50-1/2" (1283 mm) to top of flue
Rack Positions 4
Gas Connection 1/2" NPT – top & rear inlets
Manifold Pressure 6" WC Natural / 10" WC Propane
Combustible Clearances 6" (152 mm) sides & back
Construction All stainless steel exterior; chrome-plated rack & guides
Certifications CSA Star, CSA Flame, NSF

Gas ratings shown are for installations up to 2,000 ft (610 m) above sea level. Specify altitudes over 2,000 ft and gas type when ordering.

Commercial use only: Garland cheesemelters are not approved for residential installation.

Features & Specs

Manufacturer

Garland

Certifications

CSA Star, CSA Flame

Height

21.0in

Width

59.06in

Depth

15.0in

Shipping Weight

260.0lbs

Heat type

infrared

Exterior Finish

all stainless steel exterior

Width (side - side)

49" - 60"

Mounting

range mount

Rack Positions

4

Specifications

G-Series Cheesemelter, gas, 35-7/16"W, range-mount, for G60 Range, mounted on 35-7/16"W backguard/flue riser & a 24"W x 21" H backguard/flue riser with shelf (total 59-1/16"W), (2) 15,000 BTU infrared burners with individual controls, chrome plated rack with (4) position glides, removable grease pan, stainless steel top, front, sides, backsplash & bottom heat shield, 30,000 BTU, CSA Star, CSA Flame, NSF (Garland)
