Garland G-Series Infrared Range-Mount Cheesemelter for G48 Series Ranges

SKU: GIRCM48
$4,638.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Charbroilers & Grills Cheese Melters Cheesemelters Garland New Arrivals Restaurant Equipment

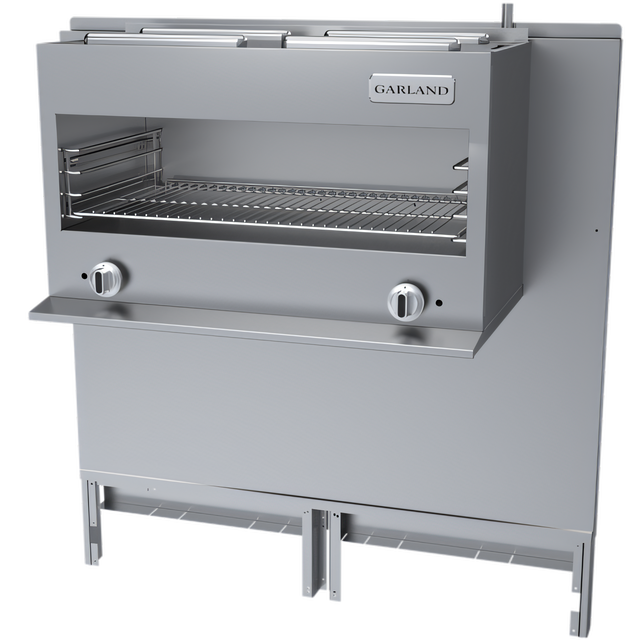

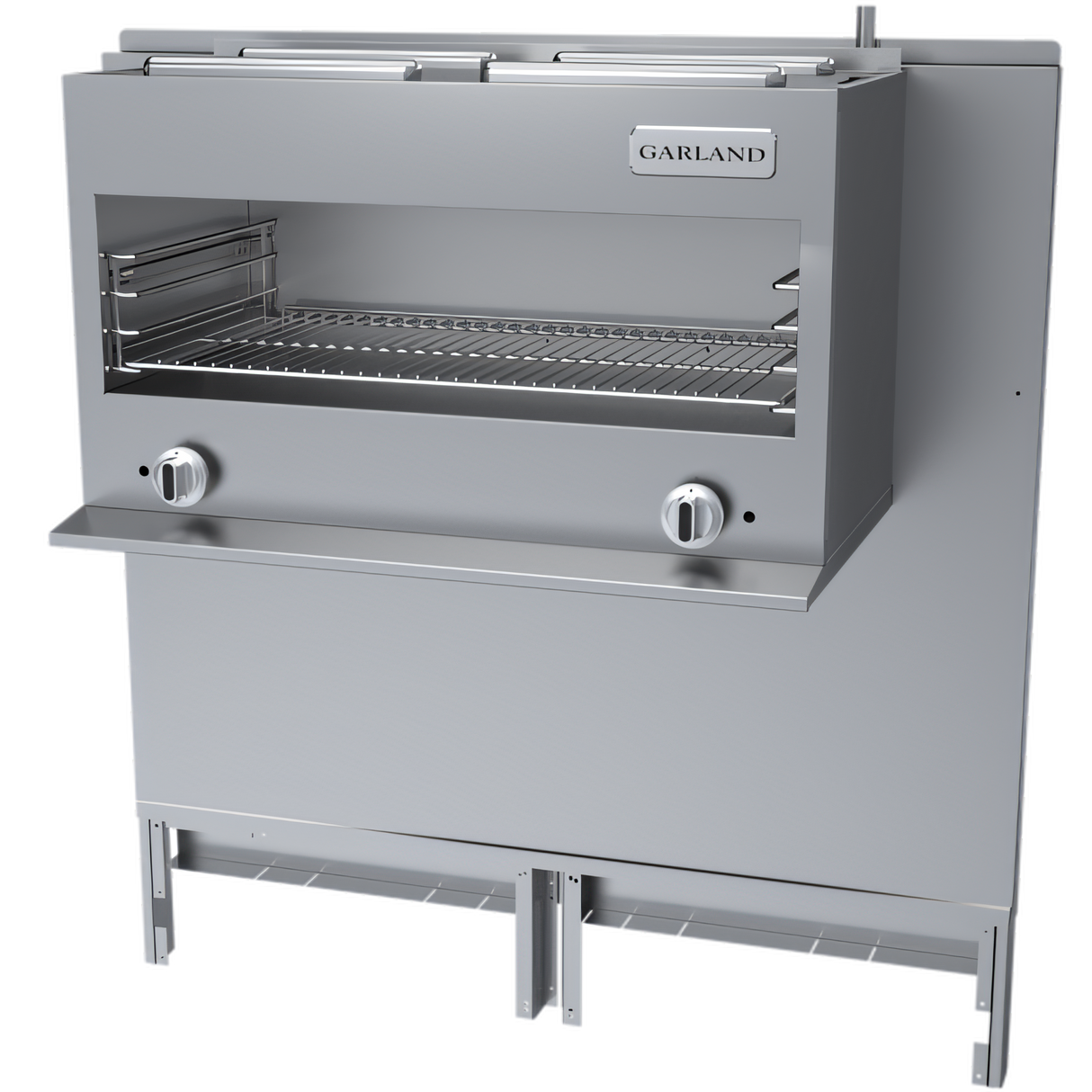

Garland G-Series Infrared Range-Mount Cheesemelter for G48 Series Ranges

Center-Mounted on 47-1/4-Inch Backguard/Flue Riser, Dual 15,000 BTU Burners

This center-mounted cheesemelter delivers fast, even infrared heat on Garland G48 ranges with adjustable rack positioning and easy-clean removable components.

  • Designed to mount on Garland G48 series ranges with a center-mounted backsplash/flue riser.
  • Two individually controlled 15,000 BTU infrared burners deliver 30,000 BTU total output.
  • Chrome-plated rack with four adjustable positions helps match different foods and finishes.
  • Stainless steel front, top, sides, backsplash, and bottom heat shield add durability.
  • Removable rack, rack guides, and grease pan simplify cleaning and maintenance.
  • Gas regulator included for installation support.

Overall Dimensions:

35.44"W x 15.0"D x 21.0"H

Product Weight:

230.0 lb

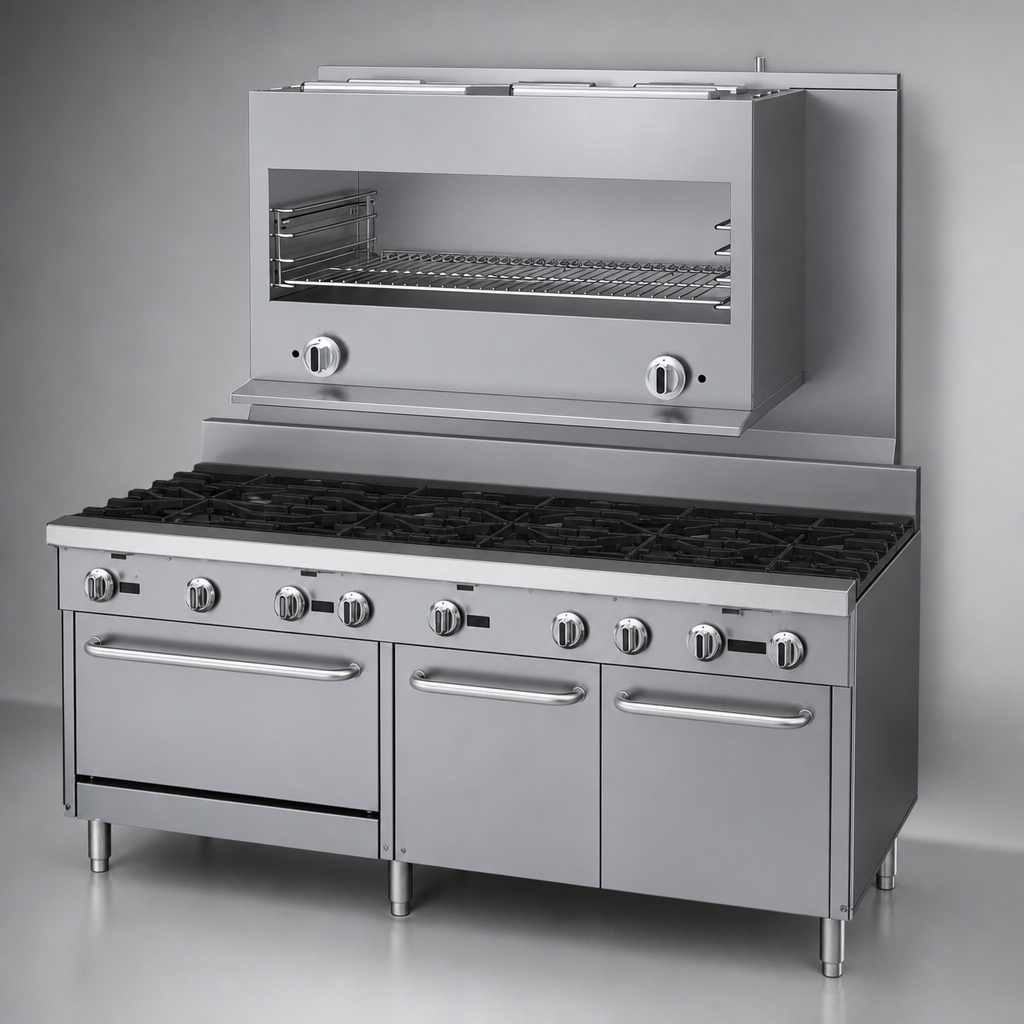

Center-Mounted Range Installation

Built to mount on Garland G48 series ranges with a 47-1/4-inch overall mounting backsplash width.

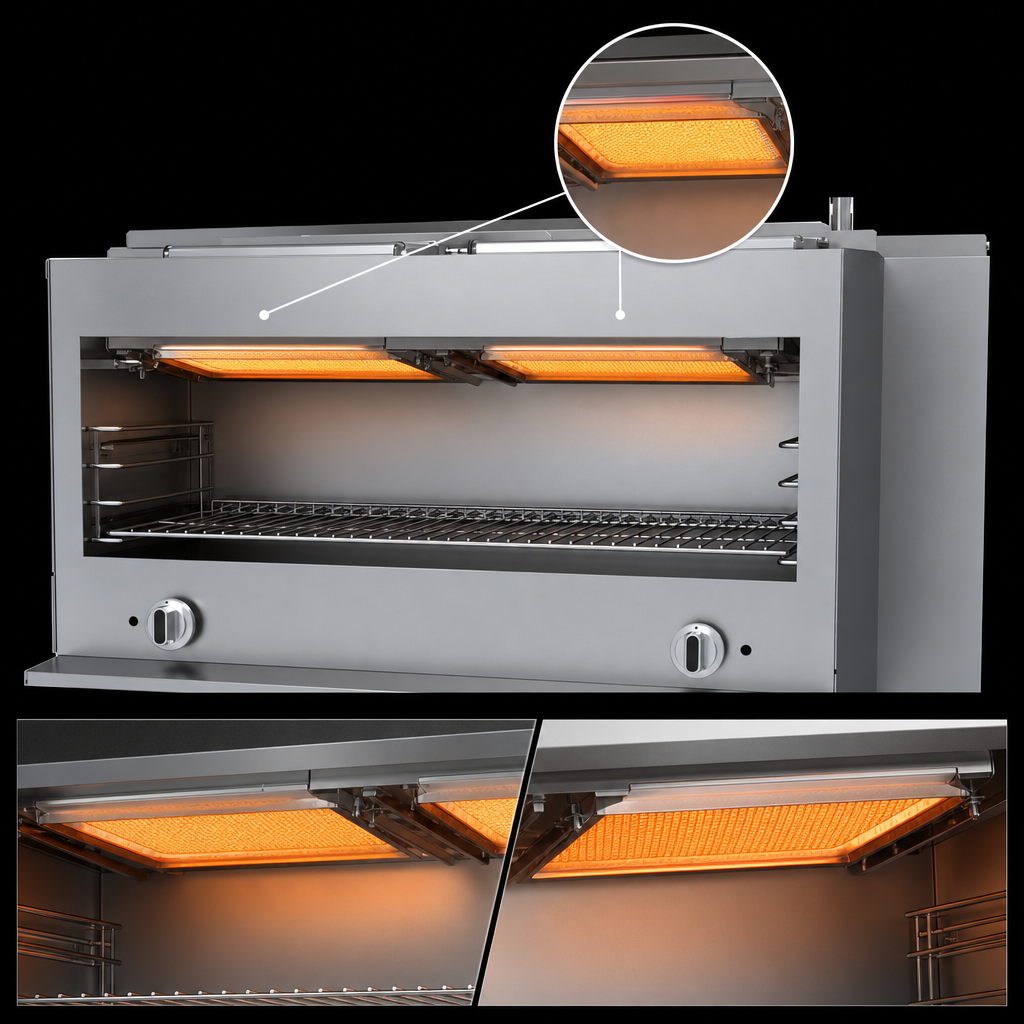

Dual Infra-Red Burners

Two atmospheric-type 15,000 BTU burners provide fast preheat and uniform heating.

Individual Burner Controls

Each burner has its own control with high and low valve settings for more precise cooking control.

Chrome-Plated 4-Position Rack

Heavy-duty chrome-plated rack and rack guides adjust to four positions for different product heights.

Removable Rack Assembly

Rack and rack guides remove easily for faster cleaning.

Stainless Steel Construction

Stainless steel front, top, sides, backsplash, and protective bottom heat shield help provide long-lasting durability.

Removable Grease Pan

Helps collect drippings and makes cleanup easier.

Gas Regulator Included

Supplied with a gas regulator for installation.

Heavy-Duty Mounting Support

Range-mounted units are supported by heavy-duty steel brackets for secure installation.

Type Cheesemelter
Style Infrared
Installation Type Range Mount
Burners 2
Controls Individual Burner Controls
Rack Positions 4
BTU 30,000 BTU
Material Stainless Steel
Finish Stainless Steel
Gas Connection Size 1/2 Inch NPT
Shipping Width 36 Inches
Shipping Depth 15 Inches
Shipping Height 21 Inches
Shipping Weight 230 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It is designed for Garland G48 series ranges and centers on a 47-1/4-inch wide backguard/flue riser.
It has two atmospheric-type infrared burners.
The unit has 30,000 BTU total input, with 15,000 BTU per burner.
Yes. The chrome-plated rack moves through four positions.
Yes. The rack, rack guides, and grease pan are removable for easier cleaning.
It uses a 1/2-inch NPT gas connection.
