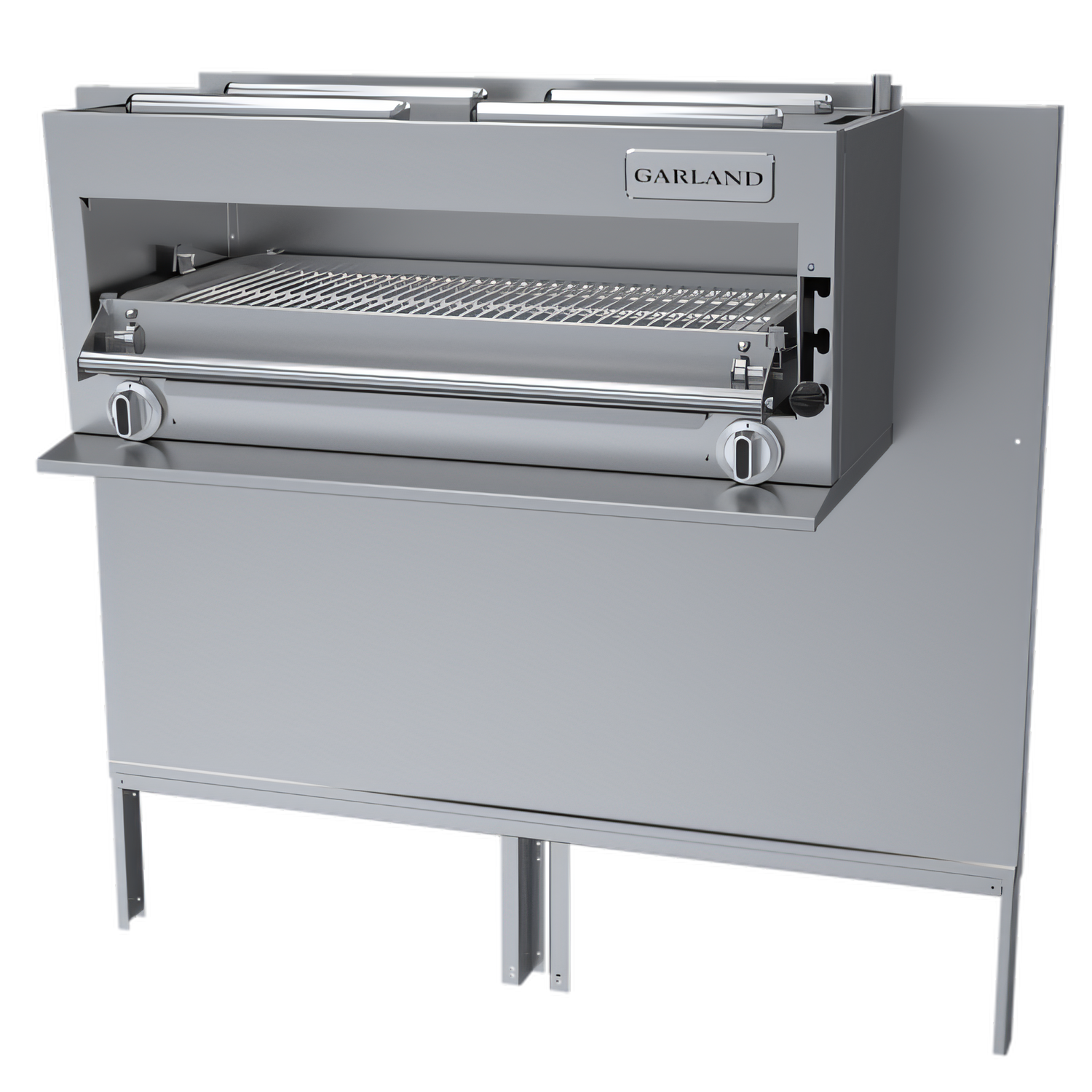

Garland G Starfire Pro G-Series Gas Infrared Salamander Broiler for G48 Range

Range-Mount, Center-Mounted on 47-1/4-Inch Flue Riser, 40,000 BTU

Built for Garland G48 ranges, this range-mounted gas infrared salamander broiler delivers 40,000 BTU of adjustable broiling power with easy-clean stainless steel construction.

  • Designed to mount over Garland G48 ranges with a center-mounted 47-1/4-inch flue riser.
  • Two 20,000 BTU infrared burners deliver 40,000 BTU total broiling power.
  • Individual Hi-Lo valves let each burner be adjusted independently.
  • Three-position spring-balanced rack assembly makes it easy to set broiling height.
  • Stainless steel top, front, sides, backsplash, and bottom heat shield improve durability.
  • Available in natural gas or propane, with a 1/2-inch NPT top gas inlet and gas pressure regulator.

Overall Dimensions:

47.25"W x 18.0"D x 30.0"H

Product Weight:

230.0 lb

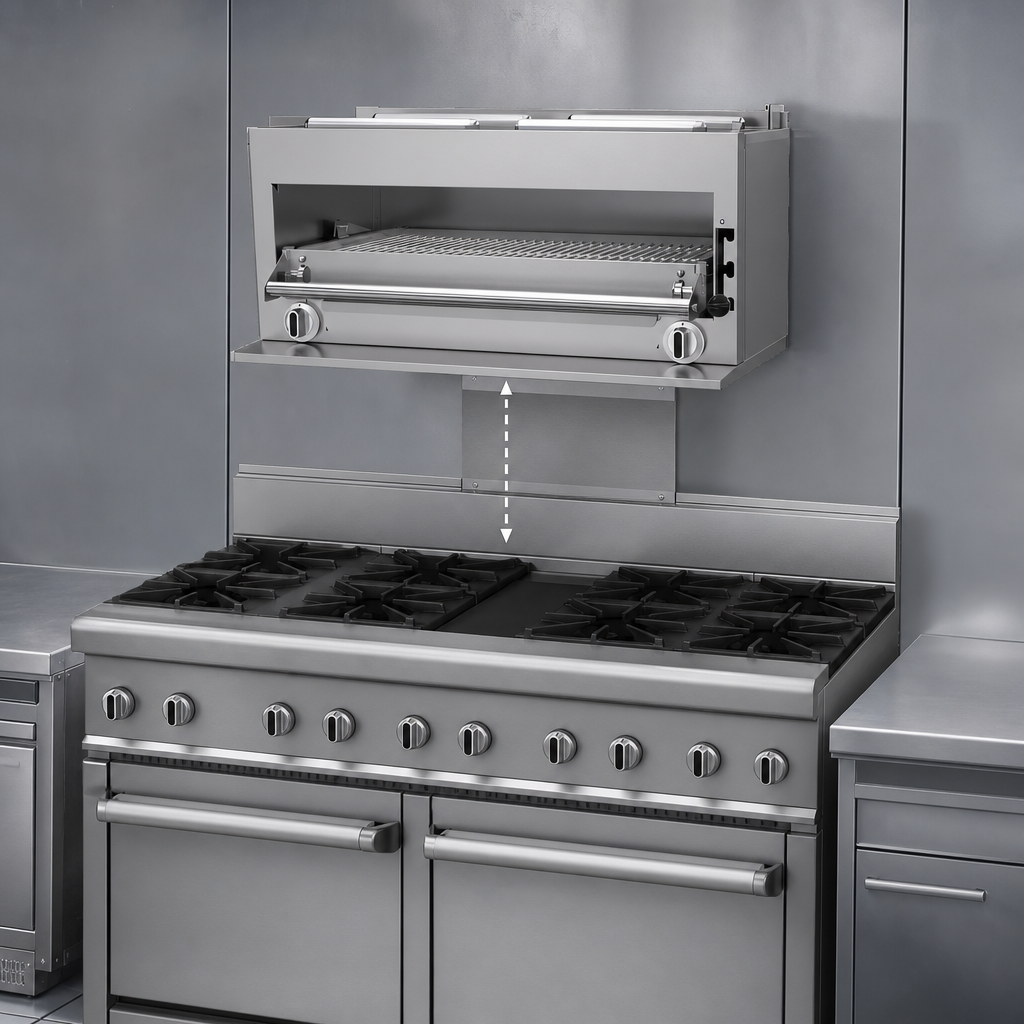

Range-Mount Design

Built to mount over a Garland G48 range and center on the 47-1/4-inch backguard/flue riser.

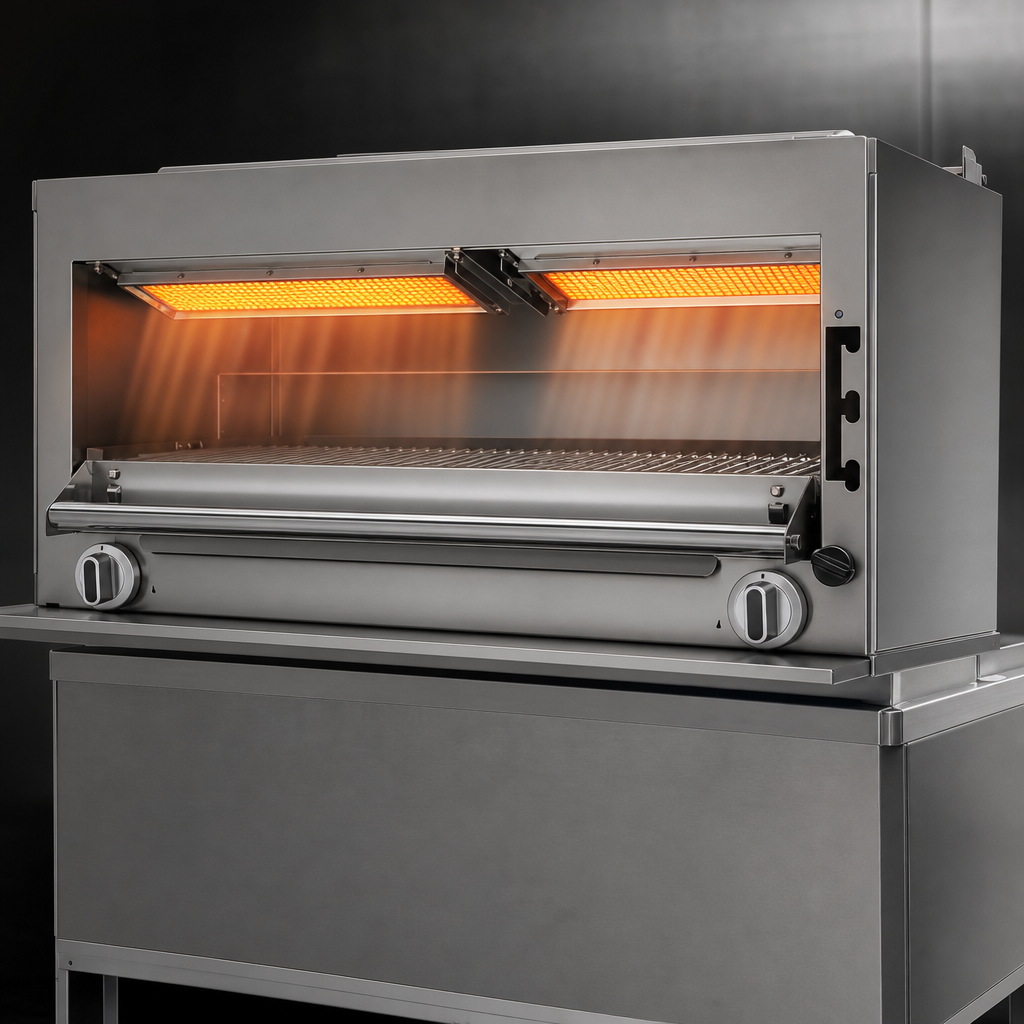

Dual Infrared Burners

Two atmospheric infrared burners provide intense broiling heat with 20,000 BTU each.

Individual Hi-Lo Controls

Separate Hi-Lo valve controls let operators fine-tune heat from each burner.

Three-Position Rack Assembly

A spring-balanced adjustable rack offers three positions for controlling broiling distance.

Stainless Steel Construction

Stainless steel top, front, sides, backsplash, and bottom heat shield support long-term durability.

Removable Grease Pan

A large capacity removable grease pan helps catch drippings and simplify cleanup.

Gas Flexibility

Configured for natural gas or propane use with a 1/2-inch NPT top gas inlet and gas pressure regulator.

Type Infrared
Style Salamander Broiler
Installation Type Range Mounted
Controls Hi-Lo Valves
Material Stainless Steel
BTU 40,000 BTU
Gas Connection Size 1/2 Inch NPT
Gas Inlet Pressure 6 Inches W.C. (Natural Gas) / 10 Inches W.C. (Propane)
Shipping Width 48 Inches
Shipping Depth 18 Inches
Shipping Height 30 Inches
Shipping Weight 230 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It is designed to mount over Garland Starfire Pro G-Series restaurant ranges, and the GIR48 is the center-mounted model for a G48 range.
It has two 20,000 BTU infrared burners for a total input of 40,000 BTU.
Yes. The unit is available for natural gas or propane, and the gas type should be specified when ordering.
Operating pressure is 6 inches W.C. for natural gas and 10 inches W.C. for propane.
It uses a three-position spring-balanced, adjustable rack assembly.
The installation clearances are 6 inches on the sides and 6 inches at the rear.
