Garland GFIR48M Salamander Broilers
Description
Garland GF-Series Infra-Red Salamander Broiler – 40,000 BTU
Model GFIR48M | Center-Mount for 48" GF RangesTurn every plate into a show-stopper with Garland’s GF-Series center-mounted salamander. Delivering an intense 40,000 BTU/h of infra-red heat, this range-top workhorse gives chefs the speed and control they need for rapid finishing, caramelising, cheese melting and steakhouse-quality broiling – all without sacrificing valuable line space.
Performance & Construction Highlights

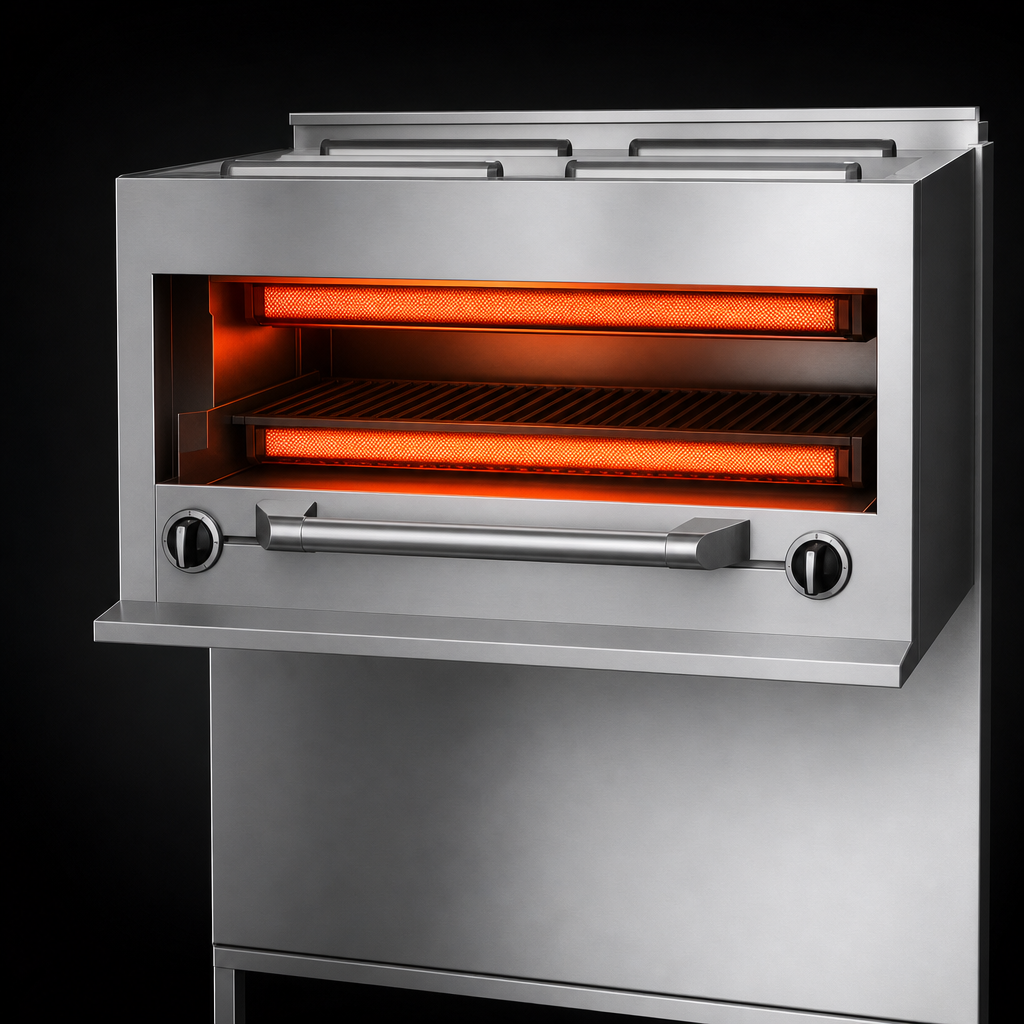

- Two 20,000 BTU (5.86 kW) atmospheric infra-red burners for instant, even heat.
- Sentry flame failure protection automatically shuts off gas if the flame is lost.
- Independent Hi-Lo valve on each burner for precise zone control & energy savings.
- Fixed-position broiling rack slides in/out and locks flat or at an easy-view tilt angle.
- Large, removable stainless-steel grease pan keeps the cook-line clean and safe.
- All-stainless exterior – front, sides, top, backsplash & bottom heat shield – built for heavy-duty commercial kitchens.

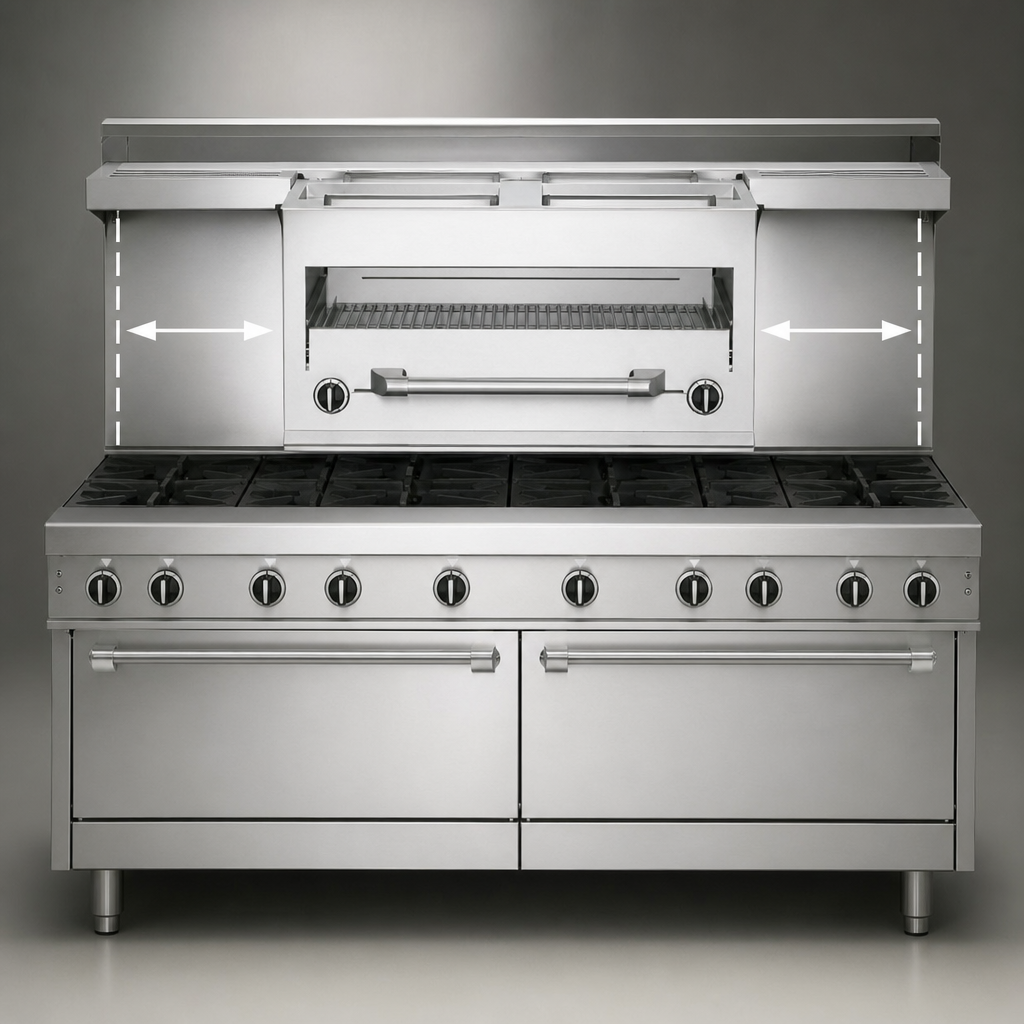

- Range-mount, center-mount design installs on the 47-1/4" backguard/flue riser of Garland GF48 ranges, saving valuable floor space.
- 1/2" NPT gas connection at the top (rear optional) plus factory-supplied regulator.
Built-In Advantages
- Speed: Infra-red emitters reach full temperature in seconds for on-demand finishing.
- Consistency: Even, intense radiant heat delivers uniform colour and crust every time.
- Visibility: Optional tilt rack lets chefs monitor product without constant lifting.
- Safety & Compliance: CSA Star, CSA Flame and NSF listings meet the strictest codes.
- Space Saver: Frees up grill space and keeps the broiler right where you need it – above the range.
At-a-Glance Specs
| Model | GFIR48M (Center-Mount) |
|---|---|
| Total Input | 40,000 BTU/h (11.72 kW) |
| Burners | 2 × 20,000 BTU infra-red, independent Hi-Lo valves |
| Salamander Width | 35-7/16" / 900 mm |
| Backguard/Flue Width | 47-1/4" / 1200 mm (fits Garland GF48 ranges) |
| Depth × Height* | 19-3/8" × 73-11/16" (492 mm × 1872 mm) * |
| Rack Positions | Flat or easy-view tilt, roll-in / roll-out |
| Gas Connection | 1/2" NPT (top standard, rear optional) – Natural or Propane |
| Clearances (non-combustible) |
Sides: 0" | Back: 0" |
| Certifications | CSA Star & Flame, NSF |
*Height measured from floor to top of salamander when mounted on a Garland GF48 range.
Installation Notes
- Designed exclusively for Garland GF48 series ranges.
- Specify gas type (Natural or Propane) and gas inlet location (top or rear) when ordering.
- Manifold pressure: 4" WC Natural, 10" WC Propane.
- For commercial use only – not for residential installation.
Need help sizing or configuring? Contact our sales team for range compatibility and optional accessories.
