Key specifications

BTU
40,000 BTU
Gas Type
Natural Gas or Propane
Dimensions
35.5"W × 19.38"D × 17.19"H
Type
Salamander Broiler
Style
Range-Mount
Material
Stainless Steel
Spec sheet
Garland SKU: GFIR36M

Garland GFIR36M Infrared Salamander Broiler, Range-Mount

$4,681.80
/each
Estimated to ship in 16–19 business days
Mounting
Range fit
Gas typeRequired
Gas inlet
Mounting position
Gas Connector
Included: Garland warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $433/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Salamander Broiler
Style Range-Mount
Material Stainless Steel
Width 35.5 Inches
Gas Type Natural Gas or Propane
BTU 40,000 BTU
Burner Count 2
Burner Type Atmospheric Infrared
Burner BTU 20,000 BTU Each
Controls Hi-Lo Valve Controls
Flame Failure Protection Total
Rack Positions Flat or Tilt
Grease Pan Removable
Gas Inlet 1/2-Inch NPT, Top
Compatible Range GF/GFE36

Description

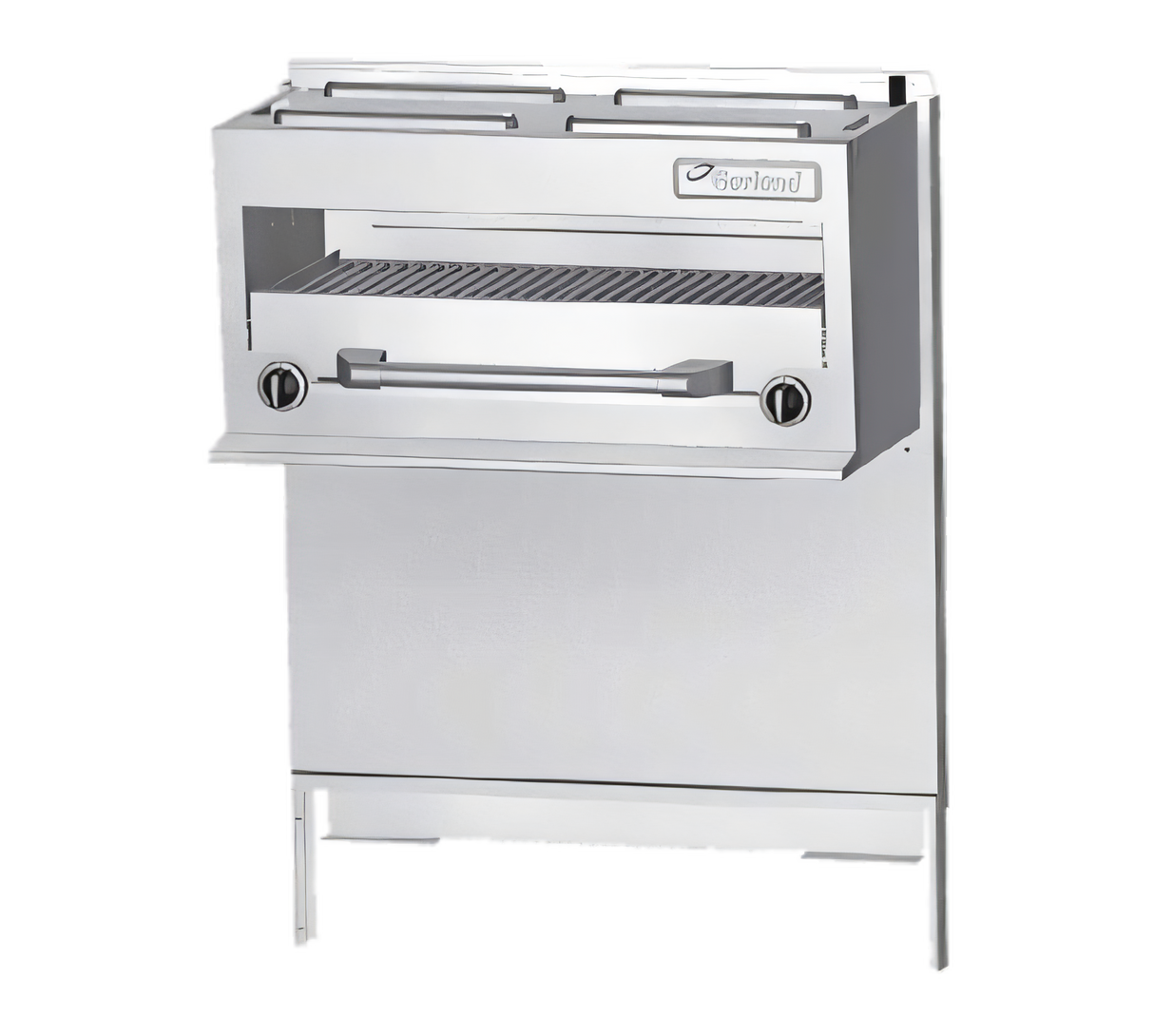

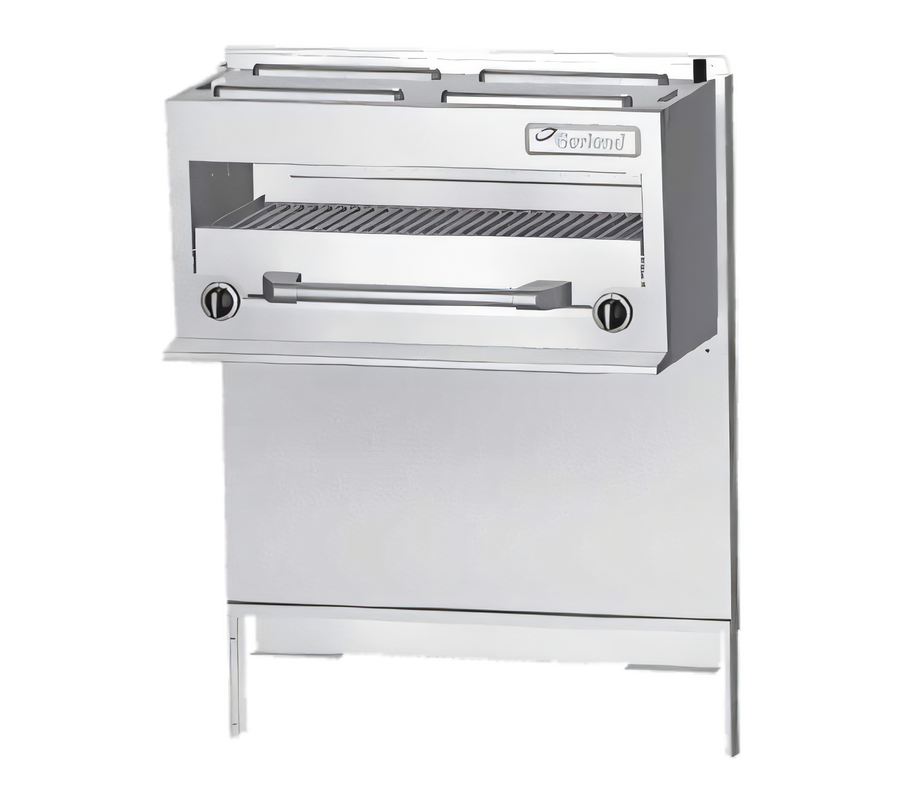

The Garland GFIR36M is a range-mount infrared gas salamander broiler for GF/GFE36 ranges.

  • Two 20,000 BTU atmospheric infrared burners provide 40,000 BTU total input.
  • Individual Hi-Lo valve controls and total flame failure protection support controlled operation.
  • The fixed-position broiling rack offers flat or tilt positions.
  • A removable grease pan and stainless steel top, front, sides, backsplash, and bottom heat shield support commercial kitchen use.

Overall Dimensions:

35.5"W x 19.38"D x 17.19"H

Product Weight:

200.0 lb

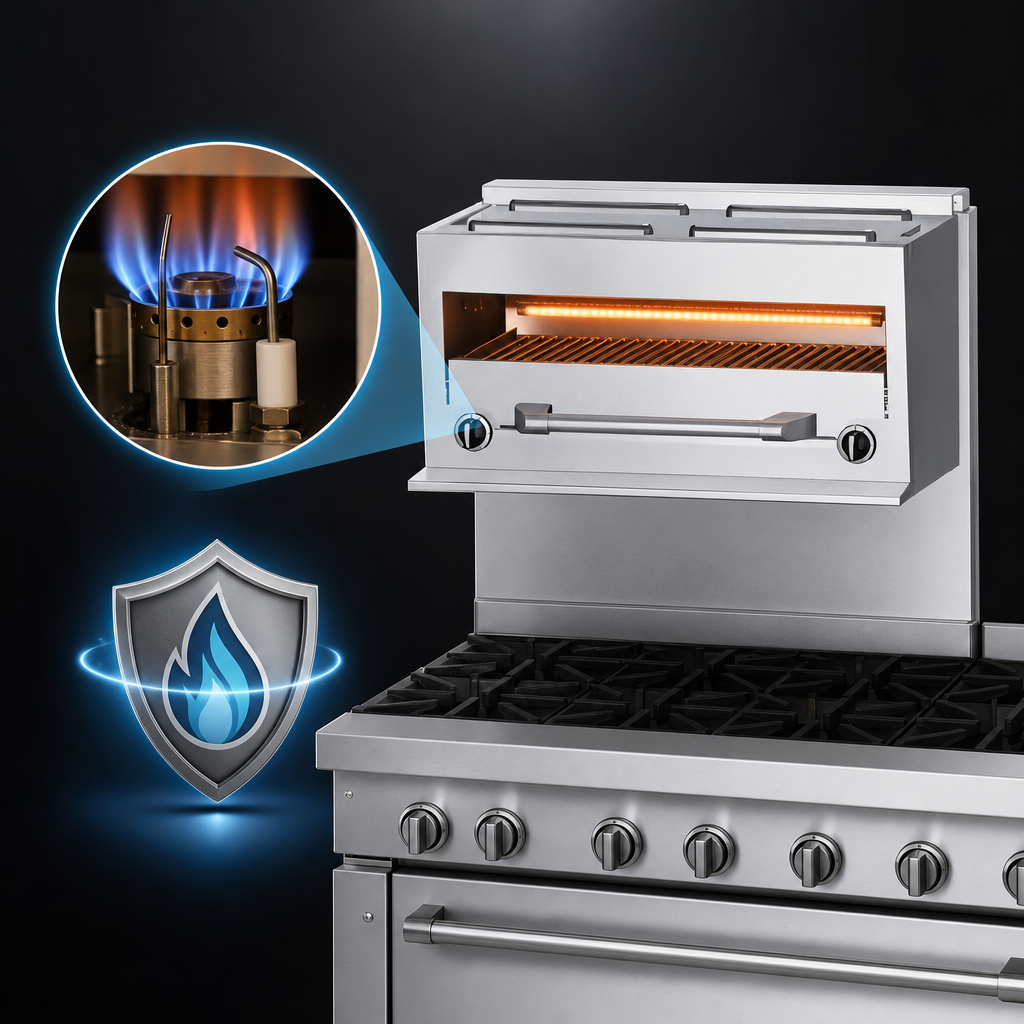

Flame Failure Protection

Provides total flame failure protection.

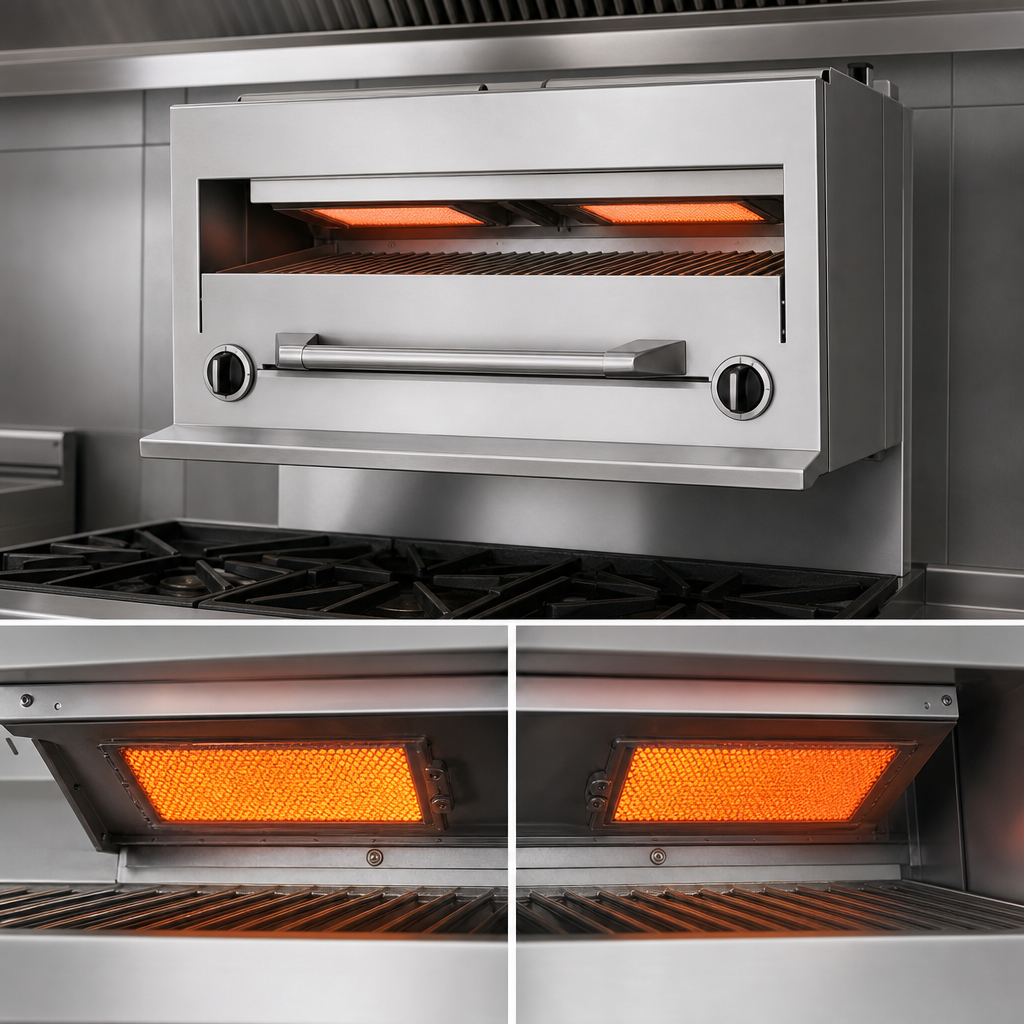

Infrared Burners

Includes two 20,000 BTU atmospheric infrared burners.

Hi-Lo Controls

Each burner has an individual Hi-Lo valve control.

Broiling Rack

The fixed-position rack supports flat or tilt positions.

Grease Pan

Includes a removable grease pan.

Stainless Steel Surfaces

The top, front, sides, backsplash, and bottom heat shield are stainless steel.

Range Compatibility

Designed for use with GF/GFE36 ranges.

Frequently Asked Questions

The GFIR36M is specified for natural gas or propane.
It provides 40,000 BTU total through two 20,000 BTU atmospheric infrared burners.
It is a range-mount model for GF/GFE36 ranges.
Yes. The GFIR36M has total flame failure protection.
The product is 35.5 inches wide, 19.38 inches deep, and 17.19 inches high, with a listed weight of 200 lb.
