Garland  |  Designer  |  SKU: GD-36RBFF

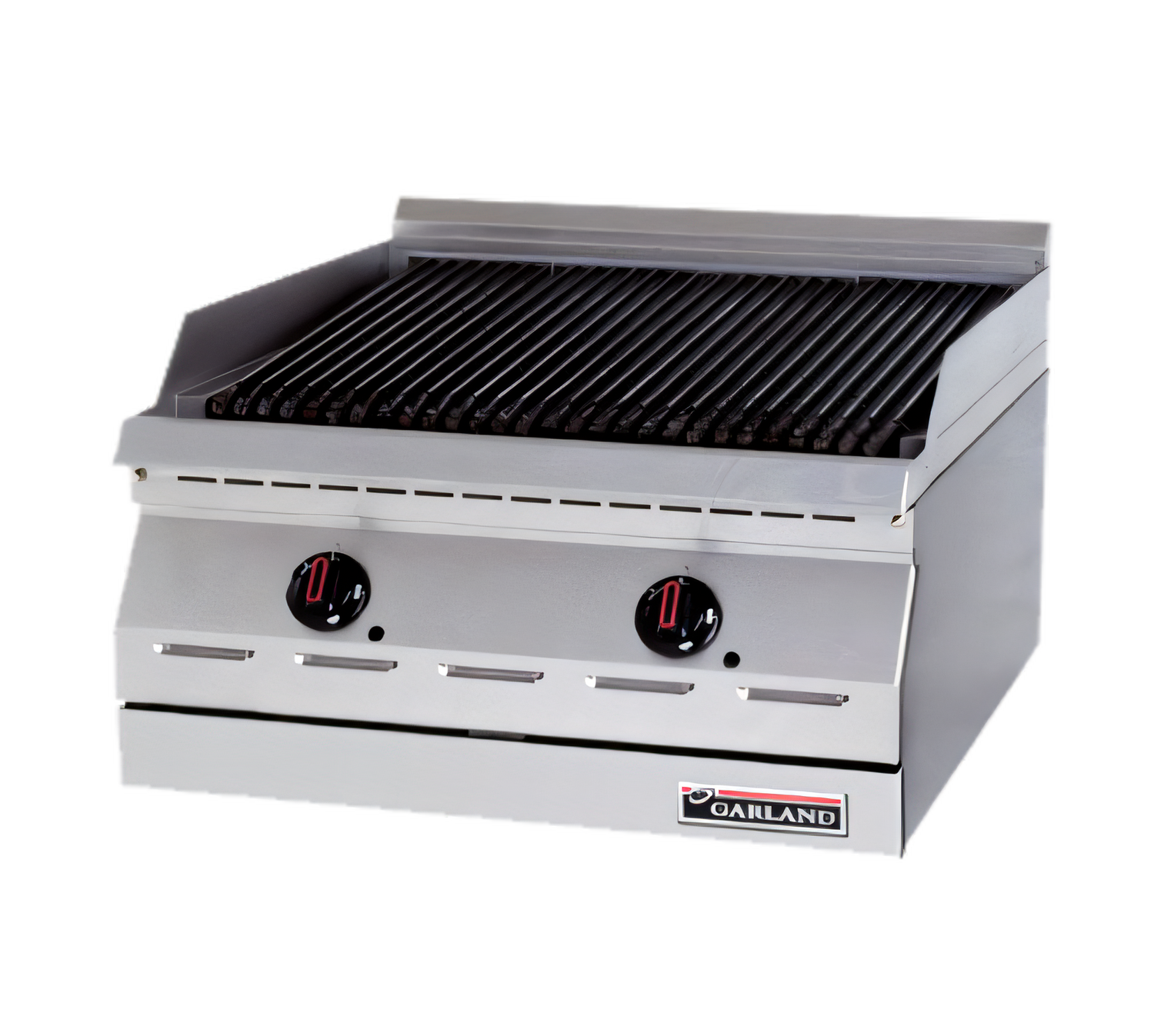

Garland GD-36RBFF Designer Gas Charbroilers

$5,122.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

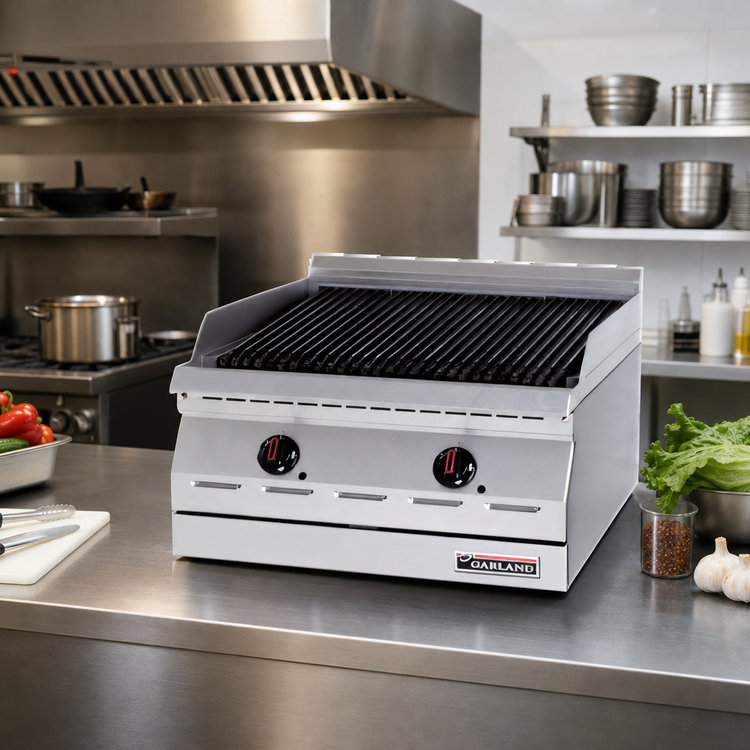

Garland Designer Series 36" Gas Charbroiler – 90,000 BTU

Model GD-36RBFF | CSA • NSF • CE

Serve perfect flame-kissed steaks, burgers and vegetables service after service. The Garland Designer Series 36 inch countertop charbroiler partners a powerful 90,000 BTU burner system with rugged cast-iron radiants for fast heat-up, even searing and legendary Garland dependability.

Key Features

  • 90,000 BTU total input delivers intense, even heat across the entire grate
  • 36" (914 mm) wide x 18" (457 mm) deep cooking surface handles high-volume orders with ease
  • Heavy cast-iron radiants retain heat and channel drippings away from burners for rich grill flavor and easy cleaning

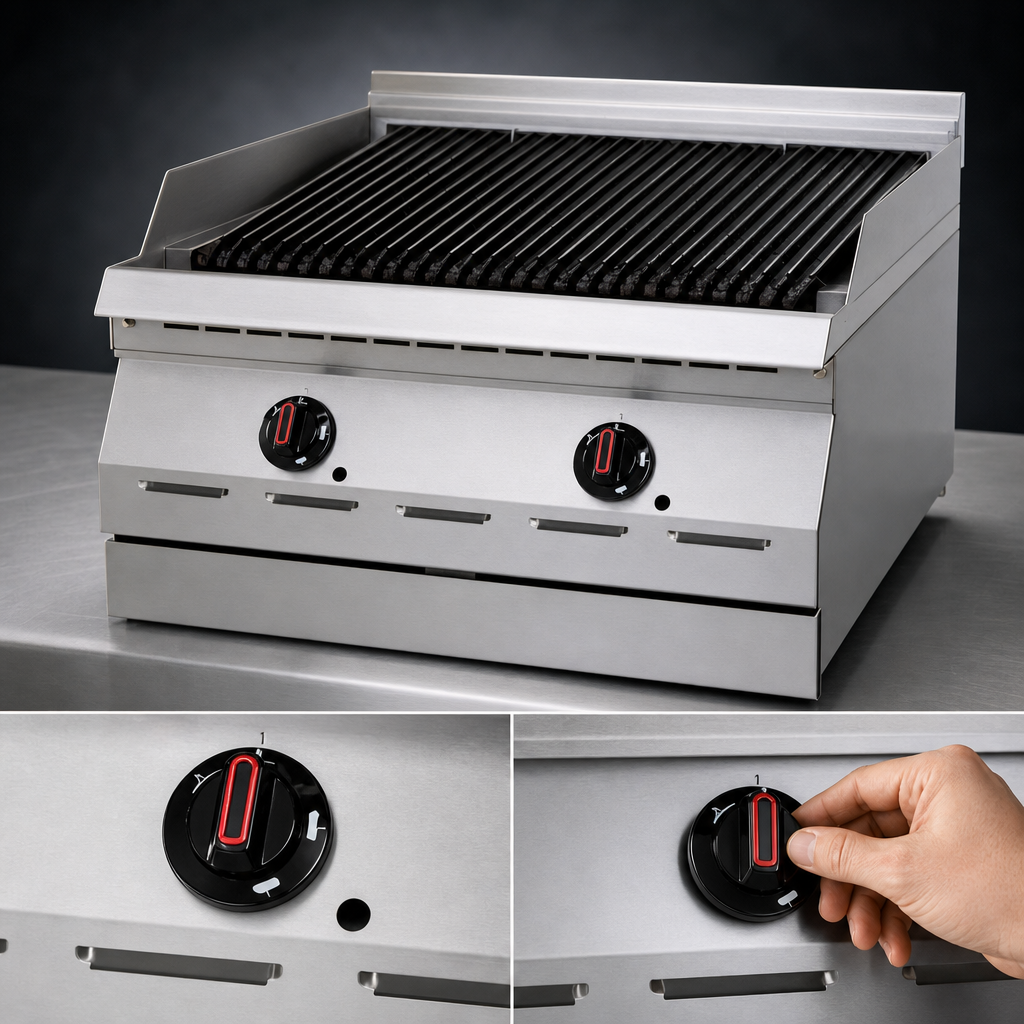

  • Single hi-lo valve provides precise flame modulation from gentle holding to full-blast searing
  • Reliable piezo spark ignition—no batteries, no downtime
  • Integrated flame-failure protection automatically shuts off gas if the pilot is lost (CE compliant)
  • Full-width internal grease drawer with magnetic latch keeps work-tops clean and removes in seconds
  • Durable stainless steel front & sides withstand daily commercial abuse and wipe down quickly
  • 4" (102 mm) adjustable sanitary legs level the unit on any countertop
  • Rear ¾" NPT gas connection with factory-supplied regulator—ready for natural or propane gas

At-a-Glance Specifications

Model GD-36RBFF
Total Input 90,000 BTU/hr (26.37 kW)
Cooking Surface (W × D) 36" × 18" (914 × 457 mm)
Overall Dimensions (W × D × H) 36" × 24" × 15" (914 × 610 × 381 mm)
Gas Type Natural or Propane (field convertible)
Manifold Inlet Size ¾" NPT (rear)
Operating Pressure Natural: 4" WC (10 mbar)  •  Propane: 10" WC (24.9 mbar)
Construction Stainless steel front & sides, cast-iron radiants, aluminized steel body
Certifications CSA • NSF • CE

Popular Accessories (sold separately)

  • Stainless steel 3-piece splatter guard (adds 10" height)
  • Matching equipment stand with undershelf
  • Gas quick-disconnect hose & restraining device kit
Important: Garland equipment is engineered for commercial kitchens only. Install and connect the appliance in accordance with local codes and by a qualified technician. Adequate ventilation and gas supply must be provided.

Need a different size? Designer Series charbroilers are also available in 18", 24" and 30" widths.

Features & Specs

Manufacturer

Garland

Brand_name

Designer

Certifications

NSF, CE, CSA

Height

15.0in

Width

36.0in

Depth

24.0in

Shipping Weight

240.0lbs

Control Type

manual controls

Heating Source

radiant

Width (side - side) OA

31 - 36"

Specifications

Designer Series Charbroiler, countertop, gas, 36" W, cast iron radiants, (1) high/low valve control, piezo spark ignition, flame failure protection, stainless steel front and sides, internal grease drawer with magnetic door, 4" adjustable legs, 90,000 BTU (Garland), CSA, NSF, CE
