Garland GD-36RB Designer Gas Charbroilers
Description

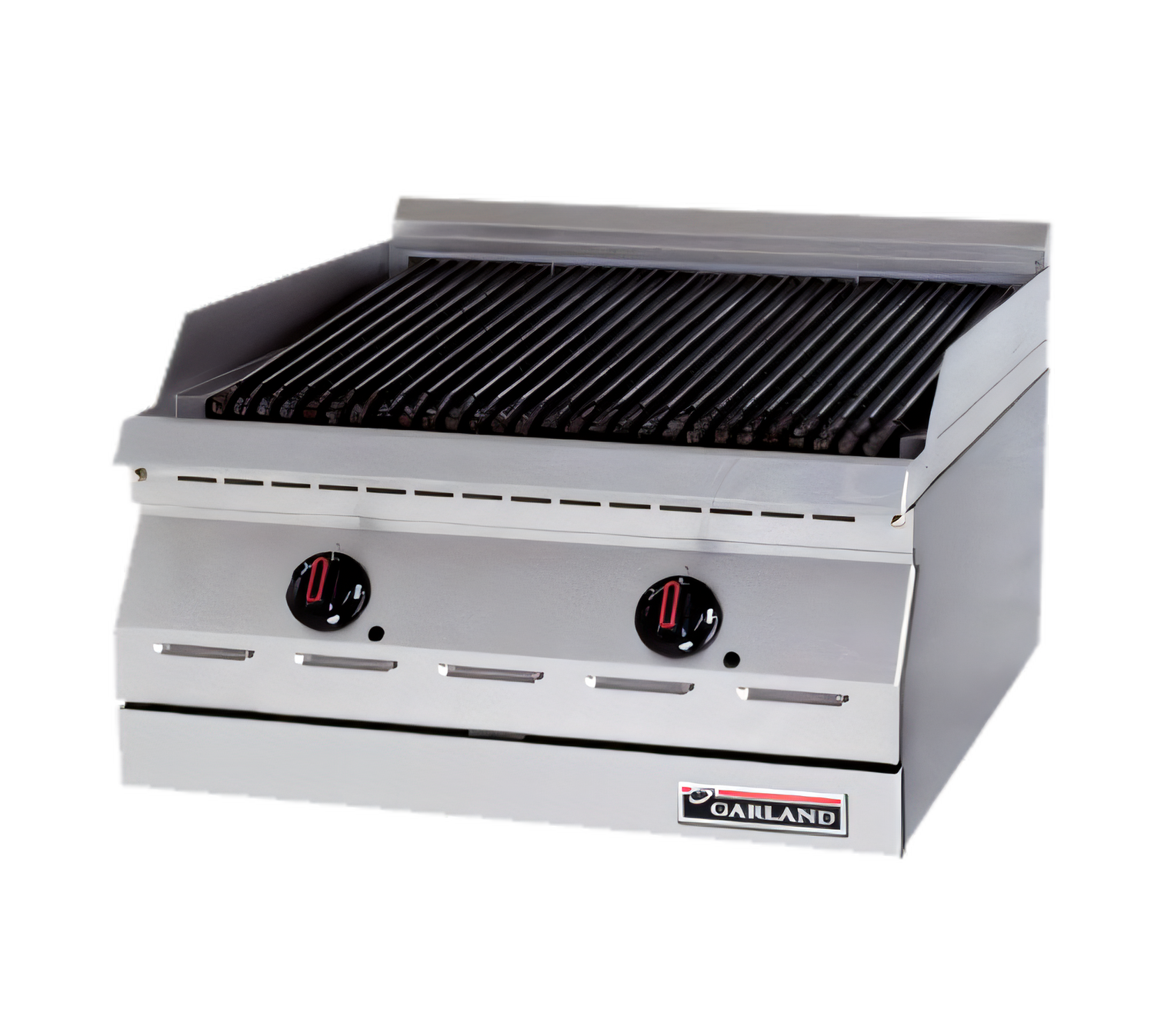

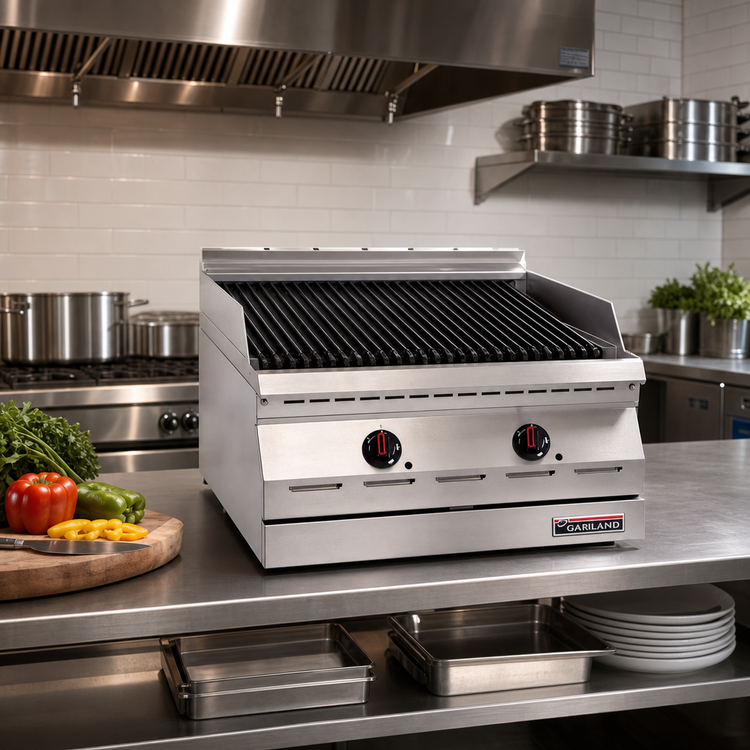

Garland Designer Series 36" Gas Charbroiler
Model GD-36RB | 90,000 BTU | CountertopBuilt for the busiest commercial kitchens, the Garland GD-36RB packs heavy-duty performance into a sleek, easy-to-clean countertop footprint. With 36 inches of grilling width, rugged cast-iron radiants and a blistering 90,000 BTU output, this charbroiler delivers the high heat and signature grill marks chefs demand service after service.
Key Features
- 36" (914 mm) wide grilling surface with 18" (457 mm) depth for maximum production capacity

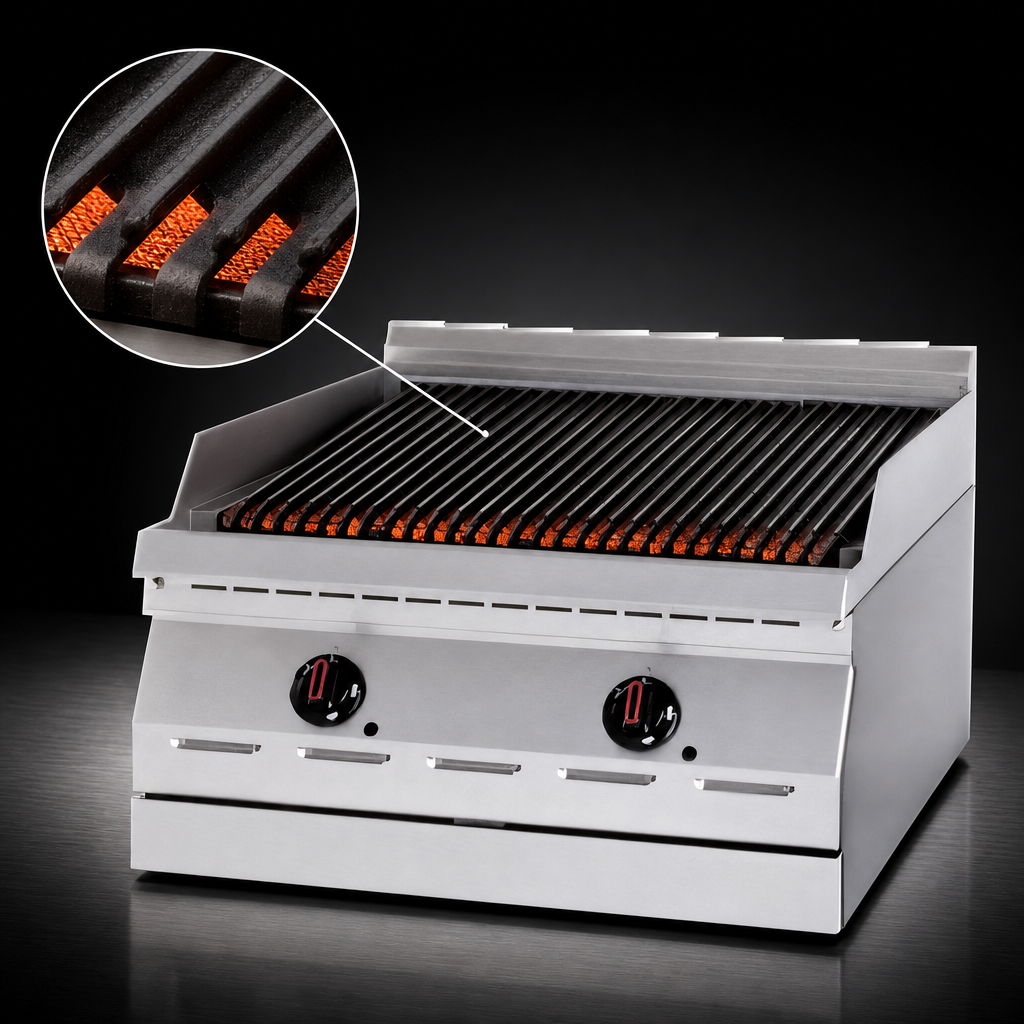

- Cast-iron radiants retain and radiate heat evenly across the cooking zone

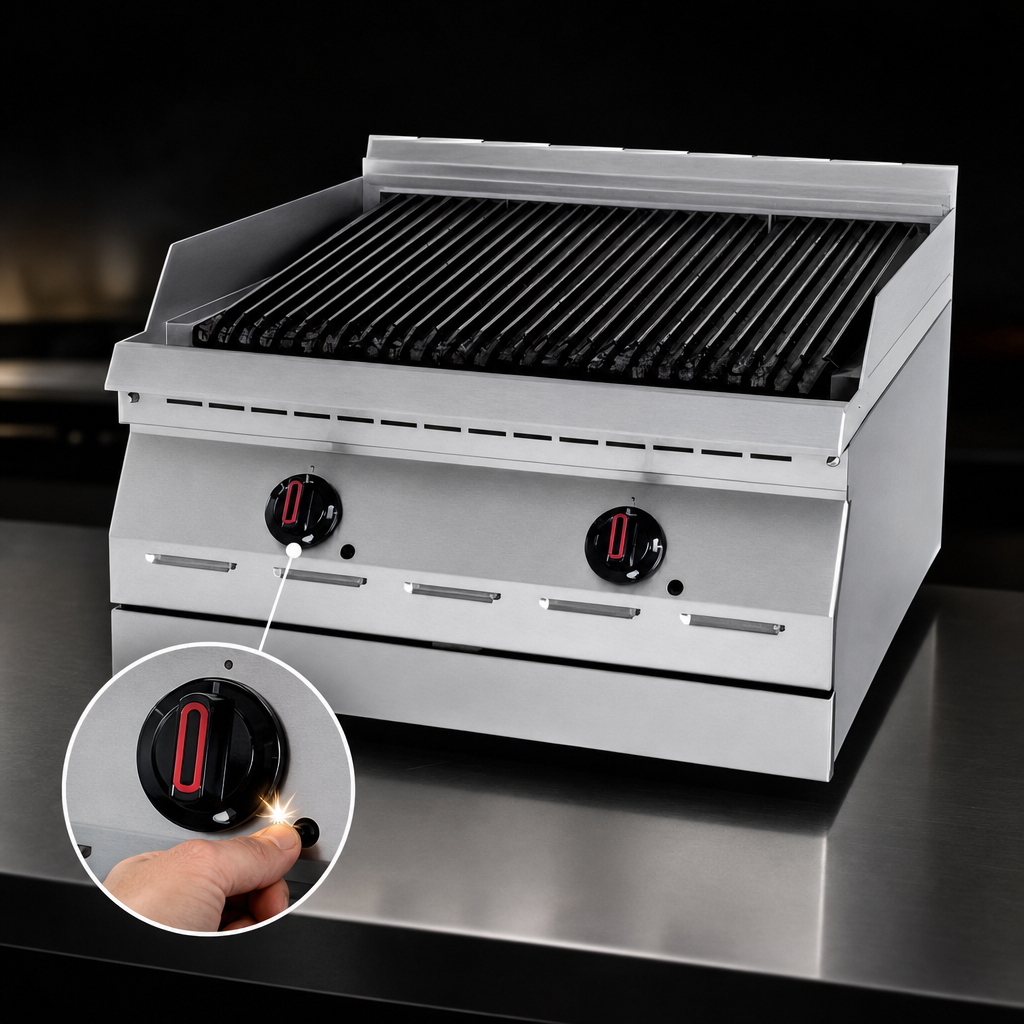

- Reliable piezo spark ignition—no electrical connection required
- Hi-Lo valve gives you instant flame control for perfect searing or gentle holding
- Internal full-width grease drawer with magnetic catch keeps spills contained and removal effortless
- All-stainless front & sides stand up to daily wear and wipe clean in seconds
- 4" (102 mm) adjustable sanitary legs simplify leveling and raise the unit for underneath cleaning
- Rear ¾" NPT gas connection with factory-supplied pressure regulator
- Certified to CSA & NSF standards for gas cooking equipment
At-a-Glance Specs
| Model | GD-36RB (Designer Series) |
|---|---|
| Gas Type | Natural or Propane (field convertible) |
| Total Input | 90,000 BTU / 26.37 kW |
| Dimensions (W × D × H) | 36" × 24" × 15" (914 × 610 × 381 mm) |
| Cooking Surface Depth | 18" (457 mm) |
| Manifold Inlet | ¾" NPT (rear) |
| Operating Pressure | Natural 4" WC | Propane 10" WC |
| Certifications | CSA, NSF |
Optional Accessories (sold separately)
- Stainless-steel rear & bottom panels
- 3-piece stainless broiler splatter-guard (adds 10" height)
- Equipment stands & curb mounting kits
Gas input ratings are certified for installations up to 2,000 ft (610 m). Specify altitude for higher elevations. Garland equipment is intended for commercial use only.
