Garland GD-24RB Designer Gas Charbroilers
Description
Garland Designer Series 24" Gas Charbroiler – 60,000 BTU
Model GD-24RB | Countertop | Cast-Iron RadiantsDeliver steak-house sear and smoky flavor in a compact 24-inch footprint. Garland’s Designer Series GD-24RB couples rugged cast-iron radiants with 60,000 BTU of fire-power, giving chefs the intense, even heat they need for perfectly char-marked steaks, burgers, vegetables and more—all day, every day.
Why you’ll love it

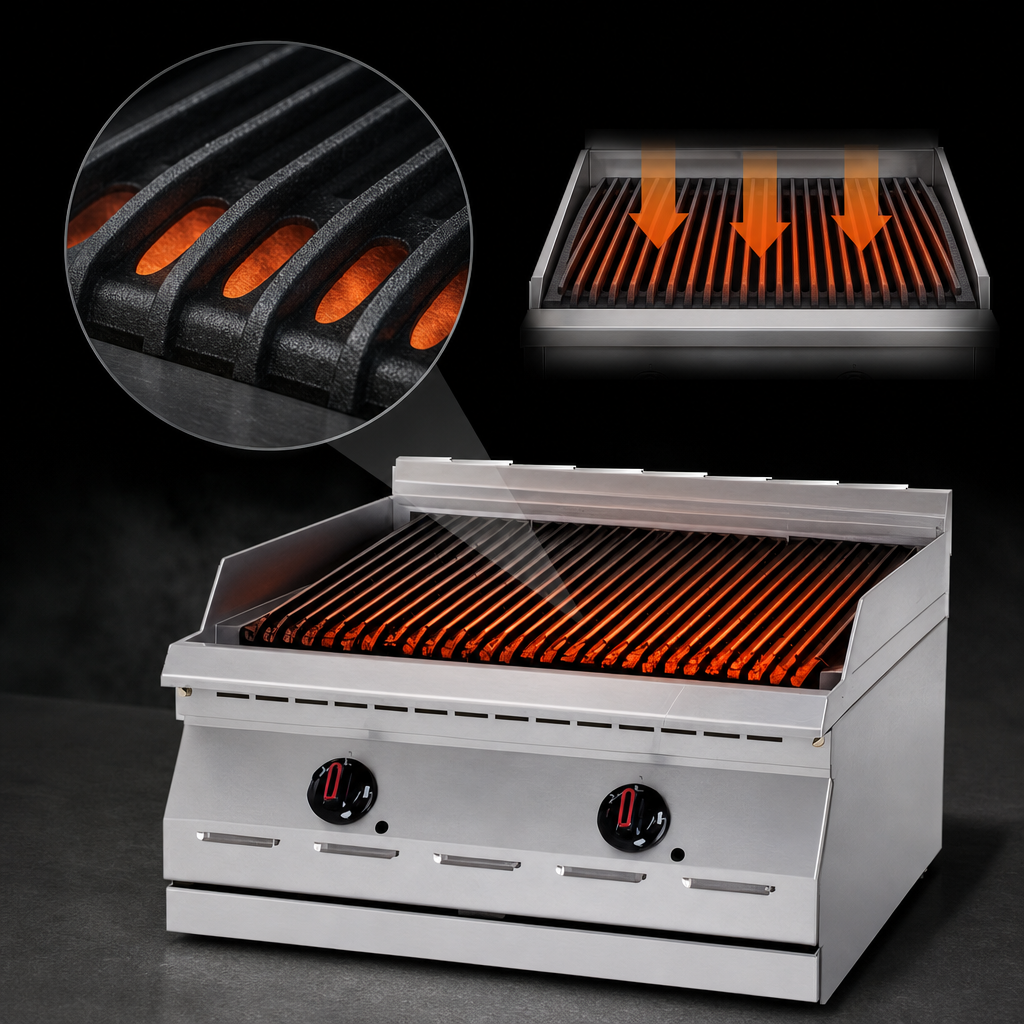

- 17-1/4" (436 mm) deep cast-iron cooking grates for superior heat retention and clean grill marks.
- Reliable piezo spark ignition—no electrical hook-up required.
- Hi/Lo valve control lets operators dial in the perfect flame in seconds.
- Internal front grease drawer with magnetic door keeps the work surface tidy and removes for fast cleanup.

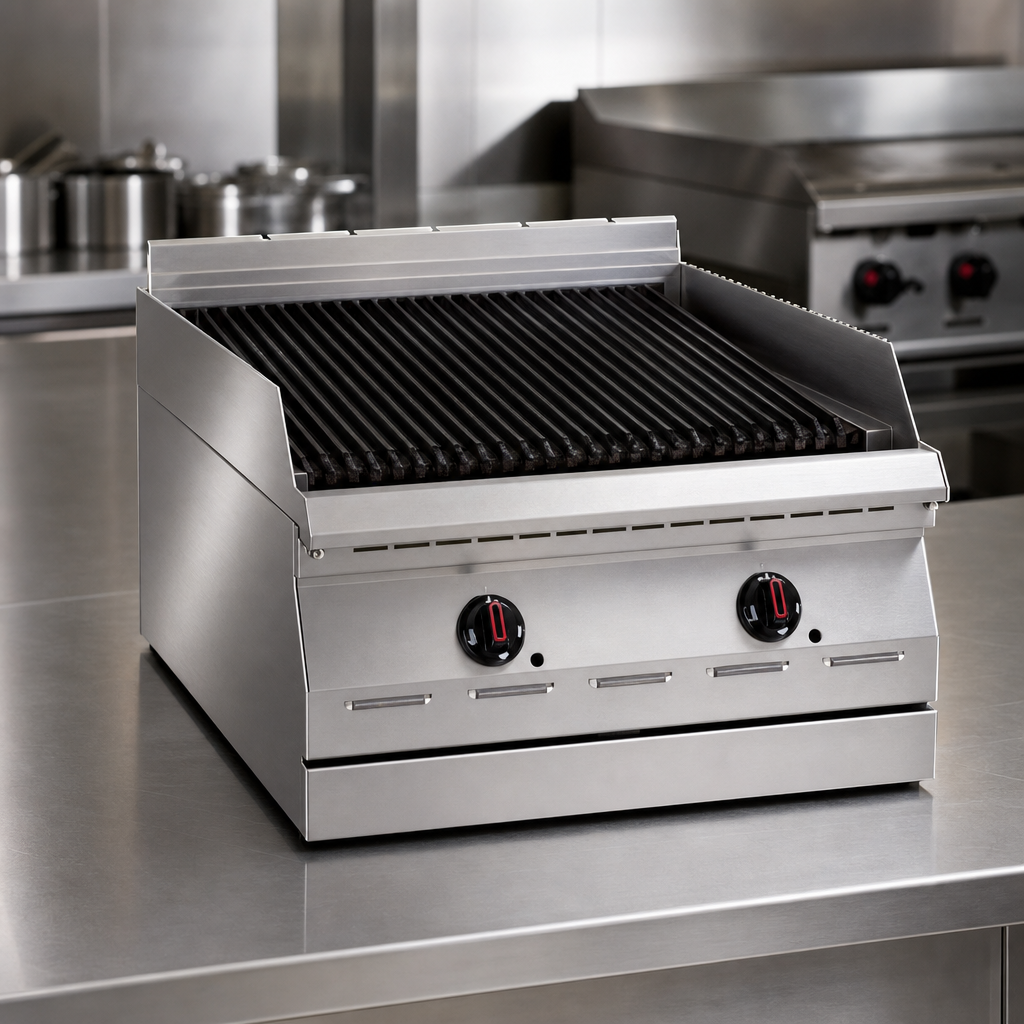

- Durable stainless-steel front & sides stand up to daily commercial abuse.
- 4" (102 mm) adjustable stainless sanitary legs for a rock-solid, level installation.
- Rear ¾" NPT gas connection supplied with factory pressure regulator.
- Certified to CSA & NSF standards for safety and sanitation.
Technical specifications
| Model | GD-24RB |
|---|---|
| Total input | 60,000 BTU/h • 17.6 kW |
| Gas type | Natural or Propane |
| Manifold connection | ¾" NPT (rear) with pressure regulator |
| Operating pressure | Natural 4" WC (10 mbar) | Propane 10" WC (24.9 mbar) |
| Overall dimensions (W×D×H) | 24" × 24" × 15" (610 × 610 × 381 mm) |
| Usable cooking surface | 24" W × 17-1/4" D (610 × 436 mm) |
| Construction | Stainless-steel front & sides, cast-iron radiants & grates |
| Certifications | CSA, NSF |
| Shipping weight | ≈150 lb (68 kg) |
| Warranty | 1-year limited parts & labor (USA & Canada) |
Optional accessories
- Stainless-steel back & bottom panels
- Three-piece stainless broiler splatter guard (adds 10" height)
- Designer Series equipment stands (fixed-leg or caster models)
Gas ratings are for installations up to 2,000 ft (610 m) above sea level. Specify altitude when ordering higher-elevation units.
