Garland GD-15GFF Designer Gas Griddles
Description

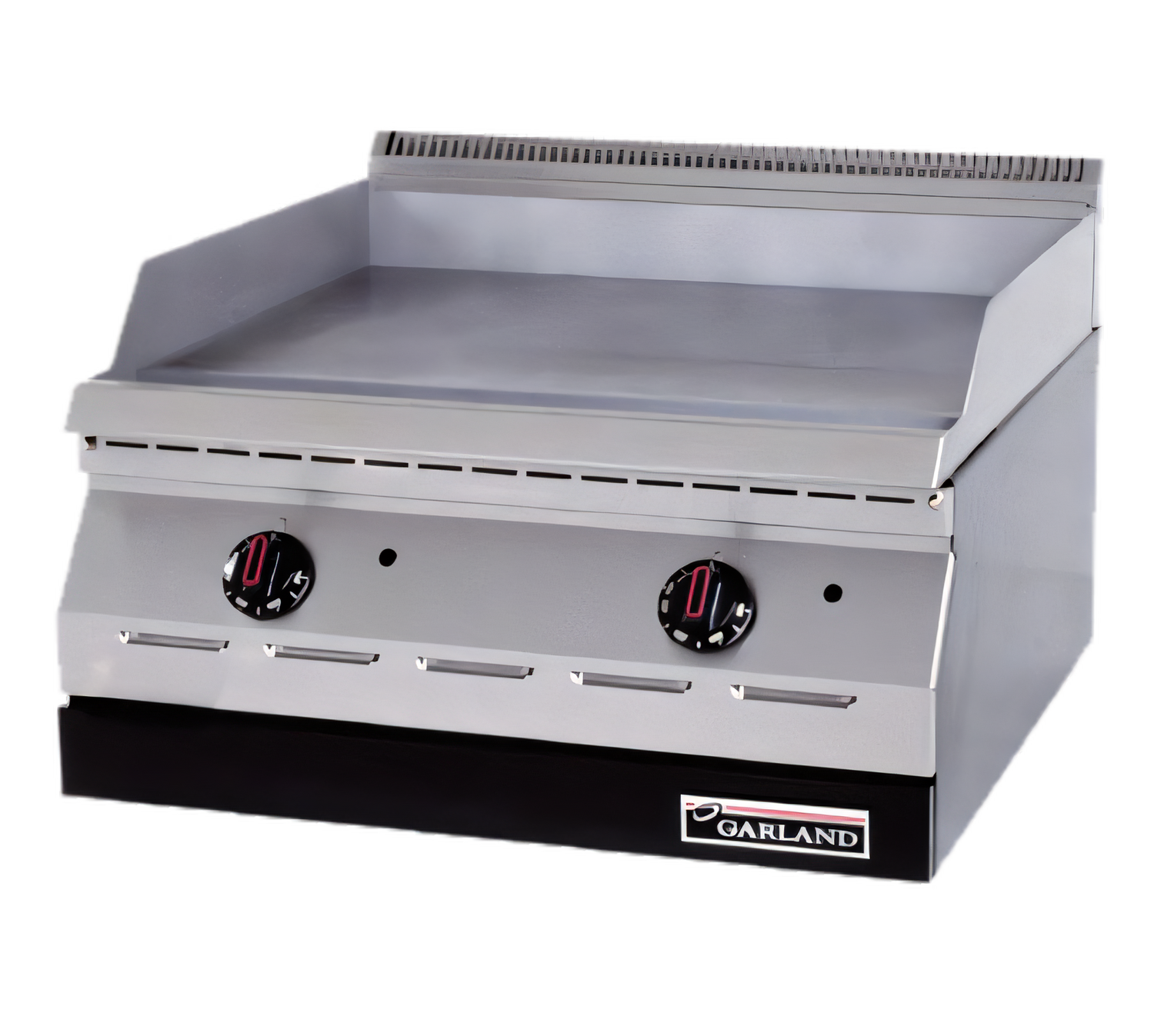

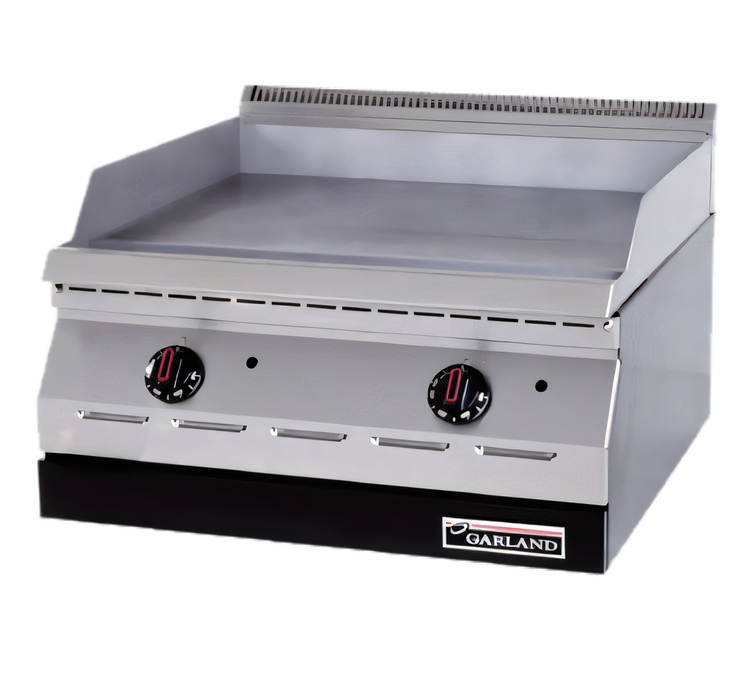

Garland Designer Series 15" Gas Countertop Griddle – 20,000 BTU
Model GD-15GFF | CE, CSA & NSF CertifiedDeliver big-time versatility from a small footprint. Garland’s 15 inch Designer Series griddle pairs a thick, polished steel plate with simple Hi/Lo valve control and built-in flame-failure protection—making it your go-to solution for breakfast favorites, burger finishing, and grab-and-go menus where space and uptime matter.
Key Features

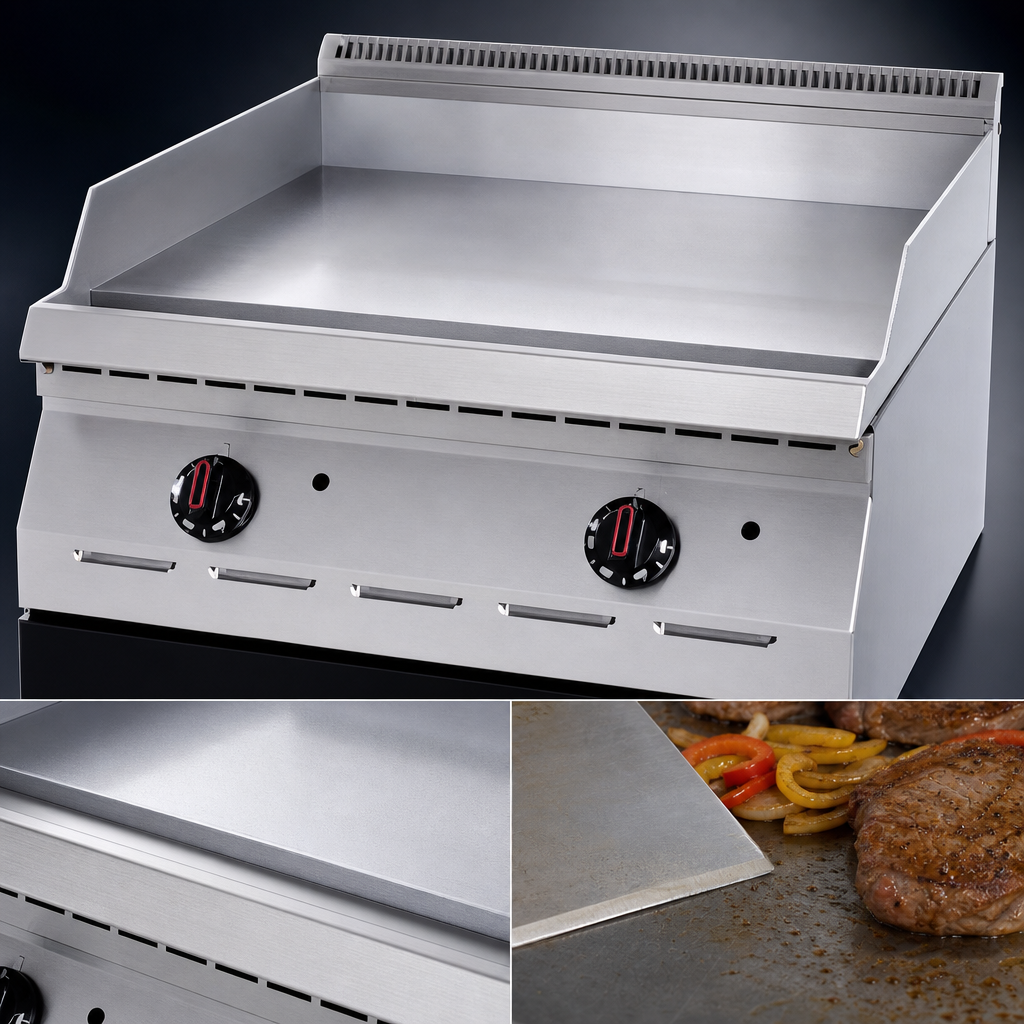

- 20,000 BTU/h burner evenly heats a 1/2" (13 mm) polished steel griddle plate for rapid recovery.

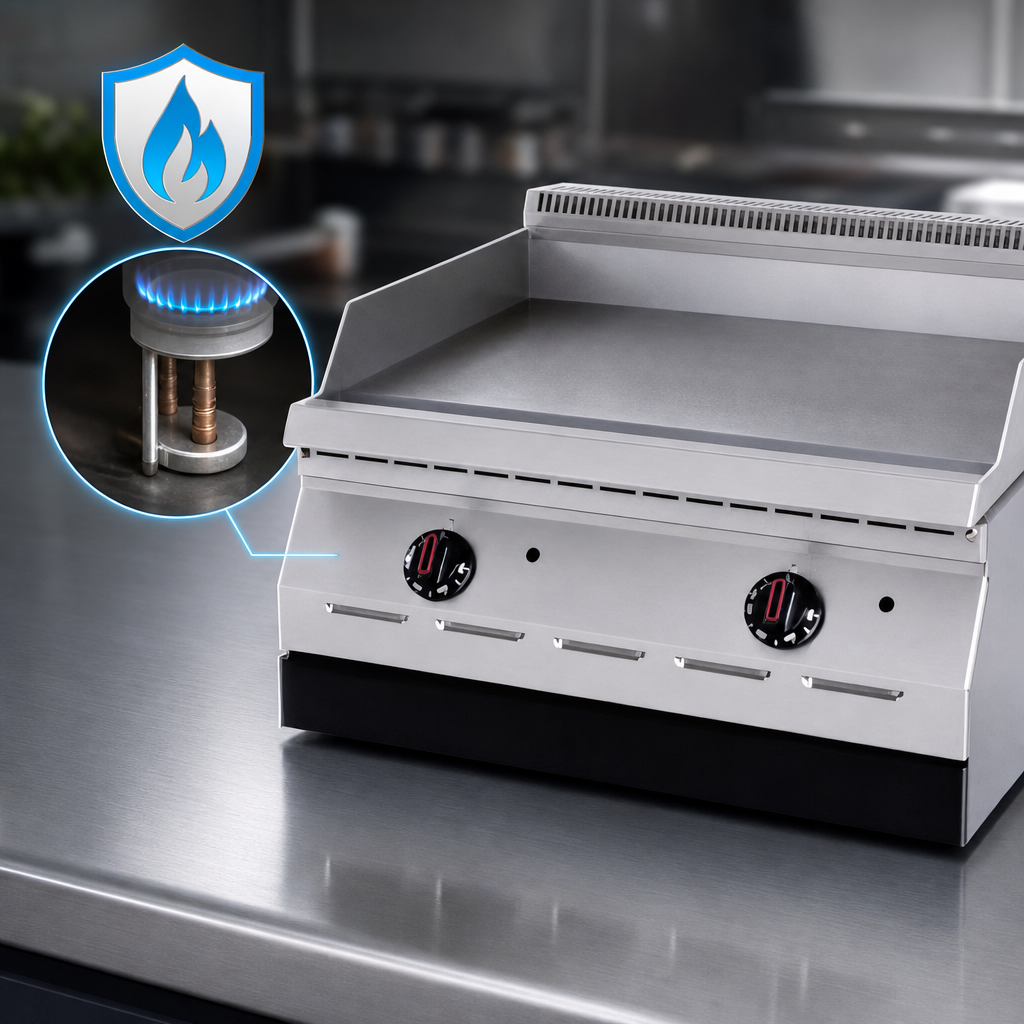

- Hi/Lo valve with flame-failure safety—automatically shuts off gas if the flame is lost (CE compliant).
- Battery-free piezo spark ignition for reliable start-ups in any kitchen.
- 15" W × 18" D (381 mm × 457 mm) cooking surface surrounded by a 2-5/8" (67 mm) welded splash guard.
- Internal slide-out grease drawer with magnetic door keeps drips contained and cleaning quick.
- Durable stainless-steel front & sides plus 4" (102 mm) adjustable sanitary legs for easy leveling.
- Rear 3/4" NPT gas inlet with pressure regulator—designed to line up with the entire Garland Designer cookline.
Performance & Technical Specs
| Cooking surface | 15" W × 18" D (381 mm × 457 mm) |
|---|---|
| Plate thickness | 1/2" (13 mm) polished steel |
| Total input | 20,000 BTU/h | 5.86 kW |
| Control type | Manual Hi/Lo valve with flame-failure protection |
| Ignition | Piezo spark (no external power) |
| Gas type | Natural or Propane (specify when ordering) |
| Manifold pressure | Natural 4" WC (10 mbar) | Propane 10" WC (24.9 mbar) |
| Gas connection | 3/4" NPT (rear), regulator included |
| Overall dimensions | 15" W × 24" D × 15" H (381 mm × 610 mm × 381 mm) |
| Shipping weight | 85 lb (39 kg) | 5 cu ft |
| Certifications | CE, CSA, NSF |
Installation & Clearances
- Clearances to combustibles: 6" (152 mm) sides & rear.
- Designed for countertop use; optional stands available.
- For elevations above 2,000 ft (610 m) contact your gas professional for derating.
- Always install per local codes and Garland installation manual.
One-year limited parts & labor warranty (USA & Canada). Extended service plans available—ask your dealer.
