Garland  |  Designer  |  SKU: GD-15F

Garland GD-15F Designer Gas Fryers

$5,765.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet
Related Searches
Fryers Gas Fryers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

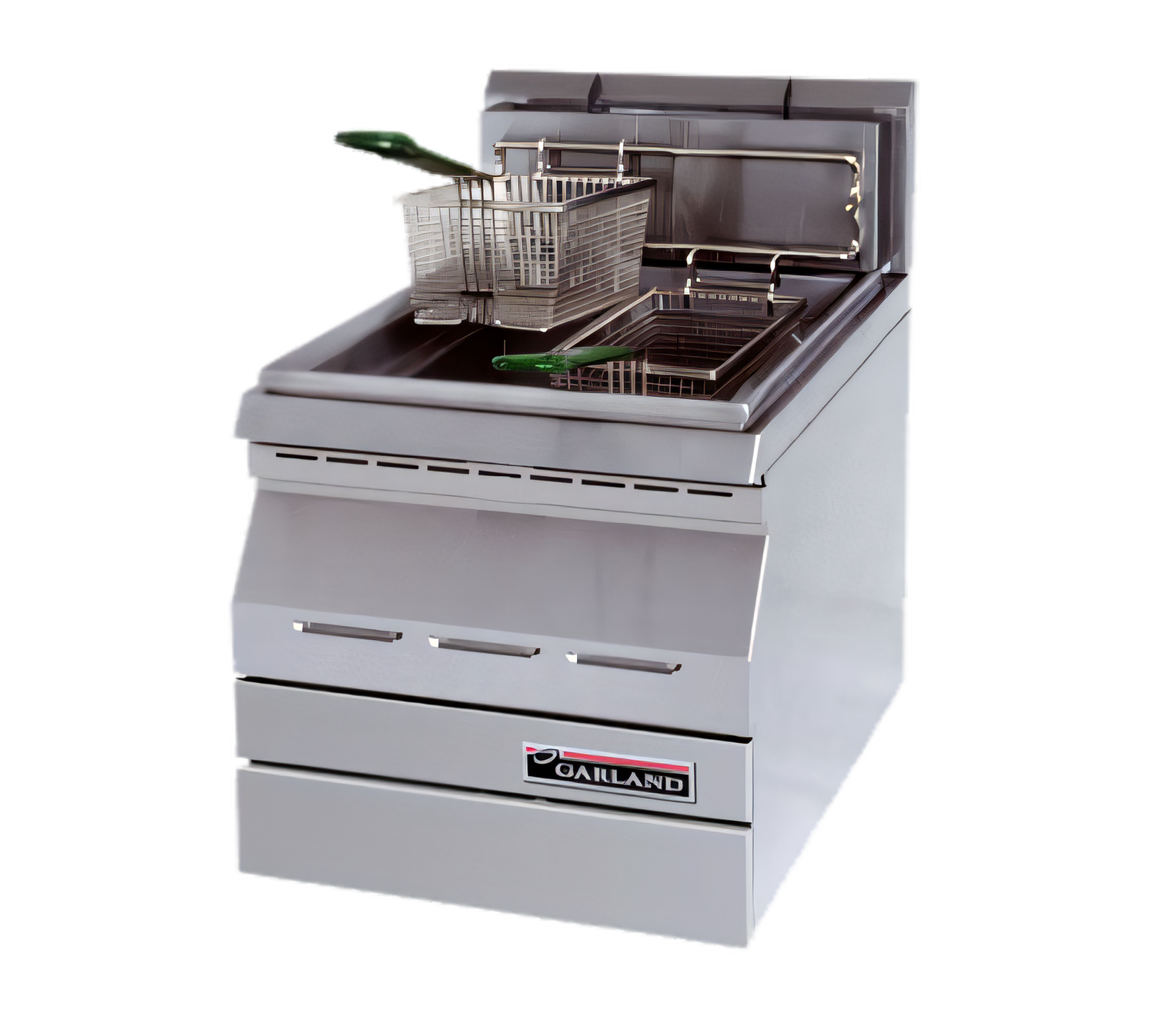

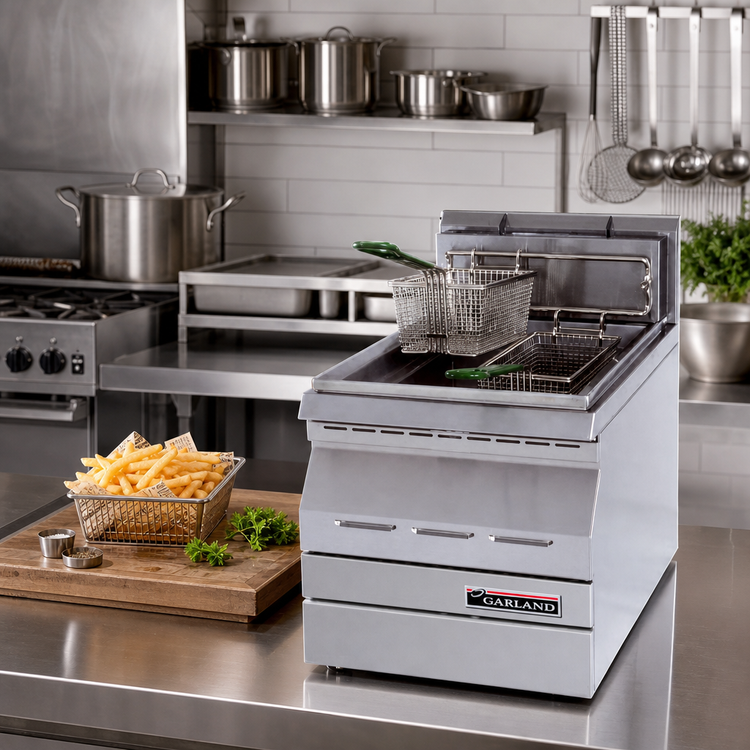

Garland Designer Series Countertop Gas Fryer

Model GD-15F  |  15 lb Oil Capacity  |  45,000 BTU

Bring Garland’s legendary build quality to your small-batch frying. At just 15 inches wide, the GD-15F delivers full-size performance in a space-saving footprint—perfect for bars, kiosks, concessions, and supplemental fry stations.

Why You’ll Love It

  • Open-pot, no-tube design for fast clean-up and minimal oil carry-over.

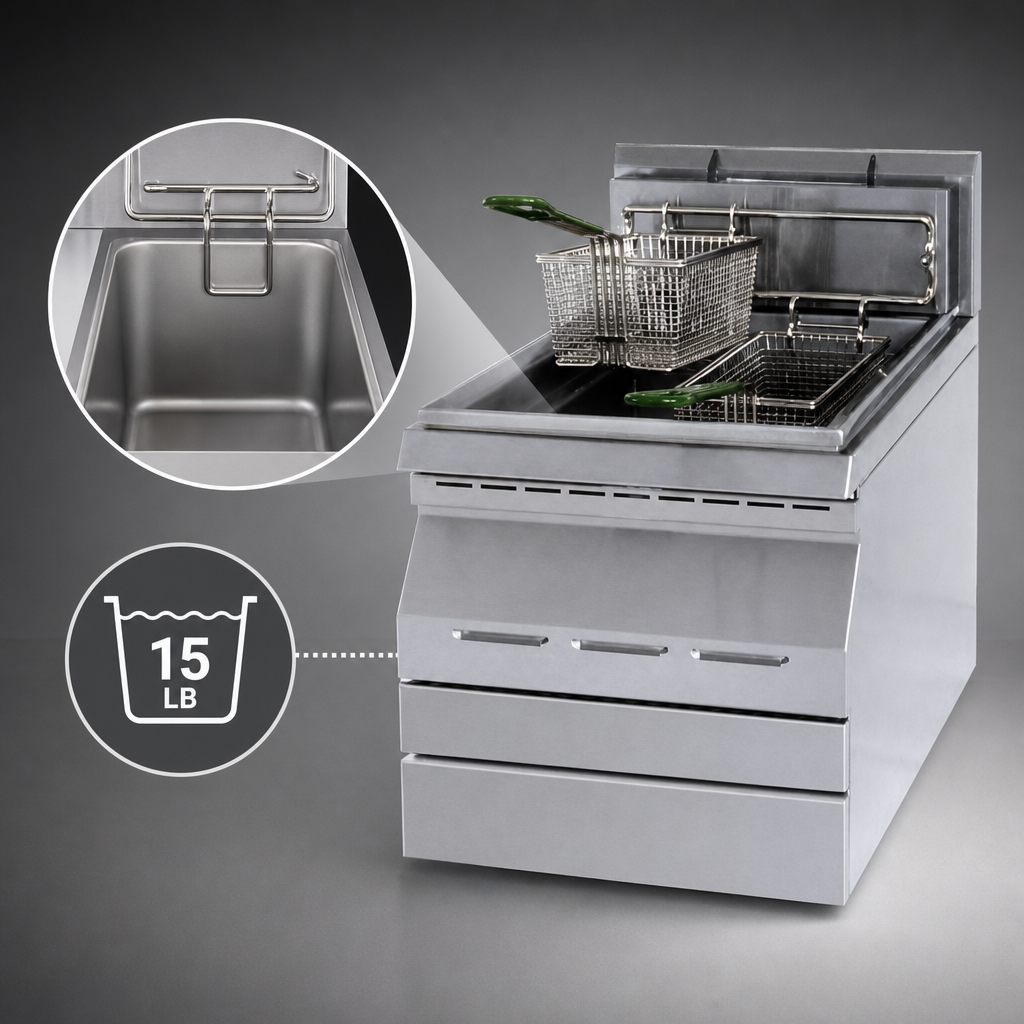

  • 15 lb (6.8 kg) frying capacity—ideal for onion rings, fries, apps & more.

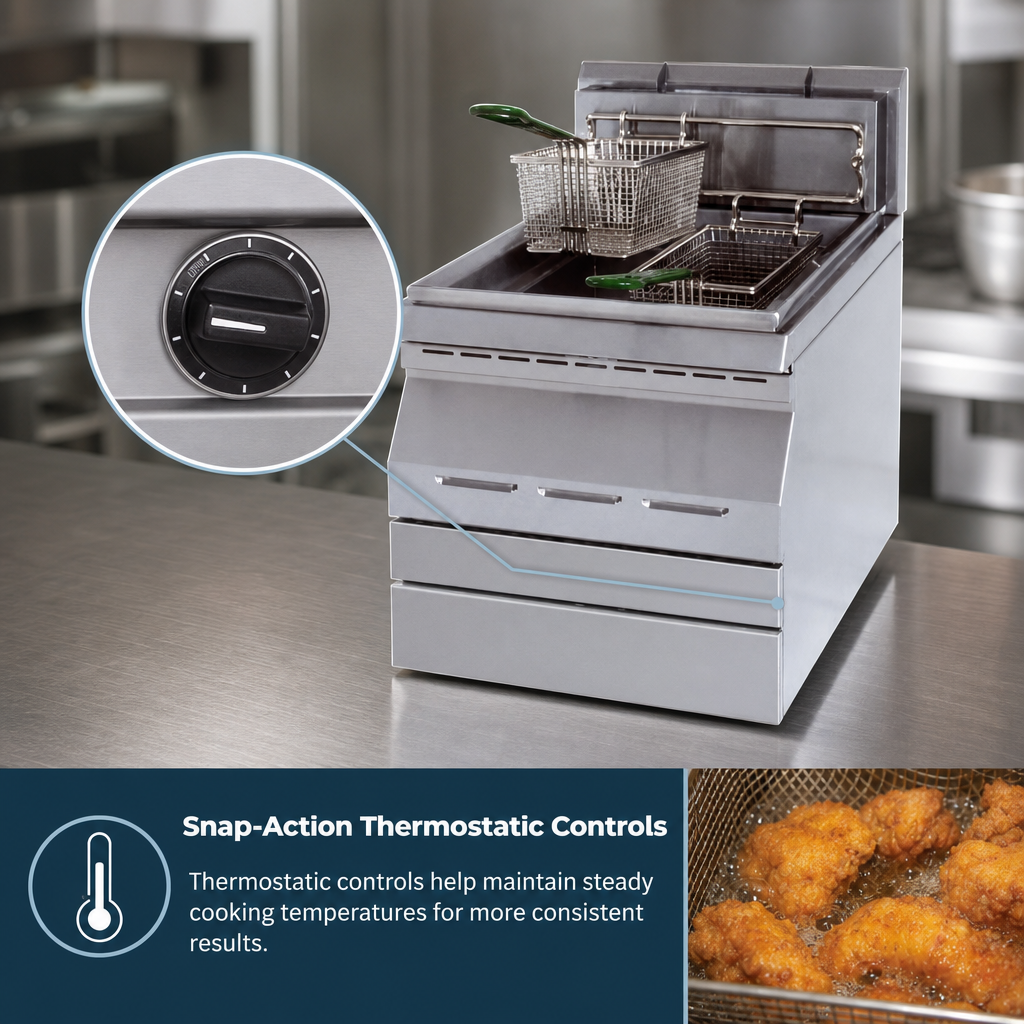

  • 1°F snap-action thermostat maintains consistent cooking temps and recovers quickly between loads.
  • Deep cold zone traps crumbs below the cooking area to prolong oil life.
  • Powerful 45,000 BTU burner system with piezo spark ignition; natural or LP gas ready.
  • Durable cold-rolled steel frypot paired with a stainless front & sides for long service life.
  • Front 1" drain valve lets you empty oil safely without moving the unit.
  • Includes twin nickel-plated fryer baskets with coated, heat-resistant handles.
  • 4" (102 mm) adjustable sanitary legs—set on a counter, stand, or line-up with other GD equipment.
  • Certified to NSF standards and equipped with 100 % flame-safety protection.

Technical Specs

Exterior Dimensions (W × D × H) 15" × 24" × 20"   (381 × 610 × 508 mm)
Oil Capacity 15 lb (6.8 kg)
Total Input 45,000 BTU / 13.2 kW
Gas Type Factory-shipped Natural or LP (field convertible); ½" NPT rear connection with regulator
Manifold Pressure Natural 4.2" WC · Propane 9" WC
Clearances (Combustible) 6" (152 mm) Sides & Back
Shipping Weight 120 lb (54 kg)
Certifications NSF Listed
Warranty 1-Year limited parts & labor (USA/Canada commercial use)

What’s in the Box

  • GD-15F countertop gas fryer
  • (2) Fry baskets
  • Pressure regulator (installed)
  • 4" adjustable legs (installed)
  • Owner’s & installation manual

Available Accessories

  • Stainless steel back & bottom panels
  • Floor stands and equipment bases (see Garland form CS24/CSD)
Commercial Use Only: Garland products are not approved for residential applications. Altitudes above 2,000 ft (610 m) require special orifices—please specify when ordering.

Features & Specs

Manufacturer

Garland

Brand_name

Designer

Certifications

NSF

Height

20.0in

Width

15.0in

Depth

24.0in

Shipping Weight

120.0lbs

Fat Capacity (approximate)

9 - 19 lbs

Fry Pot Construction

steel

Controls

thermostatic controls

Specifications

Designer Series Fryer, gas, 15" W, countertop, single fry pot, 15 lb. fat capacity, snap action thermostatic controls, cold rolled steel fry pot, stainless steel front and sides, 4" adjustable legs, 45,000 BTU, NSF (Garland)
