Garland G56PT/B Pizza Ovens
Description

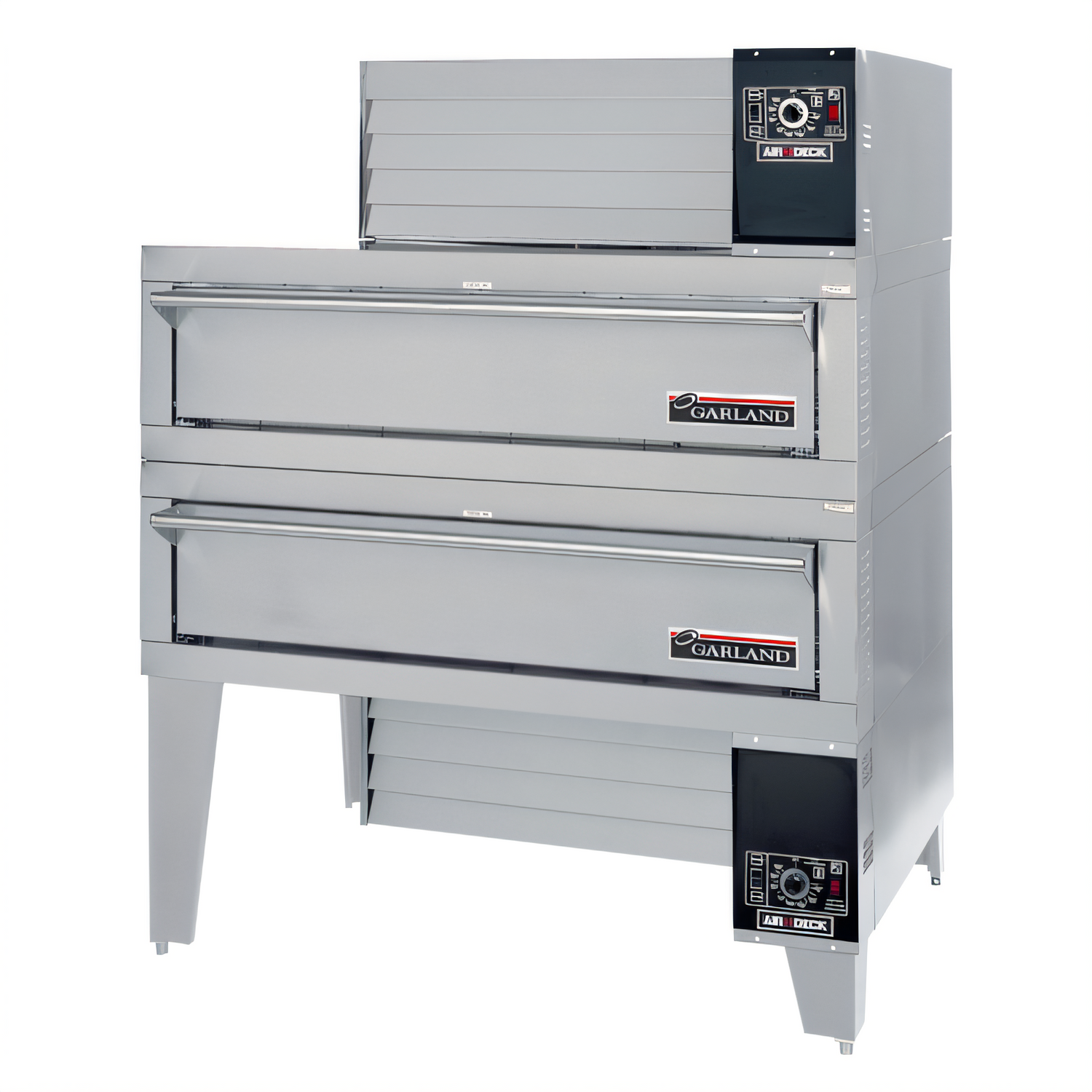

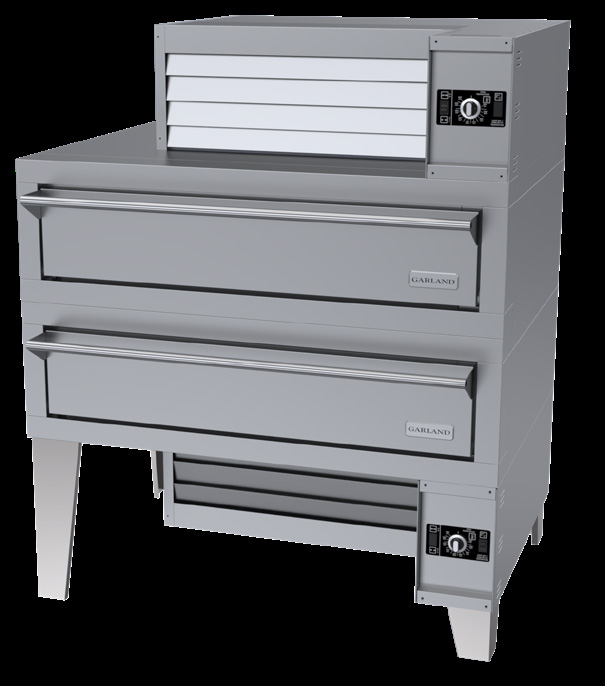

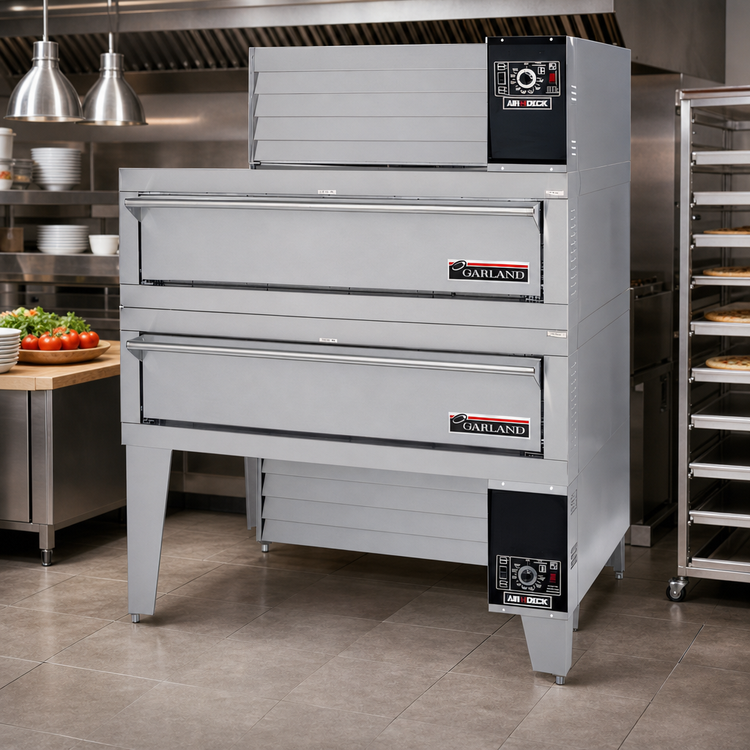

Garland Air-Deck™ Gas Pizza Oven — Model G56PT/B
Double-deck | 56" × 36" stainless decks | 160,000 BTUBake more pies in less space. Garland’s G56PT/B brings the speed of air-impingement together with the flavor and texture of a traditional deck oven, delivering up to twelve 18" pizzas at once without the cool-spot recovery time that slows ordinary deck ovens.
Why operators love the Air-Deck™

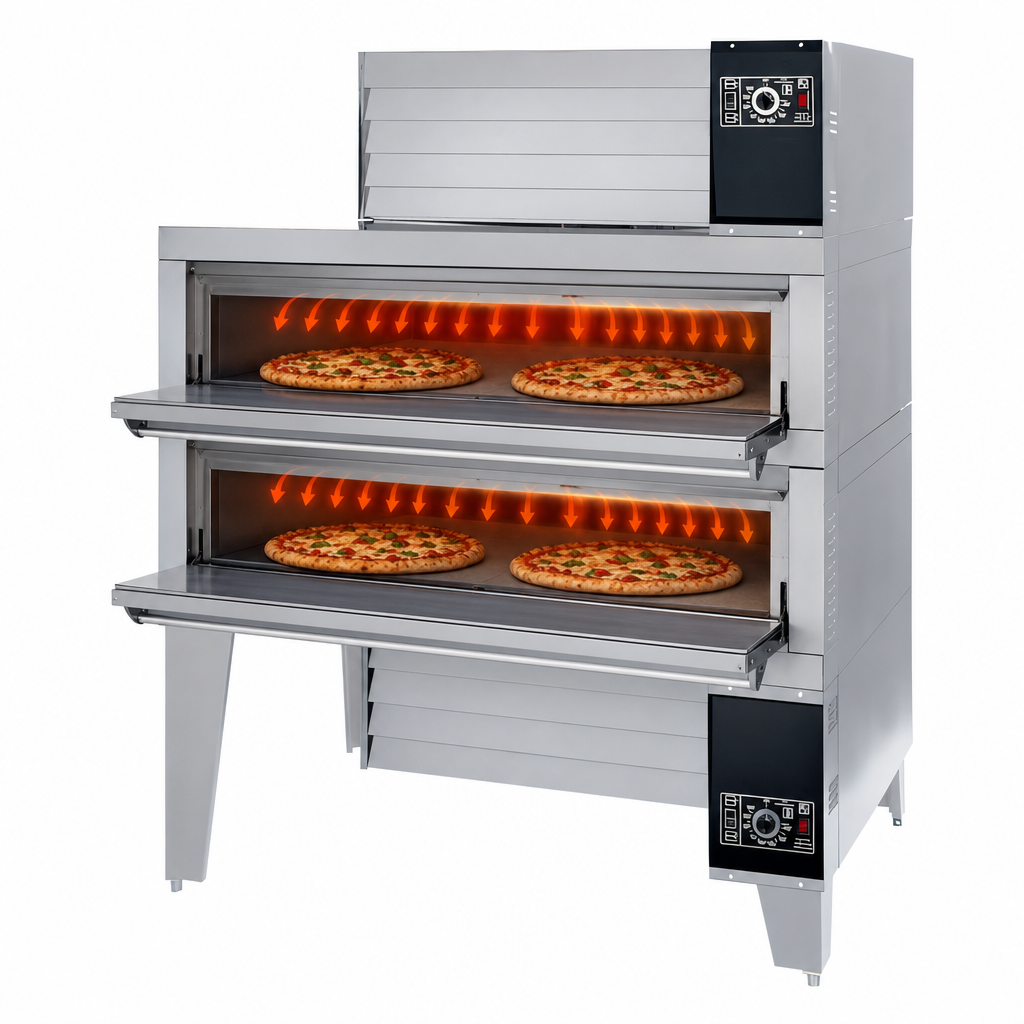

- Faster throughput — air-impingement “heat curtain” bakes 25–35 % more product at peak demand.
- Consistent 550 °F heat — forced-air combustion, ¾ HP fan and adjustable top/bottom dampers hold set temps all day.

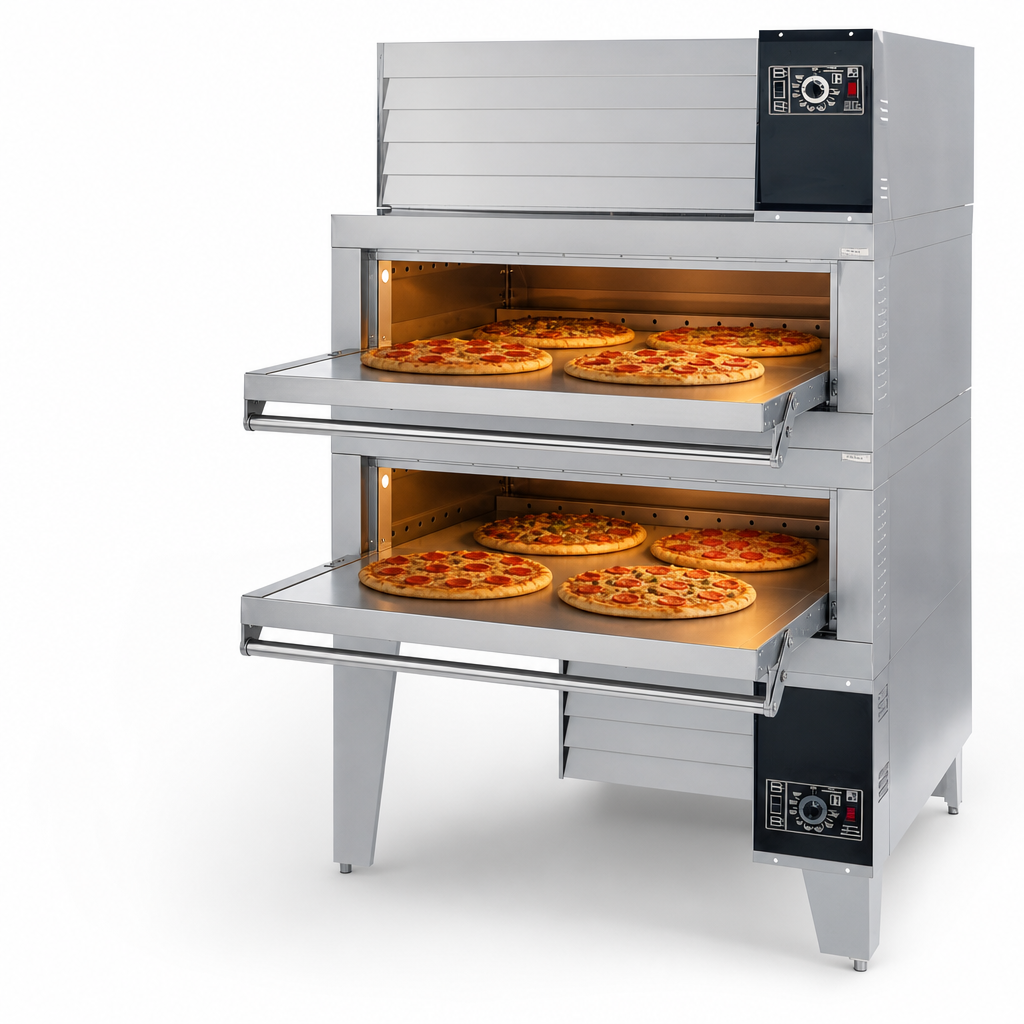

- True deck-oven versatility — independent loading/unloading lets you handle pizzas, sheet-pan bakes, stromboli, seafood, & more.
- Space & energy saver — occupies just 63" × 45" of floor space and uses only 160,000 BTU/h for two full-size decks.
- Built for the long haul — all-stainless exterior, porcelainized control panel and spring-balanced doors stand up to the rush.
Key features
- (2) 56" W × 36" D × 7" H stainless-steel perforated decks for crisp, even bottoms
- 160,000 BTU total input — (1) top & (1) bottom mounted 80,000 BTU power modules
- Snap-action thermostat, 200 °F – 550 °F with electronic ignition
- Full-width, spring-loaded doors with 7½" load height
- Single-speed ¾ HP blower motor recirculates pre-heated air for 30-minute preheat and zero recovery
- Adjustable 6" stainless legs and direct-connect vent collar (no-charge option)
- UL & NSF listed; one-year parts & labor warranty (U.S./Canada)
Technical specifications
| Model | G56PT/B |
|---|---|
| Decks / Capacity | 2 decks | 12 × 18" pizzas (6 per deck) |
| Deck surface (each) | 56" W × 35.75" D (142.3 cm × 91.0 cm) |
| Door opening | 53" W × 7.5" H (134.6 cm × 19.1 cm) |
| Overall footprint | 63" W × 45" D (160 cm × 114 cm) |
| Overall height | 101" (256.5 cm) with both power modules |
| Gas input | 160,000 BTU/h | Natural 3.5" WC / Propane 10.0" WC |
| Gas connection | ¾" NPT (rear, 14" above floor) |
| Electrical | 120 V, 1 PH, 60 Hz, 15 A (one motor per deck) |
| Clearances | 6" sides & rear to combustibles; 8" base |
| Shipping weight | approx. 2,000 lb (910 kg) |
| Certifications | UL, NSF |
Gas input ratings are for elevations up to 2,000 ft (610 m). Derate per local code for higher altitudes.
Popular accessories (sold separately)
- Peel holder
- Warming rack
- Timer packages
Garland/Welbilt reserves the right to change specifications without notice.
