Garland G24-4L-SIGNATURE Signature Gas Ranges
Garland G24-4L-SIGNATURE Signature Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland G24-4L-SIGNATURE Signature Gas Ranges
Description

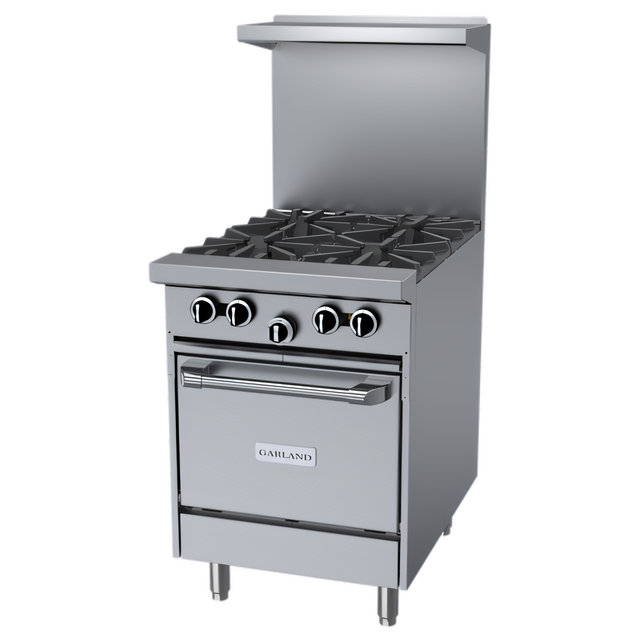

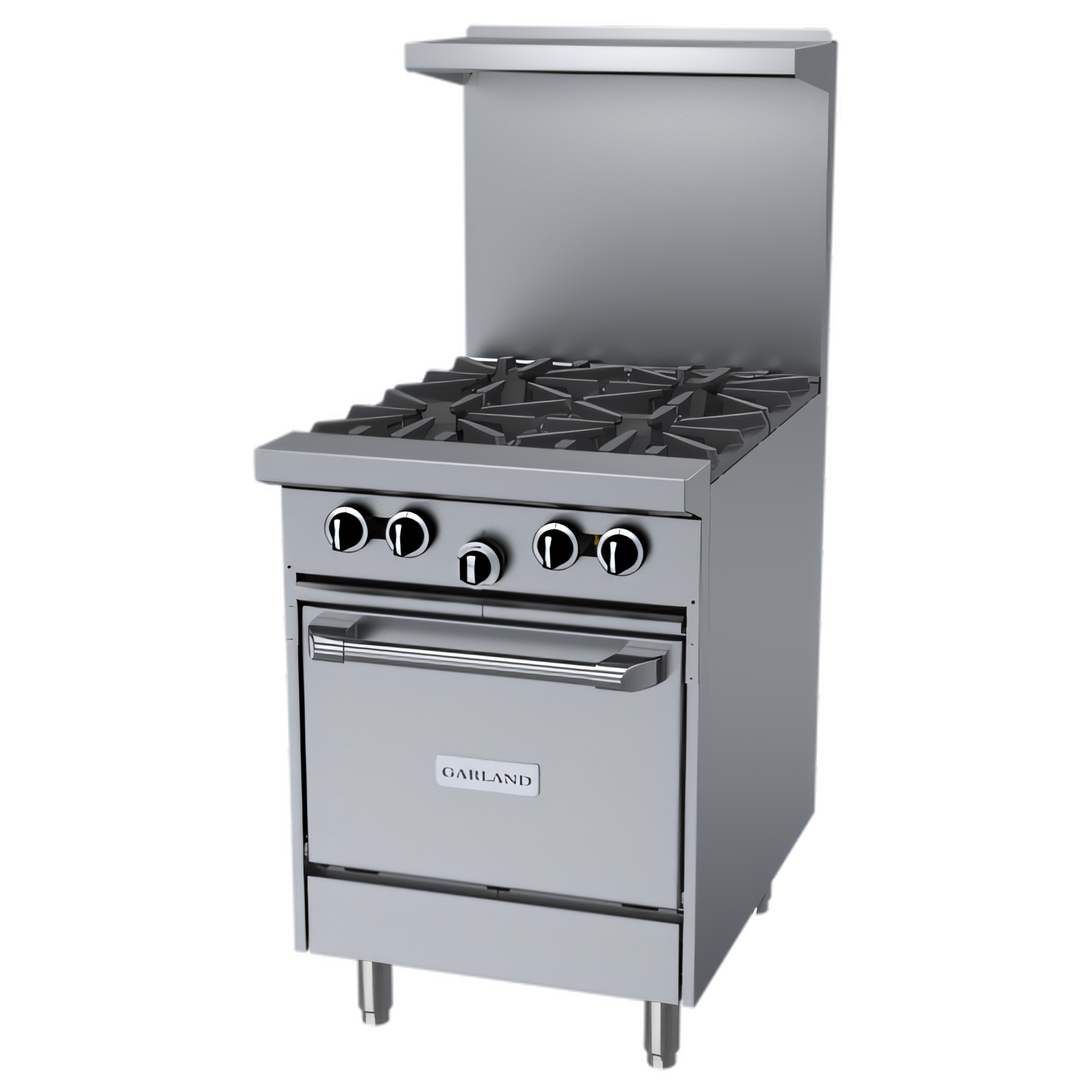

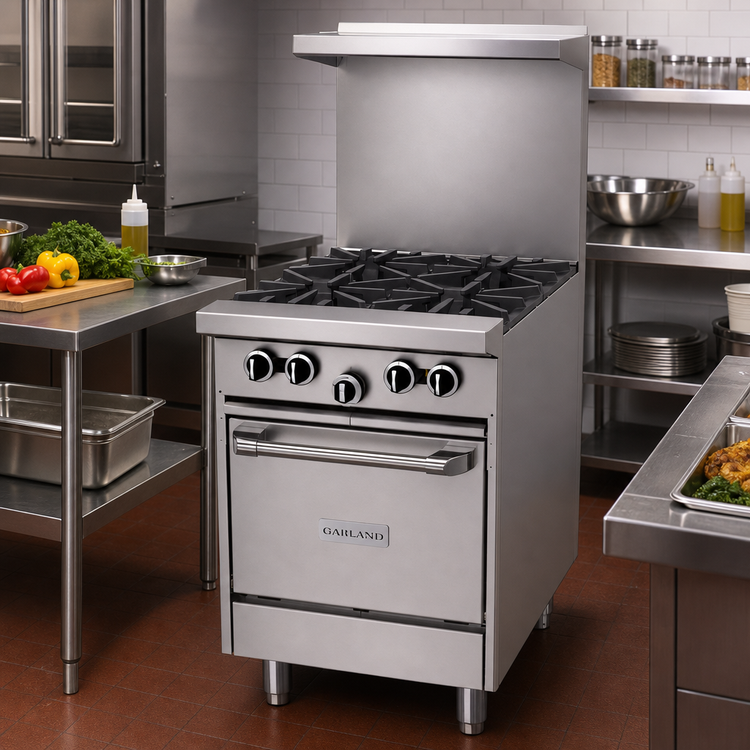

Garland Signature G Starfire Pro 24" Gas Restaurant Range
4 × 33,000 BTU open burners • Space-Saver oven • 164,000 BTU totalBring full-size fire-power to a tight cook-line. The Signature G Starfire Pro packs Garland’s legendary 33,000 BTU open burners and a high-performance oven into a rugged 24" frame, giving chefs the speed, consistency and capacity usually reserved for much larger ranges.
Why you’ll love it

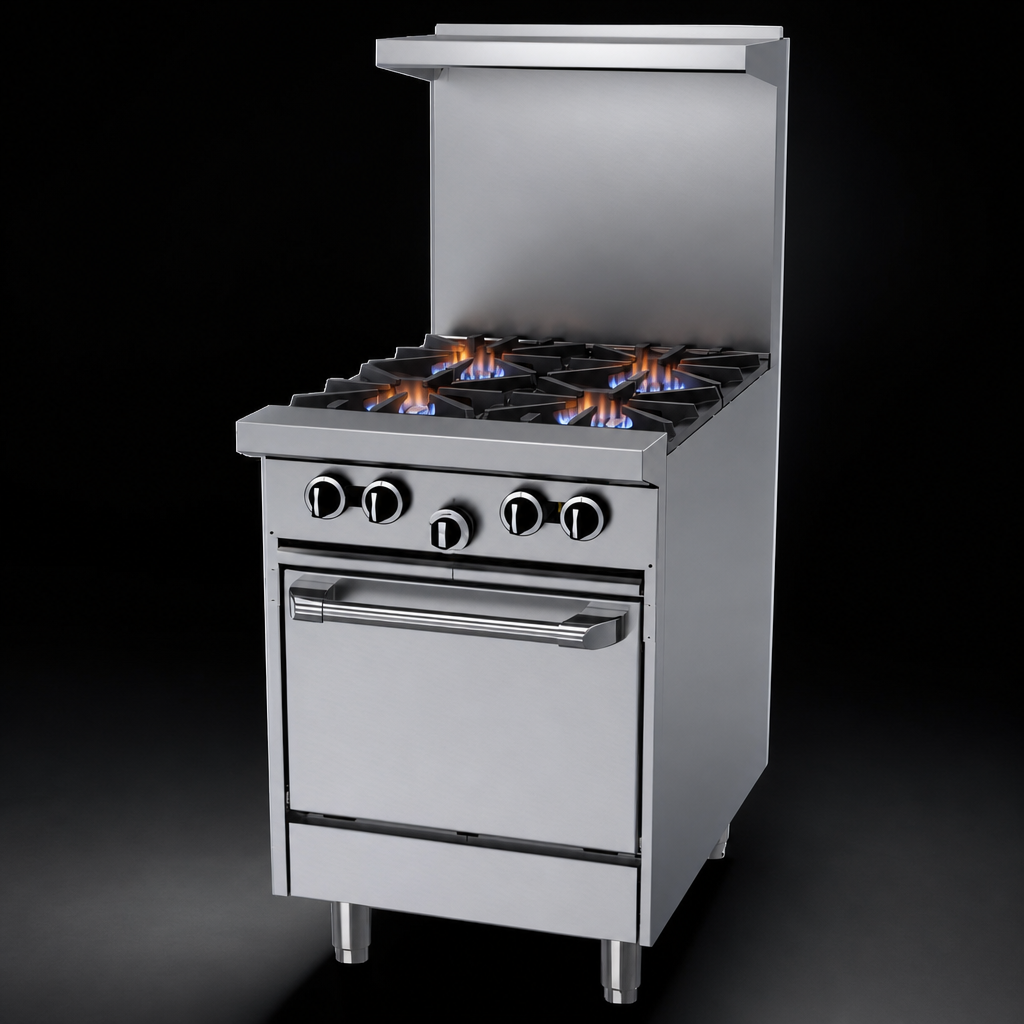

- Four 2-piece Starfire Pro® open burners – 33,000 BTU each for lightning-fast boil and instant turn-down.
- Ergonomic split cast-iron grates handle heavy stock pots while letting smaller pans slide easily between burners.

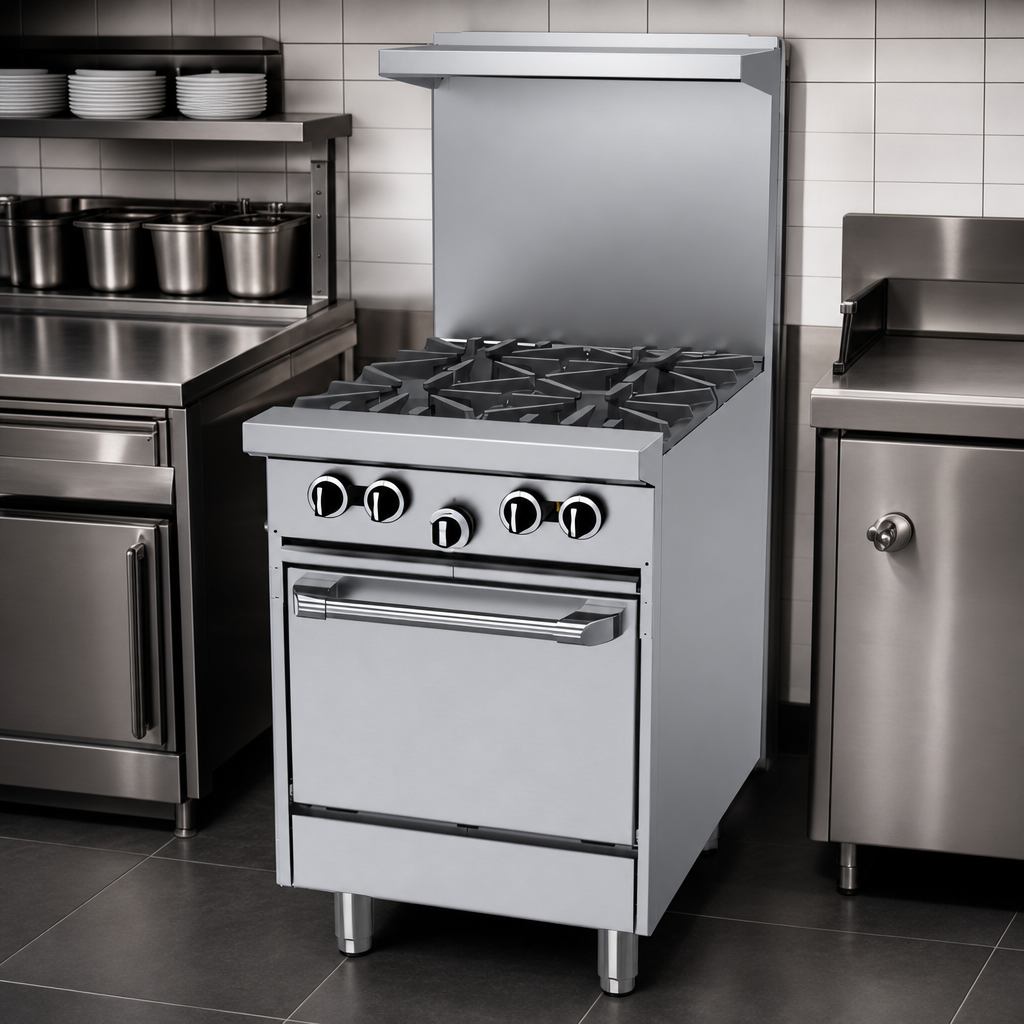

- Space-Saver oven with porcelain interior, snap-action thermostat (low to 500 °F) & 32,000 BTU cast-iron “H” burner.
- 3-position rack guides & (1) nickel-plated rack included for flexible baking and roasting.
- Durable stainless-steel front, sides, 5" plate rail plus 2-piece backguard & staging shelf.
- 6" stainless-steel legs with adjustable feet simplify cleaning under the unit and ensure a level cooking surface.
- Total input of 164,000 BTU with factory gas regulator; field-convertible for natural gas or LP.
- Engineered & certified for commercial use – CSA Flame, CSA Star, cCSAus & NSF listed.
Technical specifications
| Model | Signature G Starfire Pro G24-4L |
|---|---|
| Total BTU (Natural) | 164,000 BTU / 48 kW |
| Open burners | 4 × 33,000 BTU cast-iron Starfire Pro (individually controlled) |
| Oven type | Space-Saver, porcelain lined, cast-iron “H” burner – 32,000 BTU |
| Rack positions / racks supplied | 3 positions / 1 rack |
| Cooking surface (W × D) | 23-5/8" × 27" (600 × 686 mm) |
| Overall dimensions (W × D × H) | 24" × 34-1/2" × 57" (610 × 876 × 1448 mm) – with high-shelf backguard |
| Gas connection | 3/4" NPT rear, 4.5" WC Natural / 10" WC Propane manifold pressure |
| Construction | Stainless steel front, sides, plate rail & backguard; cast-iron grates & burners |
| Legs | 6" stainless, adjustable |
| Certifications | CSA Flame & Star, cCSAus, NSF |
Safety & compliance
This appliance is intended for commercial kitchens only and must be installed in accordance with all local gas & plumbing codes by a licensed professional.
