Garland G20-SPH Gas Ranges
Garland G20-SPH Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

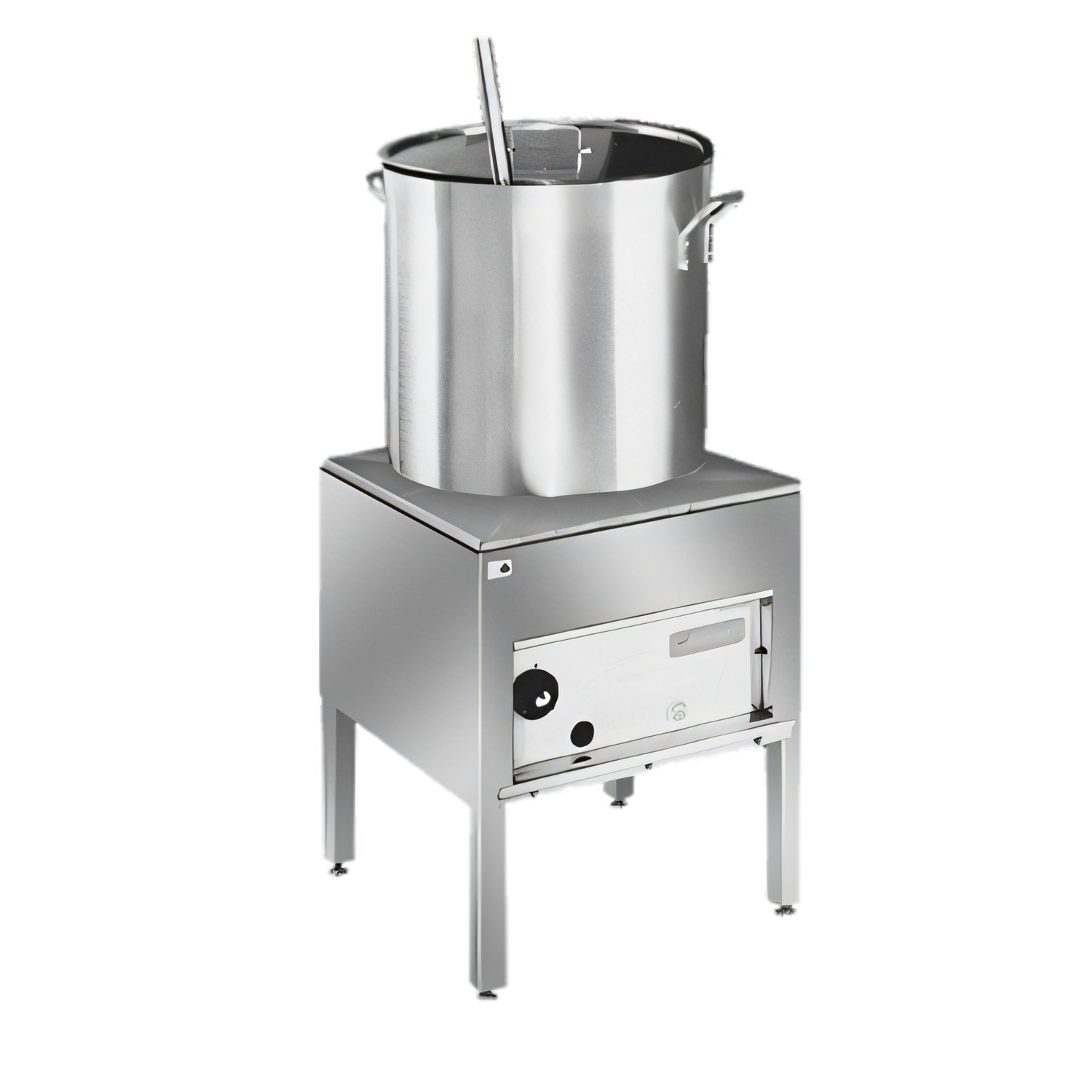

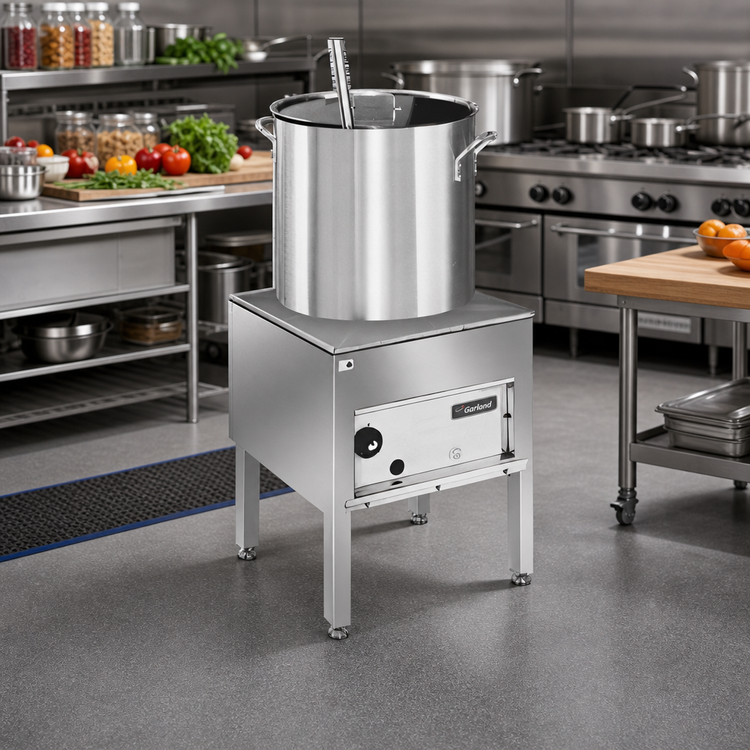

Garland G-Series Gas Stock Pot Range – 60,000 BTU
Model G20-SPH | NSF, CSA Star & CSA Flame CertifiedBuilt for high-volume simmering, steaming and boiling, the Garland G20-SPH brings powerhouse performance to even the tightest cooklines. A stainless-steel exterior, rugged cast-iron grate and a full 60,000 BTU output give you the muscle to handle soups, stocks and reductions all day long, while a flame-failure safety pilot adds the peace of mind today’s commercial kitchens demand.
Why You’ll Love It

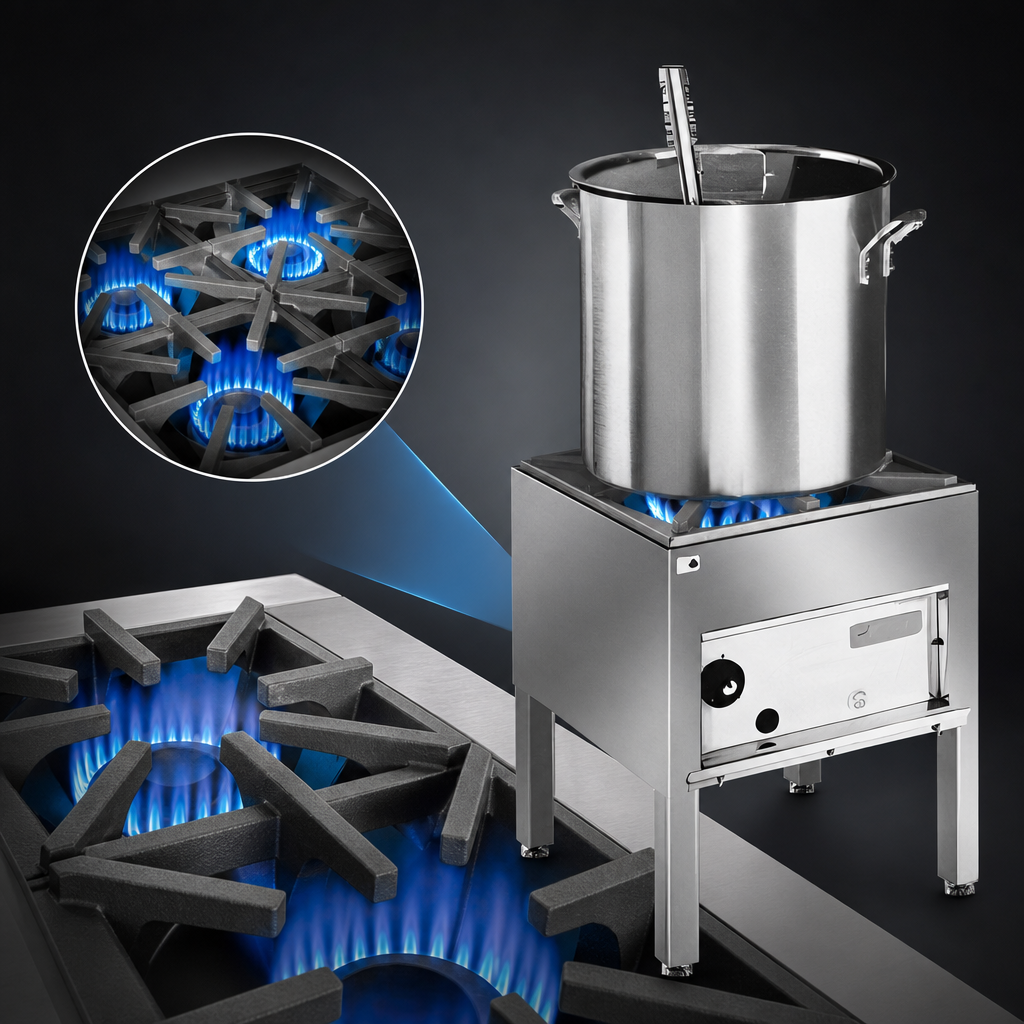

- 60,000 BTU four-ring Spectro-Heat™ burner – instant response from low (12,000 BTU) to medium (35,500 BTU) to high (60,000 BTU).
- Flame-failure safety pilot (100% positive “H” pilot) automatically shuts off gas if the pilot goes out.
- One-piece cast-iron top grate with raised full-width ribs keeps heavy stock pots stable and perfectly centered over the flame.

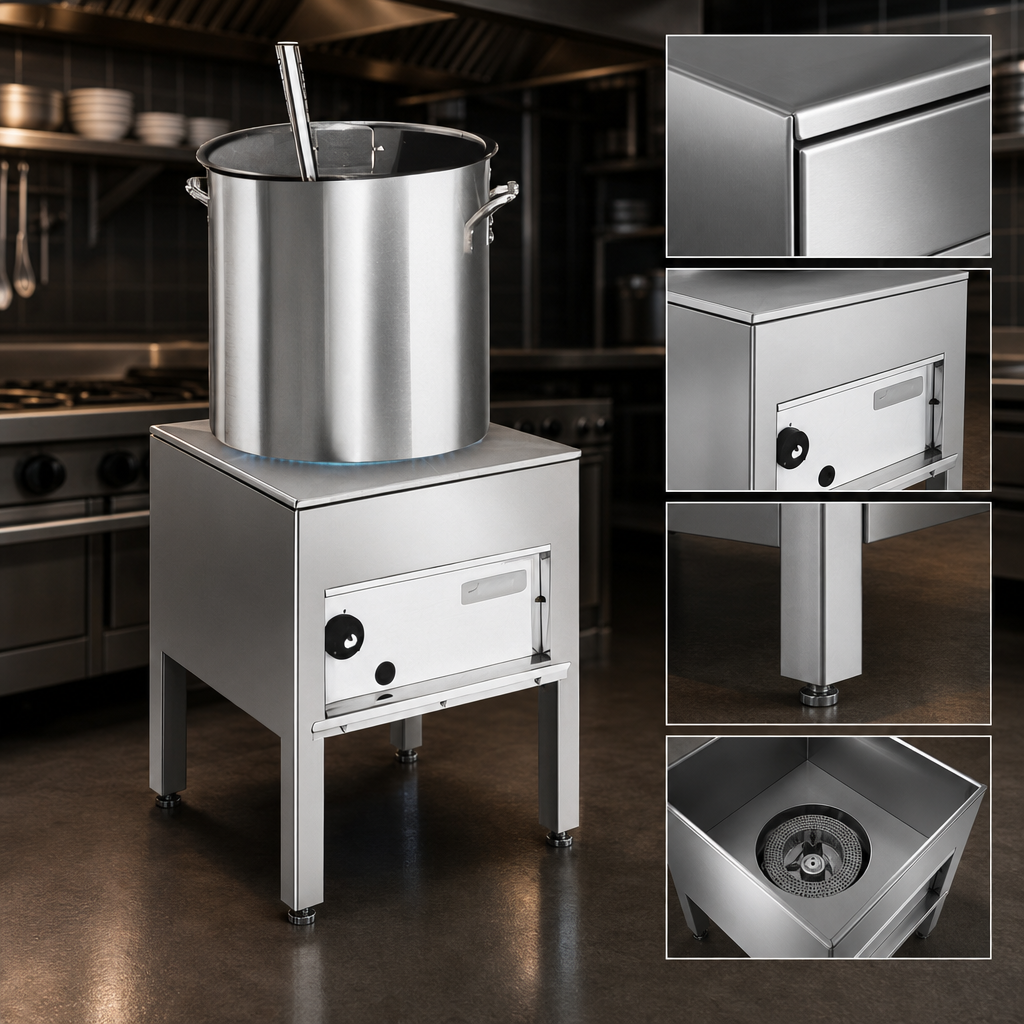

- Stainless-steel cabinet on front, sides and legs stands up to daily commercial abuse and wipes clean fast.
- Removable drip tray and slide-out valve panel accelerate end-of-shift cleaning and service.
- Adjustable 1 ⅜" (35 mm) leveling feet ensure a rock-solid, perfectly level cooking surface on any countertop.
- Compact footprint – just 20" × 20" – ideal for satellite kitchens, concession stands and line extensions.
Technical Specifications
Dimensions (W × D × H) | 20" × 20" × 24" (508 × 508 × 610 mm) |
---|---|
Total Heat Output | 60,000 BTU/hr (Natural or Propane) |
Burner Type / Qty | Spectro-Heat cast-iron ring burner / 4 rings |
Gas Connection | ¾" NPT (rear or bottom entrance) |
Supply Pressure | Natural 7" W.C. | Propane 11" W.C. |
Manifold Pressure | Natural 4" W.C. | Propane 10" W.C. |
Top Grate Size | 20" × 20" cast iron |
Construction | Stainless-steel exterior; zinc-plated leveling feet |
Certifications | NSF, CSA Star, CSA Flame |
Shipping Weight | 110 lb (50 kg) |
Need help with gas type, altitude deration or replacement parts? Our team is here to assist—just reach out through the Contact Us page.
