Garland ED-42B Designer Electric Charbroilers
Description
Designer Series 42" Electric Countertop Charbroiler
Garland Model ED-42B | 8.1 kW • NSF & CSA CertifiedBuilt for high-volume, all-day grilling, the Garland Designer Series 42" electric charbroiler delivers consistent searing performance in a sleek, easy-to-clean countertop package. Three individually-controlled heating zones let you handle steaks, seafood and vegetables simultaneously while signature grate ribs give every item a bold, professional brand.
Why You’ll Love It
- Generous 42" × 17-1/4" (1067 × 438 mm) grilling surface—ideal for up to 90 burgers per hour*

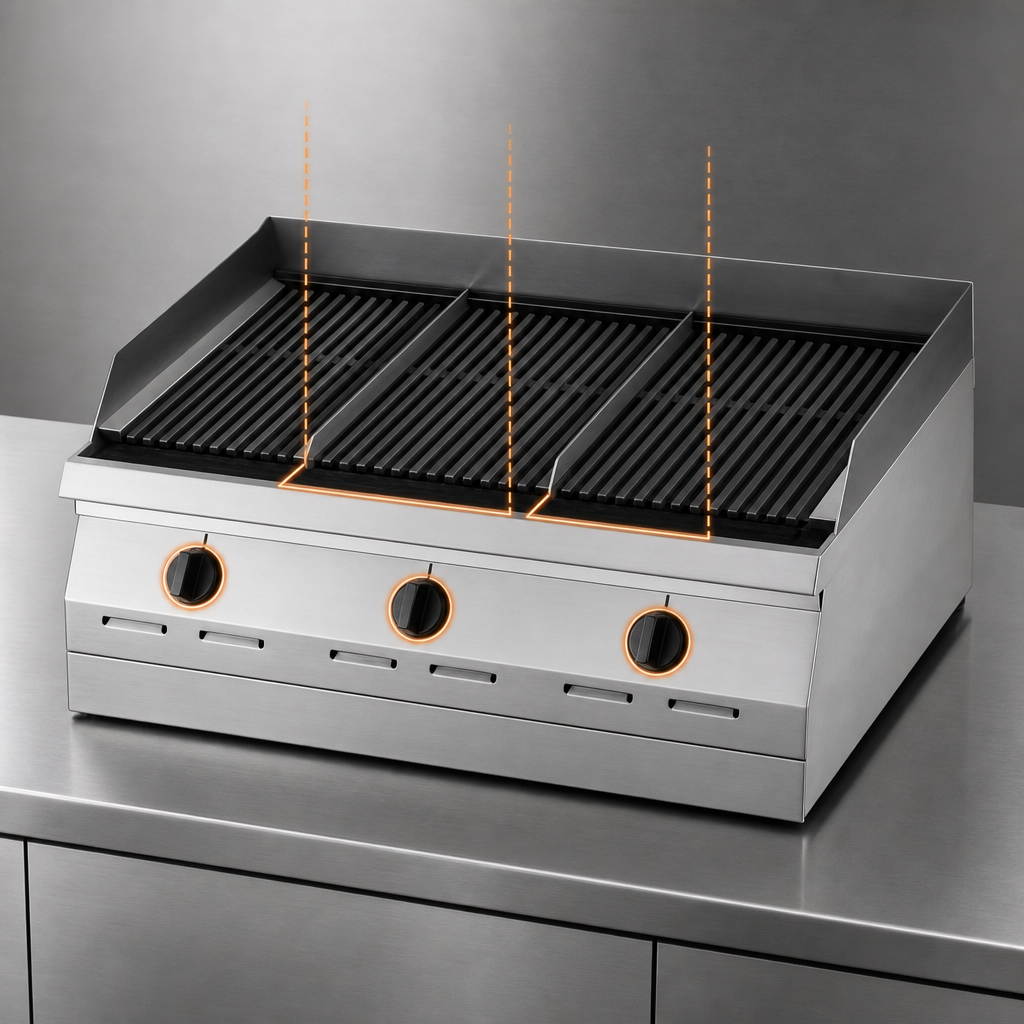

- Three infinite-switch controls (one per 12" zone) for precise heat management
- Heavy-duty cast-iron grates with built-in ribs for deep, defined grill marks
- Stainless steel front & sides withstand daily commercial abuse and wipe clean fast
- Recessed, protected control panel keeps knobs safe from spills and splatter

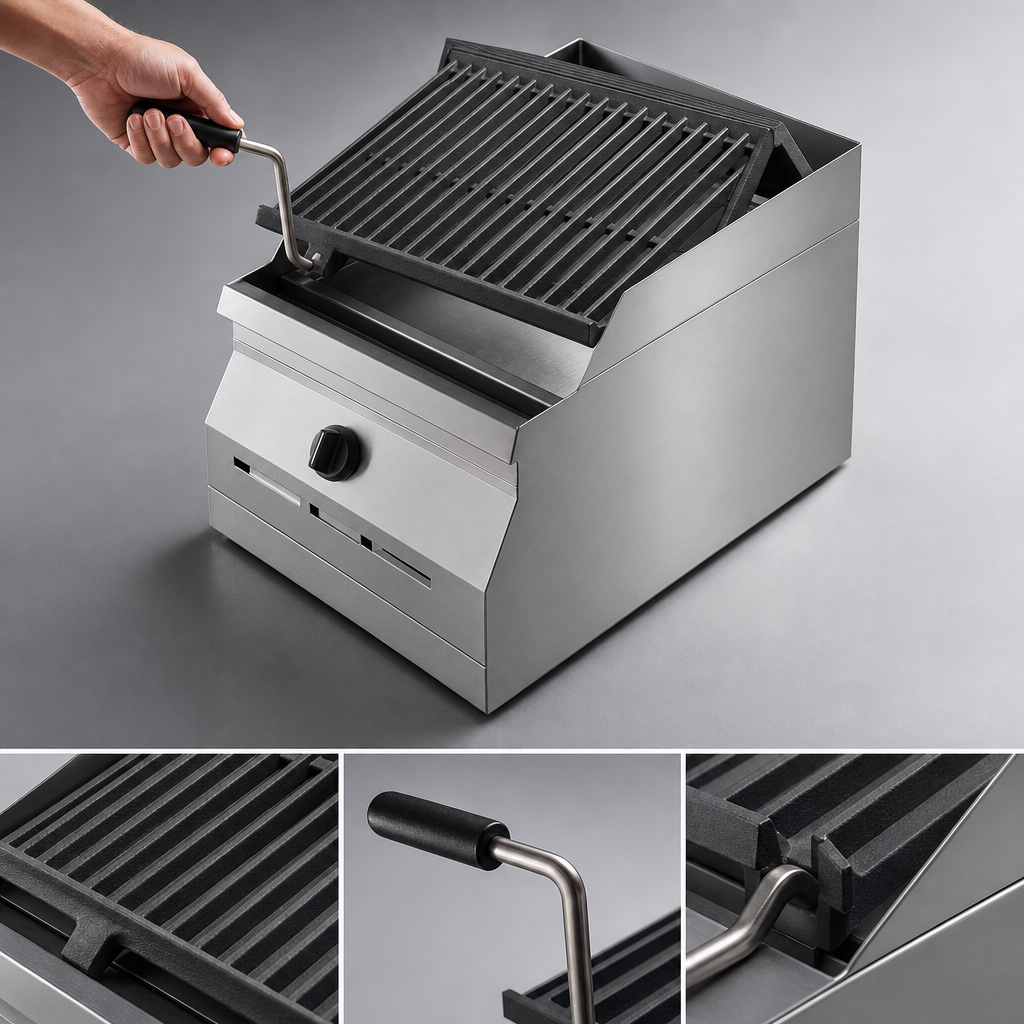

- Grate-lift handle makes loading, unloading and cleaning effortless
- Concealed slide-out grease drawer reduces flare-ups and speeds clean-down
- Heat-on indicator lamps for at-a-glance status
- 4" (102 mm) adjustable legs for perfect leveling on any worktop
- Field-convertible for single- or three-phase service (208/240 V)
- Backed by a 1-year parts & labor warranty (USA/Canada)
*Approximate yield at 8 oz (227 g) patty size; actual capacity will vary.
Technical Specifications
| Model | ED-42B (Designer Series Electric Charbroiler) |
|---|---|
| Overall Dimensions | 42" W × 24" D × 13-3/4" H (1067 × 610 × 349 mm) |
| Usable Cooking Surface | 42" W × 17-1/4" D (1067 × 438 mm) |
| Total Power | 8.1 kW |
| Electrical (North America) |
208 V or 240 V • Single-phase 39/34 A 208 V or 240 V • 3-phase 23/20 A |
| Controls | 3 × infinite heat switches (one per 12" section) |
| Construction | Stainless steel front, sides & splash walls; 4" chrome-plated legs |
| Grease Management | Hidden full-width drawer behind hinged lower panel |
| Certifications | NSF • CSA • CE (export models) |
| Shipping Weight | 145 lb (66 kg) |
| Minimum Clearances* | 9" (229 mm) each side & rear from combustible surfaces |
*Do not install closer to combustible materials than stated.
Perfect For
- Steakhouses & chophouses
- Hotel banquet kitchens
- QSR & fast-casual burger lines
- Campus & corporate dining
- Catering commissaries
Popular Accessories (sold separately)
- 42" stainless-steel broiler splatter-guard kit
- 36" nickel-plated service shelf for splatter-guard
- Stainless steel back and bottom panels
- Counter stands & equipment bases
