Garland ED-30FT Designer Electric Fryers
Description

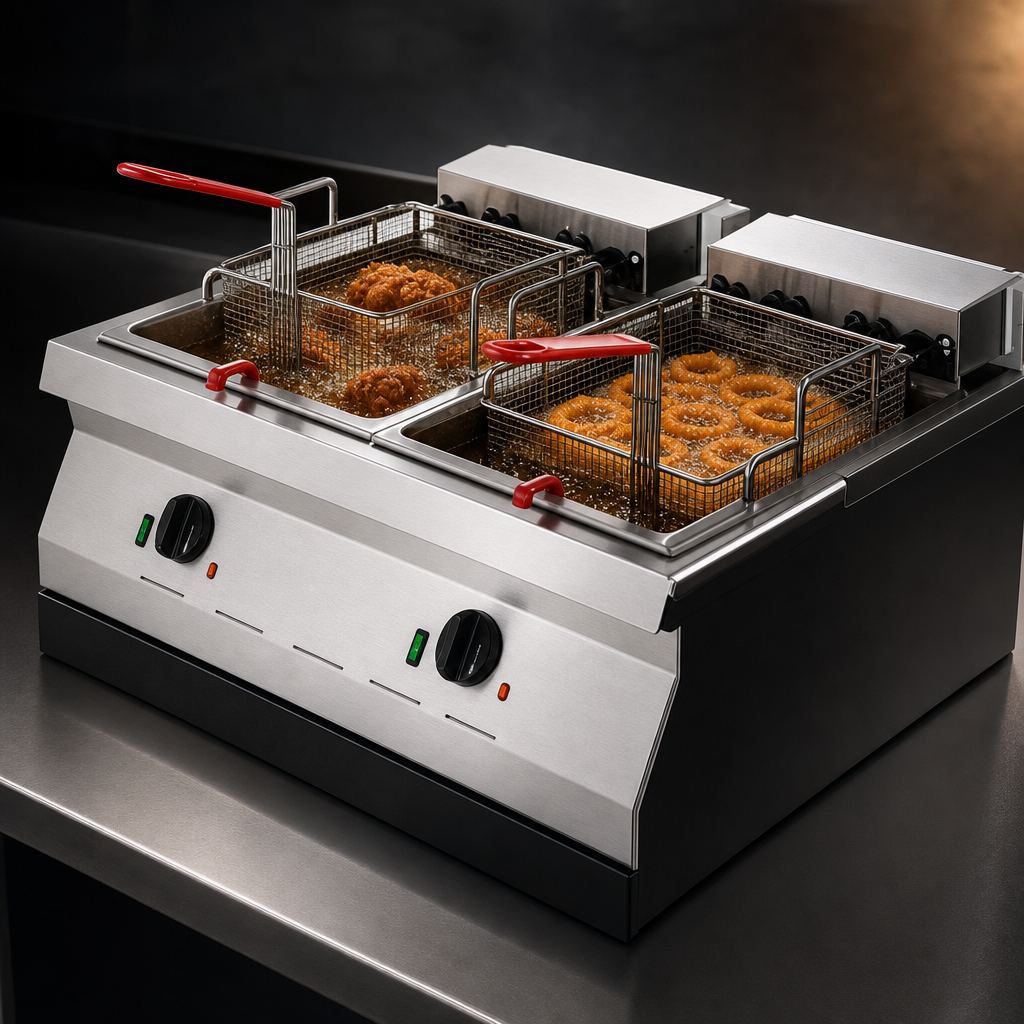

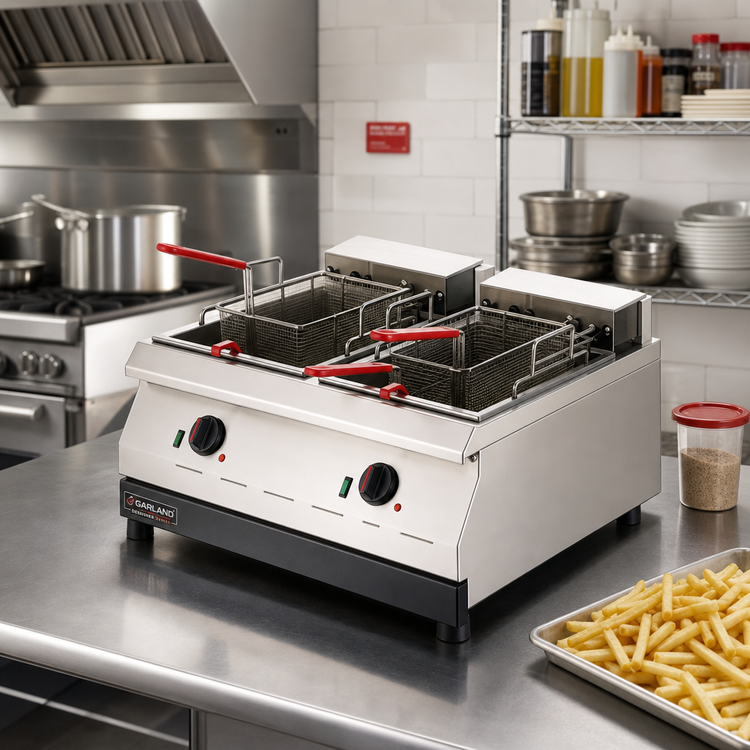

Garland Designer Series 30" Countertop Twin-Pot Electric Fryer
Model ED-30FT — 2 x 15 lb frypots, 10.6 kW total outputPower through the lunch rush with the compact, high-performance Garland ED-30FT. Two completely independent 15 lb stainless-steel fry tanks let you run separate menus or stagger cook cycles, while precision electronic thermostats keep every batch consistently crispy. At just 30" wide, this Designer Series workhorse drops seamlessly onto any counter and pairs perfectly with other ED-Series equipment for a clean, unified cookline.
Key advantages
- Dual 5300 W elements (10.6 kW total) for fast heat-up and quick recovery.

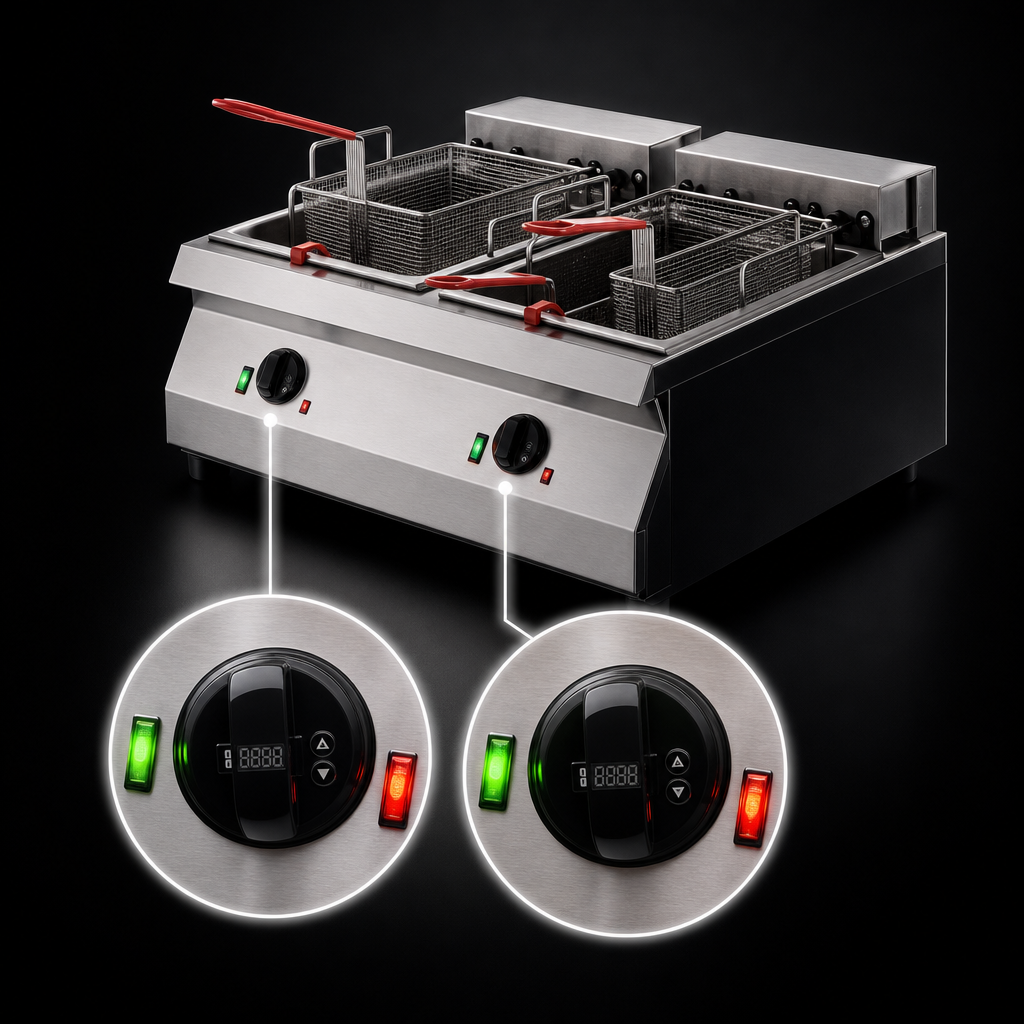

- Independent electronic thermostats (200–375 °F / 93–191 °C) — fry different products simultaneously.
- Removable flat-bottom stainless-steel tanks with large surge area simplify cleaning and reduce boil-over.
- Includes two nickel-plated fryer baskets with cool-touch coated handles.
- Heavy-gauge stainless-steel front & sides withstand everyday commercial abuse.
- Recessed, protected control panel with heat-on indicator lamps.
- 4" (102 mm) legs keep the unit off the counter for proper airflow and sanitation.
- 0.5" side/rear clearance — ideal for tight kitchens, food trucks, and concession stands.
- NSF & UL certified; one-year parts & labor warranty (USA & Canada).
Technical specifications
| Model | ED-30FT |
|---|---|
| Frypot configuration | 2 × 15 lb (6.8 kg) removable tanks |
| Oil capacity (total) | 30 lb (13.6 kg) |
| Overall dimensions (W × D × H) | 30" × 24" × 17" (762 × 610 × 432 mm) (13" body height + 4" legs) |
| Heating elements | 2 × 5.3 kW sheathed immersion elements |
| Total power | 10.6 kW |
| Electrical (single-phase) | 208 V 50/60 Hz 51 A | 240 V 50/60 Hz 45 A |
| Electrical (3-phase “Hi-Line”) | 208 V 45 A | 240 V 39 A |
| Shipping weight | 70 lb (32 kg) |
| Clearances | 0.5" (13 mm) sides & rear |
| Certifications | NSF, UL (commercial only) |
Included in the box
- (1) Garland ED-30FT twin-pot electric fryer
- (2) Twin fryer basket sets (4 baskets total)
- 4" adjustable legs (factory installed)
- Operator’s manual & warranty information
Popular accessories (sold separately)
- Stainless-steel bowl covers (one per frypot)
- Stainless-steel fish plate
- Single large basket (replaces twin set)
- Designer Series equipment stand
- Stainless-steel back & bottom panels
