Garland  |  Designer  |  SKU: ED-30B

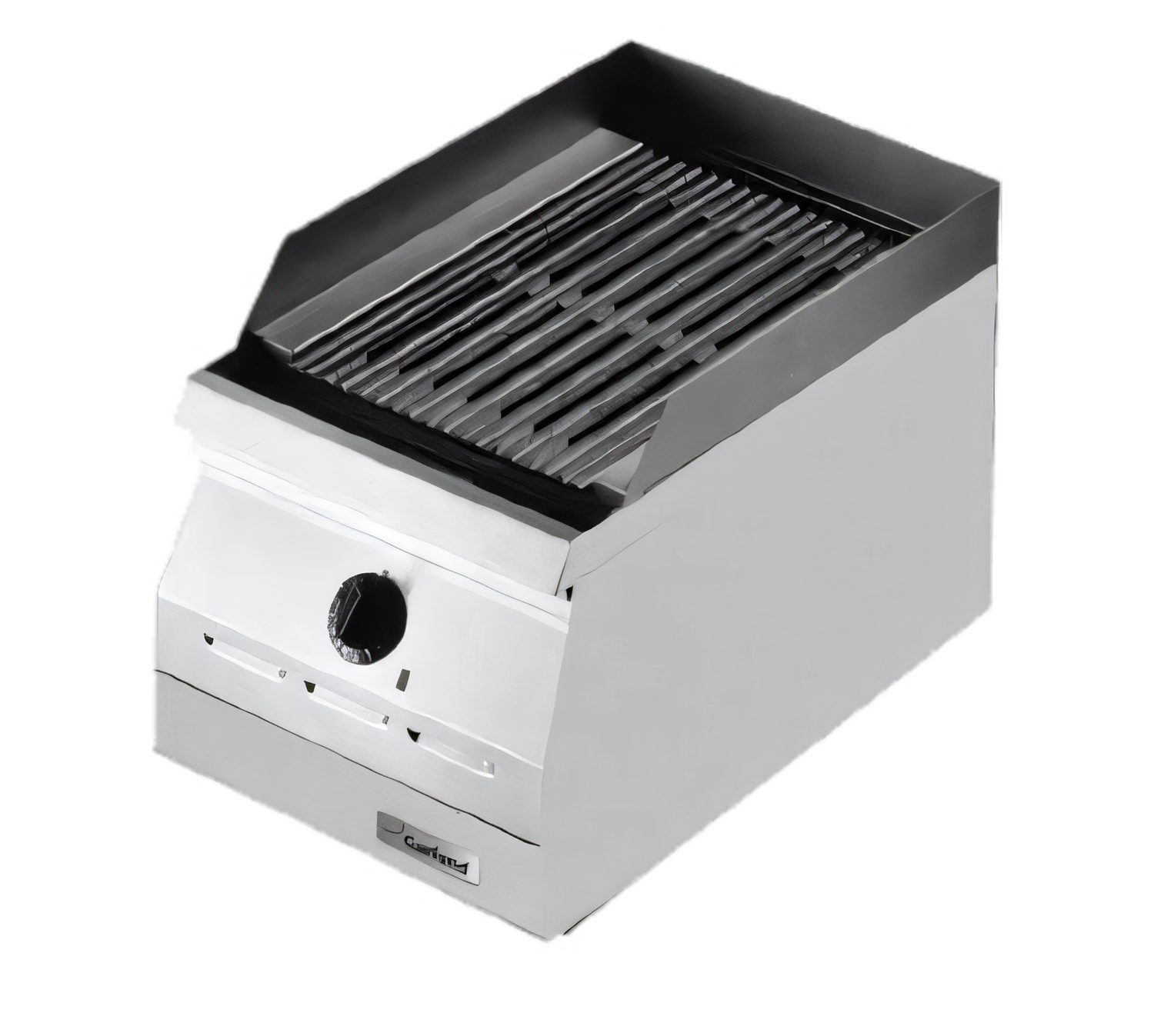

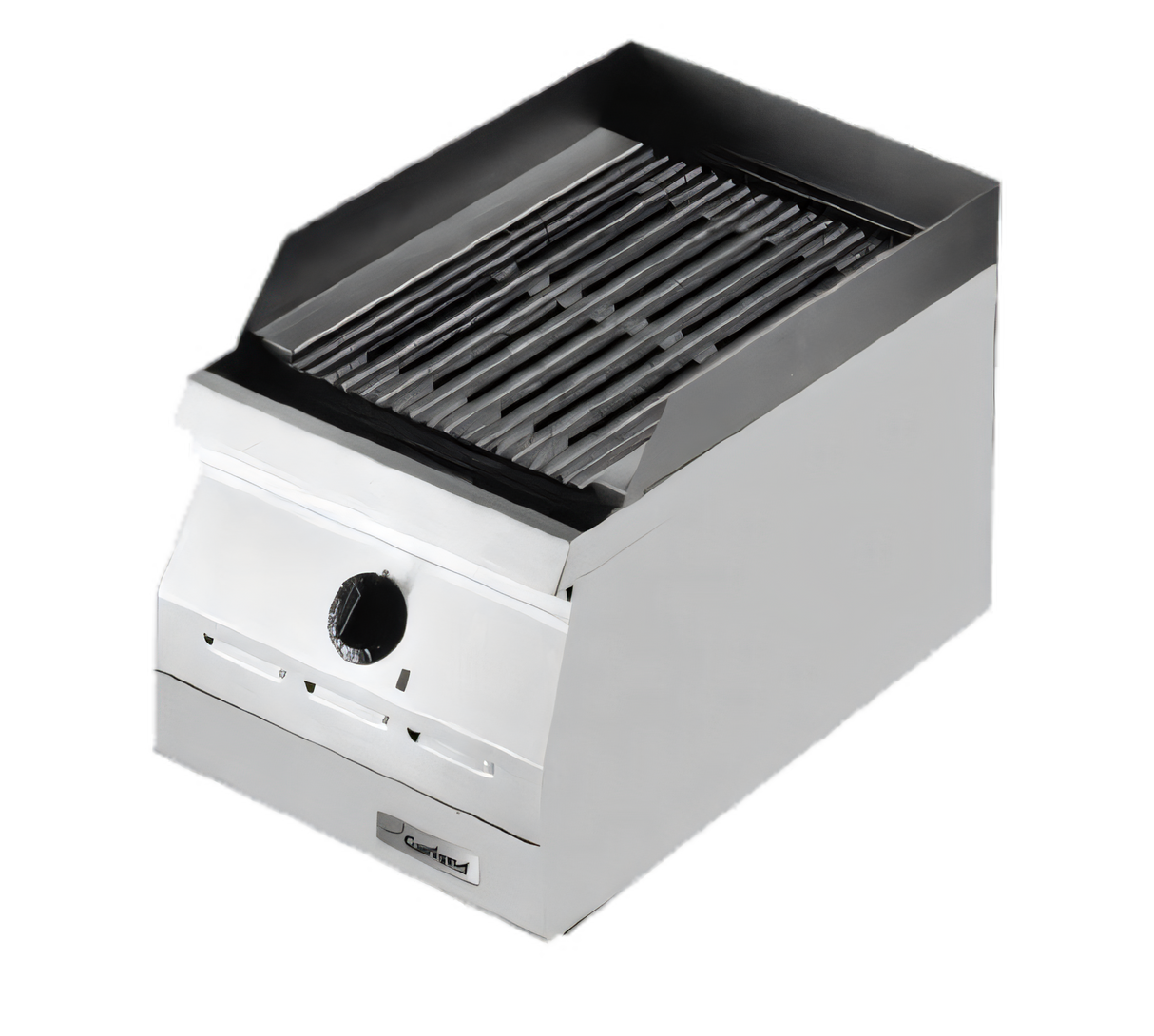

Garland ED-30B Designer Electric Charbroilers

$4,670.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual
Related Searches
Charbroilers & Grills Electric Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Garland Designer Series 30" Electric Charbroiler

Model ED-30B | Countertop | 5.4 kW

Get powerful, gas-free grilling on any cook line. Garland’s Designer Series 30" electric charbroiler delivers even heat, bold branding and easy clean-up—all in a low-profile countertop package built for busy commercial kitchens.

Highlights

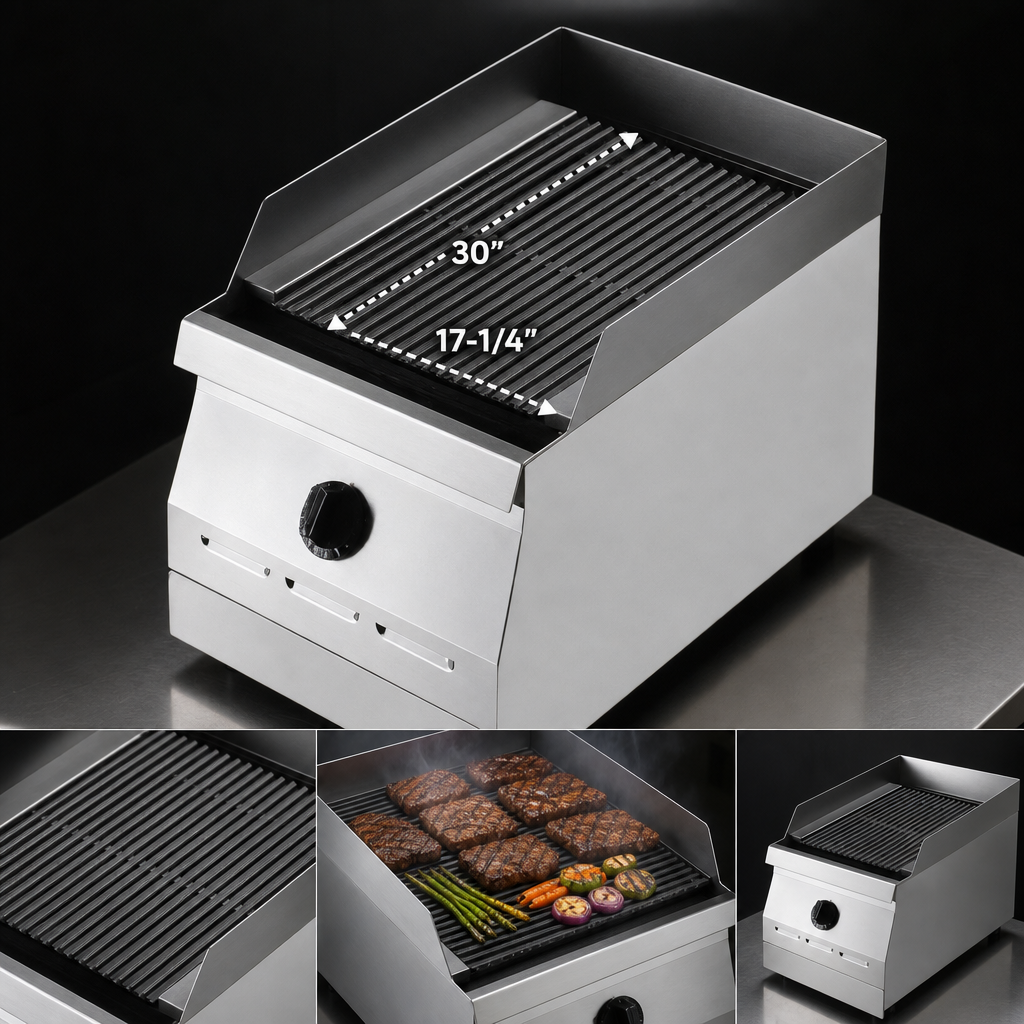

  • Generous 30" × 17-1/4" (762 × 438 mm) cooking surface with ribbed grate for signature char marks.
  • Two independent infinite-switch controls create dual temperature zones for menu flexibility.
  • Heat-On indicator lamps confirm element status at a glance.
  • Grate-lift handle and concealed full-width grease drawer speed end-of-shift clean-up.
  • Durable stainless-steel front & sides resist corrosion and wipe clean fast.
  • 4" (102 mm) countertop legs provide the clearance chefs need for safe airflow and sanitation.
  • NSF & CSA certified; backed by a one-year limited parts & labor warranty (USA & Canada).
Specifications
Usable Cooking Surface 30" W × 17-1/4" D (762 × 438 mm)
Overall Dimensions 30" W × 24" D × 13-3/4" H (762 × 610 × 349 mm)
Total Power 5.4 kW
Electrical Requirements 208 V / 26 A – 1 ph  • 240 V / 23 A – 1 ph (3-phase connections available)
Controls 2 × infinite switches with indicator lamps
Construction Stainless-steel front & sides, heavy-duty ribbed grate
Grease Management Full-width removable drawer behind hinged panel
Certifications NSF, CSA
Warranty 1-year limited parts & labor (USA & Canada)
Popular Accessories
  • 3-piece stainless-steel splatterguard (adds 10" height)
  • Nickel-plated service shelf (24" or 36" wide)
  • Stainless-steel back & bottom panels
  • Designer Series equipment stand
Installation Note: Maintain at least 9" (229 mm) clearance on the sides and rear from combustible surfaces. Unit must be connected to a dedicated, properly grounded electrical circuit and used in commercial environments only.

Garland products are not approved for residential use.

Features & Specs

Manufacturer

Garland

Brand_name

Designer

Certifications

NSF, CSA

Height

13.75in

Width

30.0in

Depth

24.0in

Shipping Weight

100.0lbs

Width (side - side) OA

30"

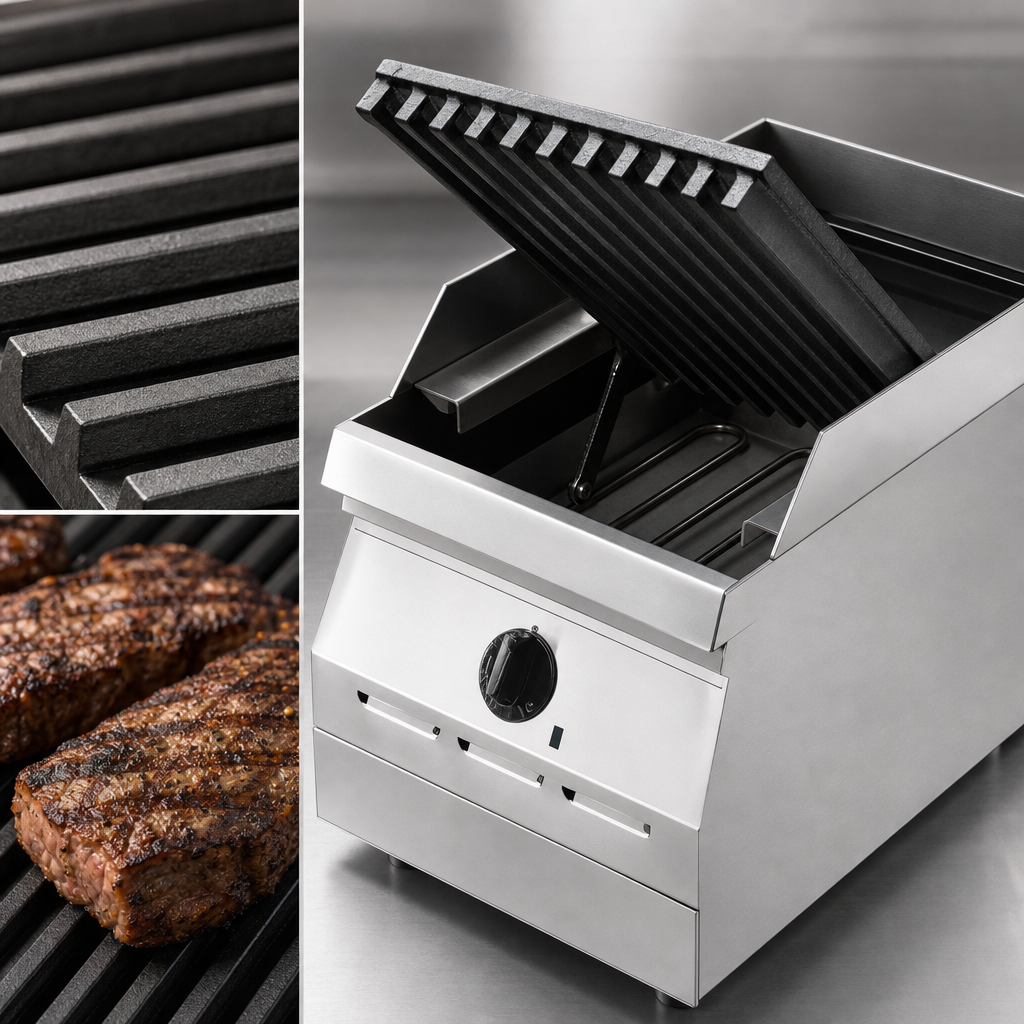

Grate type

tilt type cast iron grates

Depth (front - back)

24"

Specifications

Designer Series Charbroiler, electric, 30" x 17-1/4" cooking area countertop, grate lift handle, infinite controls, grease drawer, stainless steel front and sides, 4" legs, 5.4kW, NSF, CSA (Garland)
