Garland  |  Designer  |  SKU: ED-24G

Garland ED-24G Designer Electric Griddles

$2,824.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual
Related Searches
Electric Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

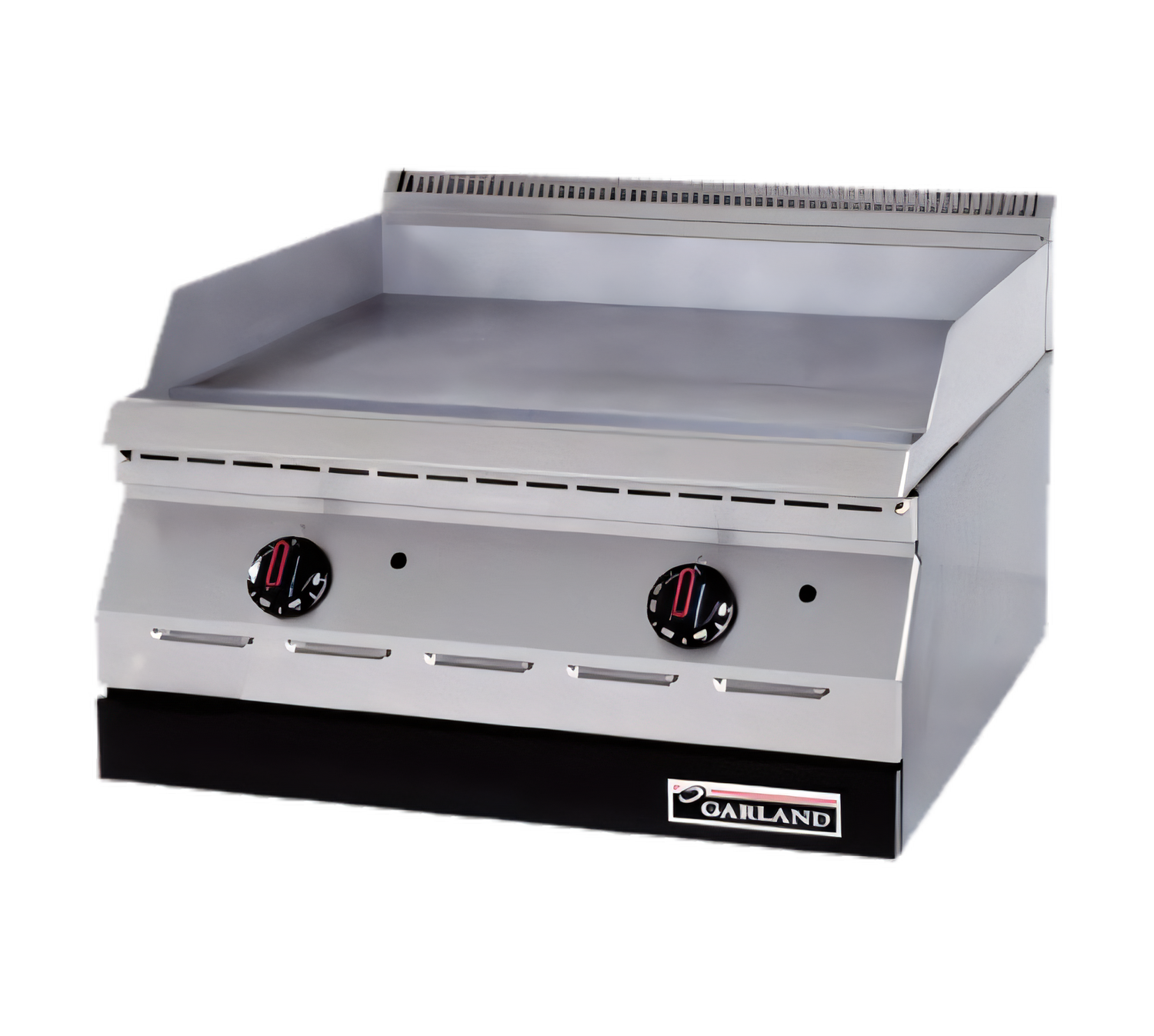

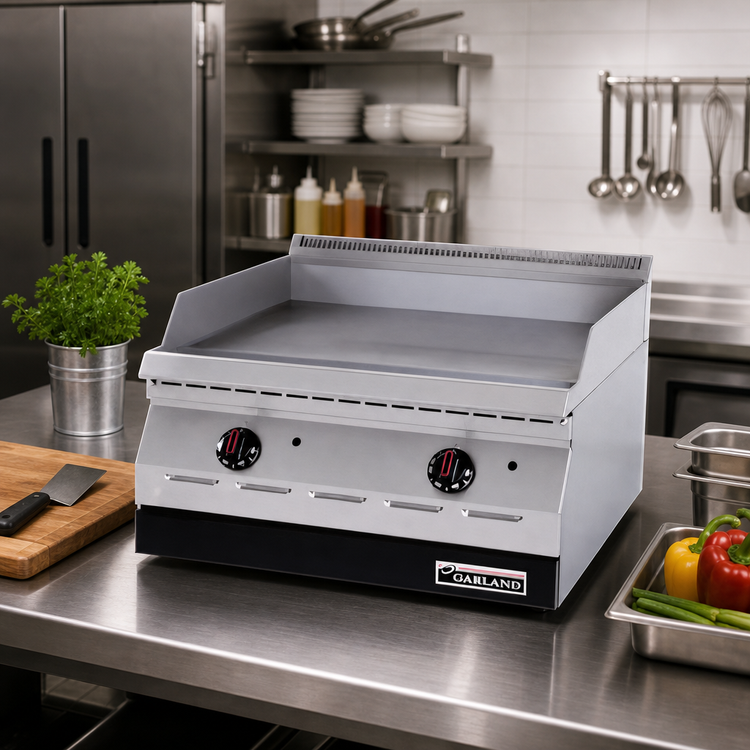

Garland Designer Series 24" Electric Countertop Griddle – Model ED-24G

23-5/8" × 18" smooth plate | 6.7 kW | Thermostatic control

Give your line a powerful, space-saving upgrade. The Garland ED-24G delivers rapid, even heat across a full 24-inch width, letting you sear, toast & hold with the consistency only a heavy ½" polished steel plate can provide.

Key features
  • Generous 23-5/8" W × 18" D cooking surface—handles up to 18 standard 4 oz burgers at once.
  • ½" (13 mm) polished steel plate for superb heat retention and lightning-fast recovery.

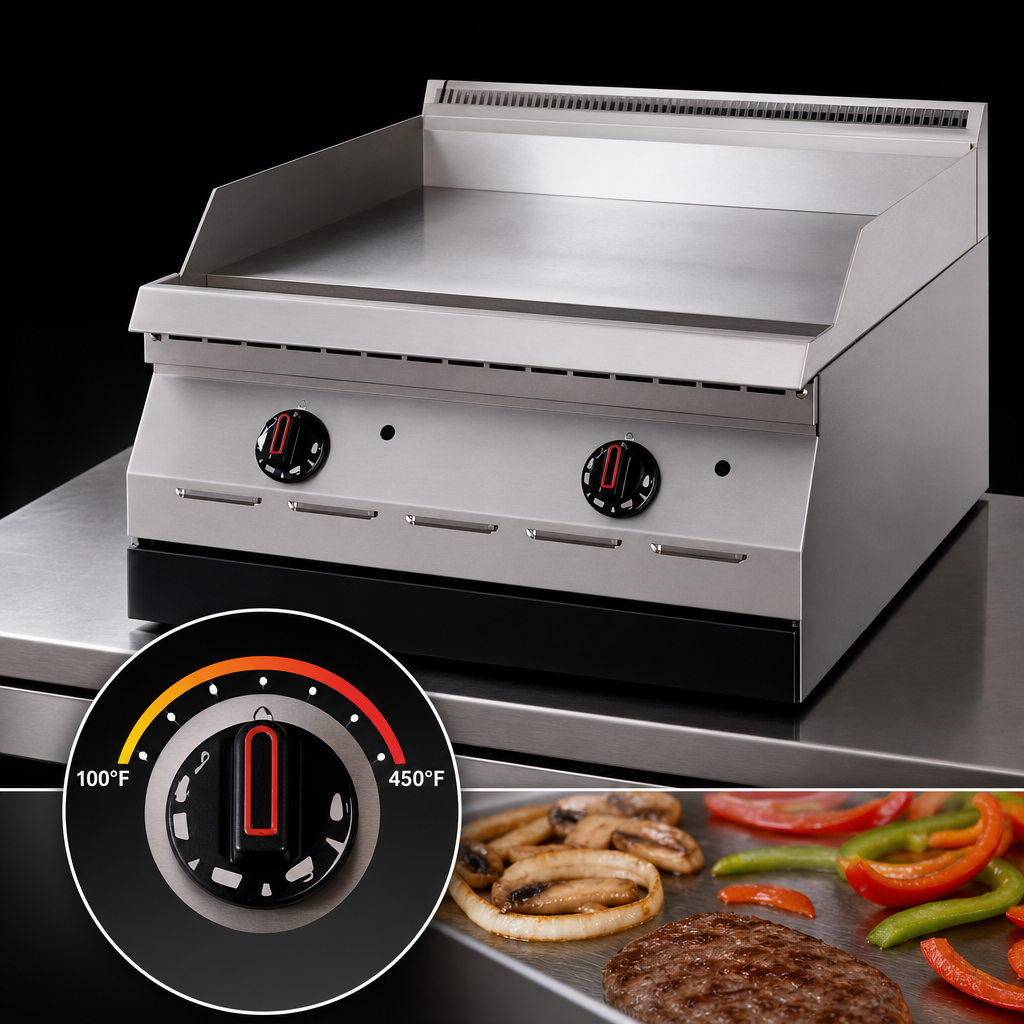

  • Dual thermostats (one per 12" zone) with 100-450 °F (38-232 °C) set-points.
  • Heat-On indicator lamps give instant visual confirmation that elements are active.
  • Easy-clean stainless front & sides plus recessed, protected control panel.
  • 2-5/8" welded splash guard and concealed, front-mount grease drawer keep stations spotless.
  • Low-profile 13-3/4" body on 4" adjustable stainless legs—perfect for countertops or equipment stands.
  • 6.7 kW electric element pack provides steady, flame-free performance.
  • Certified NSF & CSA for commercial kitchens; backed by a 1-year parts & labor warranty (USA/Canada).
Specifications
Model ED-24G
Cooking surface 23-5/8" W × 18" D (600 mm × 457 mm)
Overall dimensions 24" W × 24" D × 13-3/4" H (610 mm × 610 mm × 349 mm) + 4" (102 mm) legs

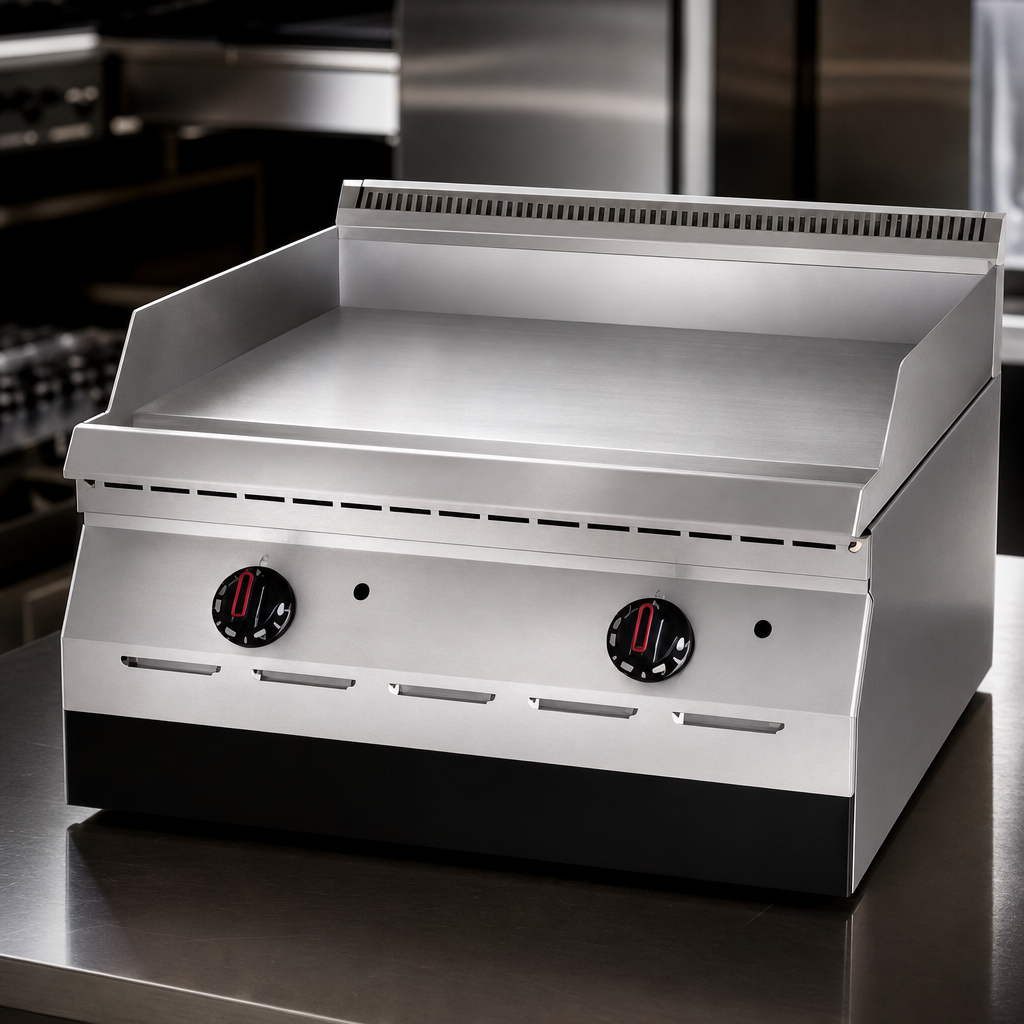

Plate thickness ½" (13 mm) polished steel
Temperature range 100-450 °F (38-232 °C)
Heat zones 2 independent, thermostatically controlled
Electrical rating 6.7 kW, 208/240 V, single or 3-phase (33 A @ 208 V 1-ph, 28 A @ 240 V 1-ph)
Shipping weight 135 lb (61 kg)
Minimum clearances 1" (25 mm) sides, 1.5" (38 mm) rear
Certifications CSA, NSF
Warranty 1-year limited parts & labor (USA & Canada)
Popular accessories
  • Designer Series equipment stands (18" or 24" depths)
  • Stainless steel back & bottom panels
  • Factory full-grooved or left-side grooved plate configurations
Commercial use only: Garland equipment is engineered and certified exclusively for commercial food-service environments and is not intended for residential installation.

Features & Specs

Manufacturer

Garland

Brand_name

Designer

Certifications

NSF, CSA

Height

13.75in

Width

24.0in

Depth

24.0in

Shipping Weight

152.0lbs

Griddle Plate Finish

smooth steel

Control Type

thermostatic

Exterior Finish

stainless steel front & sides

Cooking Surface Depth (front - back)

17" - 23"

Cooking Surface Width (side - side)

11" - 24"

Specifications

Designer Series Griddle, electric, 24" W, countertop, 23-5/8" W x 18" cooking surface, smooth griddle plate, thermostatic control, grease drawer, stainless steel front and sides, 4" legs, 6.7 kW (Garland), CSA, NSF
