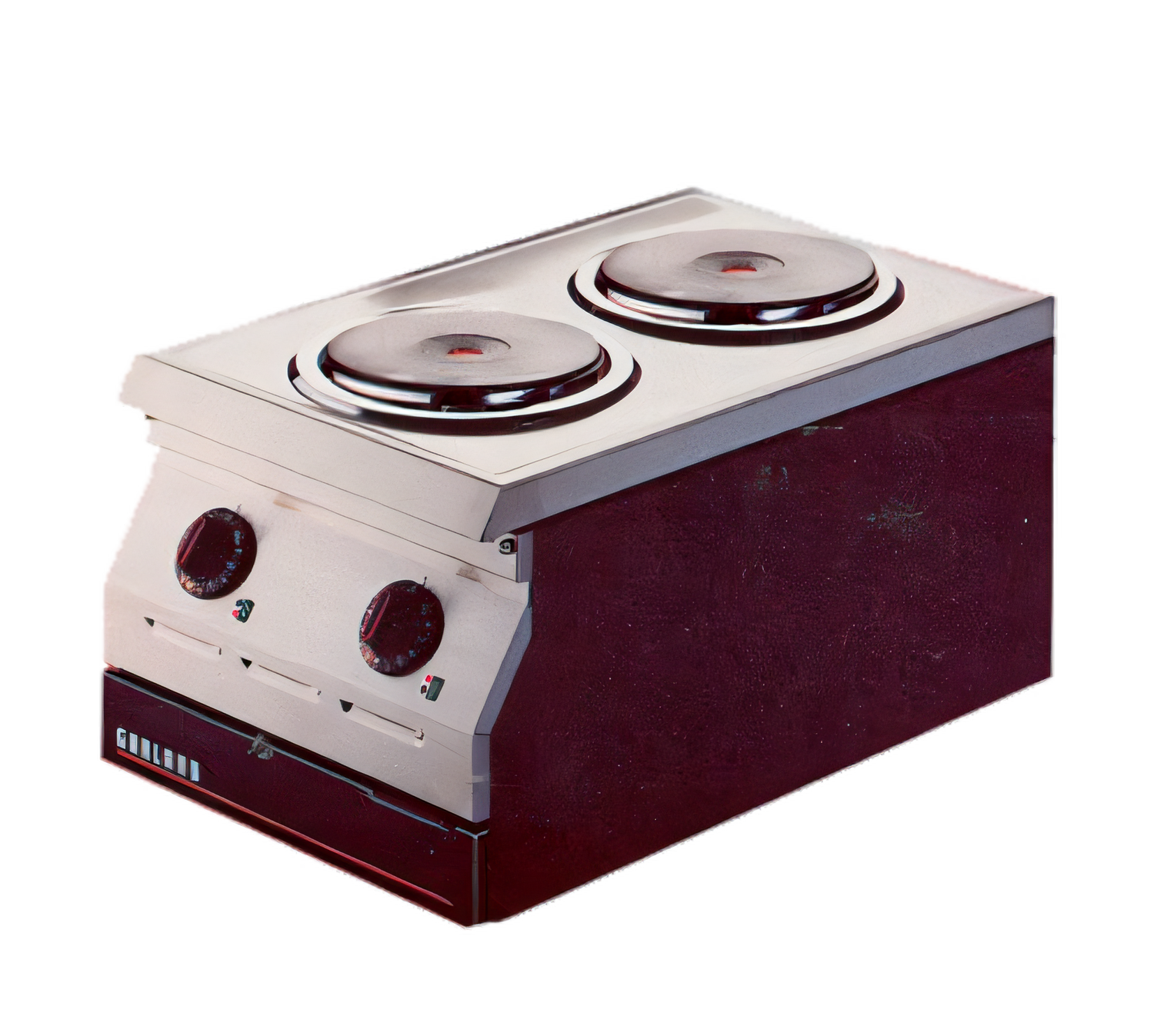

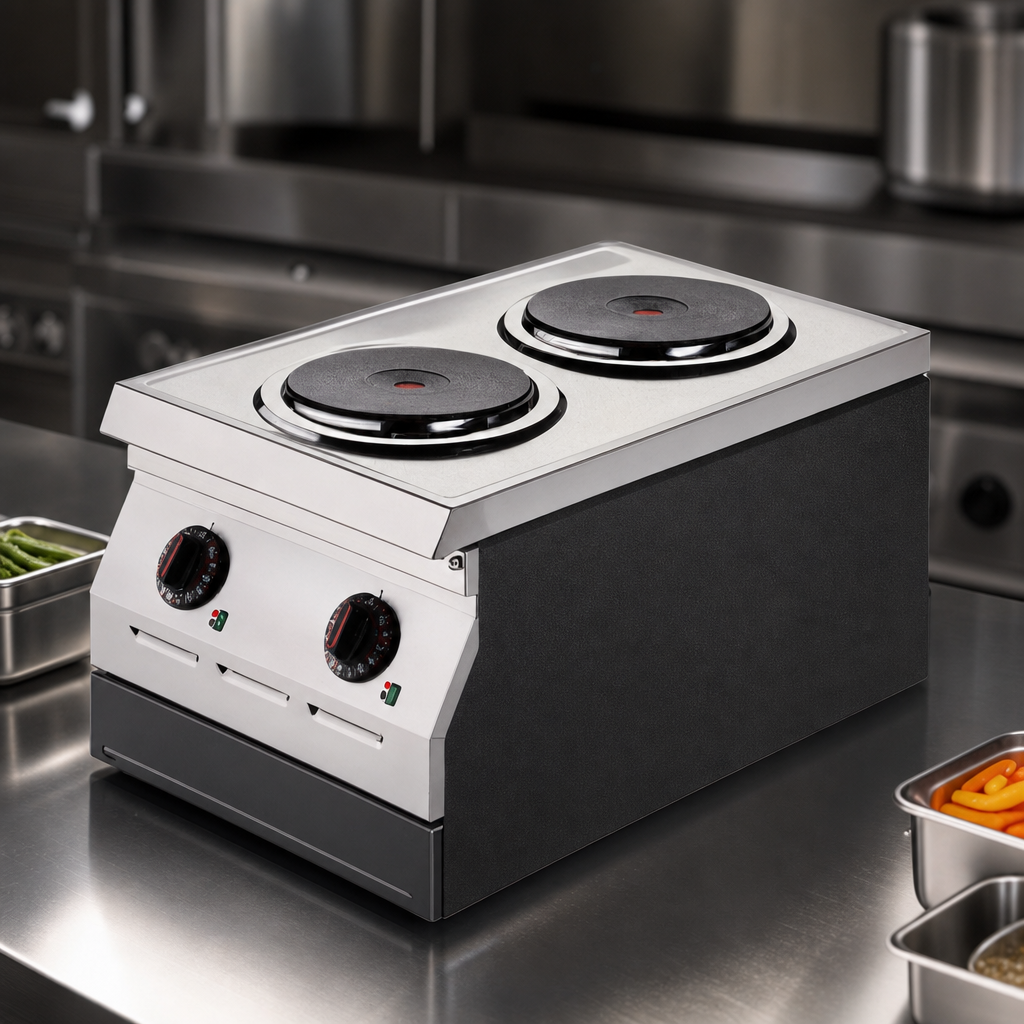

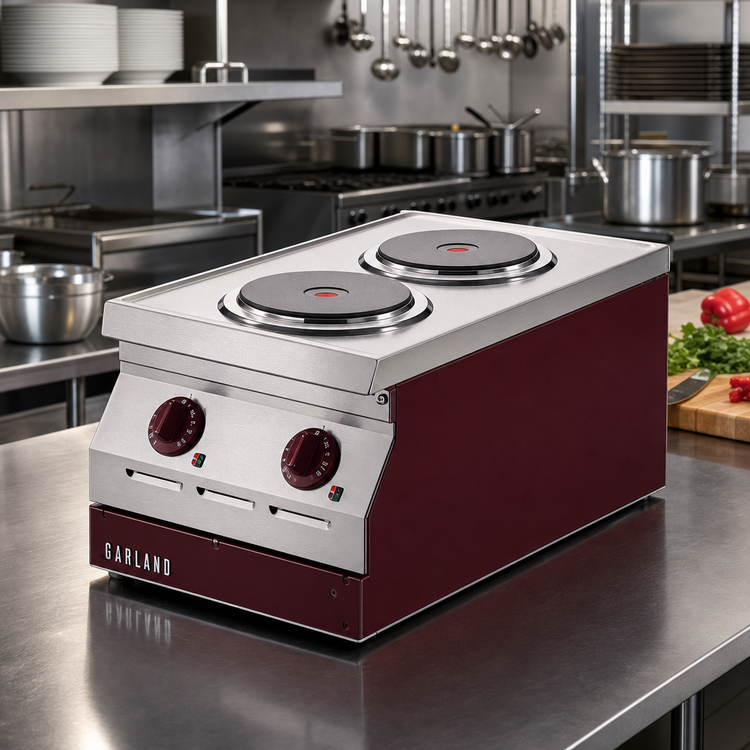

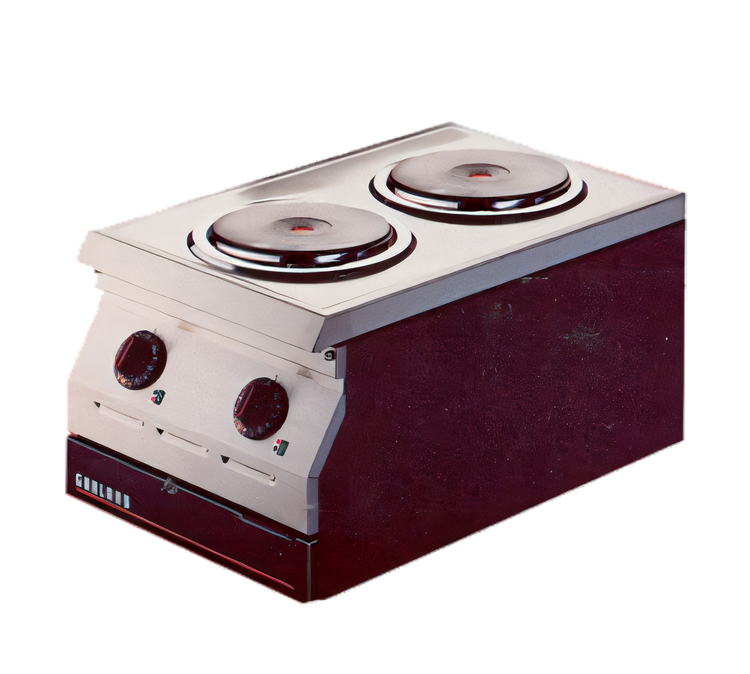

Garland ED-15THSE Designer Hot Plates
Description
Garland Designer Series 15" Electric Hot Plate – 2 × 7-1/2" Sealed Elements
Model ED-15THSE | 4 kW Countertop HotplateBuilt for the pace of a professional kitchen yet compact enough for any line, the Garland ED-15THSE delivers fast, even heat from two 2000-watt sealed solid elements. Its stainless-steel body, recessed top and automatic power-down safeguards make it a reliable, easy-to-clean solution for sauté stations, satellite kitchens, catering setups and more.
Key Advantages
- Powerful 4 kW output (2 × 2000 W) handles heavy-duty sautéing, boiling or back-up stockpot work.
- 7-1/2" (192 mm) full-surface solid elements offer superior contact for flat-bottom cookware.

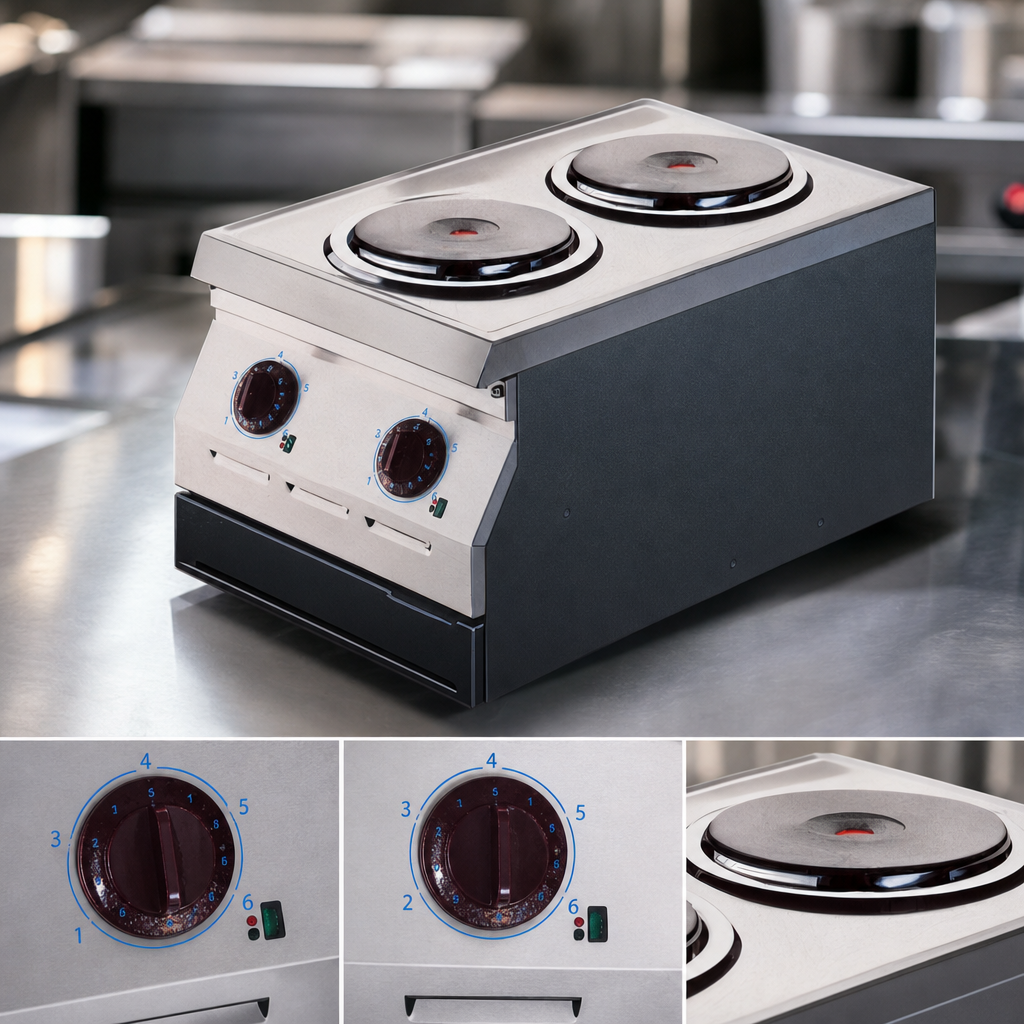

- Six-position heat switches per element automatically cycle down to "low" when left idle, saving energy and protecting food.
- High-limit sensor prevents overheating for longer element life.
- Heat-on indicator lamps give at-a-glance status to busy cooks.
- Recessed top and one-piece front make wipe-downs quick and mess-free.
- Durable stainless-steel front & sides withstand daily commercial abuse.
- 4" (102 mm) stainless-steel legs provide a sturdy, NSF-compliant working height.
- CSA-C/US and NSF certified for commercial safety & sanitation.
Built for Your Kitchen
- Compact 15" footprint maximizes valuable line space.
- Optional stainless-steel back & bottom and countertop stand (model CS24/CSD) available.
- Shipped ready for 208 V single-phase with 4-ft cord & NEMA L6-30P plug.
240 V or 3-phase configurations available – contact us for details. - 1-year limited parts & labor warranty (USA & Canada).
Specifications
| Exterior Dimensions (H × W × D) | 11-1/4" × 15" × 24" (286 × 381 × 610 mm) |
|---|---|
| Element Diameter | 7-1/2" (192 mm) |
| Element Rating | 2000 W each (total 4 kW) |
| Heat Controls | 6-position switches with automatic low-cycle feature |
| Electrical Options | 208 V or 240 V; single or 3-phase (see amp draw below) |
| Nominal Amp Draw (208 V / 240 V) | Single phase: 19.2 A / 16.7 A 3-phase: 9.5 A / 8.3 A per line |
| Clearances (Installation) | 1-1/2" (38 mm) sides & rear |
| Shipping Weight | 50 lb (23 kg) |
| Certifications | CSA C/US, NSF |
| Warranty | 1-year limited parts & labor (USA & Canada) |
Need a matching stand, backsplash or additional electrical configuration? Reach out to our equipment specialists—we’ll configure the ED-15THSE to fit seamlessly into your operation.
