Garland ED-15HSE Designer Hot Plates
Description

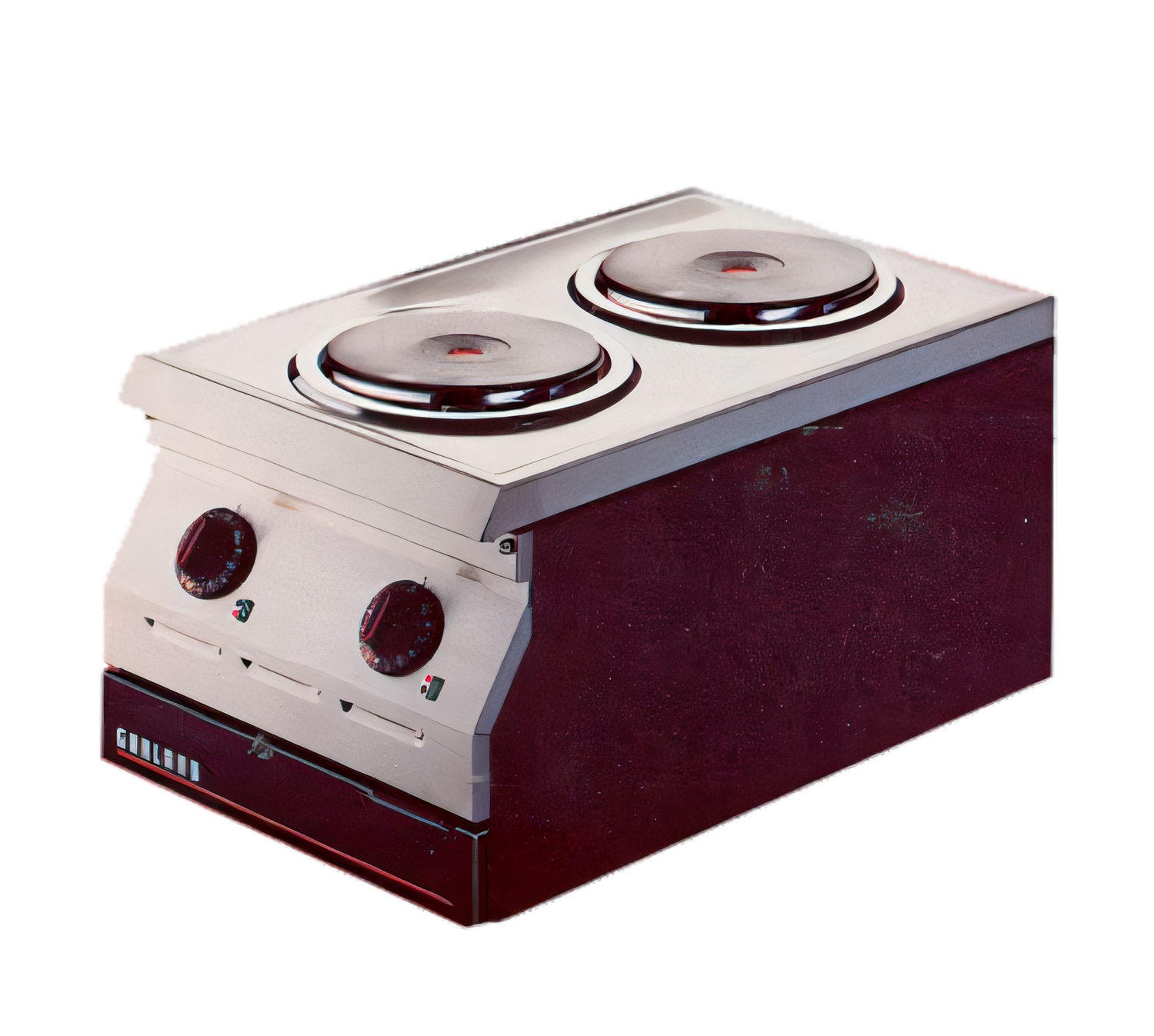

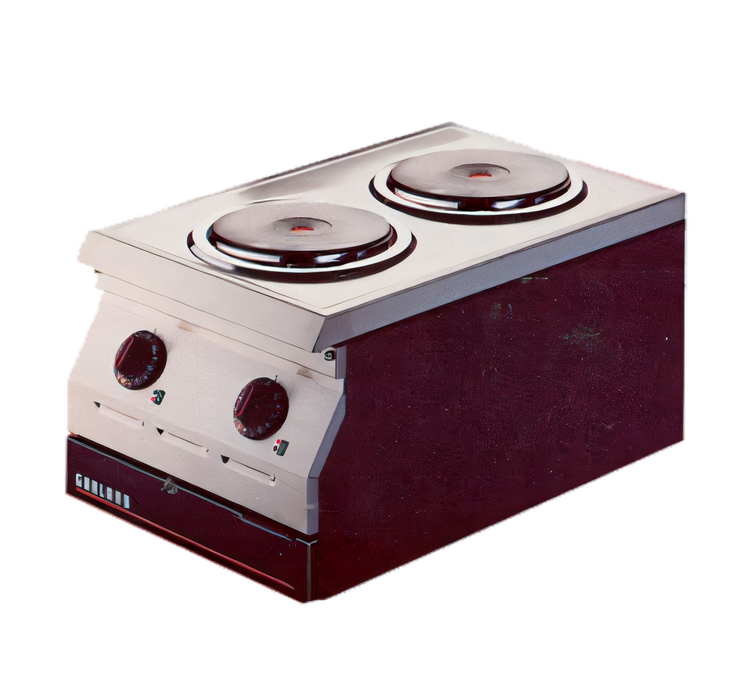

Garland Designer Series 15" Electric Hot Plate
Model ED-15HSE | 2 × 9" Sealed Solid Elements | 5.2 kW OutputCompact in size yet built for serious, all-day performance, Garland’s ED-15HSE hot plate gives you two powerful 2 600 W sealed elements, intuitive six-position controls and rugged stainless construction that stands up to the busiest commercial kitchens.
Why You’ll Love It

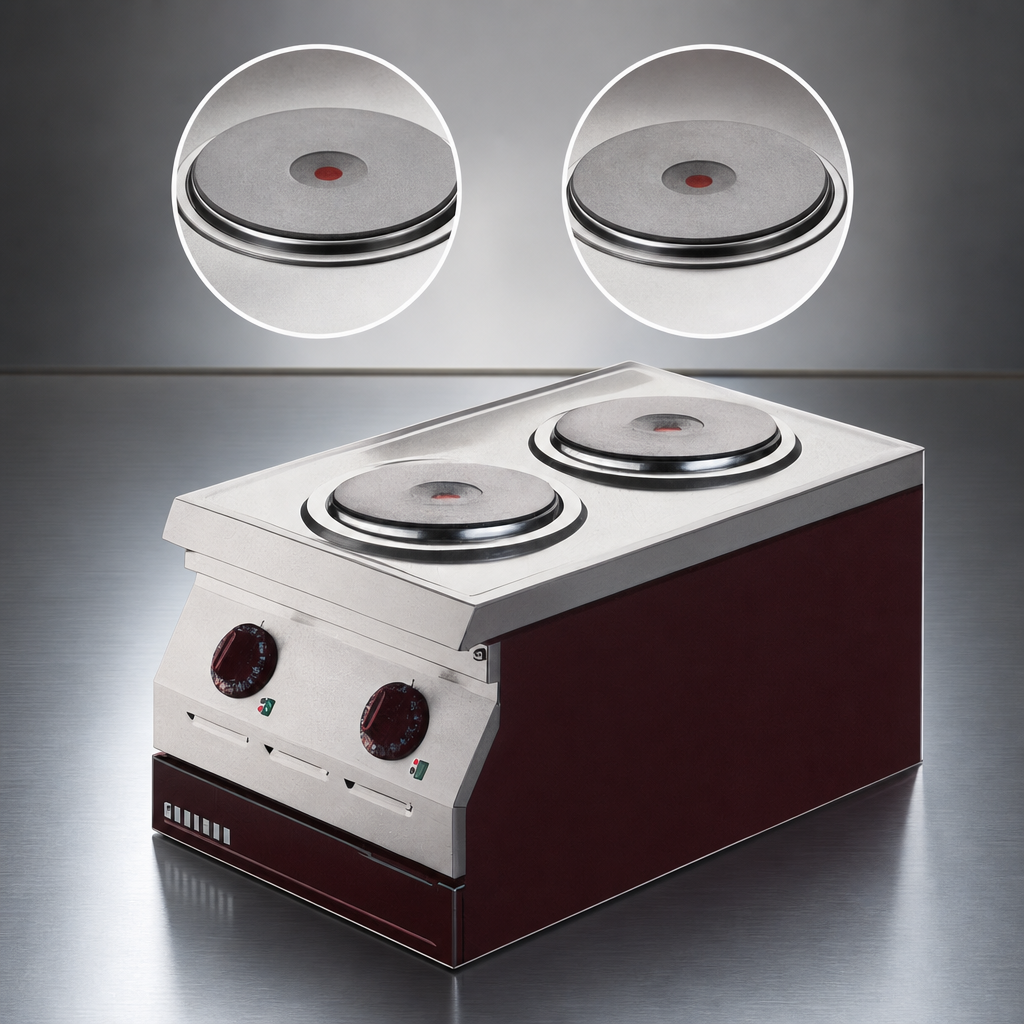

- Two 9" (229 mm) sealed solid elements – wipe-clean and spill-proof.

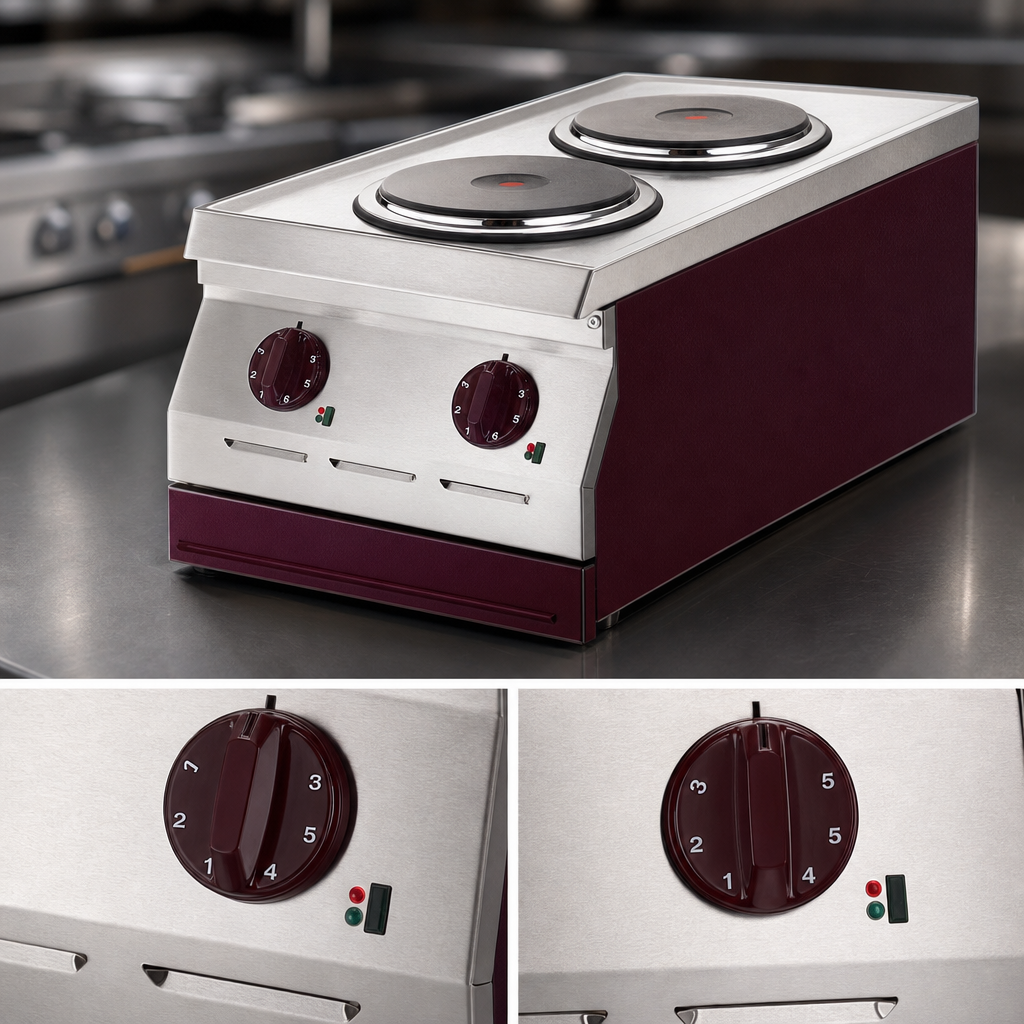

- Individual six-position switches automatically cycle down to low when idle to save energy.
- Heat-on indicator lamps give instant feedback at a glance.
- Easy-clean recessed top plus protected controls reduce mess and accidental adjustment.
- Durable stainless steel front, sides and 4" (102 mm) sanitary legs.
- Stacks neatly with other Designer Series units for a seamless cookline.
- Certified CE, CSA & NSF for worldwide compliance and food-safe assurance.
Technical Specs
| Overall Dimensions (H × W × D) | 11.25" × 15" × 24" (286 mm × 381 mm × 610 mm) |
|---|---|
| Cooking Surface | 2 × 9" (229 mm) sealed solid elements |
| Element Rating | 2 600 W per element |
| Total Power | 5.2 kW |
| Voltage / Phase | 208 V / 240 V, 1-Ph (other wiring options available – see manual) |
| Amperage Draw | 25 A @ 208 V | 22 A @ 240 V |
| Controls | Two 6-position switches with automatic low-idle cycle |
| Construction | Stainless steel front, sides & recessed top; 4" adjustable stainless legs |
| Shipping Weight | 50 lb (23 kg) |
| Certifications | CE, CSA, NSF |
| Warranty | 1-year limited parts & labor (USA & Canada) |
Installation Notes
- Minimum clearances: 1.5" (38 mm) at sides and rear.
- Field wiring must match local electrical codes and provided rating plate.
- Optional stainless back & bottom panels and purpose-built stands are available.
Need a matching stand or additional Garland Designer Series modules? Chat with our equipment specialists to build the perfect line-up for your kitchen.
