Garland E24-36G E24 Series Electric Griddles
Description
Garland E24-36G Heavy-Duty Electric Griddle – 36"
E24 Series Countertop Griddle, 12 kW, ThermostaticBuilt for demanding, high-volume kitchens, the Garland E24-36G delivers the even heat, rapid recovery and rock-solid durability you expect from a true heavy-duty griddle – all in a space-saving 36-inch width. From breakfast rush to late-night service, count on consistent results across its full-size 3/4" steel plate.
Why You’ll Love It
- 35-5/8" W × 24" D cooking surface – generous capacity without a large footprint

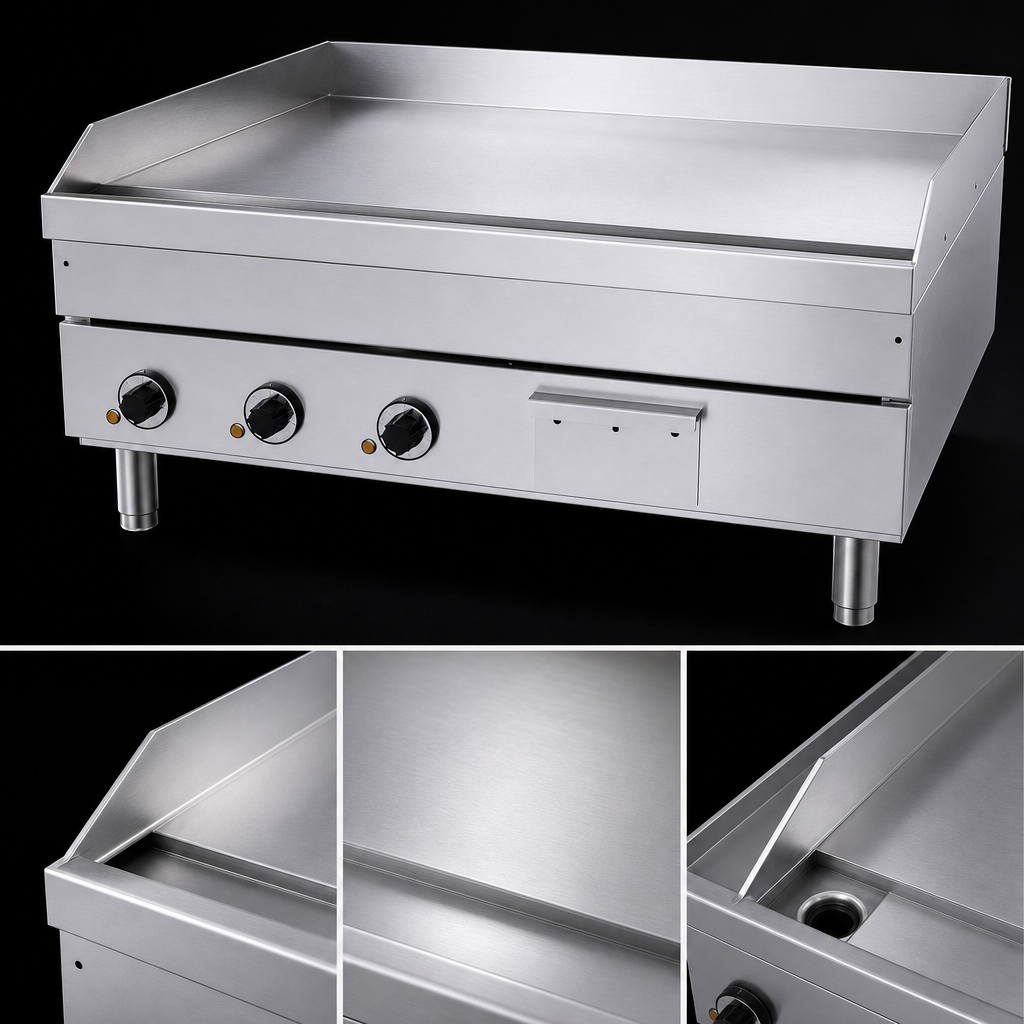

- 3/4" (19 mm) smooth polished steel plate for superior heat retention & uniform browning

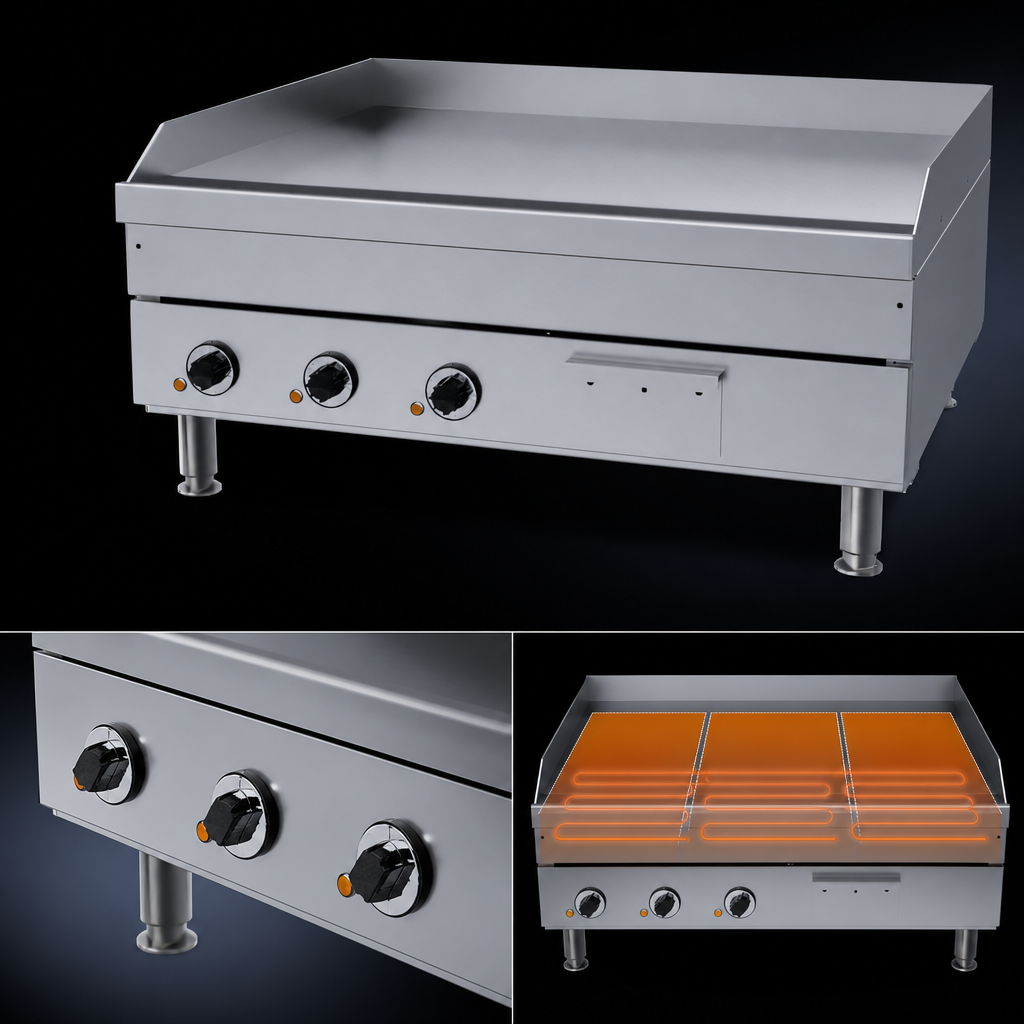

- Independent hydraulic thermostats every 12" (100 °F-450 °F) with recovery signal lights
- 12 kW total input – pressure-clamped tubular elements for rapid preheat & recovery
- Stainless steel front & sides with 4" (102 mm) sanitary legs for easy countertop cleaning
- Wide grease trough & integrated splashguards keep the line tidy and safe
- Field-selectable single- or three-phase wiring at 208 V or 240 V (optional 460 V)
- 1-year parts & labor warranty (USA & Canada)
Typical Hourly Production
| Menu Item | Load/Drop | Per Hour | Test Temp. |
|---|---|---|---|
| 3½ oz (98 g) Beef Patties | 50 | 450 | 350 °F (177 °C) |
| Fried Eggs | 40 | 920 | 300 °F (149 °C) |
| Minute Steaks 4 oz (112 g) | 40 | 400 | 350 °F (177 °C) |
| 4" (101 mm) Pancakes | 46 | 690 | 400 °F (204 °C) |
Technical Specifications
| Model | E24-36G |
|---|---|
| Overall Width | 36" (914 mm) |
| Cooking Surface | 35-5/8" W × 24" D (905 × 610 mm) |
| Plate Thickness | 3/4" (19 mm) polished steel |
| Temperature Range | 100 °F – 450 °F (35 °C – 235 °C) |
| Total Input | 12 kW |
| Electrical (standard) | 208 V or 240 V, single- or 3-phase, field wired 460 V elements available (factory option) |
| Amperage Draw (E24-36G) |
3-Phase @ 240 V: 29 A/leg 3-Phase @ 208 V: 33.5 A/leg Single-Phase @ 240 V: 50 A Single-Phase @ 208 V: 58 A |
| Construction | Stainless steel front & sides, 4" adjustable legs |
| Clearances | 1" (25 mm) sides & rear |
Popular Options & Accessories
- Grooved griddle sections (12" wide inserts)
- Stainless steel back panel
- Matching equipment stand (see form CS24/CSD)
Garland products are engineered for commercial use only and are not approved for residential installation.
