Garland E24-31F E24 Series Electric Fryers
Description

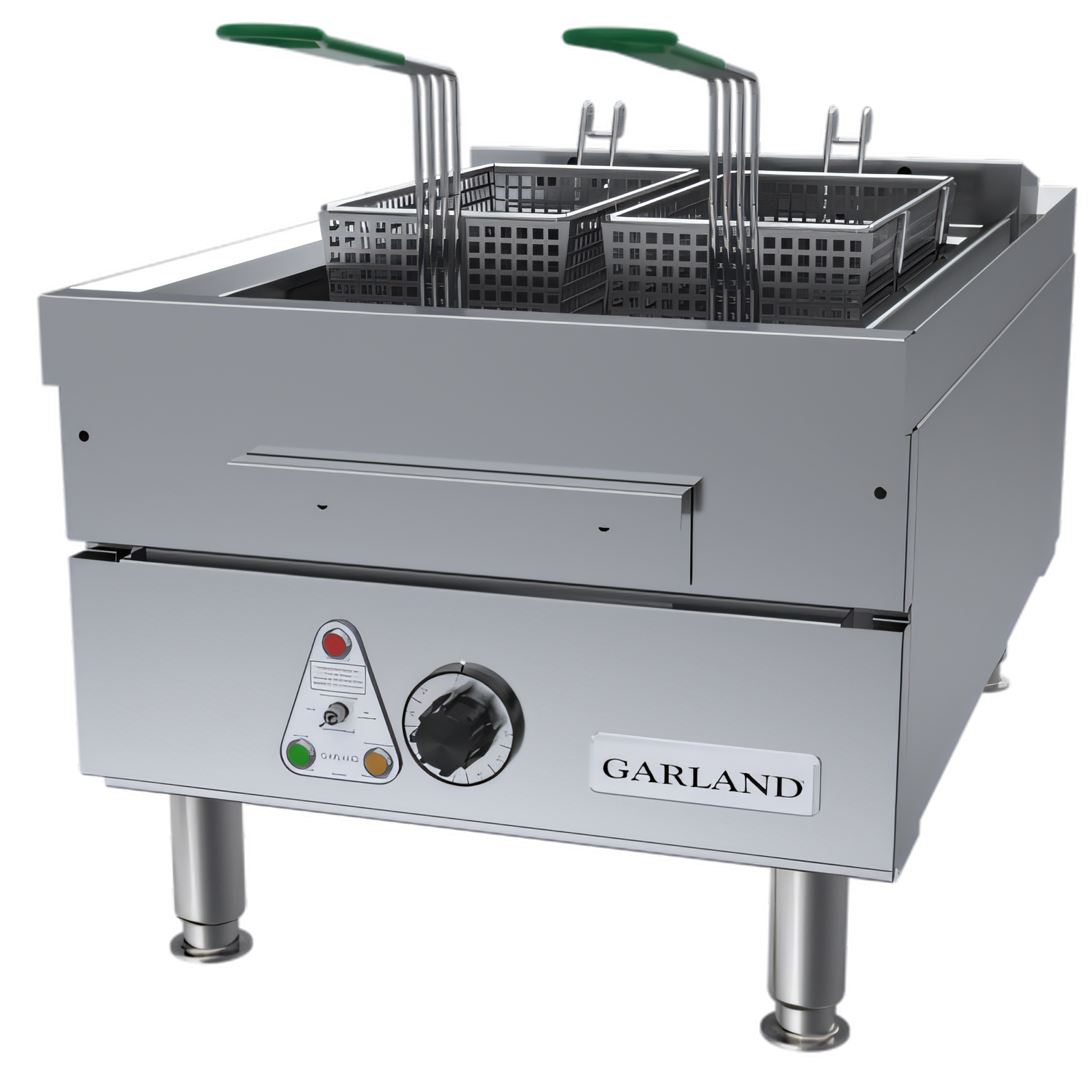

Garland E24 Series Heavy-Duty Electric Countertop Fryer
Model E24-31F | 30 lb Oil Capacity | 12 kWBuilt for demanding quick-service and high-volume kitchens, the Garland E24-31F delivers rapid recovery, rock-solid temperature control, and the rugged construction you expect from Garland. At just 18 inches wide, it slides easily onto a cookline while still turning out up to 88 lb of perfectly crisp fries per hour.
Why You’ll Love It
- Fast Heat-Up: Reaches 350 °F (177 °C) in only 6 ½ minutes to keep service moving.
- 30 lb (13.5 kg) Fry Tank: One-piece, nickel-plated steel tank lifts out for effortless cleaning.
- Twin Nickel-Plated Baskets: Perforated design improves draining and product quality.
- Swing-Up Sheath Elements: Tilt clear of the tank for full access during clean-down.
- Precision Thermostat 200 – 375 °F: Hydraulic control with recovery signal light maintains consistent temperatures.
- Built-In Safety: Fail-safe high-limit shuts the fryer down and flashes a red indicator if an over-temperature condition occurs.
- Stainless Exterior: Front and sides resist corrosion and wipe clean fast.
- 4 in (102 mm) Sanitary Legs: Provide the clearance health inspectors require.
- NSF & CSA Certified: Meets the latest sanitation and safety standards.
- 1-Year Parts & Labor Warranty: Backed by Garland throughout the U.S. and Canada.
Throughput at a Glance
| Product | Load/Batch | Hourly Production* |
|---|---|---|
| French fries – raw | 6 lb / 2.7 kg | 60 lb / 27 kg |
| French fries – frozen blanched | 6 lb / 2.7 kg | 88 lb / 40 kg |
| Chicken – raw | 3.6 lb / 1.6 kg | 36 lb / 16 kg |
| Breaded fish (2 oz/56 g portions) | 3.5 lb / 1.6 kg | 105 lb / 47 kg |
*Production figures are based on laboratory tests and may vary with actual operating conditions.
Specifications
| Oil capacity | 30 lb (13.5 kg) |
|---|---|
| Temperature range | 200 °F – 375 °F (93 °C – 190 °C) |
| Preheat time | 350 °F in 6 ½ min |
| Heating elements | 12 kW swing-up metal-sheath immersion |
| Electrical | 208 V or 240 V; single- or three-phase (specify) |
| Amps @ 240 V | 3-phase 29 A/leg | Single-phase 50 A |
| Amps @ 208 V | 3-phase 33.5 A/leg | Single-phase 58 A |
| Exterior dimensions | 18 w × 29 d × 12-3⁄8 h in (457 × 737 × 314 mm) Add 4 in (102 mm) to height with legs. |
| Shipping weight | 60 lb (27 kg) |
| Certifications | NSF, CSA (cUS) |
Popular Options & Accessories
- Single large basket (replaces twin baskets)
- Additional fry tank with or without 1 in drain valve
- Stainless-steel tank cover
- Perforated fish plate
- 18 in or 24 in equipment stands (see form CS24/CSD)
